Bently Nevada 330101-XX-XX-20-02-CN 3300XL Spare

Bently Nevada 330101-XX-XX-20-02-CN 3300XL Spare: Precision Spare Parts Replacement for Vibration Monitoring Systems

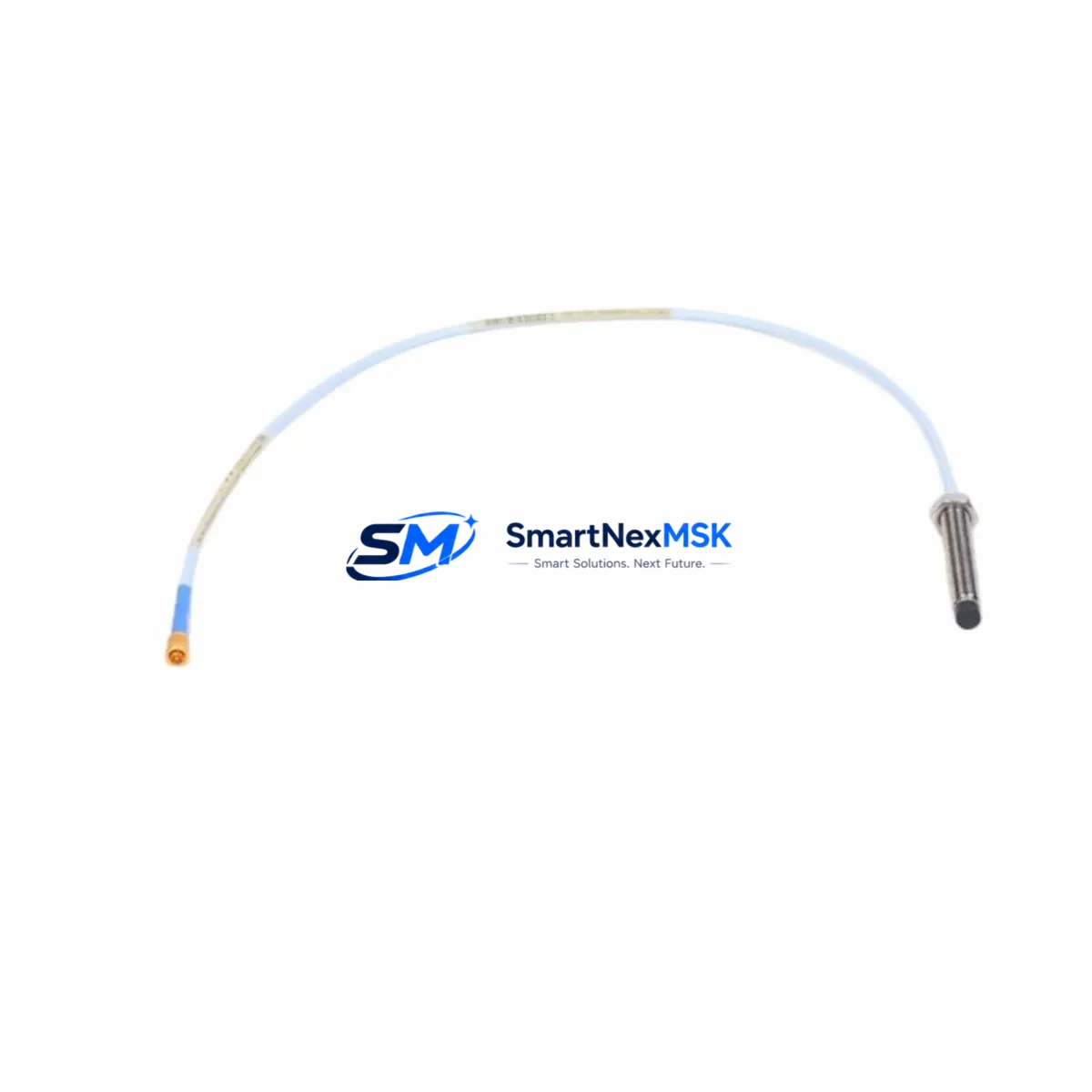

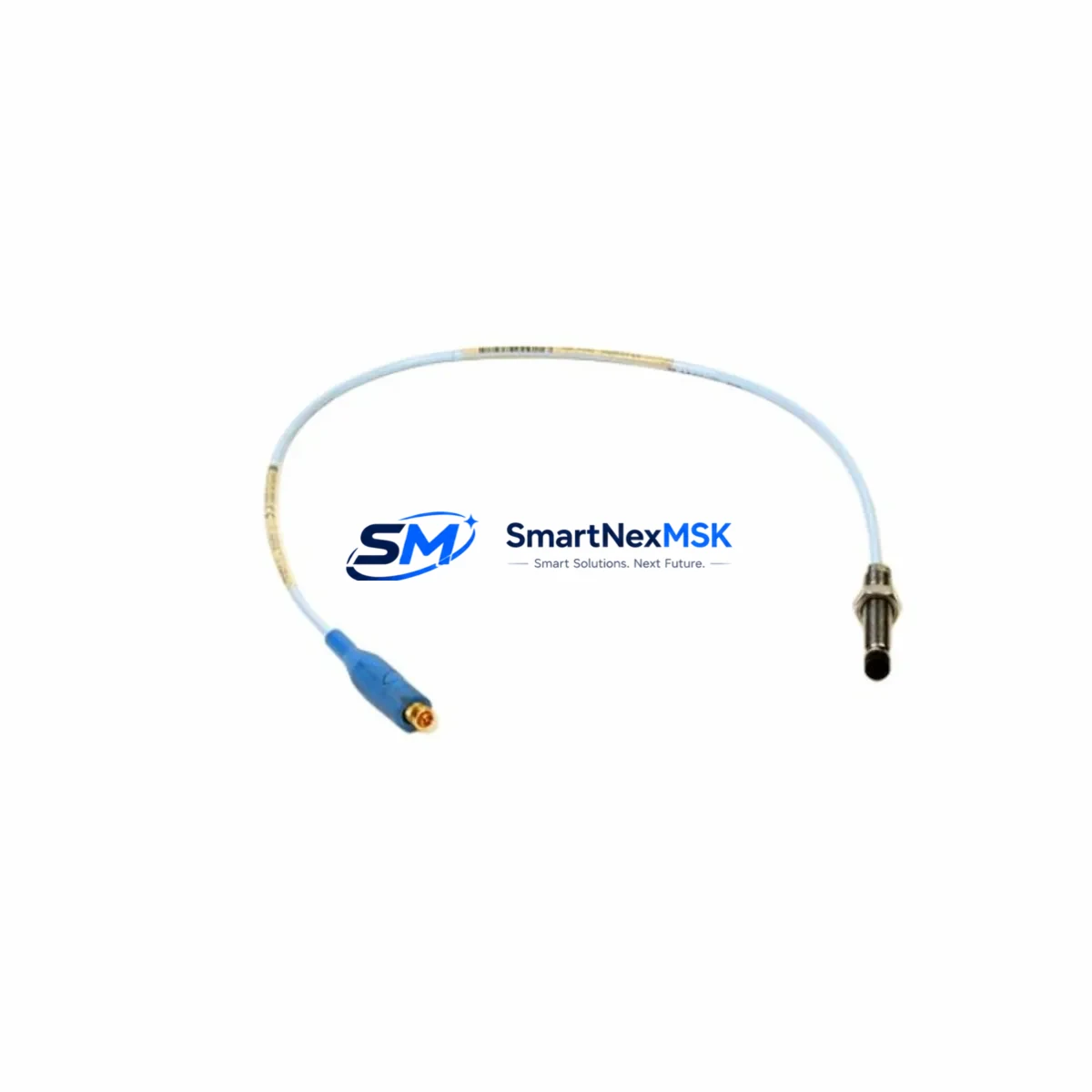

The Bently Nevada 330101-XX-XX-20-02-CN is an 8mm proximity probe engineered for the 3300 XL Series continuous vibration monitoring platform — one of the most widely deployed machinery protection systems in rotating equipment applications worldwide. Whether you are managing a planned turnaround, responding to an unplanned trip, or building a strategic spare parts inventory for a critical compressor train or turbine skid, this probe is a maintenance-ready replacement that restores system integrity without requiring reconfiguration of your existing Bently Nevada monitor rack.

Sourced as an original spare, the 330101-XX-XX-20-02-CN is tested prior to shipment and backed by a 12-month warranty. It is suitable for direct installation in applications where the existing probe cable and extension cable assembly remain serviceable, minimising total downtime during a corrective maintenance event.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330101-XX-XX-20-02-CN probe is flagged for replacement — whether due to a gap voltage drift alarm, physical damage to the probe tip, or a scheduled overhaul interval — maintenance engineers should treat the event as an opportunity to audit the entire measurement chain. The eddy-current measurement loop consists of three interdependent components: the probe itself, the extension cable (e.g. 330130-080-00-CN), and the Proximitor® sensor driver (e.g. 330180-X1-CN). A degraded extension cable or a driver with a shifted bias voltage will produce erroneous readings even after a new probe is installed, so all three should be inspected or replaced as a matched set during any corrective action.

Beyond the measurement chain, the surrounding control cabinet infrastructure warrants systematic inspection. The 3300/16 or 3300/20 monitor module receiving the probe signal should be checked for relay output integrity and alarm setpoint configuration. If the monitor feeds a 3300/25 Thrust Position module on the same rack, verify that the thrust probe gap and alert/danger setpoints remain within specification — a common oversight during single-channel corrective work. The 3300 Rack Power Supply (typically a redundant pair) should be load-tested; a marginal power supply can introduce noise into the Proximitor bias circuit and mimic probe failure symptoms.

For facilities running legacy Bently Nevada 7200 Series probes alongside 3300 XL hardware, confirm that the correct Proximitor driver is matched to each probe family — cross-connection is a documented source of nuisance trips. Wiring terminations at the I/O terminal strip and any signal isolator or barrier modules in the loop should be torque-checked and inspected for corrosion, particularly in humid or offshore environments. If the plant uses a System 1 Evolution or third-party DCS historian to trend vibration data, validate that the channel tag mapping and engineering unit scaling are preserved after the replacement.

Procurement engineers building a strategic spare parts kit for a 3300 XL-protected machine train should consider stocking the following alongside the 330101-XX-XX-20-02-CN probe: matched extension cables, at least one spare Proximitor sensor driver, a replacement rack power supply module, and a set of monitor relay output cards. For critical assets with long lead times, a complete spare monitor module is advisable. Documenting the as-found gap voltage and the as-left gap voltage in the maintenance management system creates a traceable calibration record that supports both reliability analysis and regulatory compliance.

Site Replacement Workflow

Step 1 — Isolation and permit: Coordinate with the control room to bypass or inhibit the affected channel in the 3300 monitor before breaking the probe connection. This prevents a spurious trip during the replacement and ensures the bypass is formally documented in the permit-to-work system.

Step 2 — As-found documentation: Record the existing gap voltage (typically –10 to –18 VDC for an 8mm probe at nominal gap) and note any physical condition findings — probe tip wear, cable jacket damage, or connector corrosion. Photograph the installation before removal.

Step 3 — Matched-set replacement: Install the new 330101-XX-XX-20-02-CN probe with the correct extension cable. Torque the probe to the manufacturer’s specification and verify the cable routing avoids heat sources and mechanical contact points. Reconnect to the Proximitor sensor driver.

Step 4 — Gap setting and verification: Adjust the probe gap to achieve the target bias voltage specified in the machine’s vibration monitoring datasheet (commonly –10.0 VDC ±0.5 VDC for mid-range linear operation). Use a calibrated digital voltmeter at the Proximitor output terminals.

Step 5 — Functional check and reinstatement: With the channel reinstated in the monitor, confirm that the vibration reading is within the expected baseline range for the machine at its current operating condition. Remove the bypass, restore alarm and danger setpoints, and close the permit. Update the CMMS with the replacement record, as-found/as-left gap voltages, and the new probe serial number.

This workflow is applicable to both planned outage replacements and emergency corrective maintenance scenarios. Because the 330101-XX-XX-20-02-CN is a direct form-fit-function replacement for the standard 3300 XL 8mm probe family, no monitor reconfiguration or software parameter change is required, significantly reducing the time from parts receipt to system reinstatement.

Spare Parts Support FAQ

Q1: What is the shelf life and storage recommendation for the 330101-XX-XX-20-02-CN probe?
When stored in its original packaging in a clean, dry environment at temperatures between 0°C and 40°C with relative humidity below 75% (non-condensing), the probe can be held in strategic inventory for up to 5 years without degradation of electrical performance. Inspect the connector and cable jacket for any signs of oxidation or deformation before installation. The 12-month warranty period begins from the date of shipment, not from the date of installation.

Q2: How do I confirm compatibility with my existing 3300 XL system before ordering?
The 330101-XX-XX-20-02-CN is compatible with all standard 3300 XL 8mm Proximitor sensor drivers and monitor modules. Confirm the probe cable length suffix matches your installation geometry. If your system uses a non-standard target material (e.g. titanium or Inconel shaft), contact our technical team with the shaft material specification before ordering, as sensitivity correction factors may apply.

Q3: What pre-shipment testing is performed on each unit?
Every 330101-XX-XX-20-02-CN probe is functionally tested prior to shipment. Testing includes verification of the output sensitivity (mV/mil), confirmation of the linear range, and inspection of the connector and cable assembly for continuity and insulation integrity. A test report is available upon request for quality-critical applications.

Q4: Can this probe replace older or discontinued Bently Nevada 8mm probe models?
Yes. The 330101-XX-XX-20-02-CN is the current production replacement for earlier 3300 XL 8mm probe variants. It maintains backward compatibility with the 3300 XL Proximitor driver and monitor ecosystem. For legacy 7200 Series installations, a system-level compatibility review is recommended before substitution, as the driver electronics differ between the two product families.
