Bently Nevada 330102-00-12-90-02-05 Spare for 3300 XL Automation

Bently Nevada 330102-00-12-90-02-05 Spare for 3300 XL Automation: Precision Spare Parts Replacement for Industrial Downtime Control

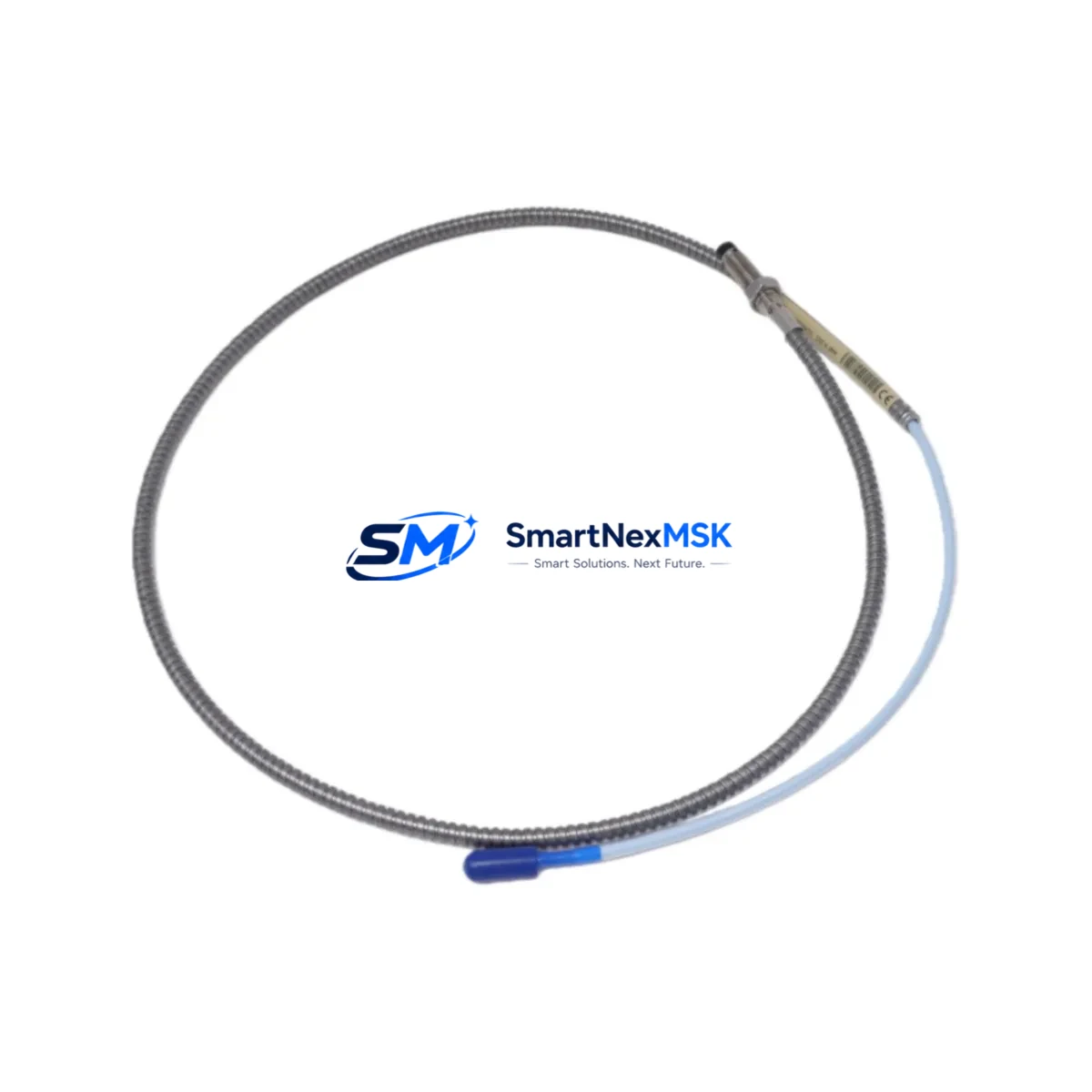

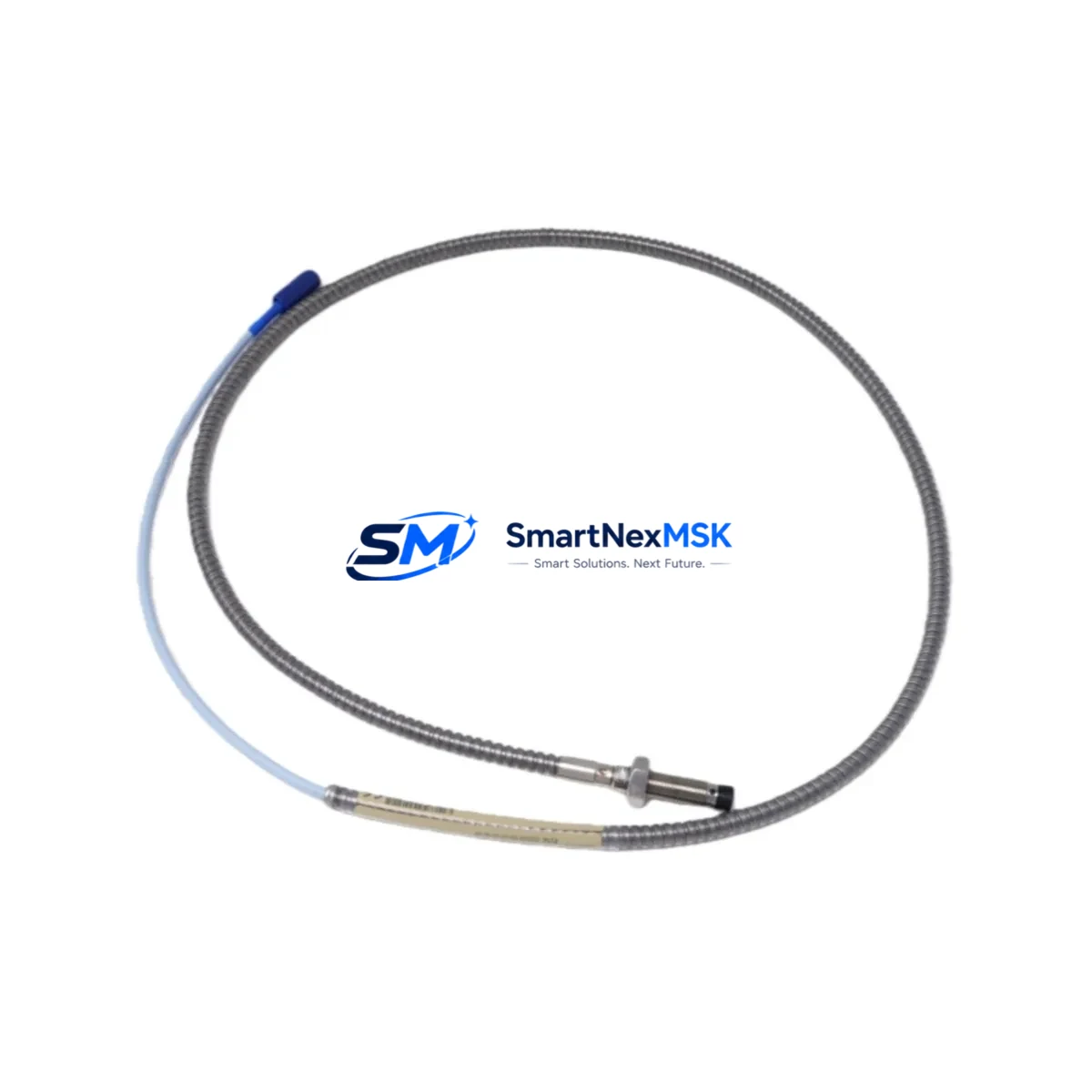

The Bently Nevada 330102-00-12-90-02-05 is an 8mm Eddy Current Proximity Probe engineered for the 3300 XL Proximity Transducer System — one of the most widely deployed vibration and position monitoring platforms in rotating machinery protection. As a maintenance-ready original spare, this probe is stocked and tested to support rapid field replacement, minimizing unplanned downtime in turbines, compressors, pumps, and other critical rotating assets.

For maintenance engineers managing predictive maintenance programs or responding to alarm conditions, having a verified spare of the 330102-00-12-90-02-05 on hand is a fundamental element of any robust spare parts strategy. The 3300 XL system’s sensitivity to probe gap, cable integrity, and signal chain continuity means that a degraded or failed probe must be replaced with an exact-match original — not a generic substitute — to preserve measurement accuracy and system certification.

This probe is supplied as a complete, tested unit with a 12-month warranty, ready for immediate installation. Each unit undergoes functional verification prior to shipment to ensure it meets Bently Nevada’s original performance specifications for sensitivity, linearity, and temperature range.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330102-00-12-90-02-05 proximity probe in the field, a thorough inspection of the surrounding signal chain is essential to ensure the fault is isolated to the probe itself and that the replacement will restore full system performance. Maintenance engineers should treat a probe replacement as an opportunity to audit the entire transducer loop.

Begin by inspecting the 3300 XL Extension Cable (330130 series) for jacket damage, connector corrosion, or continuity faults — extension cable degradation is a common secondary cause of probe signal errors and is frequently overlooked during reactive maintenance. Next, verify the condition of the 3300 XL 8mm Proximitor Sensor (330180), which converts the probe’s electromagnetic signal into a usable voltage output; a failed Proximitor will produce erroneous readings even with a new probe installed.

Check the 3300 XL Monitor (3300/16 or 3300/20 series) for alarm setpoint integrity and channel configuration. If the monitor has been in service for an extended period, inspect the I/O module terminal blocks and wiring harness for loose connections, insulation breakdown, or corrosion — particularly in high-vibration or high-humidity environments. Loose terminations at the monitor rack can introduce noise that mimics probe failure.

For systems integrated with a Bently Nevada System 1 condition monitoring platform, confirm that the channel configuration and probe gap calibration data are updated after replacement. If the control cabinet houses a 3500 series rack alongside the 3300 XL system, cross-check the 3500/42M Proximitor I/O Module for any shared power rail issues that could affect probe bias voltage.

Procurement engineers building a spare parts inventory for 3300 XL-equipped assets should also stock the 330130-080-00-00 extension cable, 330180-91-00 Proximitor Sensor, and a set of 3300 XL connector assemblies and probe tip protectors. For facilities managing multiple rotating machines, maintaining at least one complete transducer loop — probe, extension cable, and Proximitor — per critical asset significantly reduces mean time to repair (MTTR) during unplanned outages.

Additionally, inspect the control cabinet power supply module providing -24 VDC to the Proximitor. A drifting or noisy power supply can cause intermittent probe faults that are difficult to diagnose without a stable reference. Fuse holders and terminal strips within the cabinet should also be checked for oxidation and proper torque.

Site Replacement Workflow

The 330102-00-12-90-02-05 is a direct replacement for earlier 3300 series 8mm proximity probes, including legacy part numbers that may appear in older maintenance records or OEM documentation. Before installation, confirm the probe gap using a calibrated gap tool or oscilloscope to verify the Proximitor output falls within the linear range (typically -10 VDC ± 1 VDC at the nominal gap).

Step 1 — Isolation: De-energize the Proximitor channel and lock out the monitoring system per site LOTO procedures. Do not remove the probe under live conditions.

Step 2 — Removal: Disconnect the extension cable at the probe connector. Remove the probe from the mounting bracket, noting the installed gap measurement for reference.

Step 3 — Installation: Thread the replacement 330102-00-12-90-02-05 into the bracket. Set the probe gap to the OEM-specified value (typically 1.0–1.5 mm for radial vibration applications, per machine OEM documentation).

Step 4 — Reconnection and Verification: Reconnect the extension cable. Re-energize the Proximitor and verify the DC gap voltage at the monitor. Confirm the channel is reading within alarm-free range before returning the machine to service.

Step 5 — Documentation: Record the replacement in the CMMS, update the spare parts inventory, and note the as-found gap measurement for trend analysis.

This workflow supports a controlled, auditable replacement process that minimizes the risk of re-introducing faults and ensures the monitoring system is fully functional before machine restart.

Spare Parts Support FAQ

Q1: Is the 330102-00-12-90-02-05 compatible with both 3300 and 3300 XL series monitors?
The 330102-00-12-90-02-05 is designed for the 3300 XL 8mm transducer system. It is compatible with 3300 XL Proximitor Sensors and monitors. Compatibility with earlier 3300 (non-XL) hardware should be verified against the specific monitor model and channel configuration before installation, as sensitivity and gap calibration parameters may differ.

Q2: What is included in the 12-month warranty, and what does pre-shipment testing cover?
Each 330102-00-12-90-02-05 unit is functionally tested prior to shipment to verify output sensitivity, linearity, and connector integrity. The 12-month warranty covers manufacturing defects and performance deviations from original specifications under normal operating conditions. Units showing physical damage from improper installation or environmental exposure beyond rated limits are not covered.

Q3: How should this probe be stored if it is held as a long-term spare?
Store the probe in its original packaging or an anti-static, moisture-resistant enclosure at temperatures between -40°C and +85°C. Avoid exposure to strong magnetic fields, solvents, or mechanical shock. Inspect the connector and probe tip annually for corrosion or physical damage. Long-term spares should be rotated into service within 3–5 years to ensure reliability.

Q4: Can you supply multiple units for a fleet-wide spare parts program?
Yes. We support bulk procurement for maintenance programs covering multiple assets or plant-wide 3300 XL deployments. Contact our team to discuss quantity pricing, lead times, and consignment stocking arrangements for critical spare parts.
