Bently Nevada 330102-00-13-90-02-00 Safety Probe

Bently Nevada 330102-00-13-90-02-00 Safety Probe for Harsh Industrial Sites

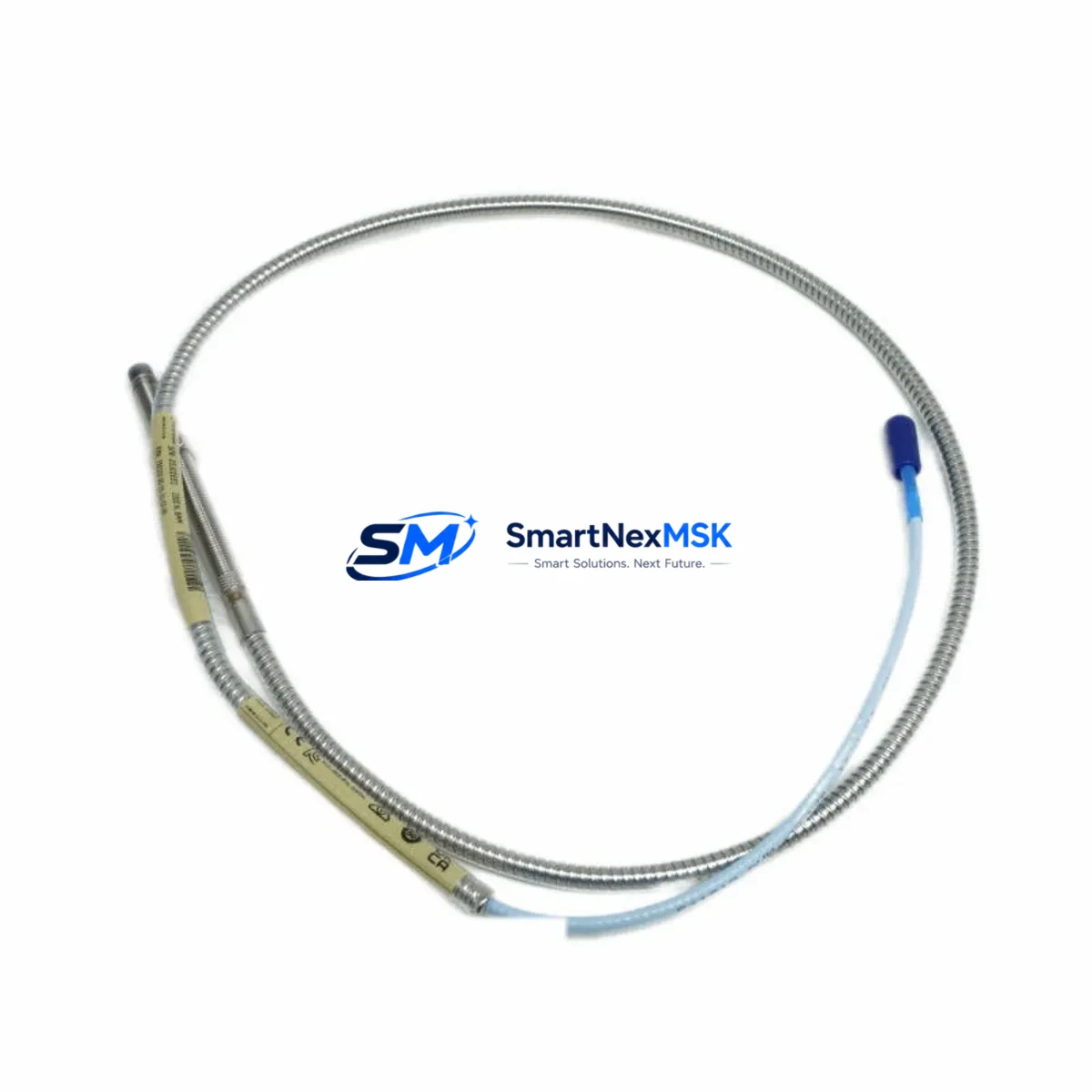

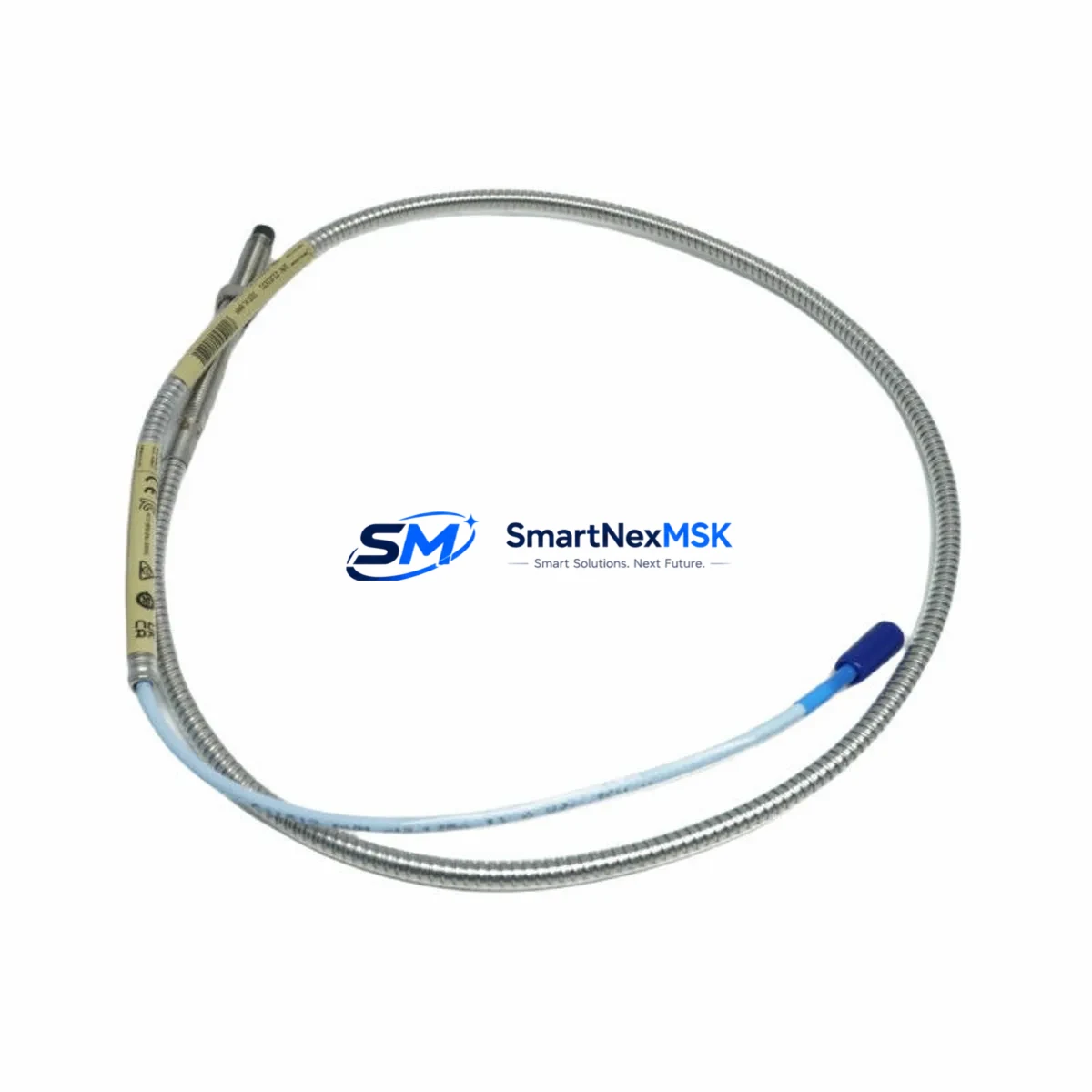

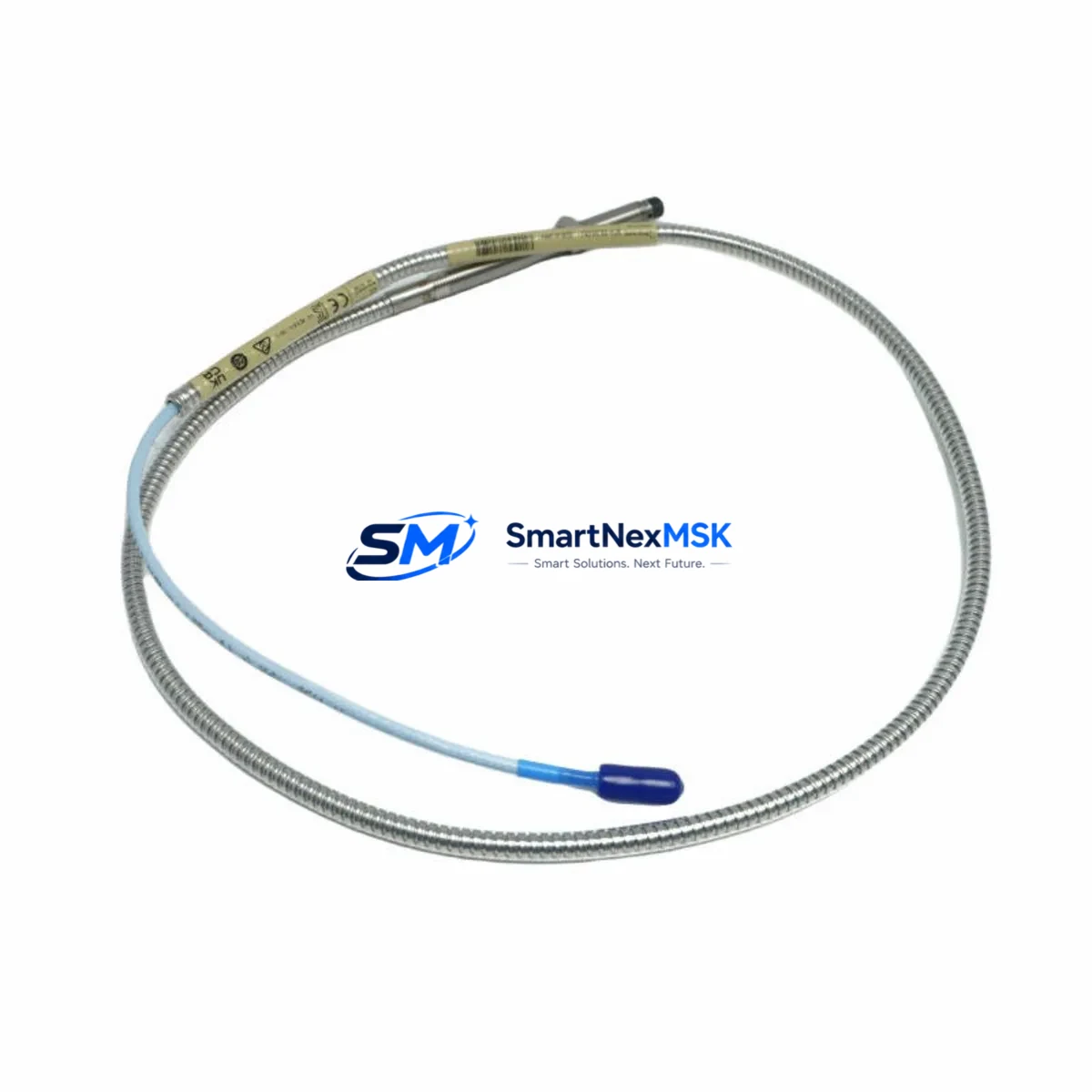

The Bently Nevada 330102-00-13-90-02-00 is an 8mm eddy-current proximity probe engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed as part of the 3300 XL Series system architecture, this probe delivers stable, interference-resistant output signals that form the backbone of reliable machinery protection across petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and port logistics equipment.

In high-load, high-interference production environments, signal integrity is not optional — it is a safety requirement. The 330102-00-13-90-02-00 uses a precision-wound sensing coil and a ruggedized stainless steel housing to maintain consistent gap voltage output even when exposed to electromagnetic interference, mechanical vibration, thermal cycling, and chemical contamination. Its eddy-current operating principle ensures non-contact measurement, eliminating mechanical wear and reducing the risk of sensor-induced control interruptions in critical interlock loops.

When integrated into a 3300 XL monitoring system, this probe works in concert with the 3300 XL Extension Cable, the 3300 XL Proximitor Sensor, and the 3300 XL I/O Module to deliver a complete, calibrated measurement chain. Any degradation in the probe — whether from physical damage, contamination, or aging — can propagate signal drift through the entire chain, triggering false alarms or, more dangerously, masking real machinery faults. Sourcing a verified, factory-specification replacement such as the 330102-00-13-90-02-00 is therefore a direct safety investment, not merely a maintenance action.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the 330102-00-13-90-02-00 within a well-engineered control cabinet protection strategy requires attention to the entire signal path and power architecture. In a typical 3300 XL rack installation, the probe connects through a matched 330130 Series Extension Cable to a 330180 Proximitor Sensor, which in turn feeds conditioned output to a 3500/42M Proximitor Monitor or a 3500/40M Proximitor Monitor housed in a 3500 Rack. The rack itself draws regulated DC power from a 3500/15 Power Supply Module, which must be verified for adequate current capacity when multiple channels are active simultaneously.

In control cabinets serving safety interlock functions — such as emergency shutdown (ESD) systems in petrochemical or power plant applications — the probe signal is often routed to a Safety Manager Module or a dedicated safety PLC input card. Any power supply ripple, ground loop, or cable shield discontinuity in this path can introduce noise that mimics real vibration events, causing nuisance trips or, in worst cases, masking genuine machinery faults. Installing the 330102-00-13-90-02-00 with proper cable routing, separated from high-voltage power conductors, and with verified shield grounding at one end only, is essential to maintaining signal fidelity in these environments.

For cabinets operating in classified hazardous areas (Zone 1 or Zone 2), the probe must be paired with appropriate Zener barrier or galvanic isolator modules to maintain intrinsic safety ratings. The 3300 XL system supports this architecture, and the 330102-00-13-90-02-00 is rated for use in such configurations when installed per Bently Nevada’s system documentation. Surge protection devices installed at the cabinet entry point further protect the Proximitor Sensor and downstream 3500 Series monitor cards from transient overvoltage events common in heavy industrial sites.

Critical Industrial Safety Applications

The 330102-00-13-90-02-00 proximity probe is deployed across a wide range of safety-critical industrial applications where continuous, uninterrupted machinery monitoring is non-negotiable.

In petrochemical and refinery plants, this probe monitors radial vibration and axial thrust position on compressors, pumps, and turbines that operate continuously for months between planned shutdowns. A single undetected bearing failure or shaft misalignment event can result in catastrophic equipment damage, process release, or personnel injury. The probe’s non-contact measurement principle and robust stainless steel construction ensure reliable operation in hydrocarbon-rich, corrosive atmospheres.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the 330102-00-13-90-02-00 is used on steam turbine shafts, generator rotors, and boiler feed pump trains. These machines operate at high rotational speeds where even minor vibration anomalies must be detected and acted upon within milliseconds. The probe’s fast response and stable output make it suitable for overspeed protection circuits where the 3500/53 Overspeed Detection Module relies on accurate proximity signal input.

In mining and mineral processing operations, the probe is installed on ball mills, SAG mills, conveyor drive motors, and slurry pumps operating in high-dust, high-vibration environments. The IP67-rated housing and shielded cable construction protect against ingress of fine particulate matter and moisture, maintaining measurement accuracy over extended service intervals.

In water and wastewater treatment plants, the probe monitors large vertical pump motors and blower units that must operate continuously to maintain process flow. In metallurgical and steel production facilities, it is used on rolling mill drives and continuous casting equipment where thermal gradients and electromagnetic interference from induction furnaces present significant measurement challenges. The 330102-00-13-90-02-00’s eddy-current technology is inherently immune to these interference sources, making it the preferred sensor type in these environments.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330102-00-13-90-02-00?
The 12-month warranty covers all manufacturing defects, functional failures, and calibration deviations from Bently Nevada factory specifications. Each unit undergoes full functional testing and gap voltage calibration verification prior to shipment. If a unit fails to perform within specification during the warranty period under normal operating conditions, we provide replacement or full refund. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q2: How is compatibility with my existing 3300 XL system verified before shipment?
The 330102-00-13-90-02-00 is a direct form-fit-function replacement for all standard 8mm 3300 XL Series probe positions. Before shipment, our technical team verifies the probe’s sensitivity factor (V/mm), cable impedance, and connector type against the 3300 XL system specification. If your installation uses a non-standard extension cable length or a modified Proximitor calibration, please provide your system configuration details at the time of order so we can confirm compatibility and advise on any recalibration requirements.

Q3: Can this probe be installed in a hazardous area (Ex-rated) environment?
Yes. The 330102-00-13-90-02-00 is designed for use in hazardous area installations when paired with appropriate intrinsic safety barriers or galvanic isolators approved for the target hazardous zone classification. The probe itself does not carry an independent ATEX or IECEx rating — the safety rating is achieved at the system level through the combination of probe, extension cable, Proximitor Sensor, and approved barrier device. Our technical team can advise on the correct barrier selection for your specific zone classification and installation requirements.

Q4: What is the lead time and long-term supply availability for this SKU?
The 330102-00-13-90-02-00 is maintained in stock for immediate dispatch. Standard lead time for in-stock units is 3–7 business days for international shipments. For customers requiring long-term supply agreements or blanket purchase orders to support planned maintenance schedules, we offer forward stocking arrangements with guaranteed availability. As a specialist supplier of Bently Nevada 3300 XL and 3500 Series components, we maintain ongoing inventory of related probes, extension cables, Proximitor Sensors, and monitor modules to support your complete system maintenance requirements.
