Bently Nevada 330102-00-24-10-02-00 Safety-Enhanced Proximity Probe

Bently Nevada 330102-00-24-10-02-00 Safety-Enhanced Proximity Probe for Harsh Industrial Control Sites

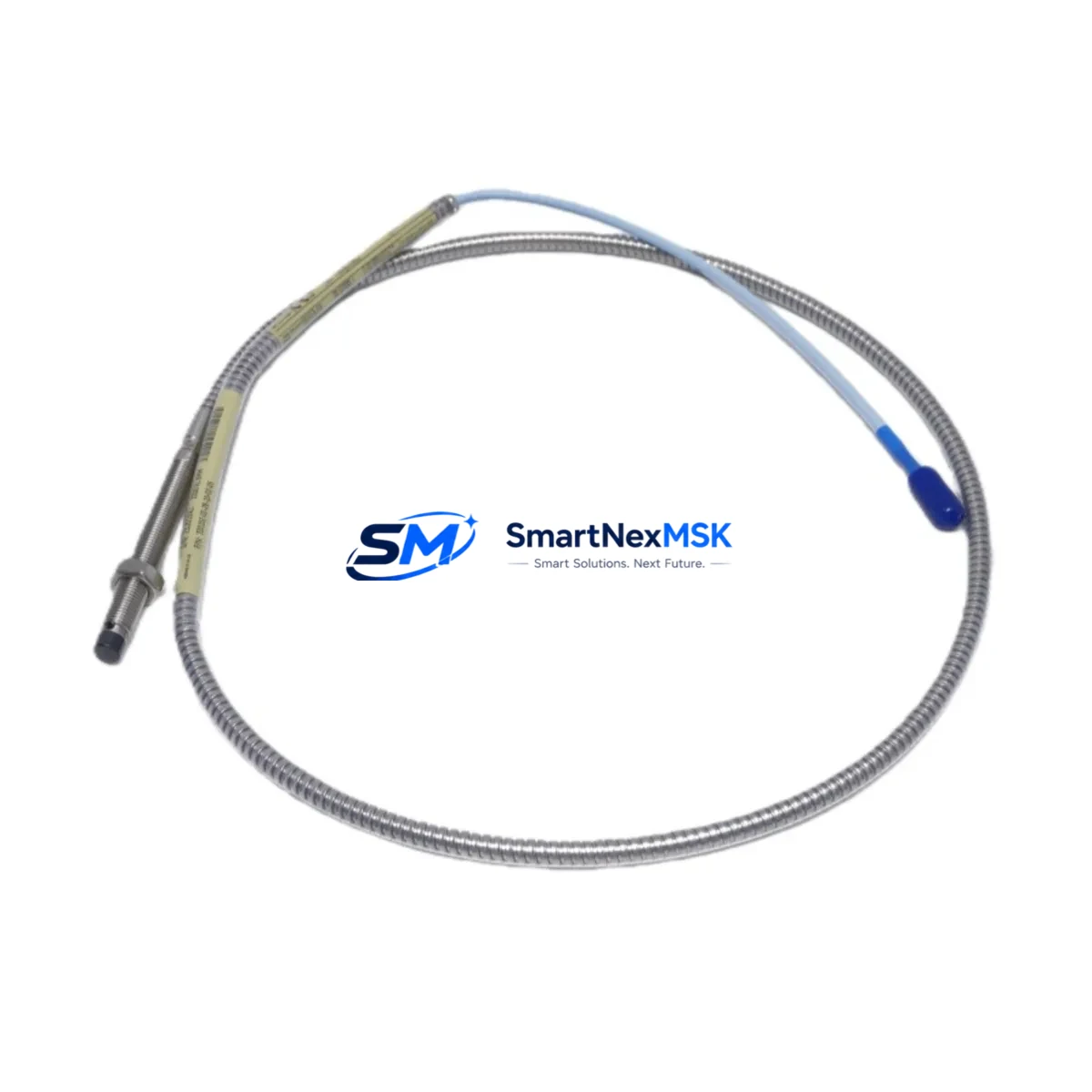

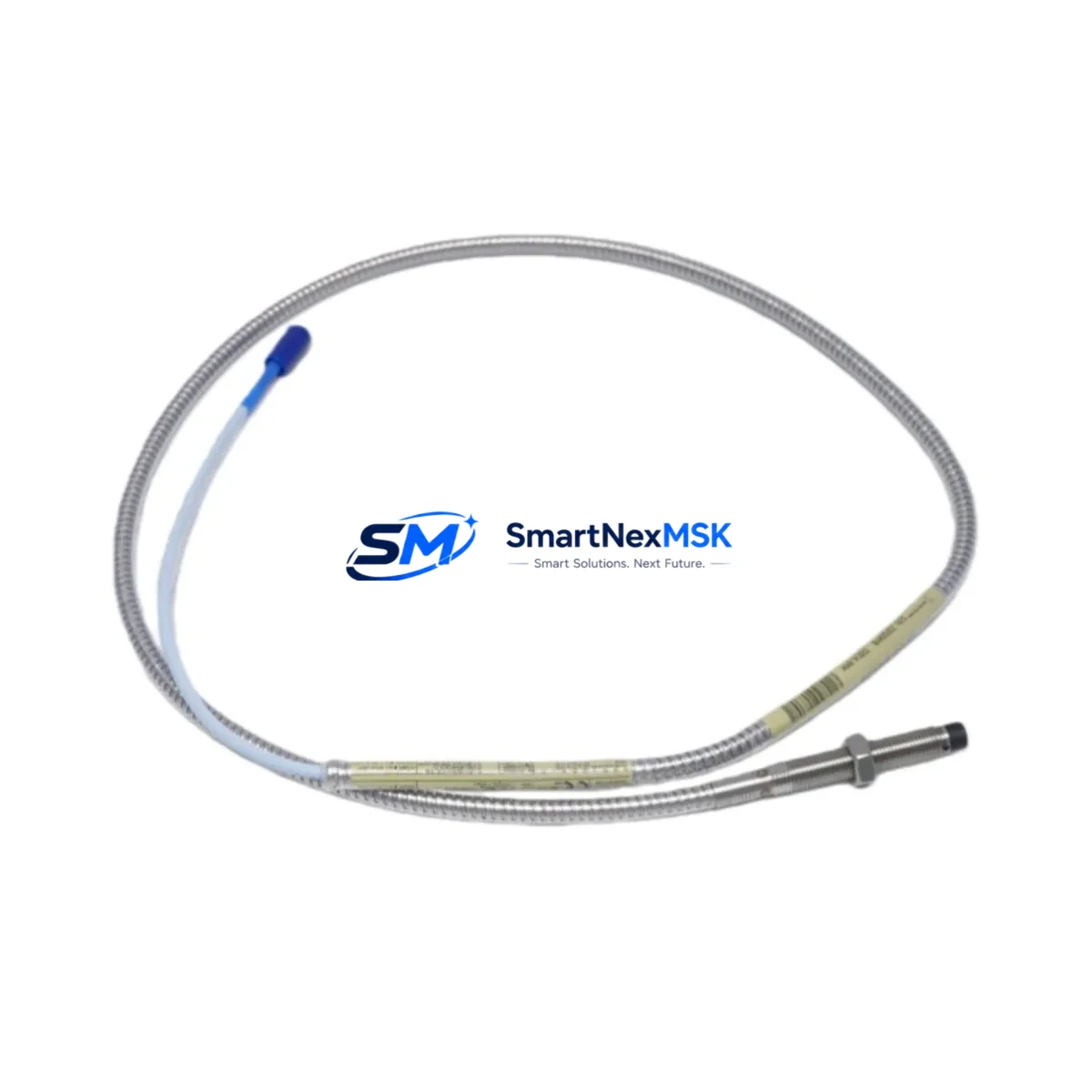

The Bently Nevada 330102-00-24-10-02-00 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high-load rotating machinery, high-interference control cabinets, and hazardous-area installations, this probe delivers the signal integrity and mechanical durability that plant engineers and reliability teams depend on to prevent unplanned shutdowns and protect critical assets.

In petrochemical refineries, power generation turbines, mining hoists, water treatment pump stations, metallurgical rolling mills, port crane drives, and continuous-process manufacturing lines, control interruptions caused by sensor failure can cascade into costly downtime, equipment damage, or personnel safety incidents. The 330102-00-24-10-02-00 addresses these risks directly through its ruggedized stainless-steel housing, EMI-shielded cable assembly, and precision-wound sensing coil — all calibrated to work seamlessly within the Bently Nevada 3300 XL proximitor/driver system.

Safety Reliability Table

Control Cabinet Protection Strategy

Reliable vibration monitoring begins at the sensor, but system-level safety depends on the integrity of the entire signal chain from probe tip to control room. The 330102-00-24-10-02-00 is designed to integrate directly with the Bently Nevada 330180 3300 XL Proximitor Sensor, which conditions the raw eddy-current signal into a calibrated DC voltage output suitable for the Bently Nevada 3500/42M Proximitor Monitor or the 3500/40M Proximitor/Seismic Monitor housed in a 3500 Series rack.

Within the control cabinet, signal integrity is further protected by pairing this probe with Bently Nevada 330130 Series extension cables, which maintain the characteristic impedance of the measurement loop and prevent signal attenuation over long cable runs common in large turbine halls or compressor buildings. For installations subject to severe electrical noise — such as those near variable-frequency drives, large motor starters, or high-current bus bars — the shielded coaxial design of the 330102-00-24-10-02-00 suppresses induced interference that could otherwise cause false vibration readings or nuisance trips.

Power supply stability is equally critical. The 3300 XL system typically operates from a -24 VDC instrument power supply; pairing the monitoring rack with a dedicated, isolated DC power module and surge protection devices (SPDs) on the field wiring terminals prevents transient voltage spikes — common in heavy industrial switchgear rooms — from reaching the proximitor electronics. In safety-instrumented systems (SIS), the probe output may feed a Bently Nevada 3500/22M Transient Data Interface or a safety-rated logic solver, where signal continuity is a hard requirement for SIL-rated interlock loops protecting rotating equipment from overspeed or high-vibration shutdown events.

For installations requiring redundant monitoring — such as API 670-compliant machinery protection on critical compressors or steam turbines — two 330102-00-24-10-02-00 probes are typically mounted in an XY configuration, each connected to independent proximitor channels within the same 3500 rack, ensuring that a single probe failure does not blind the protection system. This architecture, combined with the Bently Nevada 3500/01 System Rack and its built-in self-test diagnostics, provides the layered defense-in-depth that modern functional safety standards demand.

Critical Industrial Safety Applications

Petrochemical & Refinery: Centrifugal compressors, reactor feed pumps, and steam turbine-driven blowers in refineries operate continuously under high shaft loads and process fluid contamination. The 330102-00-24-10-02-00 provides the real-time radial vibration data needed to detect rotor instability, bearing wear, and seal degradation before they escalate to catastrophic failure. Its stainless-steel housing resists corrosive atmospheres containing H₂S, chlorine, and hydrocarbon vapors.

Power Generation: Gas turbines and steam turbines in power plants require API 670-compliant machinery protection. This probe, installed on journal bearing housings, feeds vibration data to the 3500 Series protection rack, enabling automatic trip on high-vibration events and protecting multi-million-dollar rotating assets from damage during grid disturbances or load transients.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to extreme mechanical shock and dust ingress. The IP67-rated 330102-00-24-10-02-00 maintains measurement accuracy in these conditions, providing early warning of mill liner imbalance or pump bearing failure that could halt ore processing lines.

Water & Wastewater Treatment: High-speed centrifugal pumps and blowers in water treatment plants run unattended for extended periods. Continuous vibration monitoring with this probe enables condition-based maintenance scheduling, reducing emergency repair costs and ensuring uninterrupted water supply to municipalities.

Metallurgy & Steel: Rolling mill main drives and continuous caster pinch rolls operate under severe dynamic loads. The ruggedized construction of the 330102-00-24-10-02-00 withstands the high-amplitude mechanical vibration and electromagnetic interference generated by large DC and AC drive systems in steel plant environments.

Port & Heavy Lifting: Crane hoist gearboxes and slewing ring drives in port terminals require reliable condition monitoring to prevent catastrophic failures during cargo handling. This probe provides the shaft displacement data needed to detect gear mesh anomalies and bearing defects in real time.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330102-00-24-10-02-00?
All units are covered by a 12-month warranty from the date of shipment. If the probe fails under normal operating conditions within this period, we provide a free replacement or full refund. Our warranty covers manufacturing defects, calibration drift beyond specification, and cable assembly failures.

Q2: What pre-shipment testing is performed on each unit?
Every 330102-00-24-10-02-00 undergoes a functional verification test prior to shipment, including coil impedance measurement, cable continuity and insulation resistance check, and dimensional inspection of the probe tip and thread. Units that do not meet Bently Nevada factory specifications are quarantined and not shipped. A test report is available upon request.

Q3: Is this probe compatible with existing 3300 XL and 3500 Series installations?
Yes. The 330102-00-24-10-02-00 is a direct drop-in replacement for any 8mm 3300 XL probe in an existing installation. It is fully compatible with the 330180 Proximitor Sensor, 330130 extension cables, and all 3500 Series monitor modules. No recalibration of the proximitor or monitor is required when replacing a like-for-like probe.

Q4: Can long-term supply and spare parts availability be guaranteed?
We maintain standing inventory of the 330102-00-24-10-02-00 and related 3300 XL Series components to support planned maintenance shutdowns, emergency replacements, and multi-unit project requirements. Orders are typically processed and shipped within 1–3 business days. For large-quantity or scheduled delivery requirements, contact our sales team to arrange a supply agreement.
