Bently Nevada 330102-00-24-50-02-00 Safety-Enhanced Proximity Transducer

Bently Nevada 330102-00-24-50-02-00 Safety-Enhanced Proximity Transducer for Harsh Industrial Sites

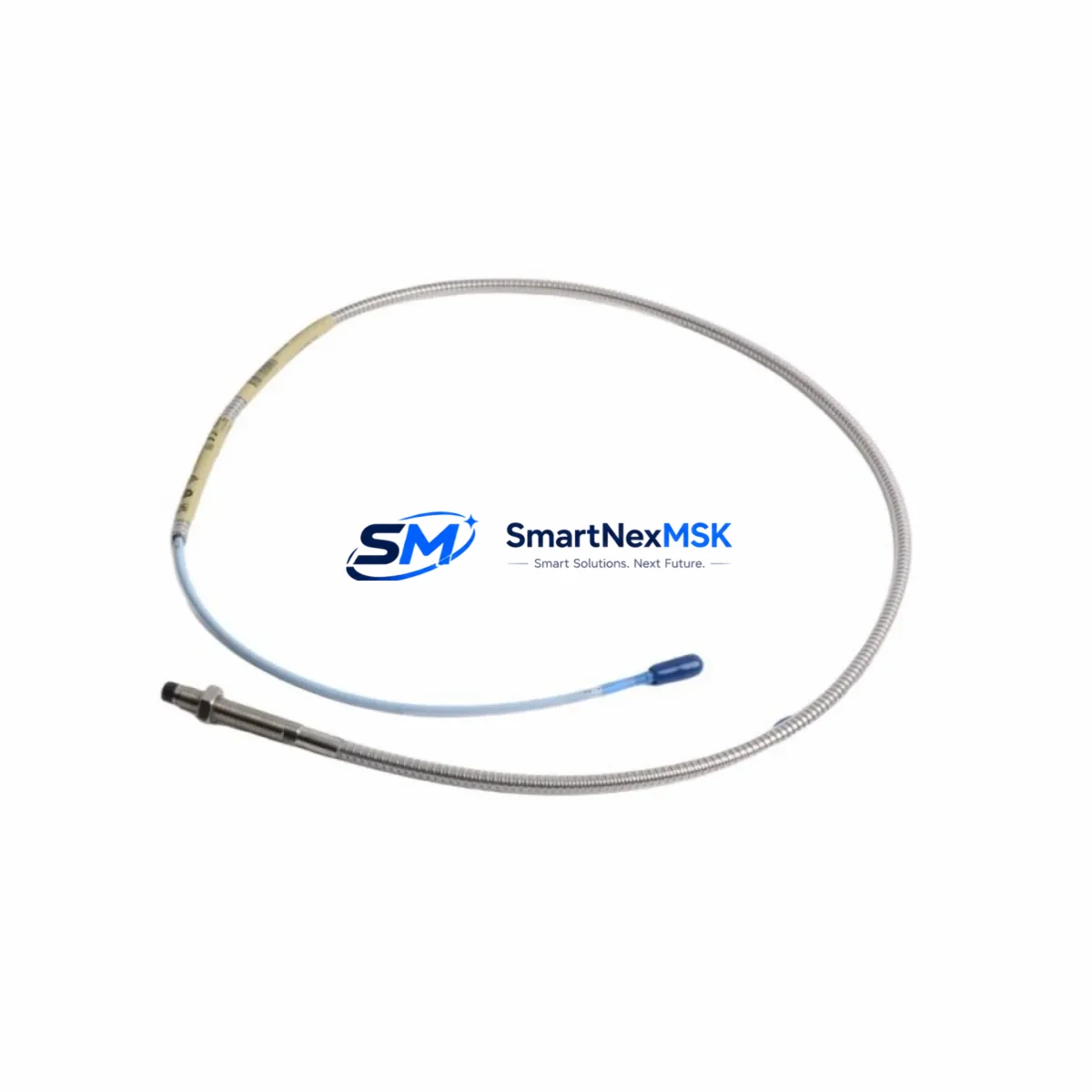

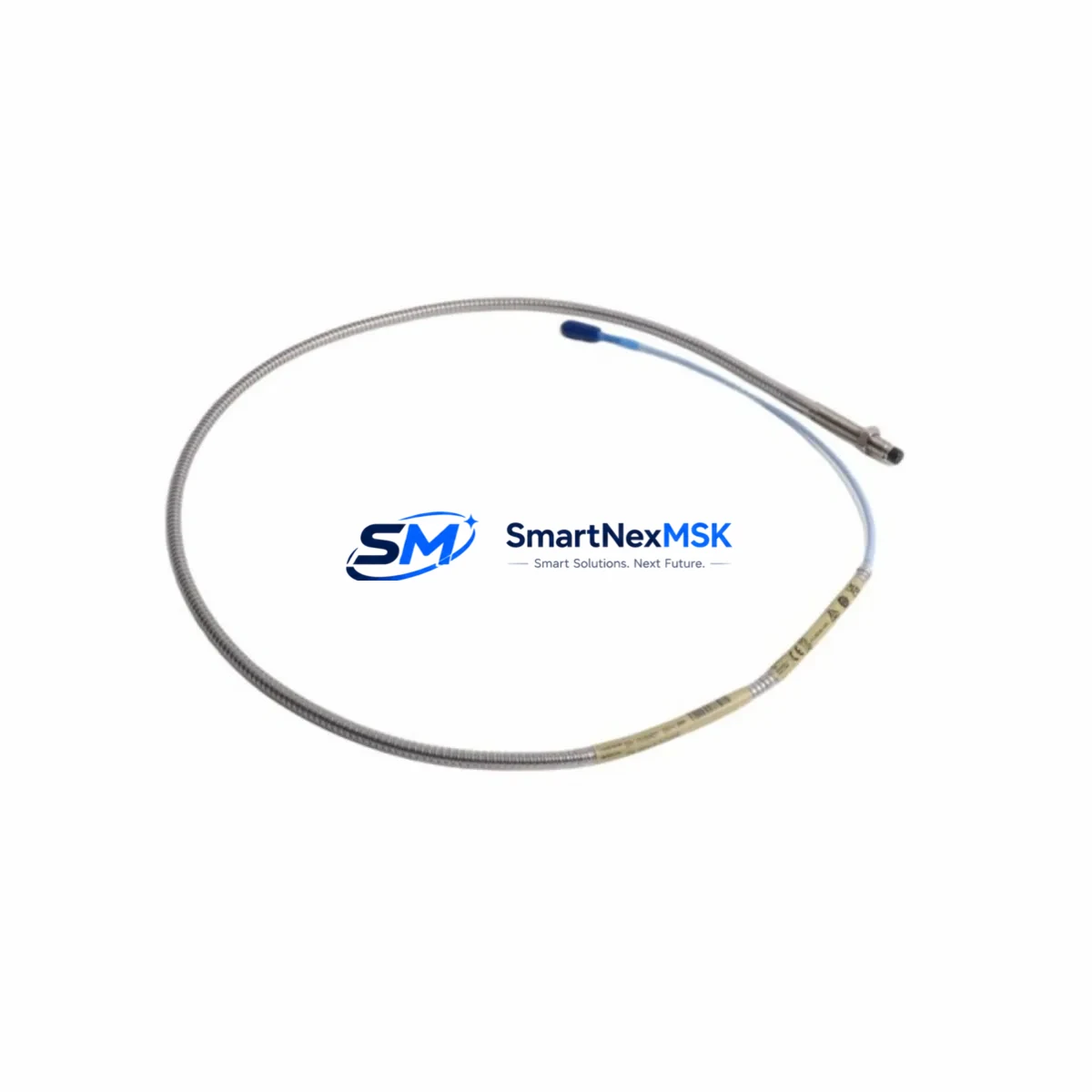

The Bently Nevada 330102-00-24-50-02-00 is an 8mm proximity transducer module from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high-load rotating machinery, heavy interference zones, and hazardous area control cabinets, this transducer delivers the signal integrity and mechanical durability that plant engineers and reliability teams depend on to prevent unplanned shutdowns and protect critical assets.

In petrochemical plants, power generation facilities, mining operations, metallurgical processing lines, and water treatment stations, control interruptions caused by signal drift, electromagnetic interference, or sensor failure can cascade into costly downtime or dangerous process upsets. The 330102-00-24-50-02-00 addresses these risks directly through its ruggedized construction, stable eddy-current sensing technology, and tight output linearity — ensuring that the vibration data feeding your safety interlock systems and condition monitoring platforms remains accurate and uninterrupted under continuous production loads.

Safety Reliability Table

Control Cabinet Protection Strategy

Reliable vibration monitoring begins at the sensor level, but true control cabinet protection requires a coordinated system approach. The 330102-00-24-50-02-00 proximity transducer is designed to work seamlessly within a complete Bently Nevada 3300 XL measurement chain. It pairs directly with the Bently Nevada 330180-X1-05 Proximitor® Sensor, which conditions the raw eddy-current signal into a clean DC voltage output suitable for transmission to the monitoring rack without signal degradation across long cable runs.

Within the control cabinet, the conditioned signal feeds into the Bently Nevada 3500/42M Proximitor®/Seismic Monitor or the 3500/40M Proximitor® Monitor, which provide real-time gap, vibration, and eccentricity measurements with configurable alarm and danger setpoints. These monitors integrate directly with plant DCS and safety instrumented systems via hardwired relay outputs or Bently Nevada 3500/92 Communication Gateway modules supporting Modbus, Profibus, or OPC-DA protocols — ensuring that vibration alarm states are immediately visible to the control room and can trigger protective shutdown sequences without communication latency.

To protect the entire monitoring loop from power-side disturbances, the 3300 XL system should be powered through a dedicated 24 VDC regulated power supply with surge suppression, such as those from the Phoenix Contact QUINT series or equivalent industrial-grade units. Surge events on the power rail are a leading cause of Proximitor® sensor damage and false trips; proper power conditioning upstream of the monitoring rack eliminates this failure mode. Additionally, grounding the coaxial cable shield at a single point — typically at the Proximitor® sensor housing — prevents ground loop currents that can introduce low-frequency noise into the vibration signal and mask real shaft motion events.

For installations in classified hazardous areas (Zone 1 / Division 1), the 330102-00-24-50-02-00 probe must be used in conjunction with approved Bently Nevada 3300 XL Zener Barrier or galvanic isolator assemblies mounted in the safe-area cabinet. These barriers limit the energy that can be transmitted into the hazardous zone, maintaining intrinsic safety compliance while preserving signal fidelity. Pairing the transducer system with a Bently Nevada 3500/22M Transient Data Interface further enhances safety by capturing high-resolution waveform data during startup and shutdown transients — the periods of highest mechanical stress and greatest risk of bearing or seal damage.

Critical Industrial Safety Applications

The 330102-00-24-50-02-00 proximity transducer is deployed across a wide range of heavy industrial sectors where continuous shaft monitoring is a safety and regulatory requirement:

Petrochemical & Refining: Installed on compressor trains, reactor feed pumps, and turbine-driven blowers where API 670 compliance mandates non-contact vibration and position monitoring. The transducer’s resistance to hydrocarbon vapors, high ambient temperatures, and aggressive cleaning agents makes it the preferred choice for these environments. A single undetected bearing failure in a critical compressor can result in a process upset, fire risk, or environmental release — the 330102-00-24-50-02-00 provides the early warning margin that prevents these outcomes.

Power Generation: Used on steam turbine shaft monitoring systems, boiler feed pump drives, and generator bearing housings. In combined-cycle and coal-fired plants, the transducer feeds vibration data to the turbine protection system, enabling automatic trip before catastrophic blade or bearing failure. Its stable scale factor across the full operating temperature range ensures that alarm setpoints remain valid from cold startup through full-load operation.

Mining & Mineral Processing: Applied to SAG mill pinion bearings, crusher drive shafts, and slurry pump impellers operating in high-dust, high-vibration environments. The ruggedized probe tip and shielded cable construction withstand the mechanical abuse and electromagnetic interference generated by large variable-frequency drives and high-current motor starters common in mining electrical rooms.

Metallurgy & Steel Production: Monitors rolling mill drive shafts, continuous caster roll drives, and blast furnace blower trains. The transducer’s ability to operate reliably in the presence of magnetic flux from large transformers and induction heating equipment — without signal corruption — is critical in these environments where alternative sensor technologies frequently fail.

Water & Wastewater Treatment: Installed on large centrifugal pump shafts and blower drives in municipal and industrial water treatment facilities. Continuous shaft position monitoring detects impeller wear and bearing degradation before they progress to seal failure and process contamination — protecting both equipment and water quality compliance.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330102-00-24-50-02-00?
All units ship with a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides post-sale support for installation, commissioning, and troubleshooting throughout the warranty period.

Q2: What pre-shipment testing is performed on each unit?
Every 330102-00-24-50-02-00 transducer undergoes a functional verification test prior to shipment, confirming scale factor output, cable continuity, and connector integrity. Units are inspected for physical damage and packaged in anti-static, shock-protected materials to ensure they arrive in field-ready condition.

Q3: Is this transducer compatible with existing Bently Nevada 3500 Series monitoring racks?
Yes. The 330102-00-24-50-02-00 is fully compatible with the Bently Nevada 3300 XL Proximitor® Sensor ecosystem and integrates with the 3500 Series monitoring platform when used with the appropriate Proximitor® driver. It is a direct replacement for worn or failed probes in existing 3300 XL measurement chains without requiring recalibration of the monitoring rack setpoints, provided the same target material and gap range are maintained.

Q4: Can long-term supply and replacement support be guaranteed?
We maintain standing inventory of the 330102-00-24-50-02-00 and related 3300 XL Series components to support planned maintenance programs, emergency replacements, and capital project builds. Customers with recurring demand can arrange scheduled supply agreements to ensure parts availability without lead-time risk. Contact our sales team to discuss stocking arrangements tailored to your maintenance cycle.
