Bently Nevada 330102-00-35-10-02-CN Retrofit Proximity Probe

Bently Nevada 330102-00-35-10-02-CN Retrofit-Ready Proximity Probe for 3300 XL Control Systems

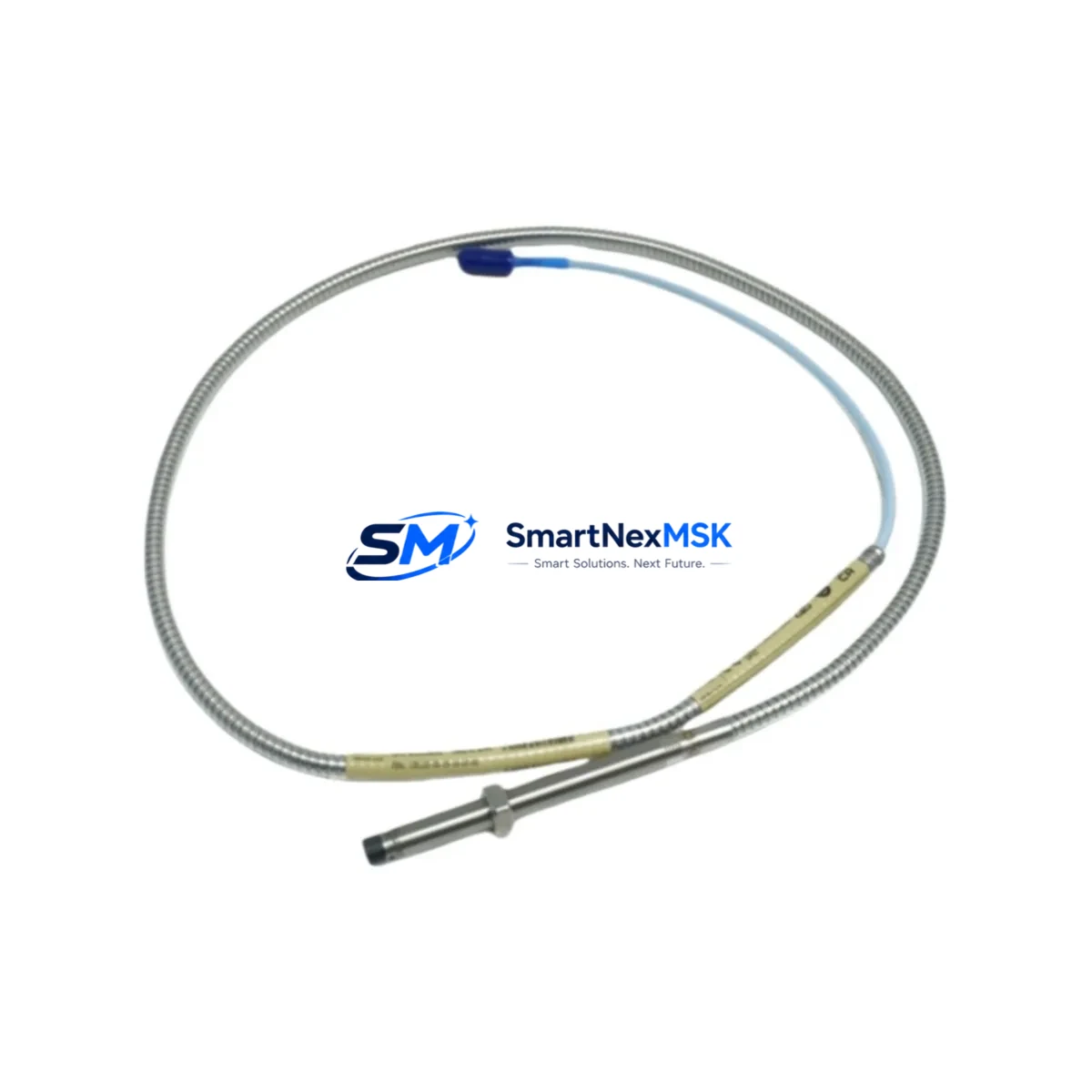

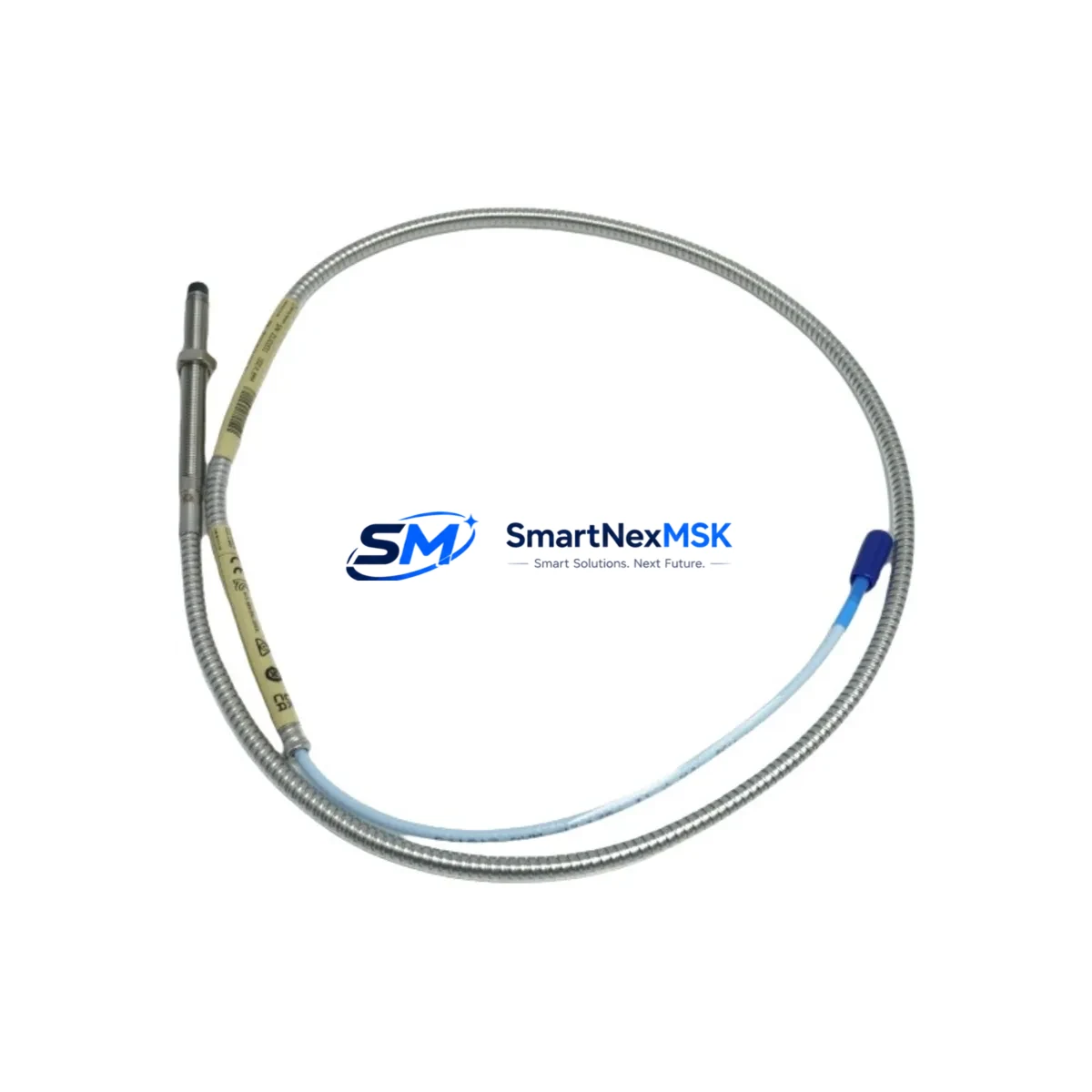

The Bently Nevada 330102-00-35-10-02-CN is a 3300 XL Series eddy-current proximity probe engineered for continuous shaft vibration and position monitoring in rotating machinery. As legacy 3300 Series installations approach end-of-support milestones, this probe serves as the primary retrofit solution for engineers upgrading turbine control panels, compressor monitoring racks, and generator protection systems without replacing the entire monitoring chain. The 330102-00-35-10-02-CN maintains full signal compatibility with the 3300 XL proximitor/seismic monitor, allowing direct substitution in existing cable runs with no re-termination of the 330130-080-00-00 extension cable or the 330180-91-00 proximitor housing.

When planning a retrofit around this probe, engineers must verify the gap voltage calibration range (typically –10 VDC at 50 mil nominal gap), confirm the target material is AISI 4140 or equivalent ferromagnetic steel, and validate that the existing 3300/16 monitor card or 3500/42M proximity monitor is configured for the correct sensitivity factor (200 mV/mil). Mismatched sensitivity settings between the probe and the monitor card are the leading cause of false vibration trips during commissioning after a swap. The 330102-00-35-10-02-CN ships factory-calibrated and includes a calibration certificate traceable to NIST standards.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 330102-00-35-10-02-CN begins well before the maintenance window opens. The first step is a full audit of the existing monitoring rack: identify whether the system uses a 3300/16 dual-channel monitor, a 3500/42M proximitor monitor, or the newer 3500/42E enhanced version. Each accepts the same probe signal, but the 3500/42M and 3500/42E offer additional Modbus RTU and FOUNDATION Fieldbus output options that can be leveraged during a broader DCS migration. If the plant is transitioning from a legacy Honeywell TDC 3000 or Yokogawa CENTUM VP historian to a modern OSIsoft PI or Aspen InfoPlus.21 data layer, the 3500 rack’s digital output cards should be configured before the probe swap to avoid a second outage.

Terminal wiring for the 330102-00-35-10-02-CN follows the standard Bently Nevada color code: the probe body connects to the shield drain, the center conductor carries the –24 VDC supply from the proximitor, and the signal wire returns the gap-voltage output to the monitor card’s input terminal. Engineers replacing probes on a multi-shaft train — for example, a gas turbine driving a centrifugal compressor with an intermediate gearbox — should replace all probes in the same measurement plane simultaneously to maintain balanced vibration baselines across the 3500/42M channels. Mixing a new 330102-00-35-10-02-CN with a worn 330102-00-35-10-00 on the same shaft journal will produce asymmetric gap readings that trigger nuisance alarms during the first run-up.

For I/O expansion projects where the plant is adding new measurement points to an existing 3500 rack, the 330102-00-35-10-02-CN can be paired with a 3500/20 rack interface module and a 3500/92 communication gateway to bring additional vibration channels online without a new rack installation. The 3500/92 supports both Ethernet/IP and Modbus TCP, enabling integration with Allen-Bradley ControlLogix PLCs or Siemens S7-400 controllers that manage the broader plant safety interlock system. When the probe is used in a new measurement point rather than a direct replacement, the 3500/20 must be configured with the correct transducer type and full-scale range before the channel is enabled in the System 1 Evolution condition monitoring software.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe retrofit requires a structured hot-swap protocol. Because the 330102-00-35-10-02-CN is a passive eddy-current device with no onboard firmware, there is no software update or parameter download required after installation — the probe is ready to operate as soon as the gap is set and the OK LED on the 3500/42M illuminates green. This eliminates the firmware compatibility risk that complicates replacements of smart transmitters or HART-enabled field devices.

The recommended sequence is: (1) place the affected monitor channel in bypass mode via the 3500 rack front panel or System 1 software to suppress the trip output while the probe is disconnected; (2) disconnect the 330130-080-00-00 extension cable at the proximitor junction box; (3) remove the old probe from the probe boss using a 3/8-24 UNF probe wrench; (4) install the 330102-00-35-10-02-CN and set the gap to the nominal –10 VDC reading using a calibrated gap-setting tool; (5) reconnect the extension cable and verify the OK LED; (6) confirm the vibration reading is within the historical baseline ±10%; (7) remove the channel bypass and restore normal monitoring. The entire sequence can typically be completed within 45 minutes per probe by a trained instrumentation technician, making it feasible to execute during a short planned outage or a scheduled maintenance window without a full machine shutdown.

For plants operating continuous processes where even a brief bypass is unacceptable, a redundant monitoring configuration using a second 3500/42M channel with a pre-installed spare probe can be activated before the primary probe is removed, maintaining uninterrupted vibration protection throughout the swap. This approach requires pre-wiring the spare probe boss and configuring the redundant channel in the 3500 rack before the maintenance event.

Retrofit Support FAQ

Q1: Is the 330102-00-35-10-02-CN a direct drop-in replacement for the 330102-00-35-10-00?
Yes. The -CN suffix designates the China-market cable jacket specification. The probe tip geometry, sensitivity (200 mV/mil), connector thread (10-32 UNF), and signal output are identical to the standard -00 variant. No monitor reconfiguration, extension cable replacement, or probe boss modification is required for a direct substitution.

Q2: What commissioning checks are required after installation?
After setting the nominal gap (–10 VDC ±0.5 VDC), verify the OK LED on the 3500/42M or 3300/16 monitor is green, confirm the static gap reading in System 1 or the monitor’s front-panel display matches the expected value, and record a vibration baseline at operating speed. Compare the baseline against the pre-replacement trend to confirm the new probe is tracking correctly before removing the channel bypass.

Q3: Does this probe support Modbus or FOUNDATION Fieldbus communication?
The 330102-00-35-10-02-CN is a passive analog probe and does not itself support digital protocols. Digital communication (Modbus RTU, Modbus TCP, FOUNDATION Fieldbus, or Ethernet/IP) is handled by the 3500/42M or 3500/92 gateway module in the monitoring rack. The probe is fully compatible with all 3500 Series racks that support these output protocols.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, signal drift beyond the specified ±1% sensitivity tolerance, connector failure, and cable jacket integrity. It does not cover damage resulting from incorrect gap setting, installation in non-ferromagnetic target materials, or exposure to fluids outside the probe’s rated chemical resistance. Warranty claims are processed with return shipping covered by SMARTNEXMSK for confirmed defective units.
