Bently Nevada 330102-00-40-10-11-05 Safety Proximity Probe

Bently Nevada 330102-00-40-10-11-05 Safety Proximity Probe: Reliable Vibration Monitoring for Harsh Industrial Sites

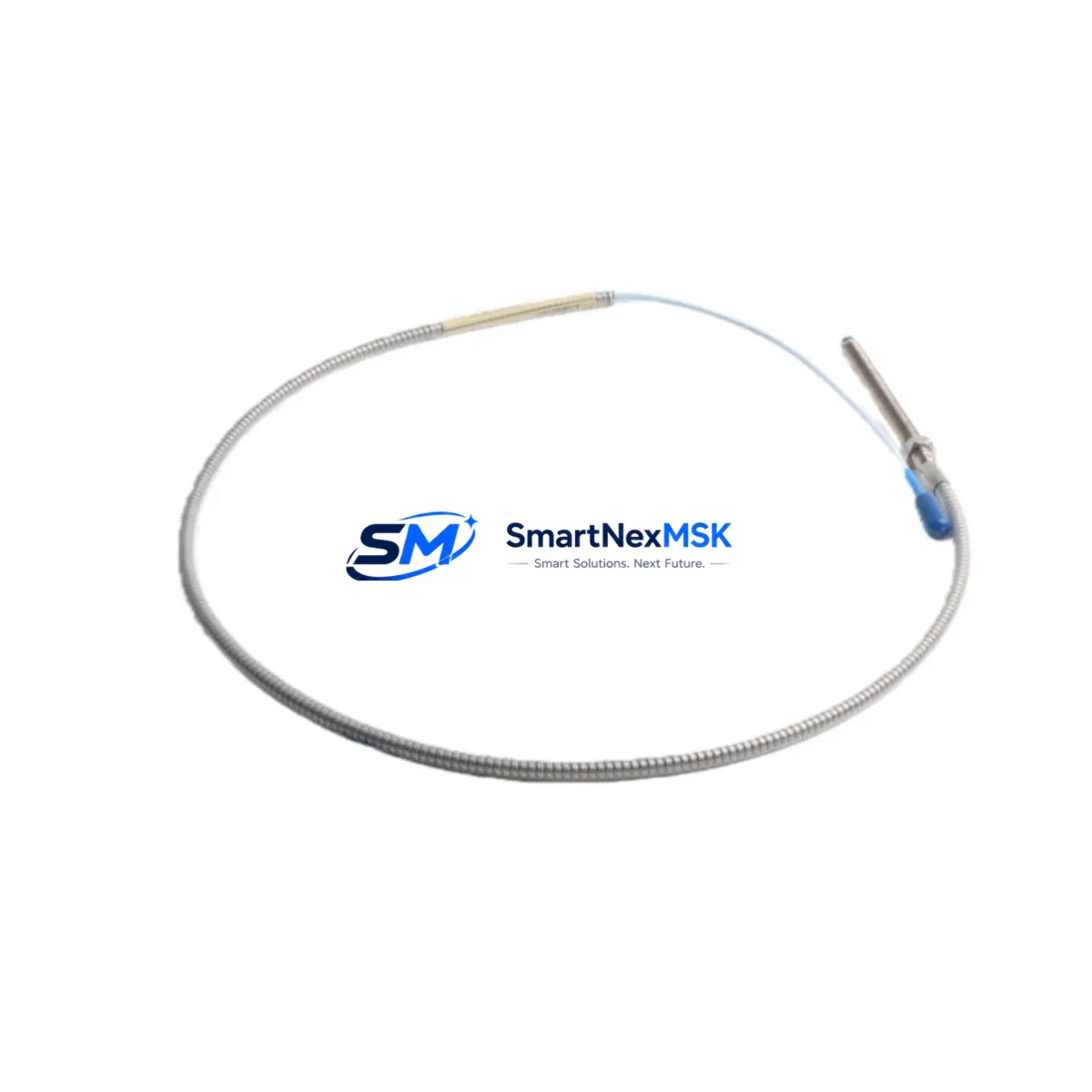

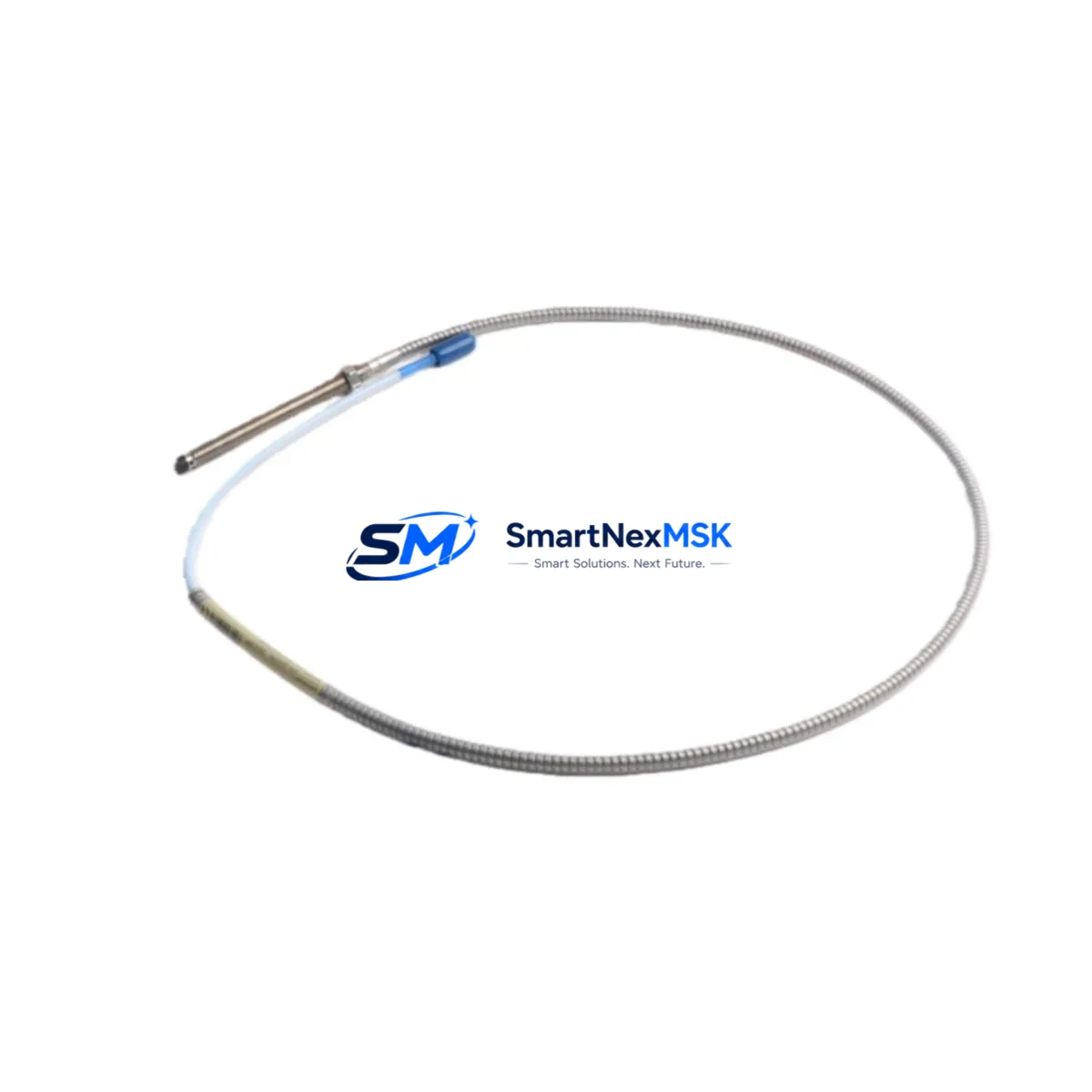

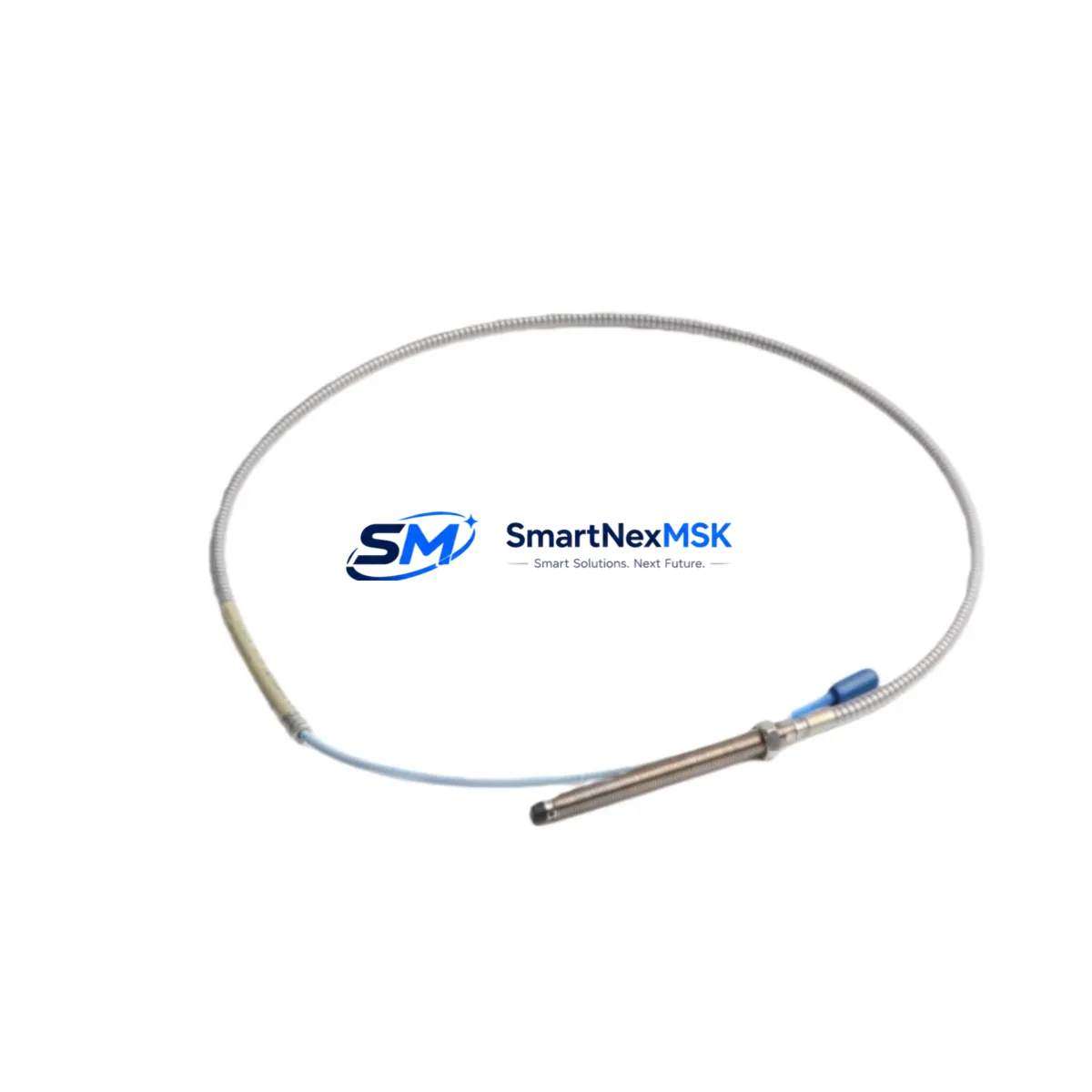

The Bently Nevada 330102-00-40-10-11-05 is an 8mm armored eddy-current proximity probe engineered for the Bently Nevada 3300 XL Monitoring System. Designed to operate continuously in high-vibration, high-temperature, and chemically aggressive environments, this probe delivers the signal integrity and mechanical durability demanded by rotating machinery protection systems in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, and port terminals.

In critical machinery protection loops — where a missed vibration event can trigger unplanned shutdowns, equipment damage, or personnel hazards — the 330102-00-40-10-11-05 provides the measurement accuracy and long-term stability that safety engineers depend on. Its armored cable construction resists mechanical abrasion, oil contamination, and electromagnetic interference from adjacent variable-frequency drives, high-current bus bars, and motor control centers. The probe’s eddy-current sensing principle is inherently non-contact, eliminating mechanical wear and ensuring consistent gap voltage output over years of continuous operation.

When integrated with the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-X1-05 or 330130-040-00-00 extension cable assemblies), the system forms a complete shaft displacement measurement chain. The Proximitor converts the probe’s raw impedance signal into a calibrated DC voltage, which feeds directly into the 3500/42M Proximitor I/O Module or the 3500/40M Proximitor/Seismic Monitor for real-time alarm and trip processing. Maintaining signal chain integrity from probe tip to rack output is essential: any impedance mismatch, cable damage, or connector corrosion introduces measurement error that can mask developing faults or generate spurious trips.

In high-interference environments — particularly near large synchronous motors, arc furnaces, or high-frequency switching power supplies — the 330102-00-40-10-11-05’s shielded coaxial cable and precision-wound sensing coil minimize signal drift caused by external electromagnetic fields. This is especially critical in continuous process industries where the 3500 Rack System must maintain API 670 compliance and where false trips carry significant production cost penalties.

For power supply stability within the control cabinet, the probe system relies on clean, regulated DC power delivered by the 3500/15 Power Supply Module. Surge events on the plant power bus — common near large motor starts or capacitor bank switching — can couple into the monitoring rack and corrupt proximity measurements. Pairing the rack with a dedicated Bently Nevada 3500/05 System Rack and surge-protected power distribution ensures the probe’s Proximitor operates within its specified supply voltage window at all times.

In safety instrumented systems (SIS) and emergency shutdown (ESD) architectures, the 330102-00-40-10-11-05 is frequently deployed as the primary sensing element in overspeed detection and high-vibration trip loops. Its output integrates with Triconex Safety Controllers or Rockwell Automation GuardLogix PLCs via the 3500 rack’s relay output modules, providing the hardwired trip signal required by IEC 61511 functional safety standards. Correct probe installation — including proper gap setting, cable routing away from high-voltage conductors, and grounding at a single point — is mandatory to achieve the required SIL performance.

Field replacement of a worn or damaged proximity probe must be executed without interrupting the protection system’s monitoring function. The 330102-00-40-10-11-05’s standard 8mm thread and 5-meter armored cable length (with the -05 suffix designating cable length) allow direct substitution in existing probe holders without mechanical modification. After installation, the gap voltage must be verified against the Proximitor’s calibration curve — typically –10 VDC at the nominal air gap — before the channel is returned to service. Keeping verified spare probes in stock eliminates the lead-time risk associated with sourcing replacement parts during an unplanned outage.

Every 330102-00-40-10-11-05 unit supplied by SMARTNEXMSK undergoes pre-shipment functional testing: coil resistance measurement, insulation resistance verification, and gap voltage calibration check against a reference Proximitor. Units are shipped in anti-static packaging with a test report. A 12-month warranty covers manufacturing defects and performance deviations from Bently Nevada specifications. Long-term inventory availability is maintained to support planned maintenance schedules and emergency replacement requirements.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust rotating machinery protection cabinet built around the Bently Nevada 3500 Rack System integrates multiple interdependent components. The 330102-00-40-10-11-05 proximity probe anchors the shaft displacement measurement chain, working in tandem with the 330180-X1-05 Proximitor Sensor to deliver calibrated gap voltage to the 3500/42M Proximitor I/O Module. Rack power is conditioned by the 3500/15 Power Supply Module, which provides regulated, surge-protected DC rails to all monitor cards. For phase reference and speed measurement in overspeed protection loops, a 330130-040-00-00 extension cable paired with a dedicated keyphasor probe feeds the 3500/25 Keyphasor Module.

Communication between the 3500 rack and the plant DCS — typically a Honeywell Experion PKS or Emerson DeltaV system — is handled via the 3500/92 Communication Gateway Module, which supports Modbus TCP and OPC-DA protocols. For hardwired ESD integration, the rack’s relay output modules connect directly to the Triconex 3700A Safety Controller or equivalent SIS logic solver. Surge protection on all field cable entries is provided by dedicated transient voltage suppressors mounted on the cabinet’s terminal rail, preventing lightning-induced or switching transients from reaching the sensitive Proximitor input circuits. Periodic verification of the complete measurement chain — from probe gap voltage through to DCS alarm display — is essential to maintain the system’s functional safety integrity level.

Critical Industrial Safety Applications

The 330102-00-40-10-11-05 is deployed across the most demanding continuous-process industries. In petrochemical and refinery facilities, it monitors shaft radial vibration on centrifugal compressors, reactor feed pumps, and steam turbine-driven trains where API 670-compliant protection is mandatory. In power generation plants, it provides the primary vibration signal for turbine-generator sets, where a trip delay of even a few milliseconds can determine whether a rotor survives a fault event. In mining and mineral processing operations, the probe’s armored construction withstands the high-dust, high-vibration environment of SAG mill drives and slurry pump trains. Water and wastewater treatment facilities rely on it for continuous monitoring of large vertical turbine pumps and blower trains that must operate without interruption. In metallurgical and steel mill environments, the probe’s high-temperature rating allows installation near hot strip mill drive trains and continuous caster roll drives. Port and bulk terminal operators use it on ship unloader drives and conveyor head-end drives where unplanned downtime directly impacts vessel turnaround schedules.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The warranty covers all manufacturing defects and performance deviations from Bently Nevada’s published specifications for the 330102-00-40-10-11-05. If the probe fails to meet its specified scale factor, linear range, or insulation resistance within 12 months of shipment, SMARTNEXMSK will provide a replacement unit at no charge. Damage caused by incorrect installation gap, cable crush, or exposure beyond the rated temperature range is excluded.

Q2: What pre-shipment testing is performed?
Each unit undergoes coil resistance measurement (verified against the nominal 330102-series specification), insulation resistance testing at 500 VDC, and functional gap voltage calibration against a reference 330180-series Proximitor. A test report is included with every shipment. Units that do not pass all three checks are quarantined and not offered for sale.

Q3: Is this probe compatible with existing 3300 XL and 3500 system installations?
Yes. The 330102-00-40-10-11-05 is fully compatible with all Bently Nevada 3300 XL Proximitor Sensors and the 3500 rack monitor cards that accept standard 8mm probe inputs. The –11 connector suffix indicates the standard MIL-spec connector used across the 3300 XL probe family, ensuring direct plug-in replacement without adapter cables or recalibration of the Proximitor’s scale factor setting.

Q4: Can long-term supply be guaranteed for planned maintenance programs?
SMARTNEXMSK maintains standing inventory of the 330102-00-40-10-11-05 and related 3300 XL series components to support annual turnaround planning and emergency replacement requirements. Customers with multi-unit or multi-site requirements are encouraged to contact our sales team to discuss blanket order arrangements and reserved stock allocation.
