Bently Nevada 330102-00-40-50-02-00 Spare for 3300 XL Automation

Bently Nevada 330102-00-40-50-02-00 Spare for 3300 XL Automation: Precision Spare Parts for Industrial Downtime Control

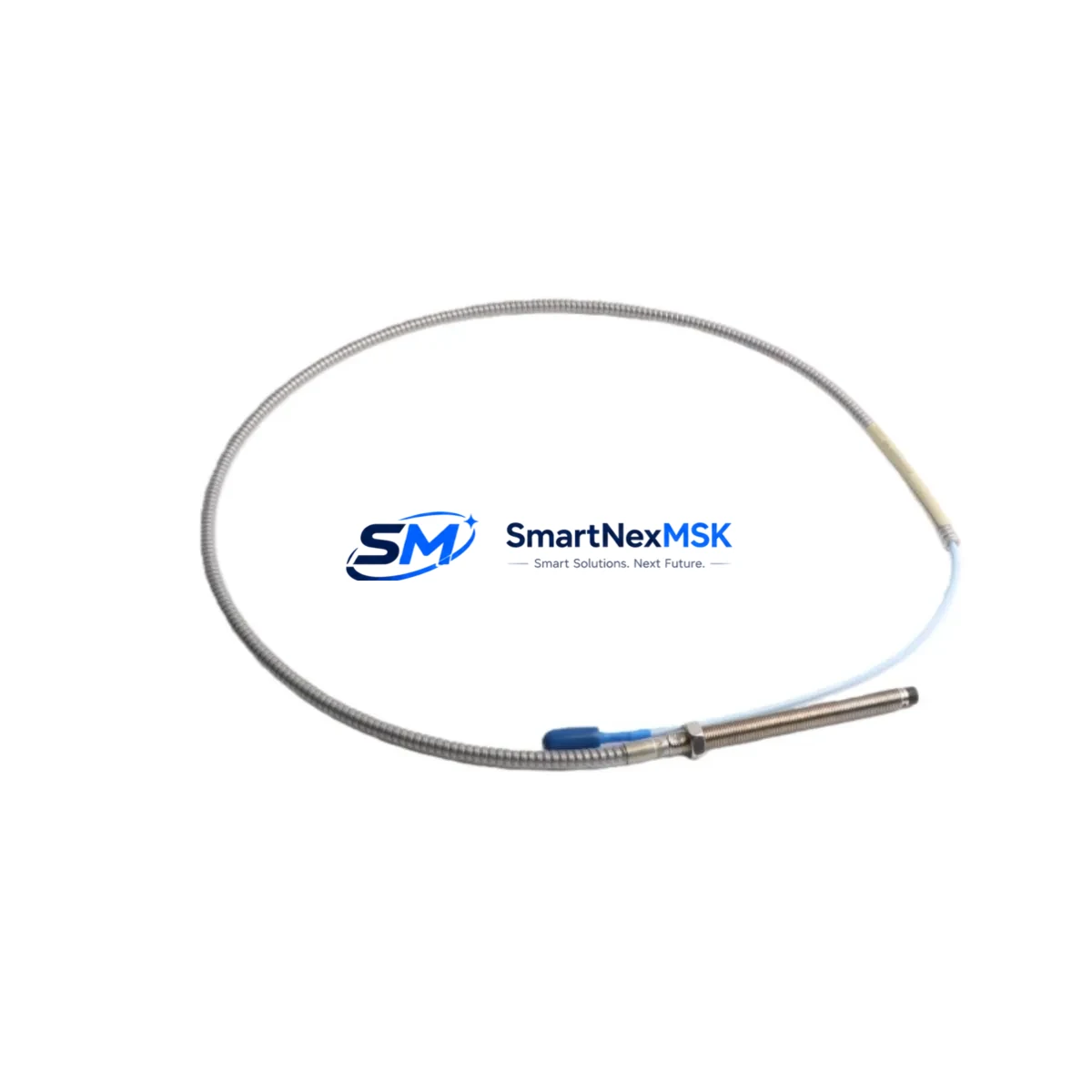

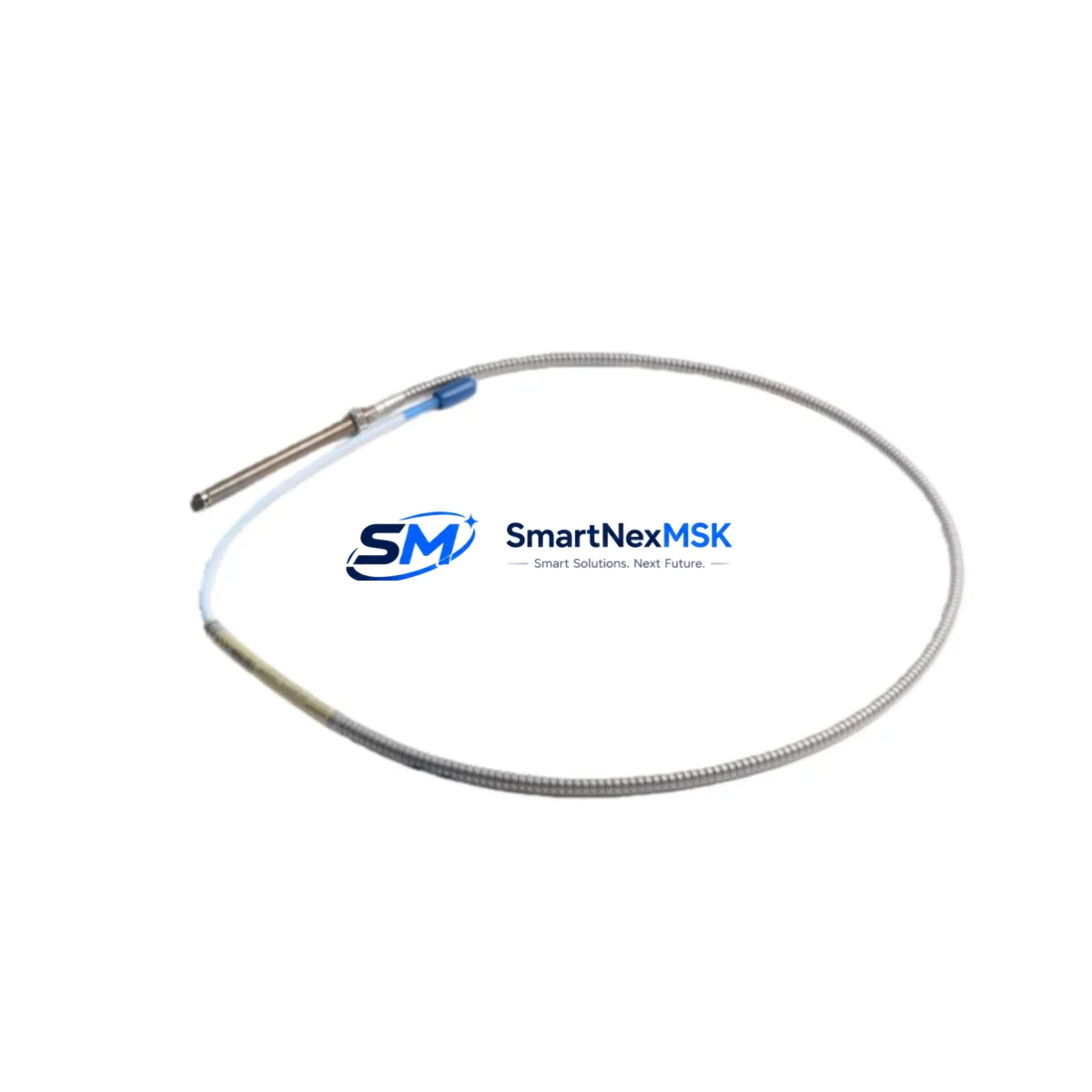

The Bently Nevada 330102-00-40-50-02-00 is an original 8mm eddy current proximity probe engineered for the 3300 XL Series continuous machinery monitoring system. Designed for high-reliability rotating machinery applications — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — this probe delivers precise radial and axial vibration measurement critical to predictive maintenance programs and unplanned shutdown prevention.

For maintenance engineers managing aging turbomachinery or DCS-integrated monitoring systems, sourcing a verified original spare for the 3300 XL platform is non-negotiable. Counterfeit or incompatible probes introduce measurement drift, false alarms, and — in worst cases — missed trip thresholds that lead to catastrophic equipment failure. The 330102-00-40-50-02-00 is supplied as an original Bently Nevada component, tested prior to dispatch, and backed by a 12-month warranty covering manufacturing defects and functional performance.

Whether you are executing a planned turnaround, responding to a probe failure alarm, or building a strategic spare parts inventory for a critical asset, this component ships ready for immediate installation with full traceability documentation available on request.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330102-00-40-50-02-00 probe in the field, a disciplined maintenance engineer will treat the replacement as an opportunity to inspect the entire transducer loop — not just the probe tip. The 3300 XL proximity transducer system is a three-component chain: probe, extension cable, and driver (proximitor). A fault in any one element produces identical symptoms at the monitoring system output, so isolating the failed component before ordering spares is essential.

Begin by inspecting the 330130-series extension cable for jacket damage, connector corrosion, or kinking near the bearing housing penetration. Extension cables are frequently overlooked during probe replacements and are a common source of intermittent signal faults. Next, verify the 330180-series proximitor/driver module output voltage at the OK relay terminal — a reading outside the -10 to -18 VDC window at nominal gap indicates driver degradation rather than probe failure.

At the rack level, confirm that the 3300/16 or 3500/42 vibration monitor card is correctly configured for 8mm probe sensitivity (7.87 V/mm). Incorrect channel scaling is a frequent commissioning error that resurfaces after card swaps. While the cabinet is open, inspect the 3300 XL barrier or I/O module for terminal corrosion, loose ferrules, and correct fuse ratings — a blown fuse on the -24 VDC supply rail will disable the entire transducer loop silently.

For plants running integrated safety systems, cross-check the TMR voting logic or SIL-rated trip relay associated with the vibration channel to ensure the replacement probe is re-commissioned within the functional safety loop. If the machine is also equipped with a Keyphasor transducer (typically a 330980 or 190501 series), verify its gap and signal integrity simultaneously — Keyphasor faults suppress phase-referenced vibration data across all channels on the same rack.

Procurement engineers building a strategic spare parts list for a 3300 XL-monitored asset should consider stocking the probe alongside its matched extension cable, at least one spare proximitor driver, and a set of 3300 XL terminal board connectors. For critical machines with no installed redundancy, a complete pre-wired transducer assembly — probe, cable, and driver — stored in a climate-controlled cabinet reduces mean time to repair (MTTR) from hours to minutes.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a hot-work or confined-space permit as applicable. Isolate the -24 VDC supply to the proximitor at the marshalling cabinet, not at the rack, to avoid disturbing adjacent channels.

Step 2 — Gap Measurement Before Removal: Record the existing probe gap voltage (target: -10 to -18 VDC at nominal gap) and physical gap (feeler gauge or dial indicator) as a baseline for the replacement installation. This data is invaluable for post-maintenance comparison and SAP PM work order documentation.

Step 3 — Probe Removal: Loosen the locknut and back the probe out carefully. Inspect the probe tip for impact damage, shaft scoring, or contamination — these findings may indicate a bearing condition issue that triggered the probe failure.

Step 4 — New Probe Installation: Thread the 330102-00-40-50-02-00 into the bracket to the nominal gap position. Reconnect the extension cable, ensuring the coaxial connector is clean and fully seated. Restore -24 VDC supply.

Step 5 — Gap Calibration and Verification: Adjust probe gap to achieve output voltage within the linear range (typically -12 VDC ± 1 V at nominal gap for 8mm probes on AISI 4140 targets). Confirm OK relay energizes and the monitoring system displays a valid vibration reading. Compare against pre-removal baseline.

Step 6 — Documentation: Record as-found and as-left gap voltages, probe serial number, and installation date in the CMMS. Update the spare parts inventory to trigger reorder of the consumed probe.

This workflow is compatible with both online replacement (machine running, with appropriate safety controls) and turnaround replacement scenarios, and applies equally to legacy 3300 series installations being maintained alongside newer 3500 series racks.

Spare Parts Support FAQ

Q1: Is the 330102-00-40-50-02-00 compatible with both 3300 and 3500 series monitoring systems?
The 330102-00-40-50-02-00 probe is designed for the 3300 XL 8mm transducer system. It is electrically compatible with 3500 series monitor cards configured for 8mm probe sensitivity, provided the correct 3300 XL extension cable and driver are used. Always verify channel configuration in the 3500 rack software before installation.

Q2: What pre-shipment testing is performed on this spare?
Each unit undergoes functional output voltage verification, sensitivity check against a calibrated target, and connector integrity inspection before dispatch. A test report is available on request for quality-critical applications.

Q3: What is the recommended inventory strategy for this probe?
For machines classified as critical (single-train, no installed spare), we recommend a minimum stock of two probes per monitored shaft, stored with matched extension cables in a sealed, anti-static bag in a temperature-controlled environment. For non-critical machines, one probe per asset is typically sufficient for a 12-month maintenance cycle.

Q4: What does the 12-month warranty cover?
The warranty covers manufacturing defects, sensitivity drift beyond published tolerances, and connector failure under normal operating conditions. It does not cover physical damage from improper installation, shaft contact, or chemical exposure. Warranty claims are processed with return of the defective unit and a completed failure report.
