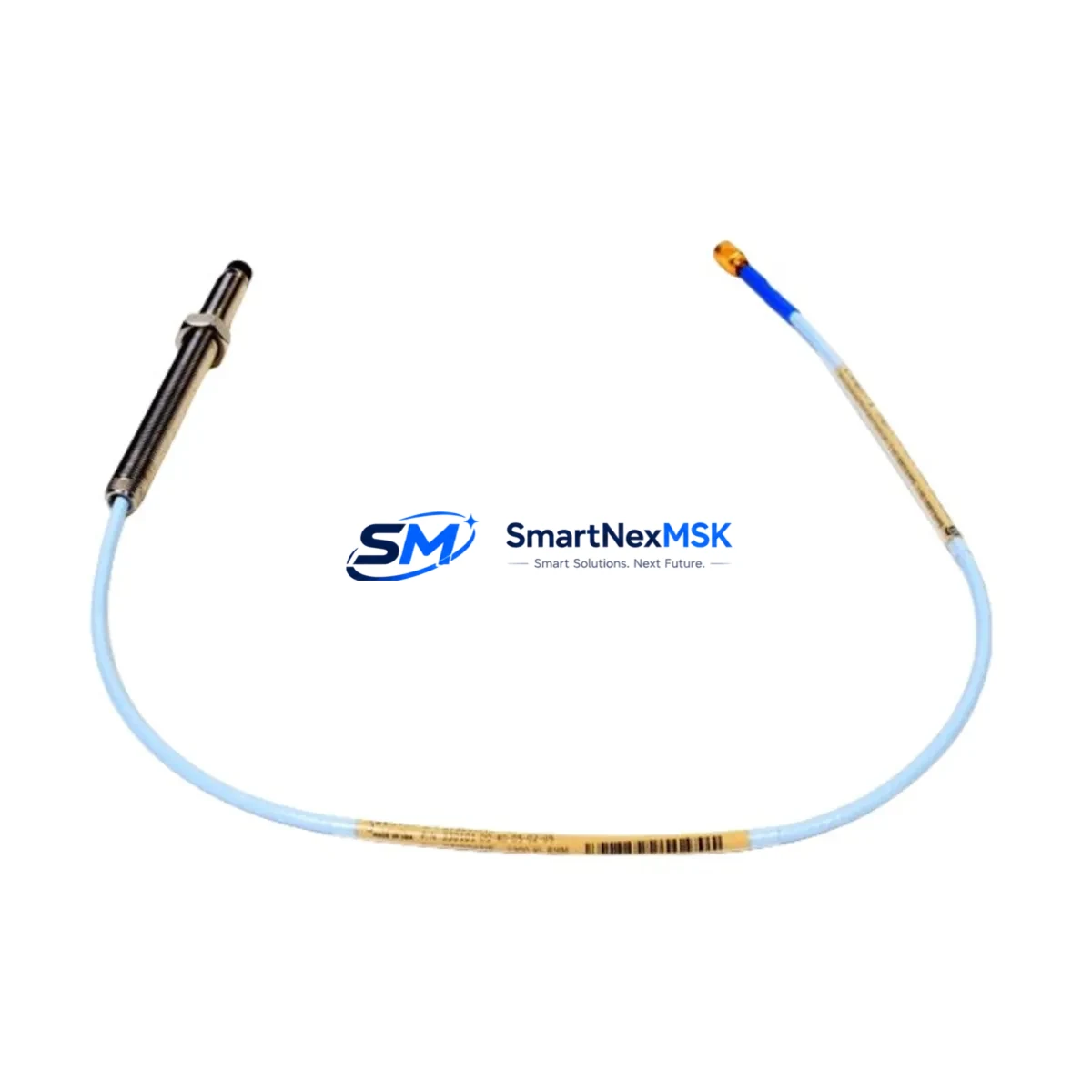

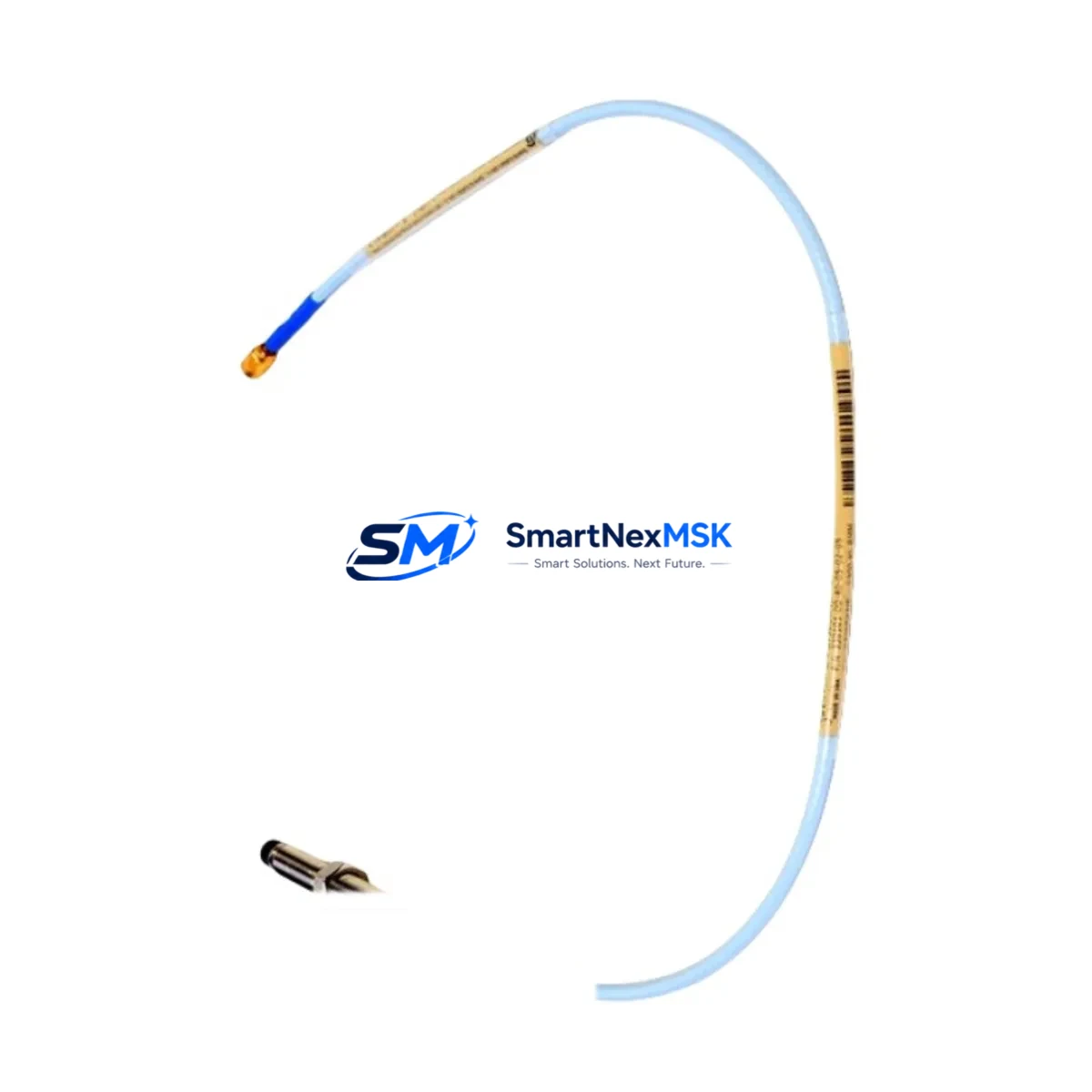

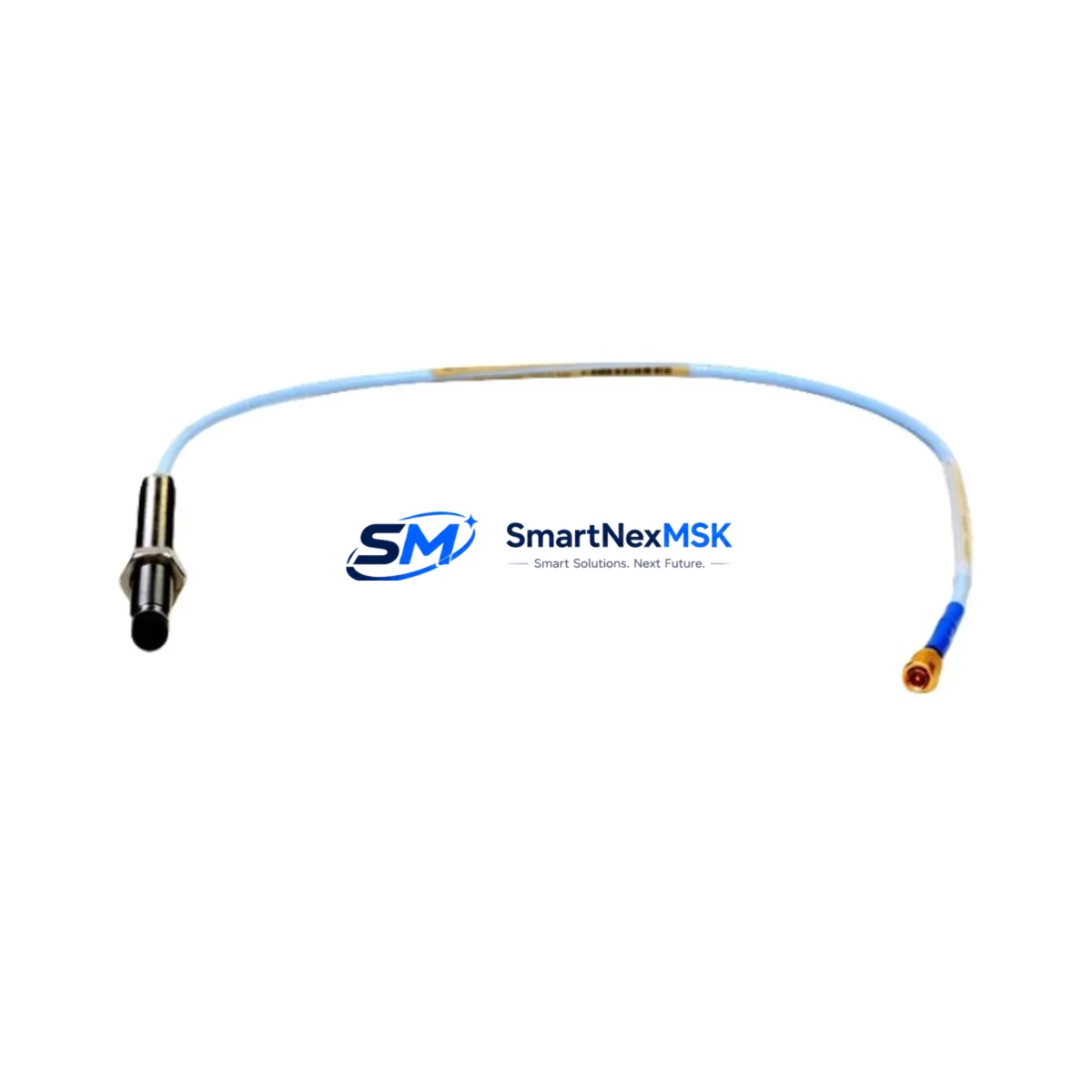

Bently Nevada 330102-00-42-05-02-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems
The Bently Nevada 330102-00-42-05-02-00 is an 8mm proximity transducer designed for continuous shaft vibration and position monitoring in rotating machinery applications. As a retrofit-ready replacement for aging 3300 XL system installations, this probe delivers full compatibility with existing Bently Nevada signal conditioning infrastructure, enabling seamless integration without requiring changes to the control cabinet wiring, monitor rack configuration, or DCS interface logic.
Industrial facilities operating legacy Bently Nevada 3300 XL machinery protection systems frequently encounter obsolescence challenges when original probes reach end-of-life or are discontinued. The 330102-00-42-05-02-00 addresses this directly: it maintains the same 8mm tip diameter, 5-meter extension cable length, and -24 VDC bias voltage output characteristics as the original factory specification, making it a verified drop-in replacement for field installations where downtime must be minimized and program logic preserved.
Whether you are upgrading a turbine protection panel, replacing a failed probe on a compressor train, or restoring a mothballed production line, this unit ships pre-tested and ready for immediate installation. Inventory is maintained in stock for fast dispatch, and each unit carries a 12-month warranty covering manufacturing defects and signal output performance.
Upgrade Compatibility Table
| Parameter | 330102-00-42-05-02-00 (This Unit) | Retrofit Notes |
|---|---|---|
| Probe Tip Diameter | 8 mm | Direct fit for existing 3300 XL probe holders; no bracket modification required |
| Cable Length | 5 m (extension cable included) | Compatible with standard Bently Nevada 330130 extension cable routing |
| Bias Voltage Output | -24 VDC nominal | Matches 3300 XL monitor input specification; no signal conditioner recalibration needed |
| Sensitivity | 200 mV/mil (7.87 V/mm) | Consistent with 3300 XL monitor channel scaling; gap voltage re-zeroing recommended after installation |
| Target Material Compatibility | Steel, stainless steel, iron alloys | Verify shaft material before installation; non-ferrous targets require sensitivity adjustment |
| Connector Interface | Standard BNC / MIL-spec | Compatible with existing 3300 XL monitor rack terminal blocks and junction boxes |
| Communication / Monitor Interface | Analog voltage signal to 3300 XL monitor | No protocol migration required; analog signal chain preserved end-to-end |
| Replacement Recommendation | Direct drop-in for 330102 series probes | Confirm gap distance (typically 1.0–1.5 mm) using Bently Nevada gap voltage chart |
| Commissioning Focus | Gap voltage verification, cable continuity, monitor channel alarm setpoints | Re-enter OK limits in 3300 XL monitor after probe swap if alarm thresholds were probe-specific |
| Warranty | 12 Months | Covers signal output performance and manufacturing defects from date of shipment |
Retrofit Planning for Existing Automation Systems
Successful integration of the 330102-00-42-05-02-00 into an existing machinery protection system requires a structured approach that accounts for the full signal chain from probe tip to control room display. Begin by auditing the existing Bently Nevada 3300 XL monitor rack to confirm available channel slots and verify that the monitor module — typically a 3300/16 or 3300/20 series vibration monitor — is configured for 8mm probe input. If the rack also houses a 3300/55 temperature monitor or a 3300/46 speed monitor, these modules are unaffected by the probe swap and can remain in service during the replacement window.
The extension cable connecting the probe to the monitor is a critical element of the signal chain. The Bently Nevada 330130-080-00-00 extension cable (8-meter) is the standard pairing for this probe in most turbine and compressor installations. Inspect the cable for jacket damage, connector corrosion, and continuity before reuse. If the existing cable shows signal degradation, replace it as part of the same maintenance window to avoid a repeat outage.
At the junction box or terminal strip inside the control cabinet, verify that the coaxial cable termination is secure and that the shield grounding follows the original Bently Nevada installation drawing. Improper shield grounding is a common source of noise on the vibration channel and can trigger nuisance alarms on the 3300 XL monitor. If the facility uses a Bently Nevada 3500 series rack in parallel for online monitoring, confirm that the 3500/42M or 3500/45 module channel assignments are updated to reflect the new probe serial number for traceability.
For facilities that have integrated the 3300 XL system with a DCS platform — such as a Honeywell Experion, Emerson DeltaV, or ABB 800xA — the analog 4–20 mA output from the monitor to the DCS I/O card should be verified post-installation. The DCS historian tag associated with the vibration channel should be checked for continuity, and the HMI faceplate alarm limits should be confirmed against the new probe’s calibration certificate. No changes to the DCS program logic or control narrative are typically required when replacing a like-for-like probe, but a functional test of the alarm annunciation path is recommended before returning the machine to service.
If the retrofit is part of a broader control system upgrade that includes migrating from the 3300 XL platform to the Bently Nevada 3500 series, the 330102-00-42-05-02-00 probe remains compatible with the 3500 monitor rack, simplifying the field hardware transition. The programming cable used for 3500 rack configuration — typically connected via a Bently Nevada 3500/93 communication gateway — does not require changes at the probe level.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity probe replacement is achievable with proper pre-staging and a defined swap procedure. Before taking the machine offline, prepare the replacement 330102-00-42-05-02-00 unit by verifying its gap voltage output on a bench test fixture using a steel target and a Bently Nevada proximitor power supply. Record the bias voltage and confirm it falls within the -17 to -24 VDC OK range specified for the 3300 XL monitor channel.
During the outage window, follow a sequential approach: isolate the monitor channel in the 3300 XL rack by placing it in bypass mode to suppress spurious alarms during the swap, remove the failed probe from the machinery casing, install the replacement unit and set the air gap to the specified distance using a feeler gauge and the gap voltage chart, reconnect the extension cable, and restore the monitor channel from bypass. This sequence preserves the original program logic in the 3300 XL monitor and the DCS without requiring any software download or PLC program modification.
For facilities where the 3300 XL monitor is integrated into a safety instrumented system (SIS) or emergency shutdown (ESD) logic, coordinate the bypass procedure with the site safety officer and document the bypass in the management of change (MOC) system before beginning work. The 12-month warranty on this unit provides coverage for the post-installation period, reducing the financial risk associated with early-life failures during the commissioning phase.
Spare probe inventory management is a key factor in downtime control. Maintaining one or two 330102-00-42-05-02-00 units as critical spares in the site warehouse eliminates lead-time risk for future failures. Given the obsolescence trajectory of the 3300 XL platform, securing spare inventory now is a prudent strategy for facilities with long planned maintenance intervals.
Retrofit Support FAQ
Q: Is the 330102-00-42-05-02-00 a direct replacement for the original Bently Nevada part?
A: Yes. This unit is manufactured to the same dimensional and electrical specification as the original 330102-00-42-05-02-00 and is a verified drop-in replacement for 3300 XL system installations. No modifications to the probe holder, extension cable, or monitor channel configuration are required in standard applications.
Q: What commissioning steps are required after installation?
A: After mechanical installation, verify the air gap using the Bently Nevada gap voltage chart for 8mm probes (target gap: approximately 1.0–1.5 mm, corresponding to approximately -10 to -12 VDC bias). Confirm the monitor channel OK LED is illuminated, check that vibration and position readings are within expected baseline values, and perform a functional test of the alarm output path before returning the machine to service.
Q: Can this probe be used with a Bently Nevada 3500 series monitor rack?
A: Yes. The 330102-00-42-05-02-00 is compatible with the Bently Nevada 3500 series monitor rack, including the 3500/42M and 3500/45 modules, subject to channel configuration in the 3500 rack software. This makes it suitable for facilities planning a phased migration from the 3300 XL to the 3500 platform.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and signal output performance from the date of shipment. Each unit is tested prior to dispatch. Warranty claims are processed through our sales team with a typical turnaround of 5–7 business days for replacement unit dispatch.
