Bently Nevada 330102-00-60-10-01-05 Safety Proximity Probe

Bently Nevada 330102-00-60-10-01-05 Safety Proximity Probe: Reliable Vibration Monitoring for Harsh Industrial Sites

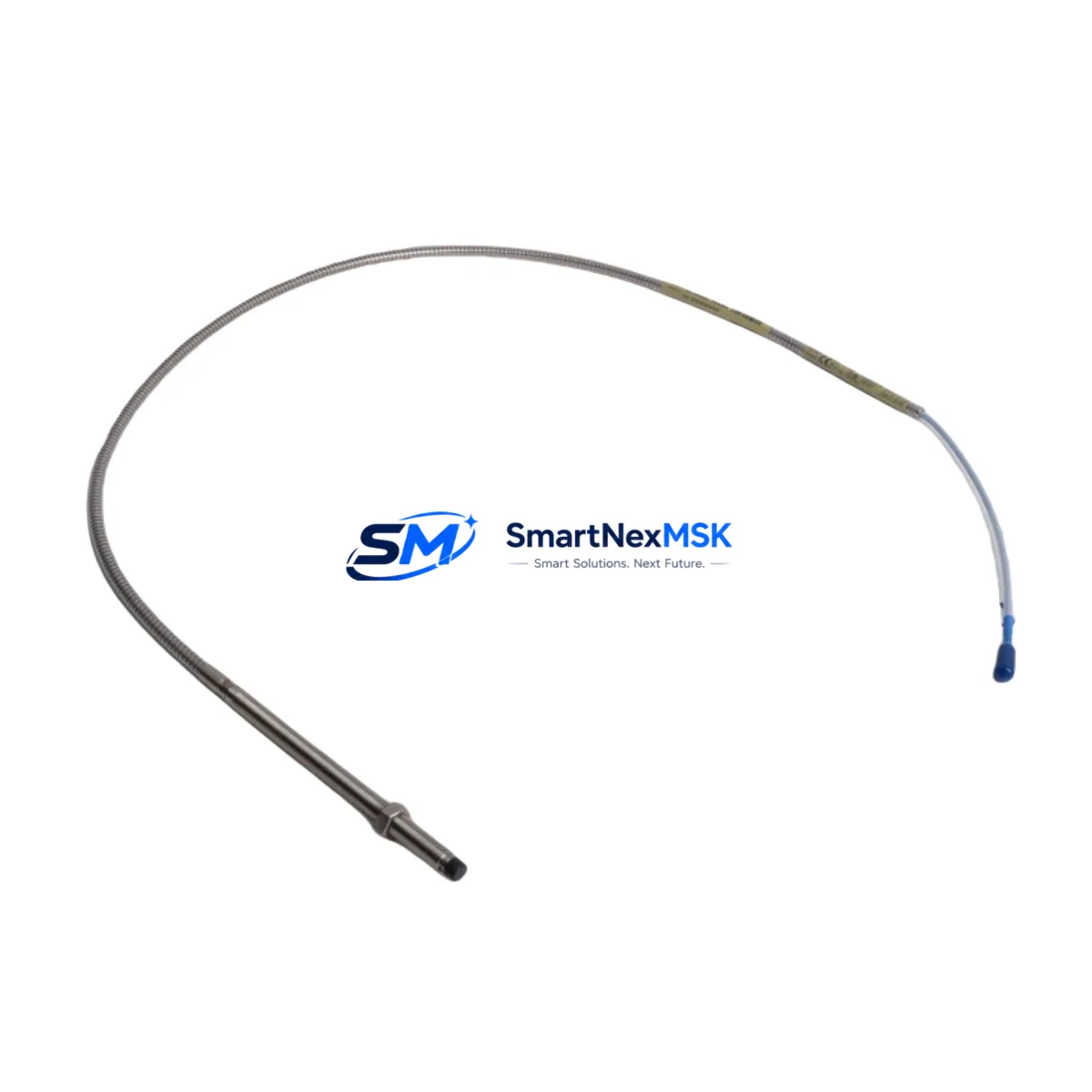

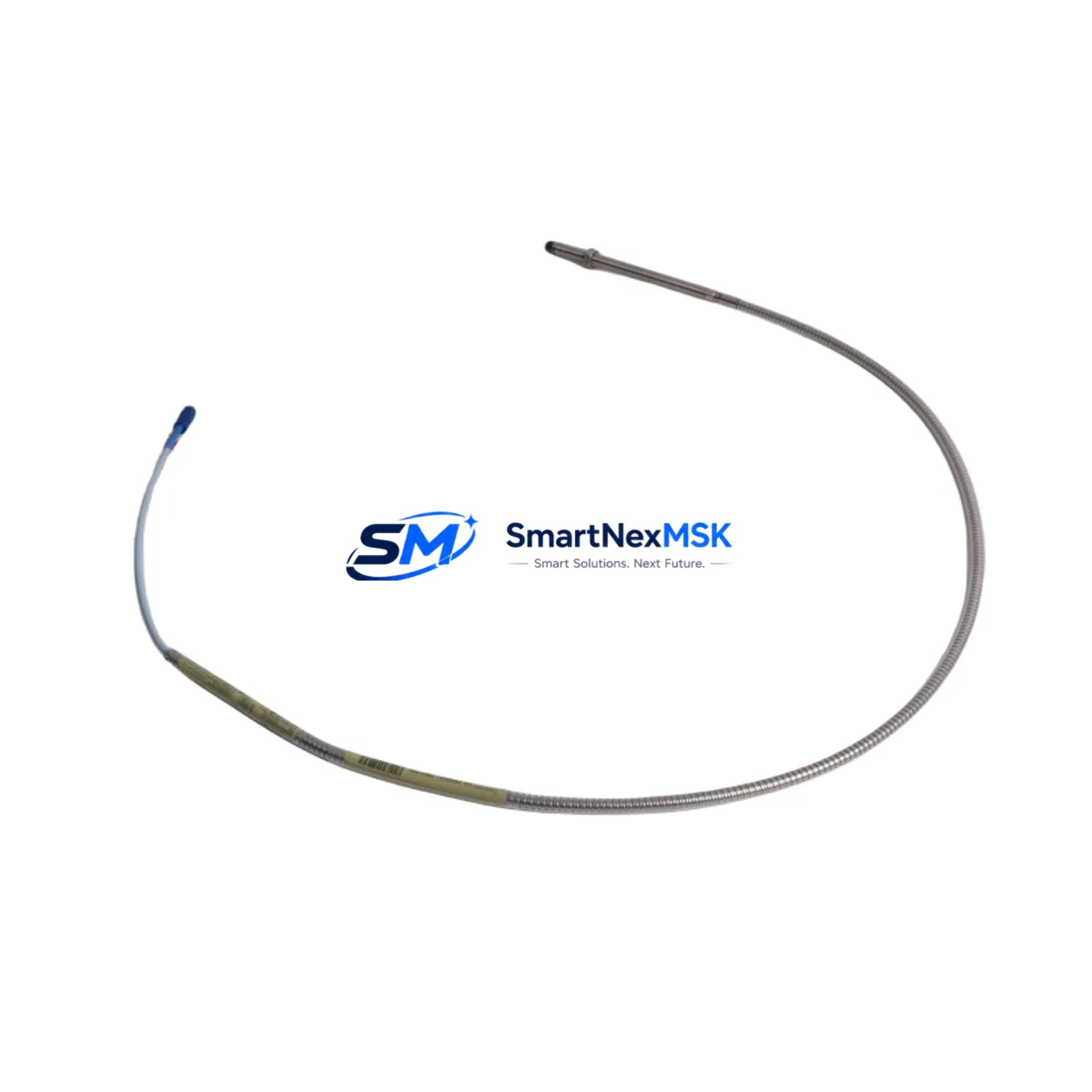

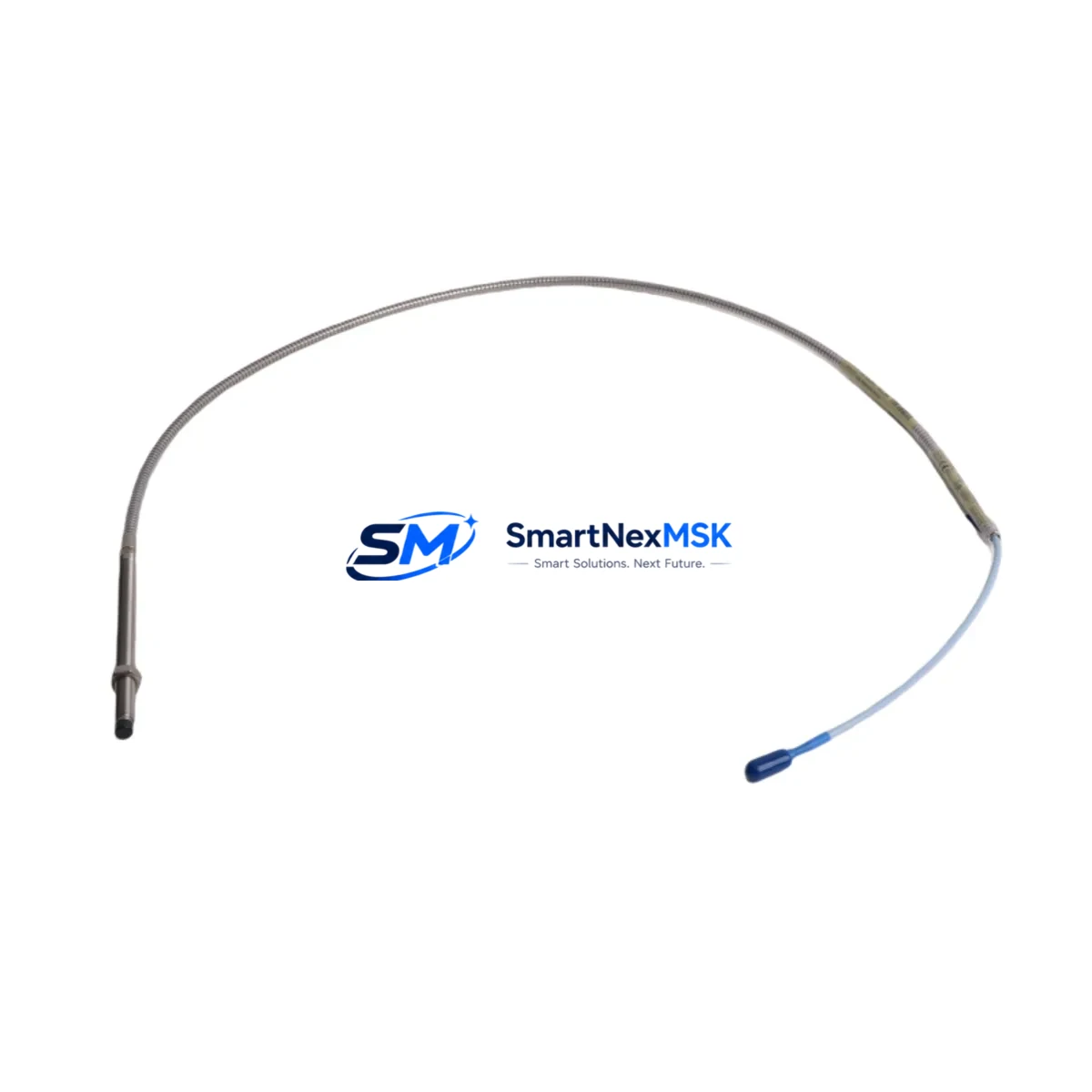

The Bently Nevada 330102-00-60-10-01-05 is an 8mm ruggedized proximity probe from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high-load rotating machinery, heavy interference zones, and hazardous area control cabinets, this probe delivers the signal integrity and mechanical durability that plant engineers and reliability teams depend on to prevent unplanned shutdowns and protect critical assets.

In petrochemical plants, power generation facilities, mining operations, metallurgical processing lines, and water treatment stations, rotating machinery such as compressors, turbines, pumps, and fans must be continuously monitored for shaft vibration, axial displacement, and differential expansion. A single missed signal or sensor failure in these environments can cascade into catastrophic equipment damage, process interruption, or personnel safety incidents. The 330102-00-60-10-01-05 is purpose-built to eliminate these risks by providing stable, drift-free eddy-current sensing output under conditions that would compromise standard industrial sensors.

Safety Reliability Table

Control Cabinet Protection Strategy

The 330102-00-60-10-01-05 probe is designed to integrate seamlessly into a complete Bently Nevada 3300 XL monitoring architecture. In a properly configured control cabinet, the probe connects to the Bently Nevada 3300/16 proximitor / seismic transducer, which conditions the raw eddy-current signal into a clean 4–20 mA or voltage output suitable for the plant DCS or safety PLC. Signal integrity across long cable runs is maintained through the use of the Bently Nevada 330130 extension cable, which is impedance-matched to the 3300 XL probe system and prevents signal attenuation in high-interference environments.

For installations in hazardous classified areas — such as Zone 1 or Zone 2 gas atmospheres common in petrochemical and offshore platforms — the probe output is routed through Bently Nevada 3300 XL intrinsically safe barriers or equivalent Zener barriers before entering the safe-area marshalling cabinet. This ensures that the vibration monitoring loop remains within the energy limits required for IS certification, protecting both personnel and equipment.

Within the control cabinet, the conditioned vibration signal feeds into a Bently Nevada 3500 Series rack-based machinery protection system, where dedicated I/O modules process radial vibration, axial position, and speed signals simultaneously. The 3500 rack communicates alarm and trip states to the plant safety PLC — often a Rockwell Automation GuardLogix or Siemens S7-300F safety controller — via hardwired relay outputs or Modbus/TCP, triggering automatic shutdown sequences when vibration thresholds are exceeded. Surge protection devices installed at the cabinet entry point, such as Phoenix Contact TRABTECH surge arresters, protect the sensitive probe and proximitor circuitry from transient overvoltages caused by nearby motor starts, lightning events, or grid switching operations.

Power supply stability is equally critical. The 3300 XL proximitor requires a clean -24 VDC supply, typically sourced from a dedicated Bently Nevada 3300/20 power supply module or an equivalent redundant DIN-rail PSU with active power factor correction. Voltage ripple or supply interruptions can cause false vibration readings or proximitor resets, which in a critical interlock loop could trigger spurious trips or — more dangerously — mask a genuine machinery fault. Pairing the probe system with a high-quality, isolated DC power supply ensures continuous, uninterrupted monitoring even during plant-wide power disturbances.

Critical Industrial Safety Applications

The Bently Nevada 330102-00-60-10-01-05 proximity probe is deployed across a wide range of safety-critical and continuous-process industries where rotating machinery protection is non-negotiable.

In petrochemical and refinery operations, the probe monitors centrifugal compressors and process pumps in hydrocarbon service, where shaft vibration exceedance can lead to seal failure, process gas release, and fire or explosion risk. The probe’s IP67 rating and wide temperature tolerance make it suitable for outdoor installations in tropical or arctic climates alike.

In power generation — including coal-fired, gas turbine, and hydroelectric plants — the 330102-00-60-10-01-05 is used on turbine shaft monitoring systems, where axial displacement and radial vibration data feed directly into the turbine protection relay. Accurate, low-drift sensing is essential to distinguish normal operational vibration from developing bearing faults or rotor imbalance conditions that require immediate load reduction or trip.

In mining and mineral processing, the probe is installed on ball mills, SAG mills, conveyor drive gearboxes, and slurry pumps operating in dusty, wet, and vibration-intensive environments. The ruggedized cable construction and IP67 sealing prevent moisture ingress and abrasive contamination from degrading sensor performance over extended service intervals.

In metallurgical and steel production facilities, continuous casting machines, rolling mill drives, and induction furnace cooling pumps rely on proximity probe systems to detect shaft eccentricity and bearing wear before catastrophic failure occurs. The 330102-00-60-10-01-05 withstands the intense electromagnetic interference generated by large induction heating systems and variable-frequency drives without signal corruption.

In water and wastewater treatment plants, the probe monitors high-speed centrifugal blowers and vertical turbine pumps in wet, corrosive atmospheres, providing the early-warning vibration data needed to schedule predictive maintenance and avoid unplanned service interruptions that could affect public water supply compliance.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330102-00-60-10-01-05?
The 12-month warranty covers all manufacturing defects, functional failures, and sensitivity deviations from Bently Nevada factory specifications. If the probe fails to perform within its rated linear range or exhibits signal drift beyond acceptable limits under normal operating conditions, we will provide a replacement unit or full refund. The warranty period begins from the date of shipment.

Q2: How is the probe tested before shipment?
Every 330102-00-60-10-01-05 unit undergoes a full pre-shipment functional verification, including sensitivity calibration check against a reference AISI 4140 steel target, cable continuity and insulation resistance testing, and connector integrity inspection. Units that do not meet Bently Nevada OEM specifications are quarantined and not dispatched. A test report is available upon request.

Q3: Is the 330102-00-60-10-01-05 compatible with existing Bently Nevada 3300 XL systems?
Yes. The 330102-00-60-10-01-05 is a direct OEM-equivalent replacement for all Bently Nevada 3300 XL 8mm proximity probe installations. It is fully compatible with 3300/16 proximitors, 3300 XL extension cables, and 3500 Series rack systems without requiring recalibration of the monitoring system, provided the target material and gap setting are maintained per the original installation specification.

Q4: Can you guarantee long-term supply and spare parts availability?
Yes. We maintain dedicated stock of the 330102-00-60-10-01-05 and related 3300 XL Series components to support planned maintenance schedules, emergency replacements, and capital project requirements. Our inventory is replenished on a regular cycle, and we can provide lead-time commitments for bulk or scheduled orders. For critical plant spares programs, contact our team to discuss consignment or reserved stock arrangements.
