Bently Nevada 330102-00-70-10-02-05 Safety Proximity Probe

Bently Nevada 330102-00-70-10-02-05 Safety Proximity Probe: Reliable Vibration Control for Harsh Industrial Sites

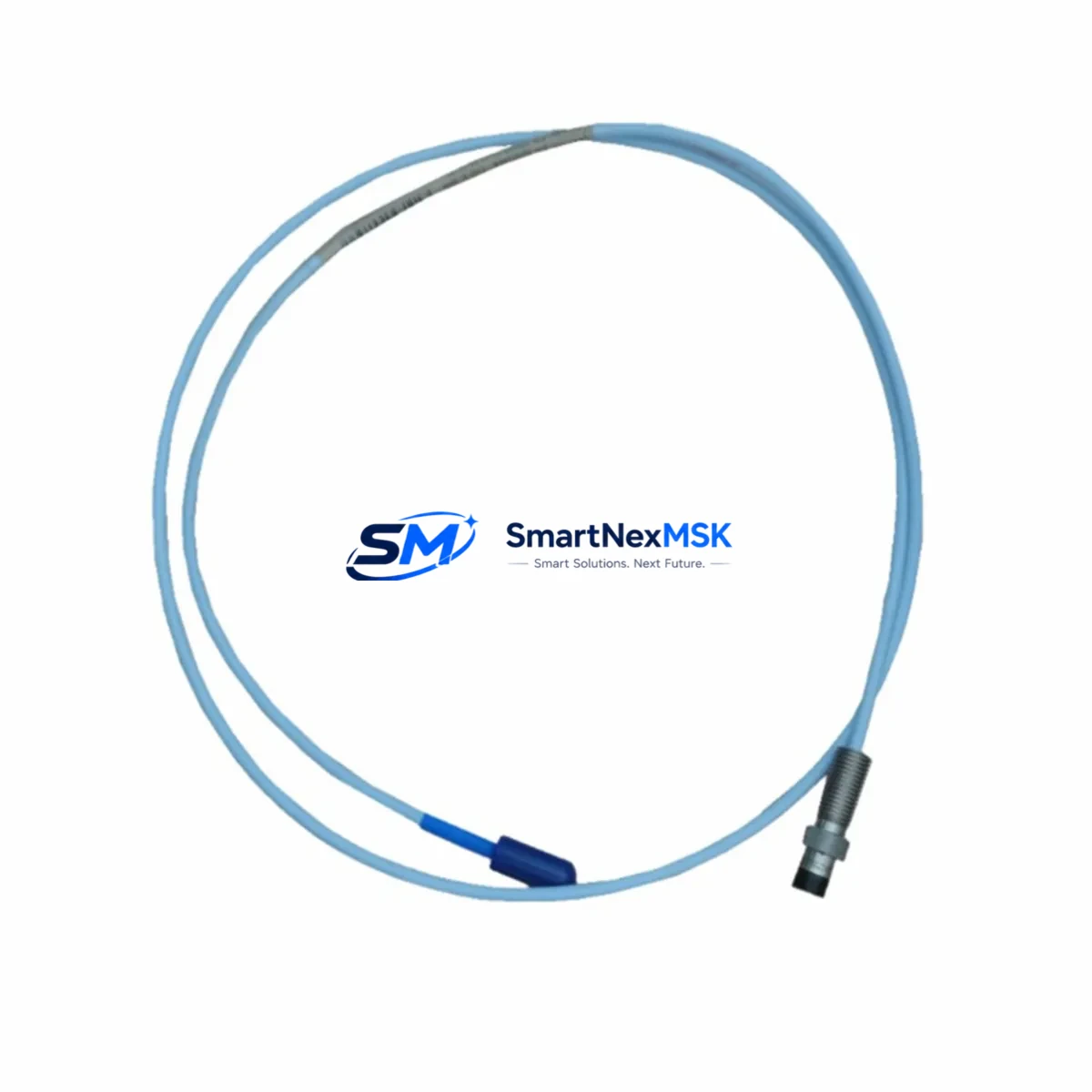

The Bently Nevada 330102-00-70-10-02-05 is an 8mm eddy-current proximity probe from the industry-leading 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. With a 5-meter armored cable assembly and a robust stainless-steel tip, this probe delivers stable, drift-free output signals even under extreme electromagnetic interference, mechanical shock, and wide temperature fluctuations — conditions routinely encountered in petrochemical plants, power generation facilities, metallurgical mills, and offshore platforms.

Designed to integrate seamlessly with the Bently Nevada 3300 XL Proximitor Sensor and the broader System 1 condition monitoring platform, the 330102-00-70-10-02-05 provides the real-time shaft displacement and vibration data that plant safety systems depend on. Its high-sensitivity output — calibrated to the standard –7.87 V/mm (–200 mV/mil) scale factor — ensures that even sub-millimeter shaft excursions are captured accurately, enabling early fault detection before a critical failure can cascade into an unplanned shutdown or a safety incident.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered rotating machinery protection system, the 330102-00-70-10-02-05 probe is never deployed in isolation. It forms the sensing front-end of a layered protection architecture that begins at the shaft and extends through the control cabinet to the safety PLC or DCS. The probe connects via a matched Bently Nevada 330130 extension cable to a 3300 XL Proximitor driver module (330180-X1-05), which conditions the raw eddy-current signal into a clean –24 VDC-referenced voltage output suitable for direct input to a Bently Nevada 3500/42M Proximitor/Seismic Monitor rack card.

Within the 3500 rack, the vibration data is processed against user-defined Alert and Danger setpoints. When a Danger threshold is crossed, the rack’s relay outputs can directly trip a Bently Nevada 3500/32 Relay Module, which in turn commands the machine’s emergency shutdown valve or motor contactor — a critical interlock that prevents catastrophic bearing failure or seal damage. To protect the entire monitoring chain from power-quality events, the 3500 rack is typically powered through a Bently Nevada 3500/15 Power Supply Module with redundant input capability, ensuring that a single power feed interruption does not blind the protection system.

For plants running a distributed control architecture, the 3500 rack communicates vibration vectors and health status to the System 1 Evolution software platform via a dedicated Bently Nevada 3500/92 Communication Gateway, supporting Modbus TCP, OPC-DA, and OPC-UA protocols. This allows the DCS — whether a Honeywell Experion, Emerson DeltaV, or Yokogawa CENTUM — to incorporate real-time vibration data into process safety logic without requiring additional signal conditioning hardware. In high-criticality applications such as compressor trains or steam turbines, a secondary Bently Nevada 330500 Velomitor XA seismic sensor is often installed in parallel to provide independent casing vibration confirmation, cross-validating the shaft-relative data from the 330102-00-70-10-02-05 and eliminating single-point-of-failure risk in the protection loop.

Critical Industrial Safety Applications

The 330102-00-70-10-02-05 proximity probe is specified across a wide range of heavy industrial sectors where rotating machinery reliability is directly linked to process safety and regulatory compliance.

Petrochemical & Refining: In API 670-compliant machinery protection systems for centrifugal compressors, process pumps, and expanders, this probe monitors radial shaft vibration and axial position simultaneously (when paired with a thrust probe). Continuous monitoring prevents bearing wipe events that can release flammable hydrocarbons and trigger fire or explosion hazards in classified Zone 1 areas.

Power Generation: Steam turbine and gas turbine protection systems rely on proximity probes to detect rotor instability, oil whirl, and rub events before they escalate to blade-off failures. The 330102-00-70-10-02-05’s wide frequency response (DC to 10 kHz) captures both low-speed subsynchronous instabilities and high-frequency blade-passing events with equal fidelity.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in environments with extreme dust loading, vibration, and temperature cycling. The IP67-rated probe tip and armored cable of the 330102-00-70-10-02-05 resist abrasive contamination and mechanical damage, maintaining signal integrity across multi-year service intervals without recalibration.

Water & Wastewater Treatment: High-service pumps and blower trains in water treatment facilities require continuous uptime to meet regulatory discharge standards. Early vibration anomaly detection via this probe enables condition-based maintenance scheduling, eliminating unplanned outages that could compromise treatment capacity.

Metallurgy & Steel: Rolling mill drive trains and converter vessel tilting drives experience severe shock loads and electromagnetic interference from arc furnaces. The probe’s shielded coaxial construction and high EMI immunity ensure clean signal transmission even in the presence of high-current switching transients.

Port & Marine: Shipboard propulsion systems and port crane hoisting machinery benefit from the probe’s wide operating temperature range and corrosion-resistant stainless-steel body, which withstand salt-laden atmospheres and condensation cycles without signal degradation.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330102-00-70-10-02-05?
The 12-month warranty covers all manufacturing defects, calibration drift beyond published specifications, and functional failure under normal operating conditions. Warranty claims are supported with a replacement unit dispatched within 3 business days of fault confirmation, minimizing machine downtime. Physical damage caused by installation errors or overvoltage events is assessed case-by-case.

Q2: What pre-shipment testing is performed on each probe?
Every 330102-00-70-10-02-05 unit undergoes a full functional test against the Bently Nevada factory calibration standard before dispatch. Tests include scale factor verification (–200 mV/mil ± 1%), linear range confirmation, insulation resistance check (>100 MΩ at 500 VDC), and cable continuity verification. A test certificate is available upon request.

Q3: Is this probe compatible with non-Bently Nevada drivers and monitoring systems?
The 330102-00-70-10-02-05 is optimized for use with Bently Nevada 3300 XL Proximitor drivers and the 3500 rack system. It can also interface with third-party eddy-current driver modules that accept an 8mm probe with standard –24 VDC bias supply, provided the driver is calibrated to the –200 mV/mil scale factor. Compatibility with specific third-party systems should be verified against the driver manufacturer’s probe compatibility list.

Q4: Can long-term supply continuity be guaranteed for this part?
Yes. We maintain dedicated safety stock of the 330102-00-70-10-02-05 to support both planned maintenance schedules and emergency replacement requirements. For plants with critical sparing programs, we offer reserved inventory agreements with guaranteed lead times. Our sourcing network covers both new-manufacture and factory-reconditioned units, ensuring supply continuity even during periods of OEM allocation constraints.
