Bently Nevada 330102-02-12-90-02-CN 3300 XL Probe

Bently Nevada 330102-02-12-90-02-CN 3300 XL Retrofit-Ready Proximity Probe for Legacy Control Systems

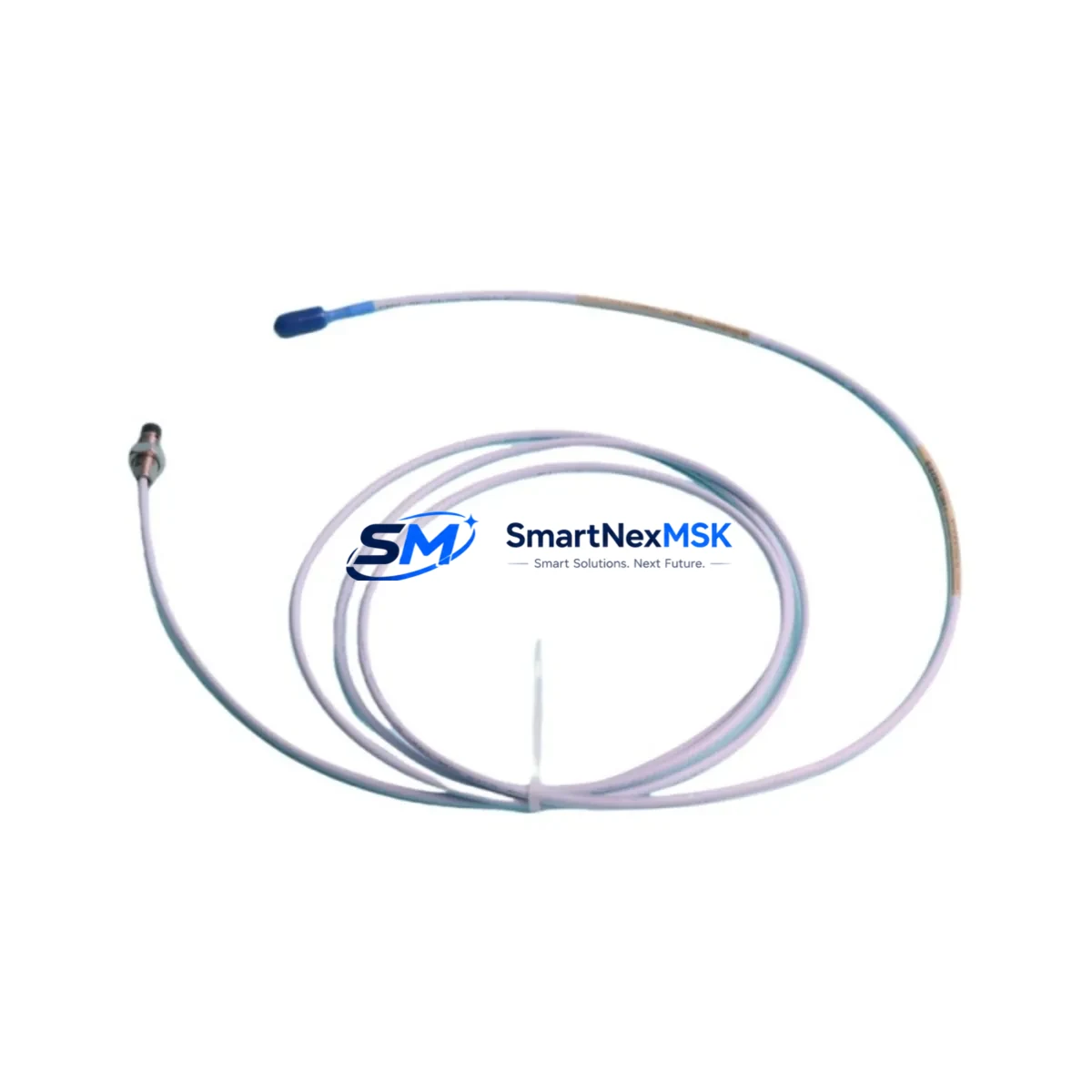

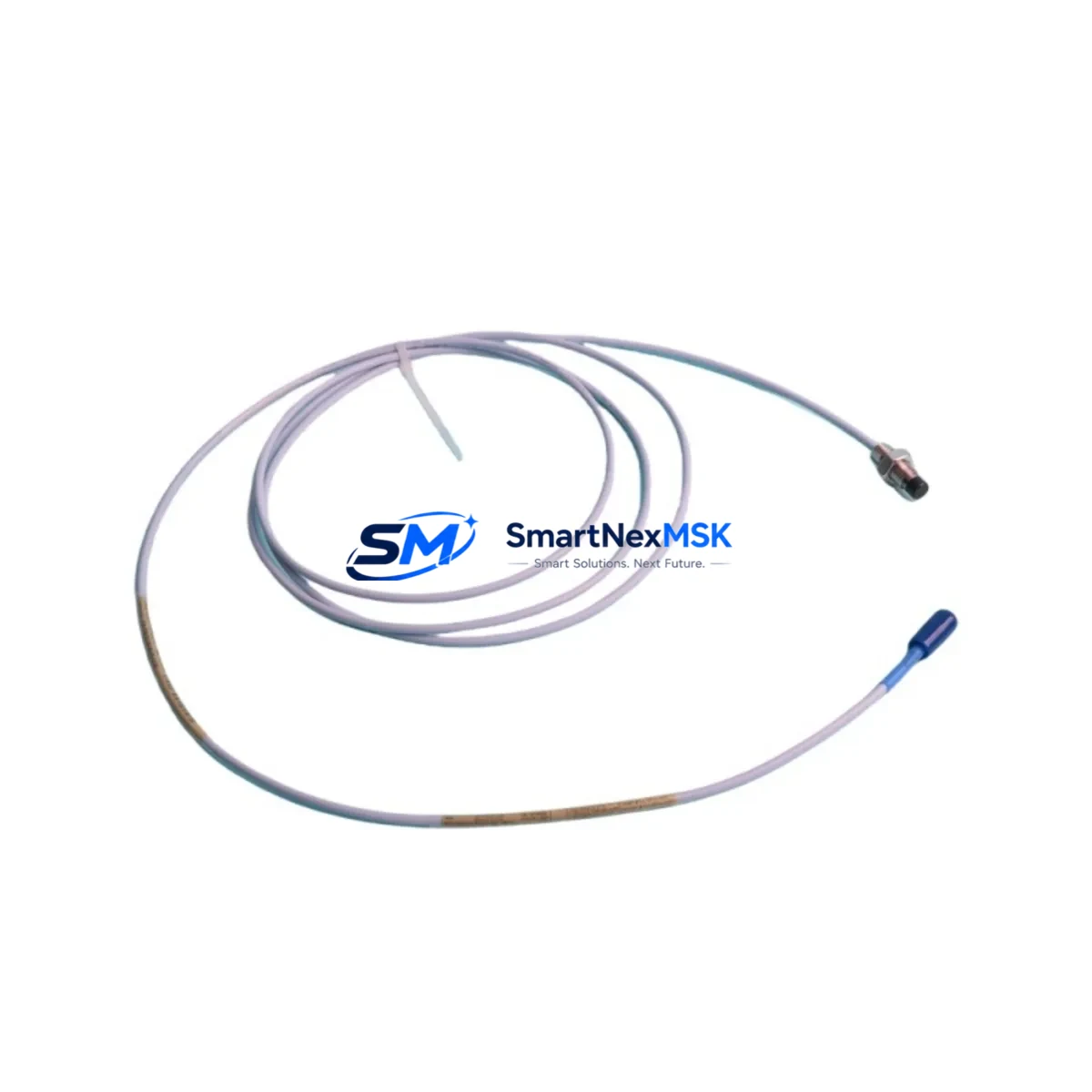

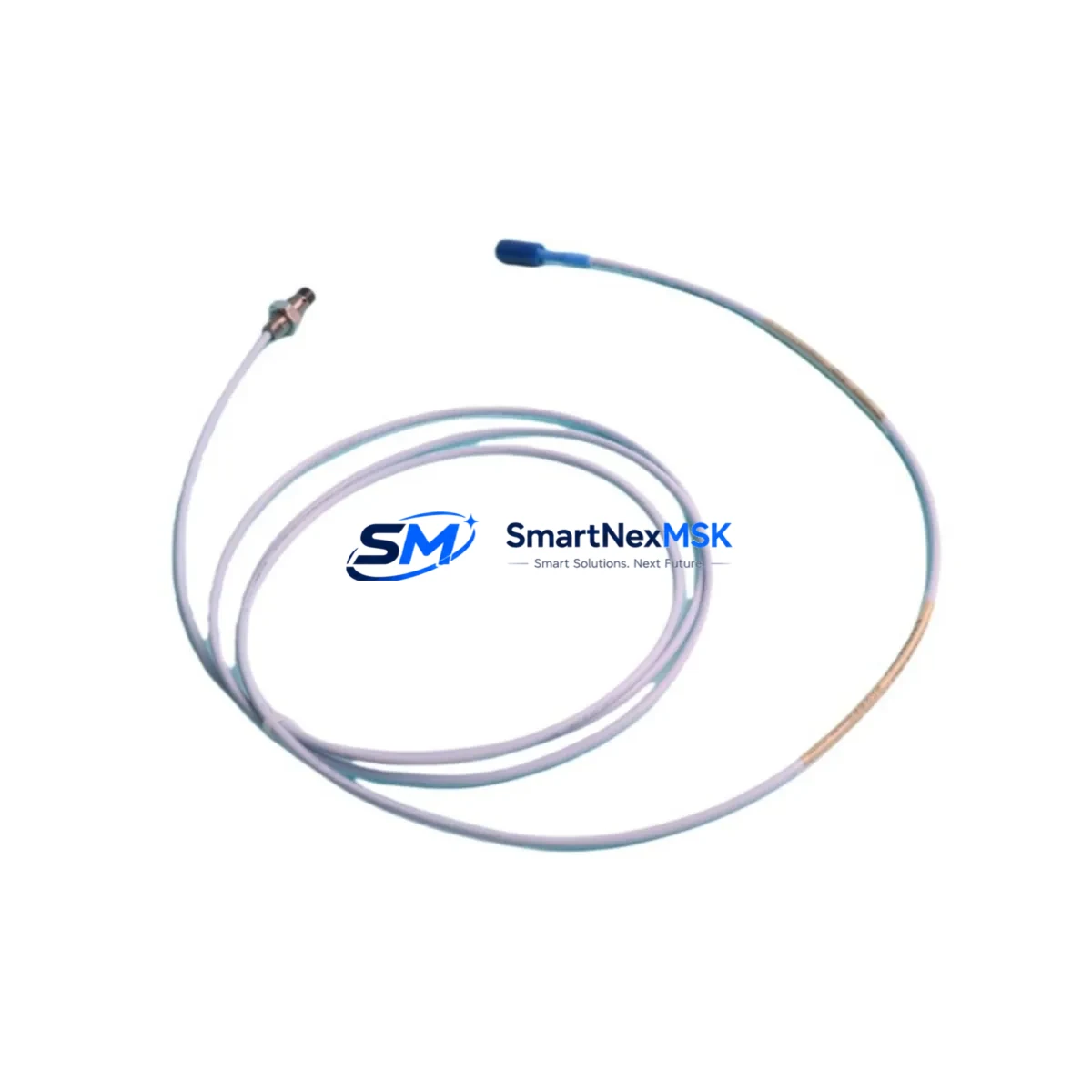

The Bently Nevada 330102-02-12-90-02-CN is an 8mm proximity probe designed for the 3300 XL series vibration monitoring system. As a retrofit-ready replacement component, it is widely deployed in turbomachinery protection panels, compressor control cabinets, and rotating equipment monitoring racks where the original 3300 series probes have reached end-of-life or are no longer available through OEM channels. This probe is fully compatible with the 3300 XL proximitor/seismic monitor and integrates directly into existing Bently Nevada rack-based monitoring architectures without requiring firmware changes or signal recalibration in most standard installations.

For facilities managing aging DCS or PLC-based machinery protection systems, the 330102-02-12-90-02-CN provides a verified drop-in upgrade path. Engineers replacing worn or failed probes in the field can confirm compatibility by cross-referencing the existing 3300 XL proximitor model number — typically a 330180 or 330130 series proximitor — and verifying the extension cable length and connector type against the original installation drawing. The probe’s 5-metre integral cable (CN suffix) is factory-terminated and does not require field splicing, which significantly reduces installation time and eliminates a common source of signal noise during commissioning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a probe replacement within an active machinery protection system, the scope of work typically extends beyond the probe itself. A complete retrofit assessment should include inspection of the 3300 XL proximitor module, the extension cable (commonly a 330130-080-00-00 or equivalent), and the rack power supply feeding the monitoring channel. In many installations, the proximitor and probe are replaced as a matched set to ensure the gap voltage calibration remains within the manufacturer’s specified linear range.

For control cabinets integrating Bently Nevada 3500 series rack systems alongside legacy 3300 XL components, engineers should verify that the I/O termination module and the signal conditioning card are compatible with the probe’s output impedance. In mixed-generation panels, it is common to find 3500/42M proximity monitor cards operating alongside older 3300 XL racks — in these cases, the 330102-02-12-90-02-CN can serve the 3300 XL channel while the 3500 series channels continue to operate independently.

Facilities running Emerson Ovation DCS or Honeywell Experion PKS as the supervisory layer will typically interface with the Bently Nevada rack via a Modbus RTU or hardwired 4–20 mA signal. No changes to the DCS configuration are required when replacing a like-for-like probe, provided the proximitor output scaling remains unchanged. However, if the replacement involves upgrading from a 3300 series to a 3300 XL series proximitor, the DCS engineer should verify the alarm and trip setpoints in the machinery protection logic, as the output voltage range may differ slightly between generations.

Additional components commonly involved in a 3300 XL probe retrofit include the Bently Nevada 330130 series extension cable, the 330180 proximitor, the 3300 XL rack power supply module, and the field junction box terminal blocks. In some installations, the probe mounting bracket and the armored conduit fitting also require replacement due to corrosion or mechanical wear. Having these components staged and tested prior to the planned maintenance window is essential for minimizing unplanned downtime.

Downtime Control During System Migration

Replacing a proximity probe in an operating facility requires careful coordination between the maintenance team, the control room operator, and the machinery protection system administrator. The recommended approach is to perform the replacement during a scheduled maintenance window, with the machine taken offline and the protection system placed in bypass mode for the affected channel only — not the entire rack.

Before removing the existing probe, the technician should document the current gap voltage reading from the proximitor front panel or the DCS historian. This baseline value is used to verify correct installation of the replacement probe. After installing the 330102-02-12-90-02-CN and routing the cable, the gap is set mechanically and confirmed electrically by reading the proximitor output voltage. The target gap voltage should fall within the linear range specified in the Bently Nevada installation manual for the 3300 XL system.

Once the gap is confirmed, the protection channel is taken out of bypass and the alarm and trip functions are verified against the original setpoints. If the facility uses a Bently Nevada System 1 condition monitoring platform or a third-party SCADA system for trend data, the engineer should confirm that the new probe’s signal is being correctly received and logged before returning the machine to service. The entire replacement procedure, from isolation to return-to-service, can typically be completed within two to four hours when all replacement components are pre-staged and the installation drawing is available on-site.

For facilities where continuous operation is required and a hot-swap is necessary, consult the Bently Nevada 3300 XL system documentation for channel bypass procedures and confirm with the machinery OEM that the equipment can safely operate with one monitoring channel in bypass for the duration of the replacement.

Retrofit Support FAQ

Q1: Is the 330102-02-12-90-02-CN a direct replacement for my existing 3300 XL probe?
In most cases, yes. The 330102-02-12-90-02-CN is a standard 8mm 3300 XL series probe with a 5-metre integral cable. Confirm the probe diameter, cable length, and connector type against your existing installation drawing. If your current probe has a different cable length suffix, an extension cable can be used to match the original routing distance.

Q2: Do I need to recalibrate the proximitor after replacing the probe?
A full recalibration is not typically required for a like-for-like replacement on a standard steel target. However, you should verify the gap voltage after installation and confirm it falls within the proximitor’s linear range. If the target material is non-standard or the installation geometry has changed, a full gap and sensitivity calibration should be performed per the Bently Nevada 3300 XL installation manual.

Q3: What does the 12-month warranty cover, and is a test report included?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is functionally tested prior to shipment, and a pre-shipment test report is available upon request. The warranty does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the specified environmental limits.

Q4: Can this probe be used with a Bently Nevada 3500 series rack?
The 330102-02-12-90-02-CN is designed and calibrated for the 3300 XL series proximitor. While the physical connector may be compatible with some 3500 series input modules, the sensitivity and output voltage range are optimized for the 3300 XL system. For 3500 series applications, a probe from the 330100 or 330105 series with the appropriate 3500-series proximitor is recommended. Contact our technical team to confirm compatibility for your specific rack configuration.
