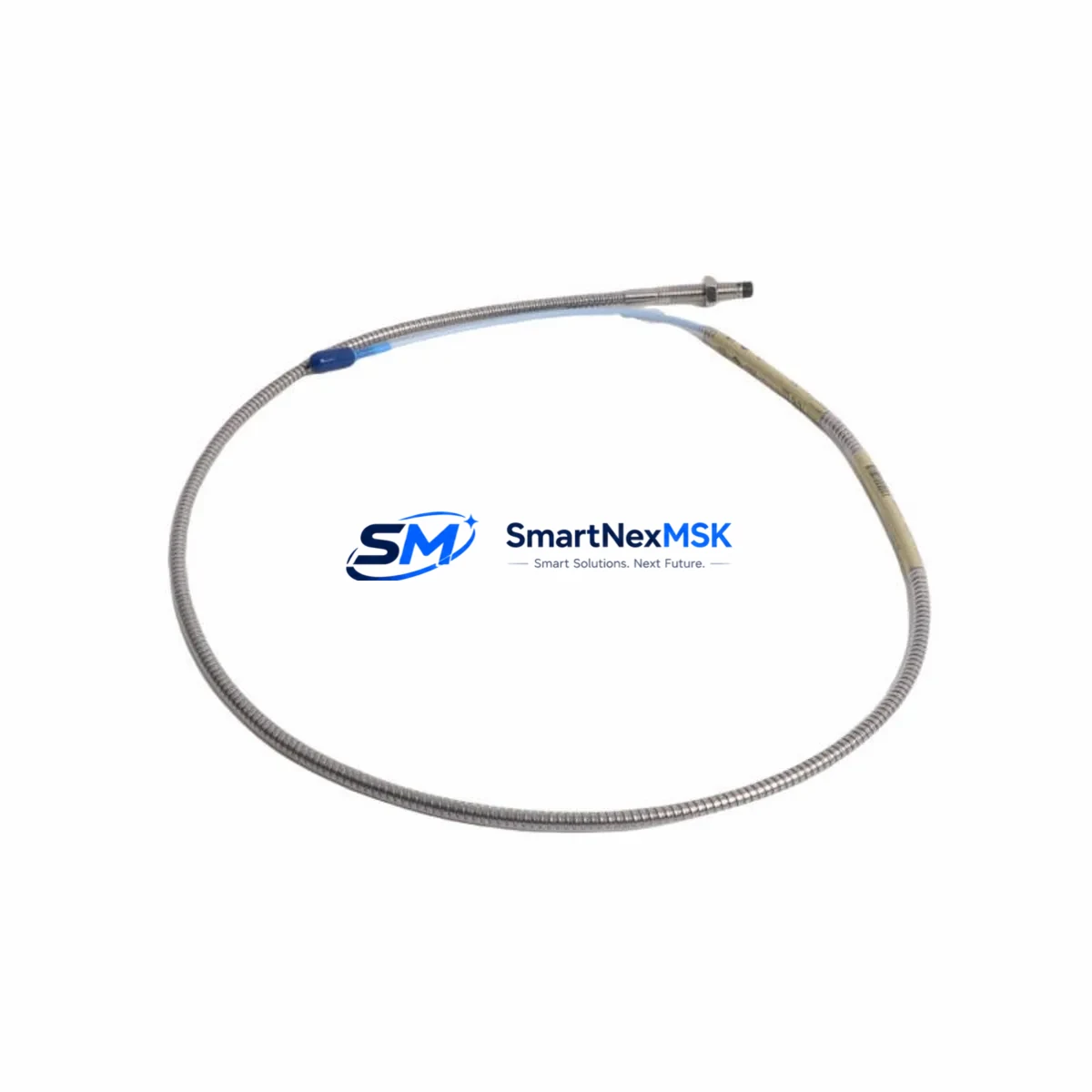

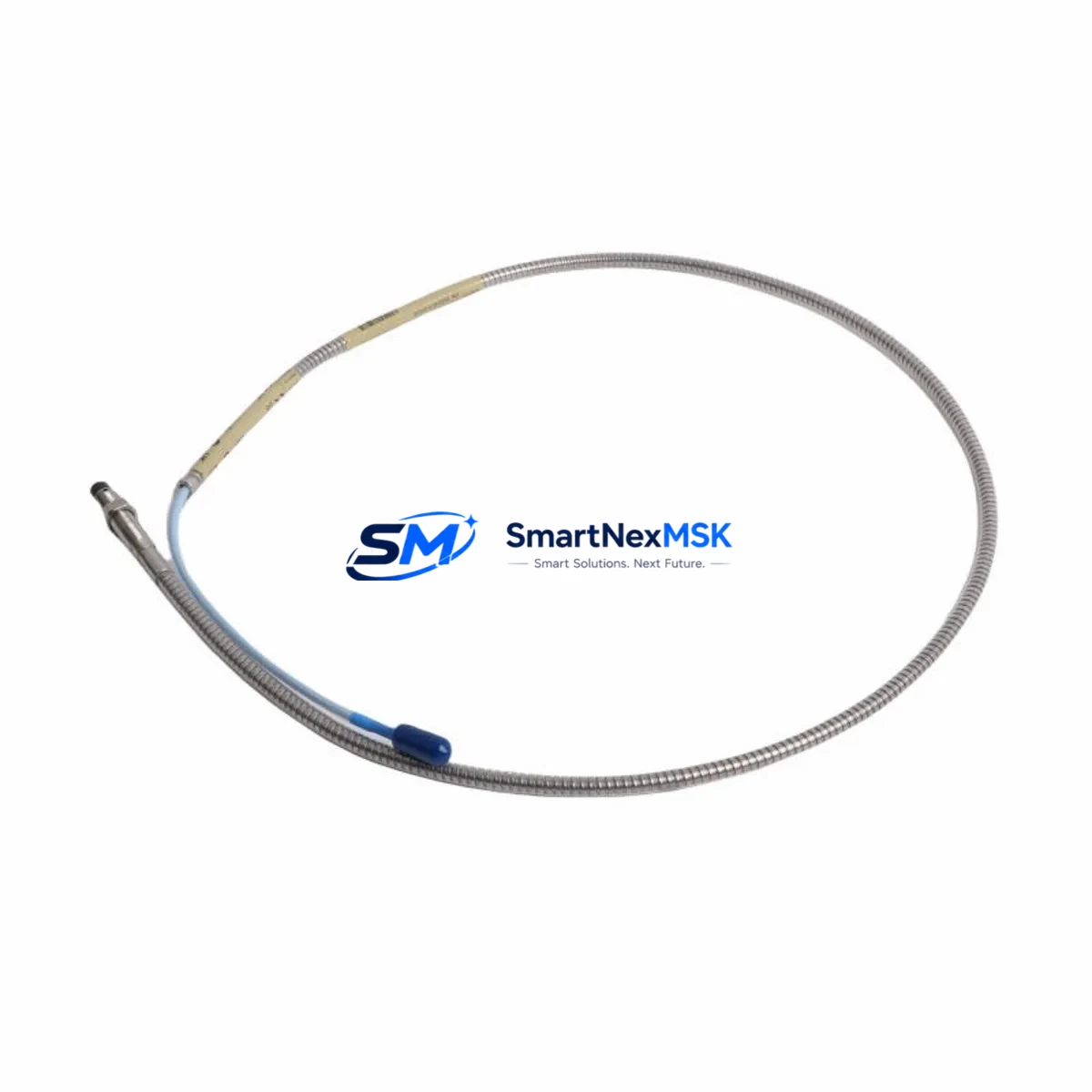

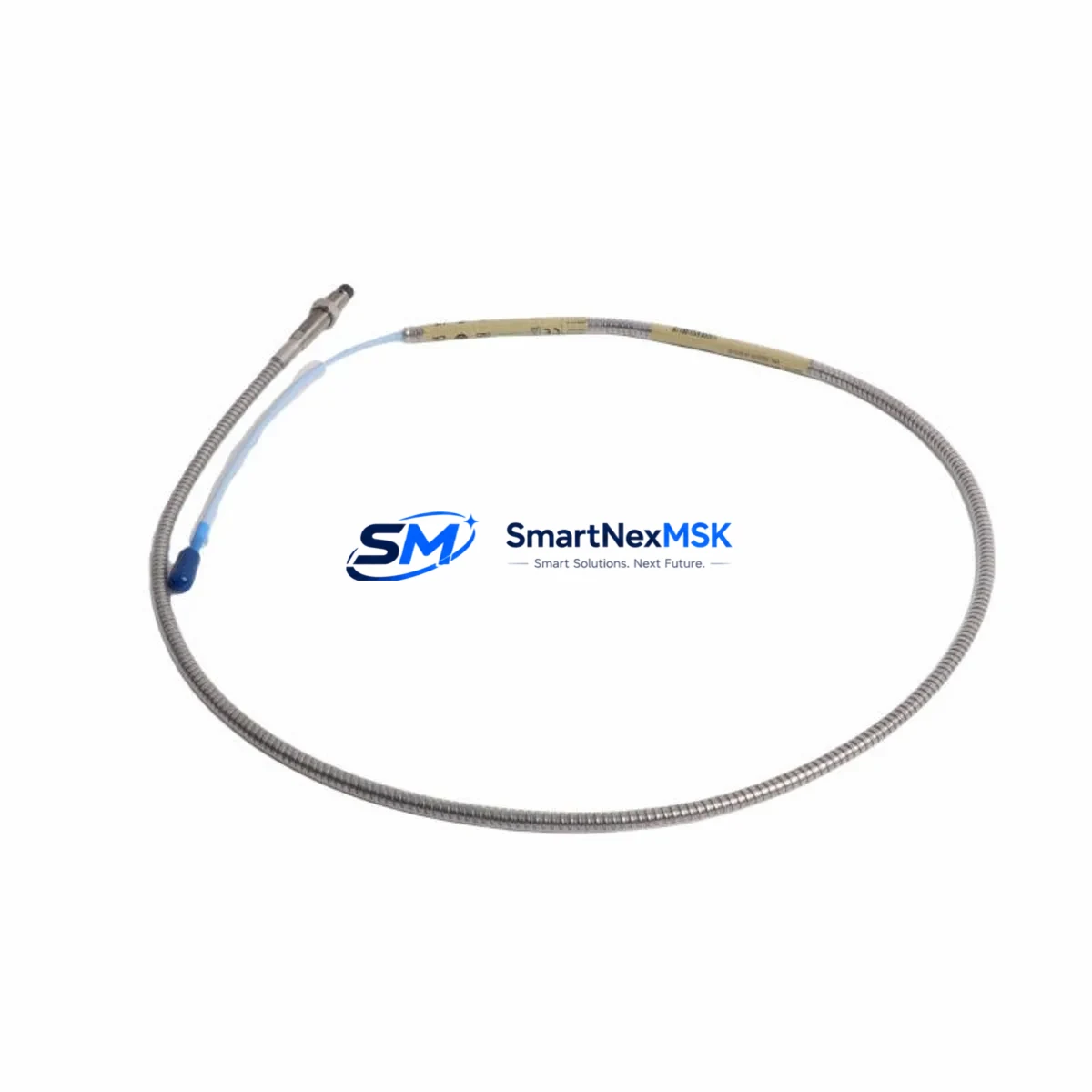

Bently Nevada 330102-12-40-10-02-00 Retrofit-Ready Proximity Transducer for 3300 XL Control Systems
The Bently Nevada 330102-12-40-10-02-00 is a high-precision eddy current proximity transducer engineered for the 3300 XL Series continuous machinery monitoring platform. As legacy 3300 XL installations reach end-of-service milestones, this module serves as a verified retrofit-ready replacement that enables smooth migration from discontinued configurations without requiring full system redesign. Whether you are upgrading an aging vibration monitoring loop, replacing a failed transducer in a critical rotating machinery application, or consolidating spare parts inventory for a multi-train facility, the 330102-12-40-10-02-00 delivers the dimensional accuracy, signal linearity, and system compatibility required for uninterrupted plant operations.
This transducer is designed to interface directly with the Bently Nevada 3300 XL proximitor/extension cable system. The 330102 series uses a standardized 5-meter armored cable assembly and is calibrated for use with the 3300 XL 8mm proximity transducer system, making it a direct functional replacement for obsolete or damaged units in the same measurement chain. Engineers performing a retrofit should confirm the existing proximitor model — typically a 330180 or 330185 series proximitor — to ensure the driver electronics remain matched to the transducer tip diameter and gap voltage range specified in the original loop calibration sheet.
Upgrade Compatibility Table
| Parameter | 330102-12-40-10-02-00 (This Unit) | Retrofit Notes |
|---|---|---|
| Transducer Tip Diameter | 8 mm | Matches standard 3300 XL 8mm loop |
| Cable Length | 5 m (standard) | Verify extension cable length before ordering |
| Gap Voltage Range | −10 VDC nominal | Confirm proximitor output matches |
| Thread Size | M10 × 1.0 | Check bracket/holder thread compatibility |
| Communication Compatibility | Analog (4–20 mA / voltage) | No protocol migration required |
| Replacement for | 330102-12-40-10-02-00 (same SKU) | Drop-in replacement; no re-ranging needed |
| Commissioning Requirement | Gap voltage verification at installation | Use Bently Nevada gap tool or DMM |
| Warranty | 12 Months | Covers manufacturing defects; includes test report |
Retrofit Planning for Existing Automation Systems
Replacing a proximity transducer in a live 3300 XL monitoring system requires careful pre-outage planning to avoid introducing measurement errors or triggering spurious trips. Before removing the existing transducer, technicians should document the current gap voltage reading at the proximitor output — typically measured at the junction box or at the 3300 XL monitor input card, such as the 3300/16 or 3300/20 series I/O module. This baseline reading serves as the acceptance criterion for the replacement unit after installation.
The 330102-12-40-10-02-00 is used in conjunction with a 330130 or 330180 series proximitor and a matched extension cable, commonly the 330130-045-00-00 or similar armored extension. When the full transducer-cable-proximitor chain is replaced as a set, the system must be re-gapped to the manufacturer’s specified linear range, typically between −7 VDC and −18 VDC, with a nominal operating point near −10 VDC. This gap setting is critical for accurate vibration and position measurement on rotating shafts monitored by the 3300 XL rack.
For facilities running a Bently Nevada 3500 series rack in parallel or as a migration target, the 330102 transducer is also compatible with 3500/42M and 3500/45 monitor modules when used with the appropriate proximitor. This cross-series compatibility makes the 330102-12-40-10-02-00 a strategic stocking item for plants managing a mixed fleet of 3300 XL and 3500 series monitors across multiple machinery trains. Maintenance planners should also verify that the DCS historian — whether a Honeywell Experion, Emerson DeltaV, or ABB 800xA system — is configured to accept the analog signal from the updated transducer loop without requiring tag re-mapping or scaling changes.
In control cabinets where the 3300 XL rack is mounted alongside a Rockwell Automation ControlLogix or Allen-Bradley PLC for sequence-of-events logging, the transducer replacement does not affect the PLC program logic, provided the analog input card scaling remains unchanged. However, if the facility is simultaneously upgrading the I/O infrastructure — for example, migrating from a 1756-IF16 analog input module to a newer 1756-IF8H high-speed variant — the engineering team should validate that the new input card’s input impedance is compatible with the proximitor’s output drive capability before finalizing the retrofit scope.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity transducer replacement is achievable through a structured hot-swap protocol. Where process conditions permit, the machinery train should be taken offline in a controlled shutdown sequence, with the 3300 XL monitor placed in bypass mode to suppress alarms during the transducer swap. The bypass function, accessible through the monitor’s front-panel keypad or via the System 1 condition monitoring software, prevents nuisance trips from propagating to the DCS or safety instrumented system during the gap-setting procedure.
Once the replacement 330102-12-40-10-02-00 is installed and gapped, the technician should perform a static gap voltage check before releasing the bypass. If the facility uses a Bently Nevada TK-3 calibration kit or equivalent, a dynamic signal simulation can be performed to verify the full measurement chain — from transducer tip through the proximitor, extension cable, and monitor card — before the machine is restarted. This end-to-end verification step is especially important in applications where the 3300 XL monitor feeds a safety relay or emergency shutdown system, as any miscalibration could result in either a spurious trip or, more critically, a missed alarm condition.
Maintaining a pre-tested spare unit of the 330102-12-40-10-02-00 in the site’s critical spares inventory is the most effective strategy for reducing mean time to repair. Each unit shipped by SMARTNEXMSK is function-tested prior to dispatch and includes a test report confirming gap voltage linearity and insulation resistance, supporting your site’s incoming inspection requirements and reducing commissioning time at the point of installation.
Retrofit Support FAQ
Q: Is the 330102-12-40-10-02-00 a direct drop-in replacement for the original Bently Nevada part?
A: Yes. This unit carries the same SKU as the original Bently Nevada 330102-12-40-10-02-00 and is dimensionally and electrically equivalent. No re-ranging or recalibration of the monitor card is required, provided the existing proximitor and extension cable are in serviceable condition.
Q: What wiring checks should be performed before installation?
A: Verify the extension cable shield continuity and insulation resistance (minimum 100 MΩ at 500 VDC) before connecting the new transducer. Inspect the proximitor connector pins for corrosion or mechanical damage. Confirm the junction box terminal block torque values match the original installation specification.
Q: How is compatibility with the 3500 series monitors confirmed?
A: The 330102 series transducer is compatible with 3500/42M and 3500/45 monitor modules when paired with the correct proximitor driver. Consult the Bently Nevada 3500 series transducer compatibility matrix or contact our technical team with your monitor card part number for confirmation before ordering.
Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects in materials and workmanship for 12 months from the date of shipment. Each unit is shipped with a pre-shipment test report. Warranty claims are processed directly through SMARTNEXMSK with a target response time of 2 business days.
