Bently Nevada 330102-30-65-10-02-CN 3300 XL Spare Probe

Bently Nevada 330102-30-65-10-02-CN 3300 XL Maintenance-Ready Spare Probe

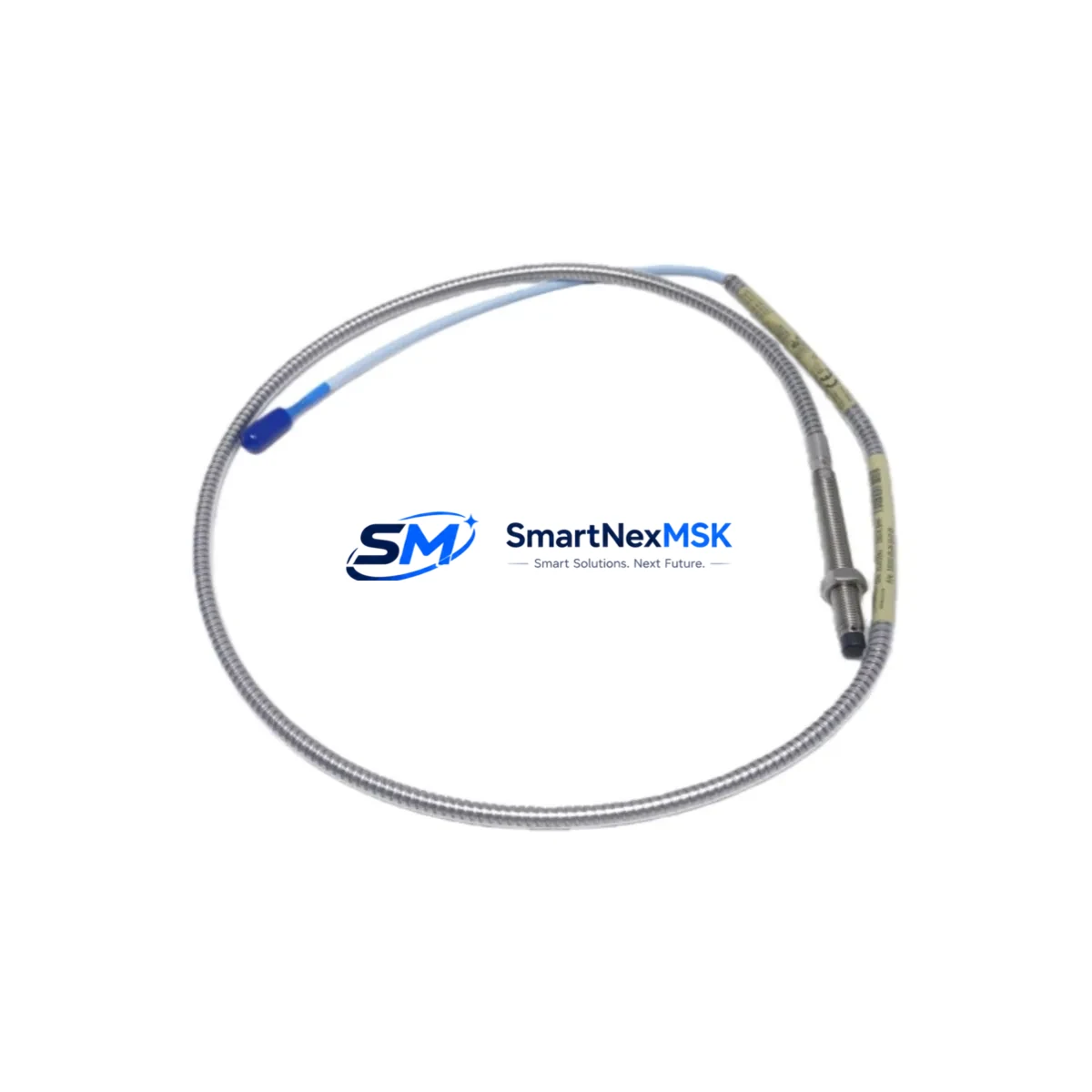

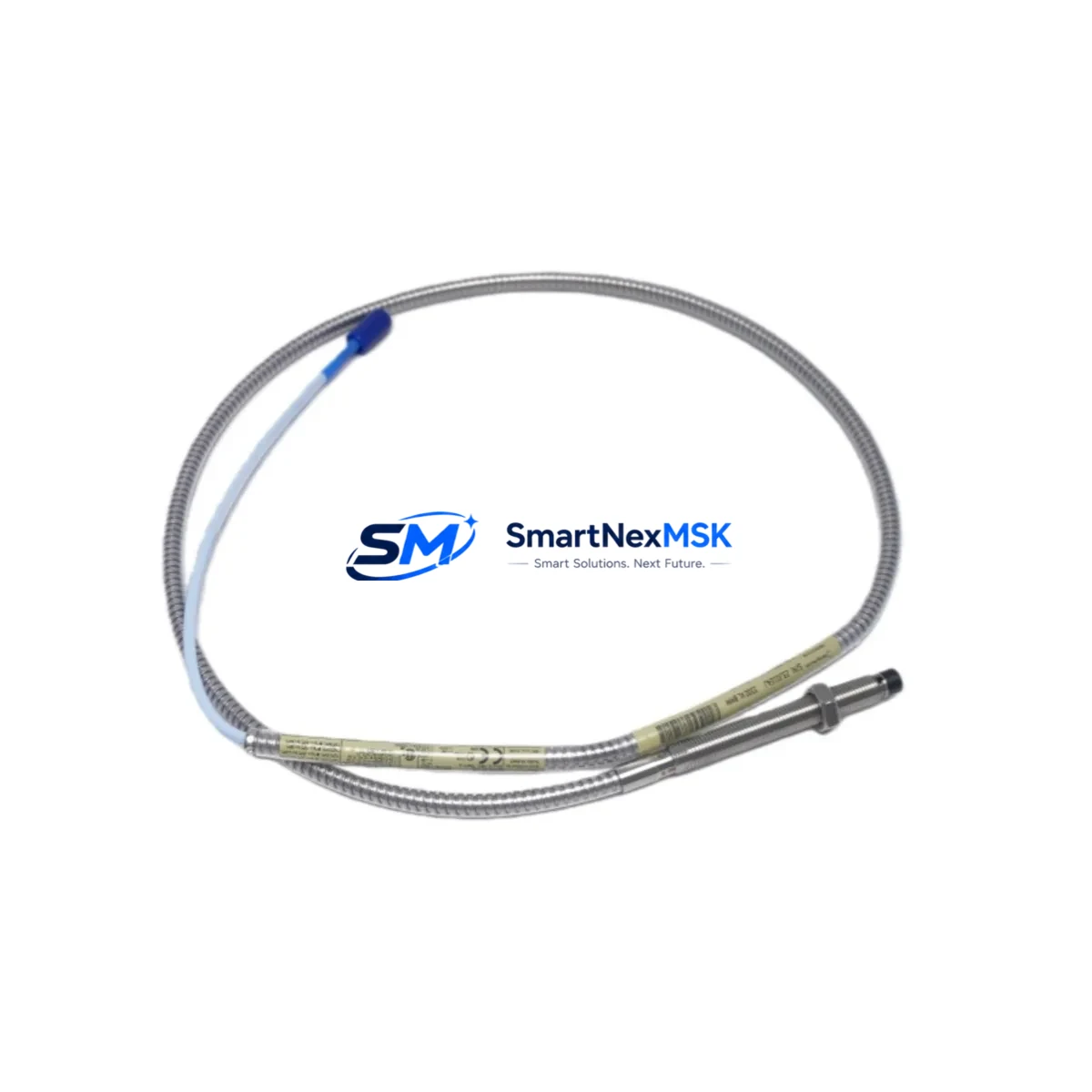

The Bently Nevada 330102-30-65-10-02-CN is an original 8mm eddy-current proximity probe designed for the 3300 XL Series continuous vibration monitoring system. As a maintenance-ready spare, this probe supports rapid field replacement in rotating machinery protection applications — including steam turbines, gas compressors, centrifugal pumps, and gearboxes — where unplanned downtime carries significant operational and financial risk. Sourced from verified supply channels, each unit is inspection-tested prior to shipment and backed by a 12-month warranty.

For maintenance engineers managing aging DCS or PLC-integrated machinery protection systems, having a qualified spare of the 330102-30-65-10-02-CN on the shelf is a fundamental risk-mitigation strategy. The probe’s 8mm tip diameter, -5V DC nominal output, and 200 mV/mil sensitivity are factory-calibrated to integrate directly with the 3300 XL proximitor/driver (such as the 330180 series) without recalibration, minimizing restoration time during fault isolation or scheduled overhaul.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330102-30-65-10-02-CN in the field, a disciplined maintenance engineer will treat the probe swap as an opportunity to inspect the entire vibration measurement loop. The 330180 series proximitor/driver should be checked for output voltage drift and housing integrity — a degraded proximitor can produce false readings even with a new probe installed. Inspect the 330130 extension cable (or equivalent 3300 XL armored extension) for jacket abrasion, connector corrosion, and continuity; cable faults are a leading cause of spurious trip signals in turbomachinery protection systems.

At the monitor rack level, verify the 3300/16 or 3300/20 monitor card channel configuration — gap voltage setpoints, alert/danger thresholds, and OK relay logic — before returning the loop to service. If the control cabinet houses a Bently Nevada 3500 series rack in parallel for overall machine protection, cross-check that the 3500/42M or 3500/45 position monitor channels are not sharing a common ground with the 3300 XL loop, which can introduce measurement offset.

For plants running GE Mark VIe or Emerson DeltaV DCS with integrated machinery protection I/O, confirm that the analog input card receiving the proximitor output (typically a 4–20 mA or ±10 V signal conditioned through a signal isolator module) is reading within expected range after probe replacement. A Pepperl+Fuchs or MTL signal isolator in the loop should also be inspected for LED fault indication and output accuracy.

Do not overlook the terminal block and field wiring in the junction box. Loose or corroded terminals on the coaxial shield drain wire are a common source of noise after maintenance. If the machine is in a hazardous area, verify that the Zener barrier or galvanic isolator protecting the intrinsically safe circuit is within its rated service life. Finally, check the power supply module feeding the 3300 XL rack — a sagging DC rail (typically -24 VDC) will shift the proximitor’s linear range and invalidate gap calibration.

For aging systems approaching end-of-support, stocking a minimum of two units of the 330102-30-65-10-02-CN alongside a spare 330180 proximitor and one 330130 extension cable set is a practical buffer against lead-time risk on obsolete components.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and isolate the measurement loop at the monitor rack. Place the affected channel in bypass mode to prevent a spurious trip during probe removal.

Step 2 — Gap Measurement: Before removing the old probe, record the existing gap voltage from the proximitor output. This baseline confirms whether the probe or the proximitor is the fault source.

Step 3 — Probe Removal: Disconnect the extension cable at the probe connector. Unthread the probe from the mounting bracket using the correct spanner — avoid applying torque to the cable body. Inspect the mounting threads for damage.

Step 4 — New Probe Installation: Thread the 330102-30-65-10-02-CN into the bracket. Set the air gap to the manufacturer-specified nominal (typically 1.0 mm / 40 mil for 8mm probes) using a non-ferrous feeler gauge. Reconnect the extension cable and verify connector seating.

Step 5 — Loop Verification: With the machine stationary, confirm the proximitor output reads within the linear range (typically -10 VDC ± 1 VDC at nominal gap). Compare against the pre-removal baseline. If the reading deviates significantly, inspect the extension cable and proximitor before proceeding.

Step 6 — Return to Service: Remove the bypass, restore the channel to normal monitoring mode, and confirm OK relay status at the 3300 XL monitor. Log the replacement in the maintenance management system (CMMS) with the new probe serial number and gap setting.

This workflow minimizes restoration time, maintains system compatibility, and ensures the replacement is traceable — critical for ISO 55001 asset management compliance and insurance audit requirements.

Spare Parts Support FAQ

Q1: Is the 330102-30-65-10-02-CN compatible with both the 3300 XL and the older 3300 series monitors?
The 330102-30-65-10-02-CN is factory-specified for the 3300 XL system. While the physical connector and sensitivity are similar to earlier 3300 series probes, cross-series compatibility should be verified against the monitor’s input specification sheet before installation. Contact our technical team for confirmation if you are retrofitting an older rack.

Q2: What pre-shipment testing is performed on each unit?
Every 330102-30-65-10-02-CN shipped from our inventory undergoes electrical continuity testing, coaxial impedance verification, tip insulation resistance measurement, and visual inspection for connector and cable jacket integrity. A test report is available upon request.

Q3: What is the warranty coverage and what does it include?
Each unit carries a 12-month warranty from the date of shipment, covering manufacturing defects and electrical failure under normal operating conditions. The warranty does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the rated temperature and voltage range.

Q4: Can you support long-term or blanket purchase orders for this SKU?
Yes. For maintenance teams managing multi-unit turbomachinery fleets or planning annual overhaul schedules, we support blanket PO arrangements with reserved stock allocation. Contact sales@smartnexmsk.com to discuss volume pricing, lead-time commitments, and consignment stocking options.
