Bently Nevada 330102-37-78-10-02-05 3300 XL Retrofit Probe

Bently Nevada 330102-37-78-10-02-05 3300 XL Retrofit Probe: Compatible Modernization & Smooth System Upgrade

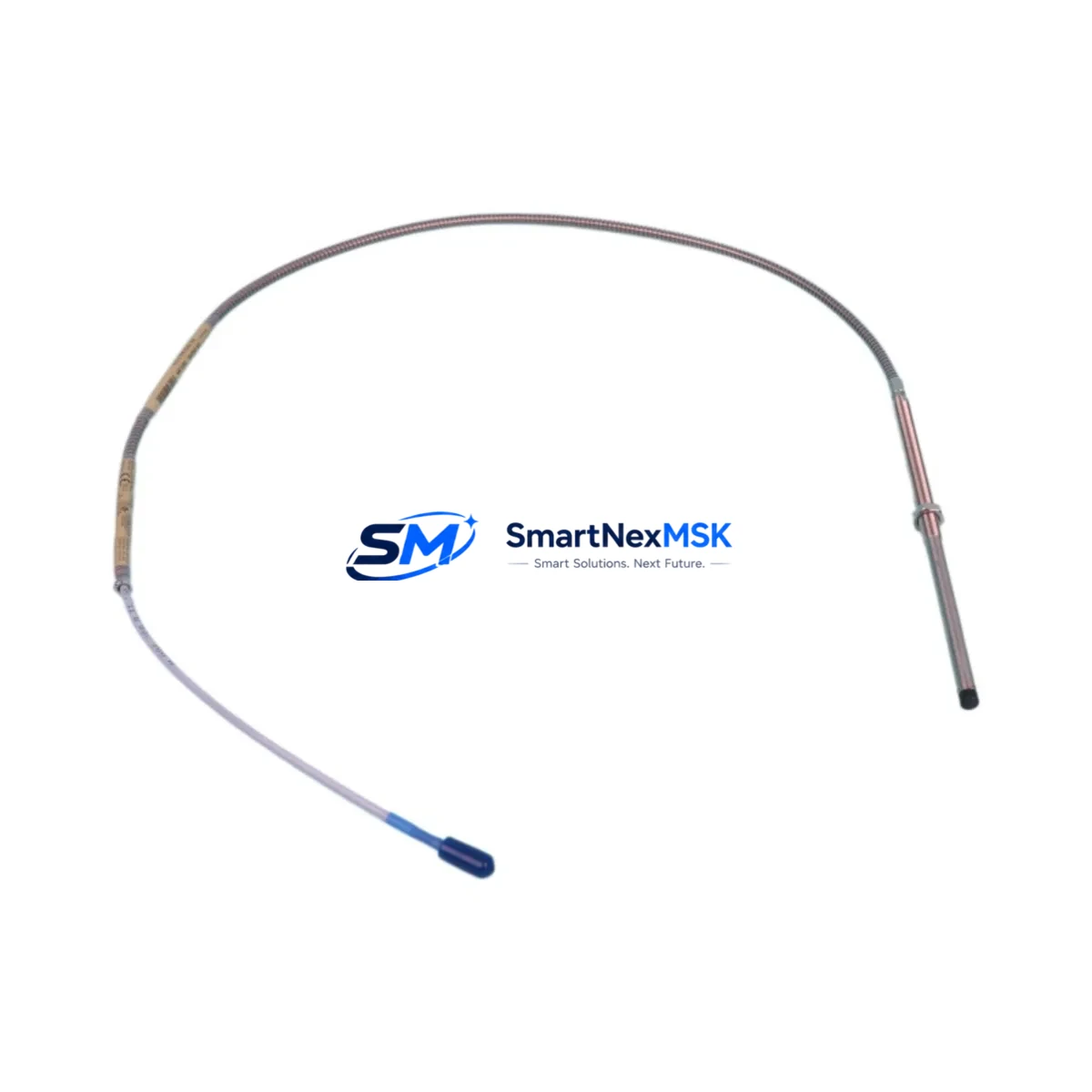

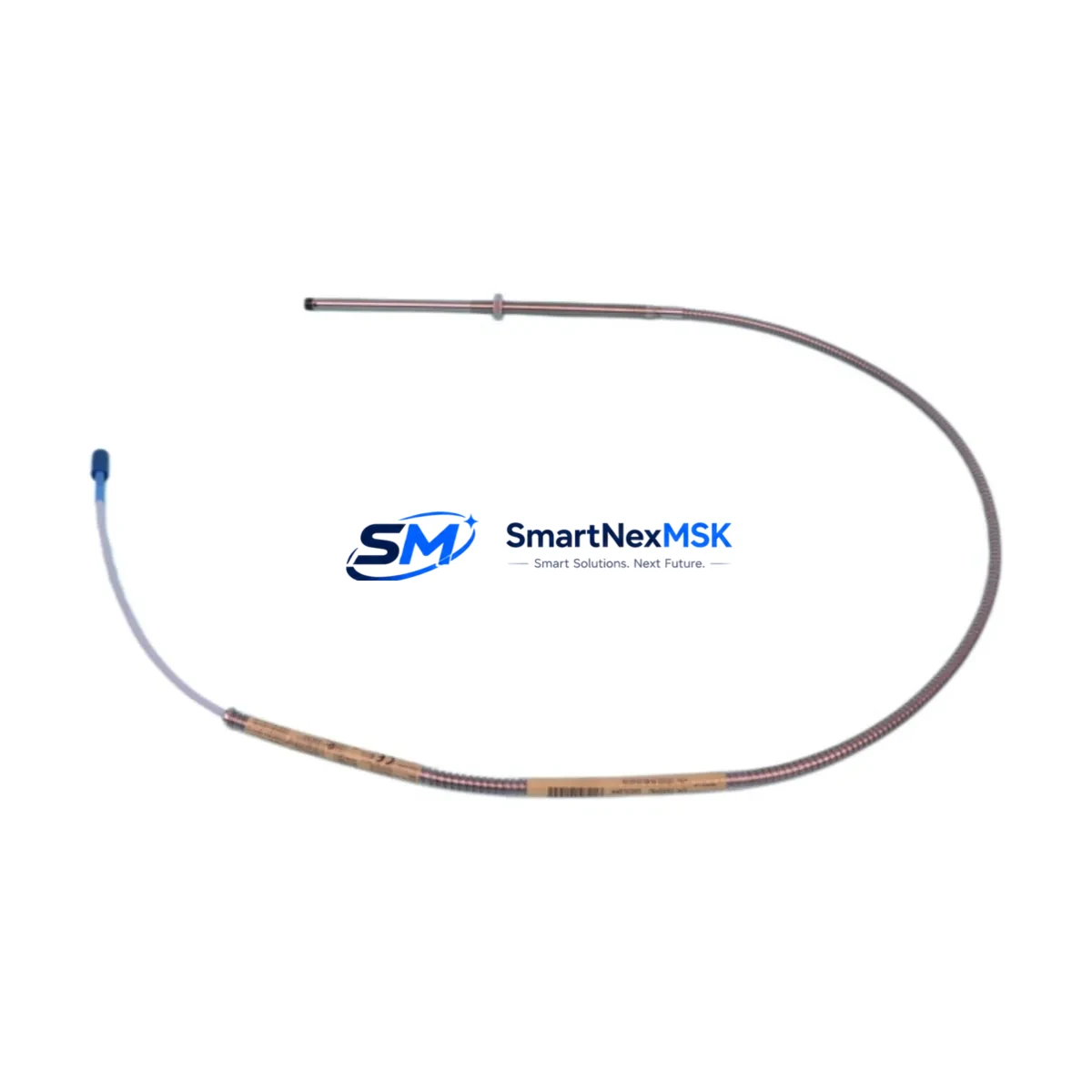

The Bently Nevada 330102-37-78-10-02-05 is an 8mm eddy current proximity probe engineered for the 3300 XL Series condition monitoring platform. As legacy installations age and OEM support for older 3300 Series components becomes increasingly limited, this probe serves as a retrofit-ready, drop-in replacement that preserves signal chain integrity while enabling a controlled, low-risk upgrade path for rotating machinery protection systems.

Whether you are replacing a failed probe in a turbine bearing monitor loop, upgrading a compressor train protection rack, or migrating from an older 3300/05 Series architecture to the 3300 XL platform, the 330102-37-78-10-02-05 is engineered to maintain measurement accuracy, output linearity, and system compatibility without requiring reprogramming of the Bently Nevada 3500 Series rack or recalibration of the proximitor/extension cable assembly.

Each unit is pre-tested against OEM performance specifications before shipment. In-stock inventory ensures rapid dispatch for emergency maintenance windows, planned turnarounds, and scheduled outages. A 12-month warranty covers all units against manufacturing defects and performance deviation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330102-37-78-10-02-05 into an existing condition monitoring architecture requires a structured pre-installation review. Begin by auditing the current rack configuration in the Bently Nevada 3500 Series monitoring system. Confirm that the installed 3500/42M or 3500/40M proximity monitor module is configured for 8mm probe input and that the channel gap voltage is within the –10 to –18 VDC operating window before probe removal.

The extension cable assembly — typically a 330130-080-00-00 (5m) or 330130-080-00-05 (9m) — must be inspected for continuity and shield integrity. A damaged extension cable is a common root cause of false OK/Not OK transitions and should be replaced in parallel with the probe during any planned outage. The 330180-91-00 proximitor (driver) should also be verified for correct bias voltage output before the new probe is installed.

For installations migrating from the older 3300/05 platform to the 3300 XL architecture, the proximitor must be upgraded from the 3300/05 driver to the 3300 XL 8mm Proximitor (part number 330180). The 3300 XL system offers improved noise immunity and tighter linearity tolerance, which is particularly valuable in high-vibration environments such as steam turbine pedestals, centrifugal compressor bearing housings, and gearbox monitoring points.

When planning a multi-channel upgrade across a full turbine protection rack, consider the sequencing of channel-by-channel replacement to maintain continuous monitoring on adjacent channels. The Bently Nevada 3500 rack supports hot-swap of individual monitor modules, allowing maintenance teams to replace one channel at a time without a full system shutdown. Coordinate with the control room to place the affected channel in bypass mode via the 3500 System Manager software before physical probe removal.

For plants running a DCS integration — such as a Honeywell Experion PKS, Emerson DeltaV, or ABB 800xA — confirm that the 4–20mA output from the 3500 monitor module is correctly mapped to the DCS historian tag before returning the channel to service. HMI faceplate displays showing vibration trend and gap voltage should be verified against the live signal after re-gapping. If the plant uses a Modbus RTU or FOUNDATION Fieldbus gateway for condition monitoring data aggregation, re-validate the register map after any rack reconfiguration.

I/O marshalling panels connecting the 3500 rack to the safety instrumented system (SIS) or emergency shutdown system (ESD) should be reviewed to confirm that the vibration high-high trip setpoint is correctly wired and that the relay output from the 3500/32 relay module remains active during the probe swap window. Programmable logic controllers (PLCs) receiving discrete trip signals from the 3500 rack — such as a Siemens S7-300 or Allen-Bradley ControlLogix — should be placed in maintenance mode to prevent spurious shutdowns during the commissioning window.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires pre-staging all replacement components before the maintenance window opens. Confirm that the 330102-37-78-10-02-05 probe, the matching 330130 extension cable, and the 330180 proximitor are on-site and bench-tested before the unit is taken offline. Use the Bently Nevada TK-3 calibration kit or equivalent to verify probe output linearity against a calibrated target material (typically AISI 4140 steel) before installation.

During the outage window, follow a channel-bypass-first protocol: place the monitor channel in bypass via the 3500 System Manager, remove the old probe assembly, install the new 330102-37-78-10-02-05, set the air gap to the nominal 50 mil (1.27mm) using a feeler gauge or gap-setting tool, and verify the proximitor OK LED before releasing the bypass. Document the as-found and as-left gap voltage readings for the maintenance record.

For plants with a redundant probe configuration (XY pair), replace one probe at a time and verify the channel before proceeding to the second. This approach preserves the ability to detect shaft position anomalies throughout the replacement sequence and avoids a simultaneous loss of both radial vibration channels — a condition that would typically trigger an automatic unit trip in a fully configured 3500 protection system.

Original program logic in the 3500 rack is stored in non-volatile memory and is not affected by probe replacement. However, if the rack firmware has not been updated in several years, this maintenance window is an appropriate time to review the Bently Nevada firmware release notes and schedule a firmware update during the next planned outage.

Retrofit Support FAQ

Q1: Is the 330102-37-78-10-02-05 a direct replacement for the older 3300/05 8mm probe?
A: The 330102-37-78-10-02-05 is designed for the 3300 XL platform and requires the 3300 XL 8mm Proximitor (330180). If your existing installation uses a 3300/05 proximitor, the proximitor must be upgraded alongside the probe. The extension cable (330130 Series) is compatible across both platforms, but suffix verification is recommended.

Q2: What commissioning steps are required after installation?
A: After physical installation, set the probe air gap to 50 mil nominal using a feeler gauge. Verify the proximitor bias voltage is within –10 to –18 VDC. Confirm the OK LED is illuminated on the 3500 monitor module. Check the gap voltage reading in the 3500 System Manager software and compare against the calibration curve. Release the channel from bypass and monitor the vibration trend for at least one full shaft rotation cycle before returning the unit to service.

Q3: What is the warranty coverage and what does it include?
A: All units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, output linearity deviation beyond OEM specification, and connector or cable integrity failures under normal operating conditions. Units are pre-tested before dispatch. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q4: Can this probe be used in hazardous area (Ex) installations?
A: The 330102-37-78-10-02-05 is rated for use in hazardous locations when installed with the appropriate Bently Nevada intrinsically safe barrier or Zener barrier in the junction box. Confirm the area classification (Zone 1/Zone 2 or Division 1/Division 2) and select the appropriate barrier model from the 3300 XL accessory catalog. All Ex installations must be commissioned by a qualified instrumentation engineer in accordance with IEC 60079 or NEC Article 504.
