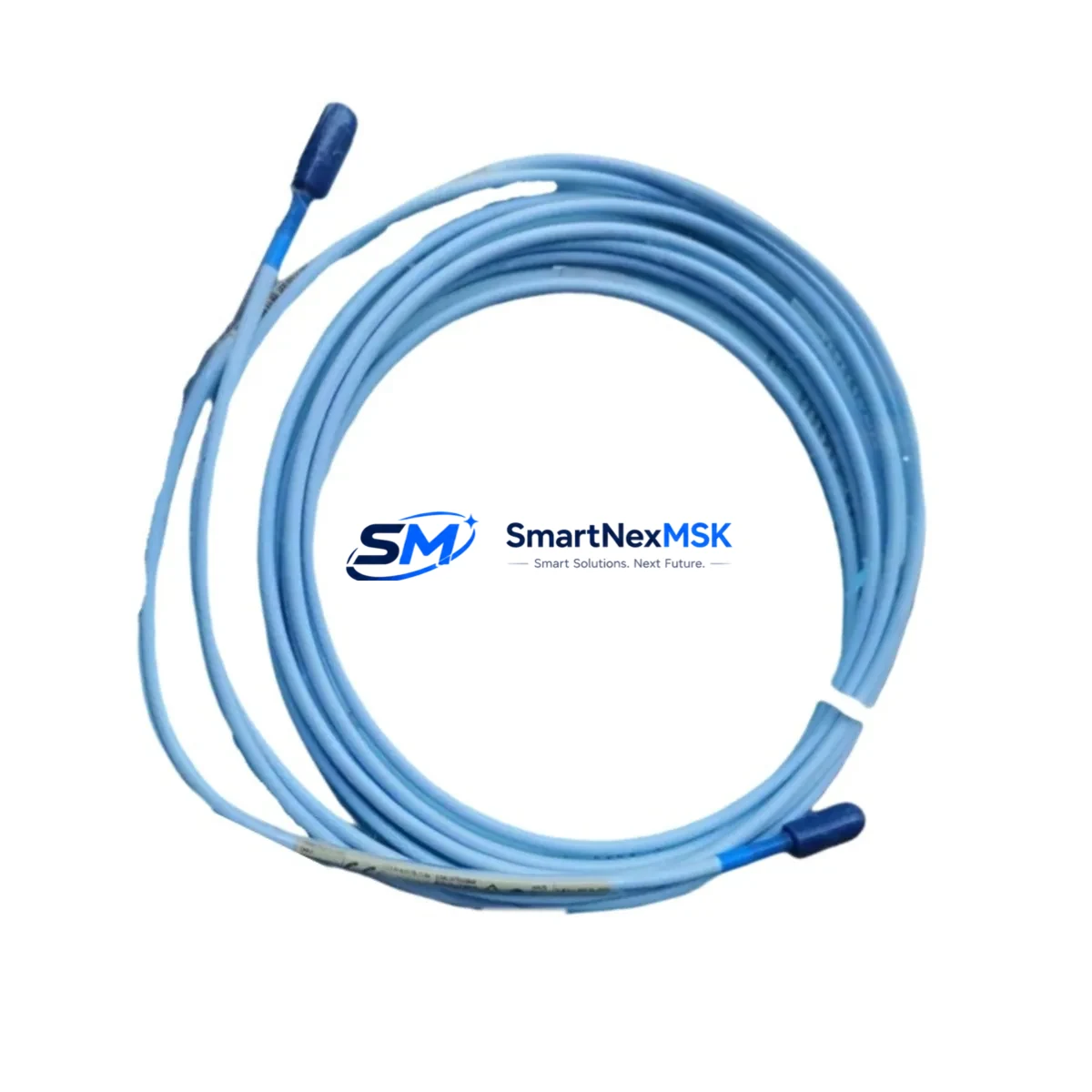

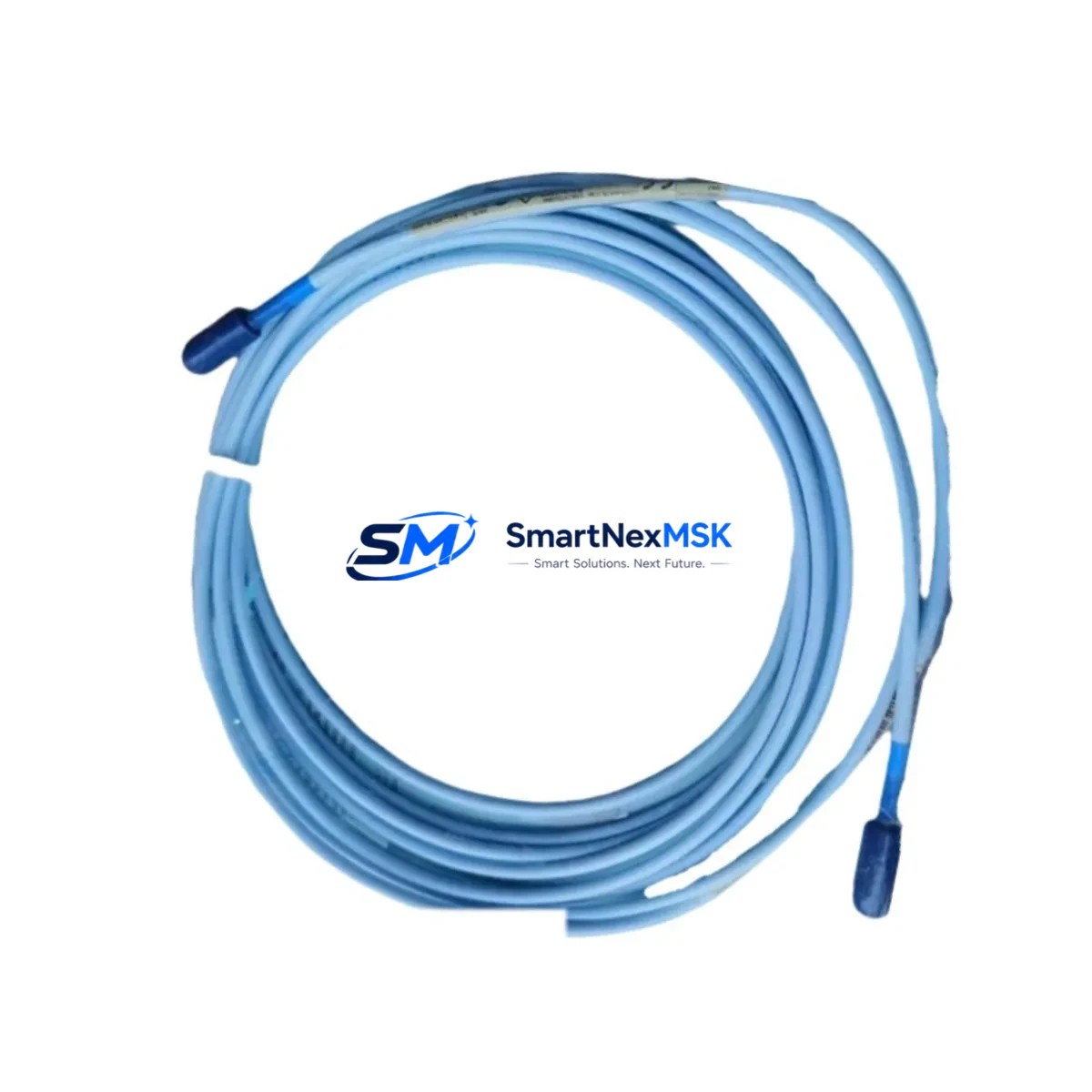

Bently Nevada 330102-60-90-10-02-CN Safety Proximity Transducer

Bently Nevada 330102-60-90-10-02-CN Safety Proximity Transducer: Reliable Vibration Control for Harsh Industrial Sites

The Bently Nevada 330102-60-90-10-02-CN is an 8mm proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably under high electromagnetic interference, mechanical shock, thermal cycling, and corrosive atmospheres, this transducer is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and continuous manufacturing facilities.

In critical control cabinets and machinery protection panels, signal integrity is non-negotiable. The 330102-60-90-10-02-CN delivers a stable, low-noise output signal that feeds directly into the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-X1-05 series) and integrates seamlessly with the Bently Nevada 3500 Machinery Protection System rack. This end-to-end signal chain — from transducer tip to rack I/O — ensures that shaft displacement, radial vibration, and axial position data are captured with the accuracy required for trip and alarm setpoints in API 670-compliant protection loops.

When deployed in high-load rotating equipment such as steam turbines, gas compressors, centrifugal pumps, and large induction motors, the 330102-60-90-10-02-CN resists signal drift caused by temperature excursions and power supply fluctuations. Its ruggedized cable assembly and connector system are rated for continuous exposure to oils, coolants, and industrial solvents, reducing the risk of insulation breakdown and intermittent faults that can trigger nuisance trips or, worse, mask genuine machinery faults. The transducer’s linear measurement range and sensitivity specification remain stable across its full operating temperature band, making it suitable for both ambient-temperature machine rooms and high-heat environments adjacent to furnaces or steam headers.

In safety interlock and emergency shutdown (ESD) architectures, the reliability of every field device matters. The 330102-60-90-10-02-CN is routinely specified alongside the Bently Nevada 330130-080-00-00 extension cable and the 330105-02-12-10-02-CN driver to form a complete proximity measurement chain. These three components — transducer, cable, and driver — are calibrated as a matched set, ensuring the system gain and gap voltage remain within the tight tolerances required by SIL-rated protection loops. Substituting unmatched components introduces calibration error that can compromise trip accuracy and increase the probability of dangerous undetected failures.

For control cabinet builders and system integrators, the 330102-60-90-10-02-CN is compatible with standard DIN-rail mounted signal conditioners and can be wired into Bently Nevada 3500/42M or 3500/40M monitor modules without additional signal conversion. When combined with a Bently Nevada 3500/15 Power Supply module and a 3500/22M Transient Data Interface, the complete monitoring system provides both steady-state protection and transient capture capability — critical for startup and coast-down analysis of large rotating machines where bearing damage risk is highest.

Surge and transient protection is another key consideration in heavy industrial sites where variable frequency drives (VFDs), large motor starters, and arc furnaces generate significant conducted and radiated interference. The 330102-60-90-10-02-CN’s shielded coaxial cable construction and the inherent common-mode rejection of the eddy-current measurement principle provide robust immunity to these interference sources, reducing the risk of false trips and communication anomalies in the monitoring network. For additional protection in particularly noisy environments, pairing this transducer with a Bently Nevada 990 Vibration Transmitter or an isolated signal barrier at the cabinet entry point is a recommended best practice.

All units supplied by SMARTNEXMSK are sourced from verified supply channels, individually inspected upon receipt, and subjected to functional output verification testing prior to shipment. Each 330102-60-90-10-02-CN is shipped with a test record confirming gap voltage linearity and sensitivity within factory specification. Long-term inventory availability is maintained to support both planned maintenance outages and emergency spare requirements, minimizing the risk of extended production downtime caused by component unavailability.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection cabinet built around the 330102-60-90-10-02-CN typically integrates multiple layers of sensing, conditioning, and power management. The transducer connects via the Bently Nevada 330130-080-00-00 armored extension cable to the 330105-02-12-10-02-CN Proximitor driver, which conditions the raw eddy-current signal into a calibrated DC voltage. This conditioned signal feeds into a Bently Nevada 3500/42M Proximitor I/O module housed in the 3500 Rack, where it is compared against operator-configured alarm and danger setpoints in real time.

Power integrity for the entire monitoring chain is maintained by the Bently Nevada 3500/15 Power Supply, which provides redundant, regulated -24 VDC to all Proximitor drivers in the cabinet. Redundant power supply configurations are strongly recommended in critical applications to eliminate the power supply as a single point of failure. For facilities requiring network-level machinery health data, the Bently Nevada 3500/22M Transient Data Interface captures high-resolution waveform data during startups, shutdowns, and alarm events, enabling root-cause analysis without requiring additional portable instrumentation.

In applications where the monitoring cabinet is located remotely from the machine train — common in offshore platforms, underground mining installations, and large petrochemical complexes — signal integrity over long cable runs is protected by the matched impedance of the 3300 XL system. For additional surge protection at the cabinet entry, transient voltage suppressors or Bently Nevada I/O Module barrier assemblies are installed to clamp induced transients from nearby high-power switching equipment. The Bently Nevada 990 Vibration Transmitter is an alternative front-end option for installations requiring a 4–20 mA output compatible with third-party DCS or safety PLC inputs, providing flexibility in mixed-vendor control architectures.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hydrocarbon processing facilities, the 330102-60-90-10-02-CN monitors shaft vibration and axial position on critical rotating equipment including centrifugal compressors, process pumps, and expander-compressor trains. Continuous, reliable vibration data is essential for preventing catastrophic seal failures and unplanned releases in hazardous-area classified zones. The transducer’s resistance to hydrocarbon vapors and process fluids ensures measurement continuity even in the presence of incidental liquid contact.

Power Generation: Steam and gas turbine generators rely on proximity transducer systems to protect journal bearings and thrust bearings from overload conditions. The 330102-60-90-10-02-CN, integrated into a 3500 Series protection rack, provides the real-time shaft position data required to initiate an automatic turbine trip before bearing damage progresses to a destructive failure. This capability is critical in base-load and peaking power plants where unplanned outages carry significant financial and grid-stability consequences.

Mining and Mineral Processing: Large ball mills, SAG mills, and conveyor drive systems in mining operations subject proximity transducers to extreme vibration, dust ingress, and wide temperature swings. The ruggedized construction of the 330102-60-90-10-02-CN and its resistance to mechanical shock make it well-suited for these environments, where sensor failures can halt entire processing lines and result in significant production losses.

Water and Wastewater Treatment: High-capacity pump stations and blower systems in water treatment facilities benefit from continuous vibration monitoring to detect impeller imbalance, cavitation, and bearing wear before they escalate to pump failure. The non-contact measurement principle of the 330102-60-90-10-02-CN eliminates the wear-related drift associated with contact-type sensors, ensuring long-term measurement accuracy with minimal maintenance intervention.

Metallurgy and Steel Production: Rolling mills, continuous casters, and large induction furnace drives operate in environments with intense electromagnetic interference from high-current bus bars and induction heating systems. The shielded coaxial design of the 330102-60-90-10-02-CN provides the EMI immunity required to maintain signal integrity in these electrically noisy environments, supporting reliable protection of critical drive train components.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330102-60-90-10-02-CN?
All units are covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions consistent with the product’s published specifications. Warranty replacement or repair is processed promptly to minimize any impact on your maintenance schedule.

Q2: What pre-shipment testing is performed on each unit?
Each 330102-60-90-10-02-CN undergoes functional output verification testing prior to shipment. This includes gap voltage linearity checks and sensitivity confirmation against the 7.87 V/mm (200 mV/mil) factory specification. A test record is available upon request and can be included with the shipment documentation for your quality records.

Q3: Is this transducer compatible with existing Bently Nevada 3300 XL and 3500 Series installations?
Yes. The 330102-60-90-10-02-CN is a direct fit for all standard 3300 XL Proximitor driver and 3500 Series monitor rack installations. It must be used as part of a matched 3300 XL measurement chain (transducer + extension cable + driver) to maintain calibration accuracy. Mixing components from different series or manufacturers is not recommended and may void system calibration.

Q4: Can long-term supply availability be guaranteed for ongoing maintenance programs?
SMARTNEXMSK maintains standing inventory of the 330102-60-90-10-02-CN and related 3300 XL series components to support both scheduled turnaround maintenance and emergency spare requirements. For facilities with large fleets of Bently Nevada-monitored machines, we recommend establishing a blanket order or consignment stock arrangement to ensure component availability without capital commitment. Contact our team to discuss supply program options tailored to your maintenance strategy.
