Bently Nevada 330102-60-96-10-02-CN 3300 XL Retrofit Probe

Bently Nevada 330102-60-96-10-02-CN 3300 XL Retrofit Probe: Compatible Retrofit & Legacy System Smooth Upgrade

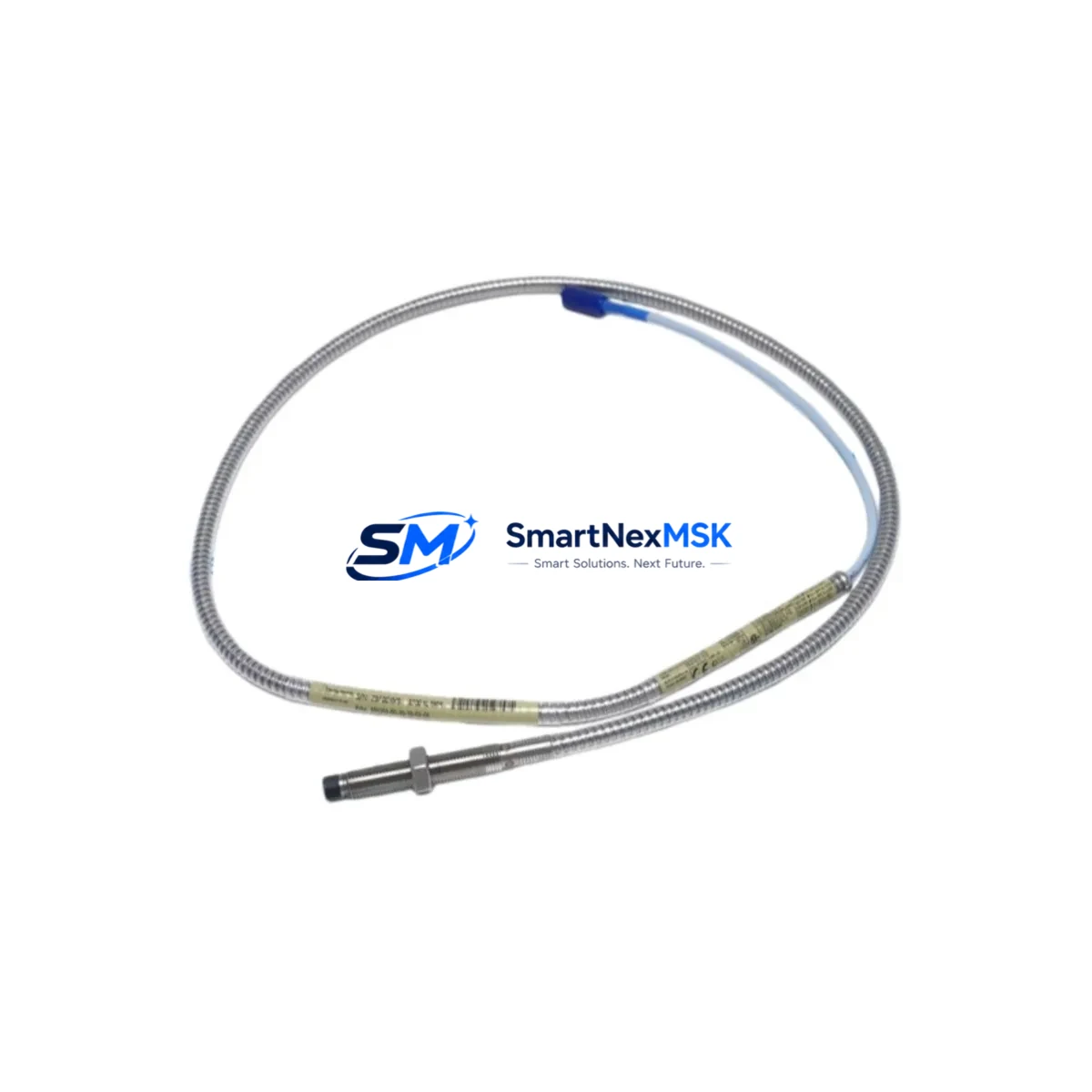

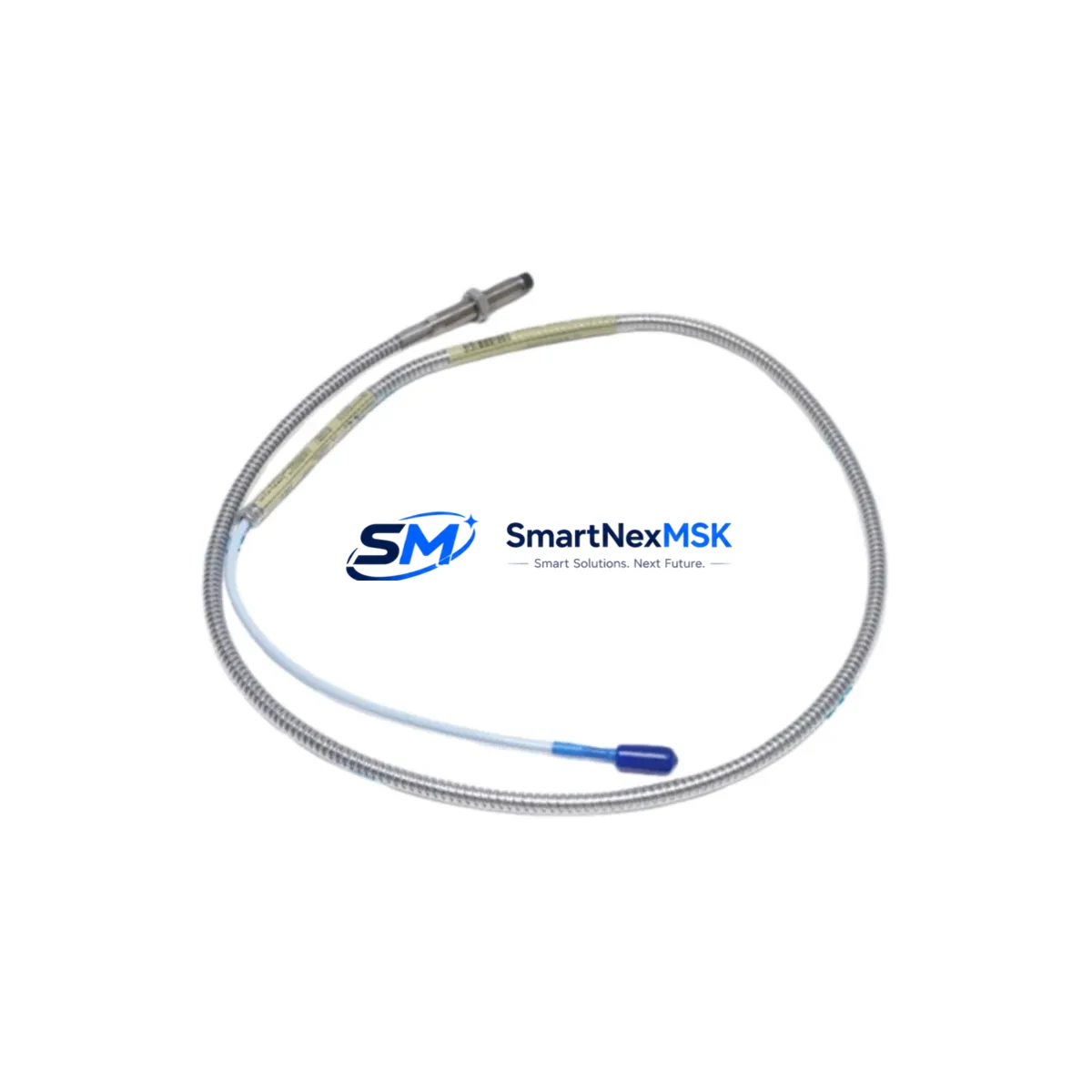

The Bently Nevada 330102-60-96-10-02-CN is an 8mm eddy-current proximity transducer engineered for the 3300 XL Monitoring System platform. Designed as a retrofit-ready replacement for aging or discontinued proximity probe assemblies, this unit delivers full signal compatibility with existing 3300 XL proximitor/seismometer modules, enabling plant engineers to restore vibration and position monitoring capability without redesigning the measurement chain or replacing the entire monitoring rack.

In legacy turbomachinery protection systems — including steam turbines, gas compressors, centrifugal pumps, and gearboxes — the 3300 XL series remains one of the most widely deployed eddy-current monitoring platforms globally. As original probe assemblies reach end-of-service life or become unavailable through OEM channels, the 330102-60-96-10-02-CN provides a verified drop-in solution that maintains the 200 mV/mil (7.87 V/mm) output sensitivity standard required by the 3300 XL proximitor, preserving alarm setpoints, trip thresholds, and Bently Nevada System 1 software configurations without recalibration.

When planning a retrofit using the 330102-60-96-10-02-CN, engineers must confirm several critical interface parameters before installation. The probe cable length of 96 inches (approximately 2.44 m) must be verified against the existing conduit routing from the bearing housing to the junction box or proximitor enclosure. The extension cable — typically a 330130-series armored extension — must be checked for continuity and connector integrity, as degraded extension cables are a common source of signal noise in aging installations. The proximitor module, such as the 3300 XL 8mm Proximitor (330180-series), must be confirmed as functional and properly gapped before the new probe is installed.

Retrofit planning should also account for the physical mounting configuration. The 330102-60-96-10-02-CN uses a standard 3/8-24 UNF threaded body, compatible with existing probe holders and lock nuts used across the 3300 XL installation base. Gap voltage must be set to the nominal –10.0 VDC (±0.2 V) at the recommended air gap of 50 mils (1.27 mm) using a non-conductive gap-setting tool. Engineers should verify that the target material — typically AISI 4140 or equivalent low-alloy steel — matches the calibration standard used for this probe model, as alternative shaft materials may require sensitivity correction factors.

For installations where the 3300 XL rack also includes complementary monitoring modules — such as the 3300/16 Dual Voting Logic module, the 3300/20 Overspeed Detection module, or the 3300/46 Tachometer module — the probe replacement should be coordinated with a full rack health check. Relay output wiring, 4–20 mA analog output loops, and Modbus RTU or RS-232 communication links to the plant DCS or SCADA system should be verified for continuity and correct termination before the system is returned to service.

In modernization projects where the plant is migrating from a legacy 3300 XL rack to a newer System 1 Evolution or 3701/40 Series platform, the 330102-60-96-10-02-CN can serve as an interim field sensor while the monitoring electronics are upgraded, reducing the scope of simultaneous changes and allowing phased commissioning. During this transition, the existing 3300 XL proximitor output can be cross-wired to the new monitoring card’s input terminals, with the probe signal verified against both platforms before the old rack is decommissioned.

All units supplied by SMARTNEXMSK are subject to pre-shipment functional testing, including output linearity verification, insulation resistance check, and connector inspection. Each probe is shipped with a test report and is covered by a 12-month warranty against manufacturing defects. Stock is maintained for immediate dispatch, supporting urgent maintenance windows and unplanned outage recovery scenarios where lead time from the OEM channel is not acceptable.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 330102-60-96-10-02-CN begins well before the maintenance window opens. The first step is a full audit of the existing measurement chain: probe, extension cable, proximitor, and rack wiring. In many aging 3300 XL installations, the 330130-080-00-00 extension cable has been in service for over a decade and may exhibit increased capacitance or intermittent continuity that will degrade the new probe’s signal quality if not replaced simultaneously. The 3300 XL proximitor module should be bench-tested or replaced with a known-good unit — a 330180-51-00 or equivalent — before the new probe is installed.

For plants operating mixed monitoring architectures, where the 3300 XL rack coexists with a 3500 Series Machinery Protection System or a newer 3701/40 Series rack, the probe replacement must be coordinated with the I/O mapping in the plant DCS. Analog input cards receiving the 4–20 mA vibration signal must be verified for correct scaling, and any hardwired relay outputs from the 3300/16 Dual Voting Logic module must be tested for correct trip response after the probe is reinstalled and gapped.

In control cabinet upgrades where the 3300 XL rack is being relocated or the cabinet is being replaced, the new probe cable routing must account for separation from high-voltage power cables to prevent electromagnetic interference. The 330102-60-96-10-02-CN’s integral cable is shielded, but shield grounding must be verified at the proximitor end only — grounding at both ends creates a ground loop that introduces 50/60 Hz noise into the vibration signal. The cabinet’s 24 VDC power supply feeding the proximitor should also be verified for ripple and regulation, as power supply degradation is a common cause of baseline drift in legacy installations.

For I/O expansion projects where additional measurement points are being added to an existing 3300 XL rack, the 330102-60-96-10-02-CN can be used to populate previously unused probe positions. The rack’s backplane connector and slot termination board should be inspected for corrosion or loose contacts before the new probe circuit is commissioned. If the rack is at capacity, a supplementary 3300 XL expansion frame or migration to a 3500/42M Proximitor/Seismic Monitor module may be required to accommodate additional channels.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage preparation protocol. Before the maintenance window, the replacement 330102-60-96-10-02-CN should be pre-gapped on a bench fixture using a target material sample that matches the installed shaft, allowing the technician to arrive on-site with a probe already set to the nominal –10.0 VDC gap voltage. This eliminates the most time-consuming step of the field installation and reduces the risk of incorrect gap setting under time pressure.

During the outage, the original probe’s gap voltage and vibration baseline readings should be recorded from the 3300 XL proximitor or System 1 software before disconnection. These values serve as the acceptance criteria for the replacement probe after installation. Once the new probe is installed and gapped, the proximitor output should be verified against the recorded baseline before the machine is restarted. If the output deviates by more than ±0.5 VDC from the original gap voltage at the same physical gap, the extension cable, proximitor, or target surface condition should be investigated before proceeding.

To protect the original program logic and HMI display configurations during the migration, no changes should be made to the System 1 database, DCS tag assignments, or HMI faceplate scaling until the new probe has been verified in service. If the plant is simultaneously upgrading the monitoring electronics — for example, migrating from a 3300 XL rack to a 3500 Series rack — the HMI graphics, alarm setpoints, and historian tags should be validated against the new system’s output scaling before the old rack is powered down. Maintaining communication link continuity between the monitoring system and the plant DCS throughout the migration prevents false alarms and protects the control narrative during the transition period.

Retrofit Support FAQ

Q1: Is the 330102-60-96-10-02-CN a direct drop-in replacement for the original Bently Nevada probe in my 3300 XL system?
Yes. The 330102-60-96-10-02-CN is manufactured to the same dimensional, electrical, and sensitivity specifications as the original Bently Nevada 8mm proximity probe for the 3300 XL platform. It uses the same 3/8-24 UNF thread, the same 200 mV/mil output sensitivity, and the same connector interface as the original, allowing installation without modification to the probe holder, extension cable connector, or proximitor input circuit. No recalibration of the monitoring system is required provided the gap voltage is correctly set during installation.

Q2: What commissioning steps are required after installing the replacement probe?
After physical installation, set the air gap to achieve a proximitor output of –10.0 VDC ± 0.2 V using a calibrated DC voltmeter at the proximitor’s output terminals. Verify the vibration baseline (typically <1.0 mil pk-pk on a healthy machine at rest) against the pre-outage recorded value. Confirm that the System 1 software or DCS historian is receiving a valid signal within the expected range before releasing the machine for restart. Document the as-found and as-left gap voltages in the maintenance record.

Q3: Can this probe be used with a 3500 Series or 3701/40 Series proximitor instead of the 3300 XL proximitor?
The 330102-60-96-10-02-CN is calibrated and specified for use with the 3300 XL 8mm proximitor (330180-series). While the physical probe body is dimensionally compatible with other Bently Nevada eddy-current systems, the sensitivity calibration and gap voltage specifications are optimized for the 3300 XL proximitor driver circuit. Use with a 3500/42M or 3701/40 Series proximitor requires verification of the system’s probe/cable/proximitor matching table and may require a different probe model. Contact SMARTNEXMSK for cross-reference guidance before ordering for non-3300 XL applications.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed?
Each 330102-60-96-10-02-CN supplied by SMARTNEXMSK undergoes pre-shipment testing including output linearity verification across the full measurement range, insulation resistance check between the cable shield and conductors, and visual inspection of the connector, cable jacket, and probe tip. The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. A test report is included with each unit. Warranty claims are processed through sales@smartnexmsk.com with the original order reference and a description of the observed fault.
