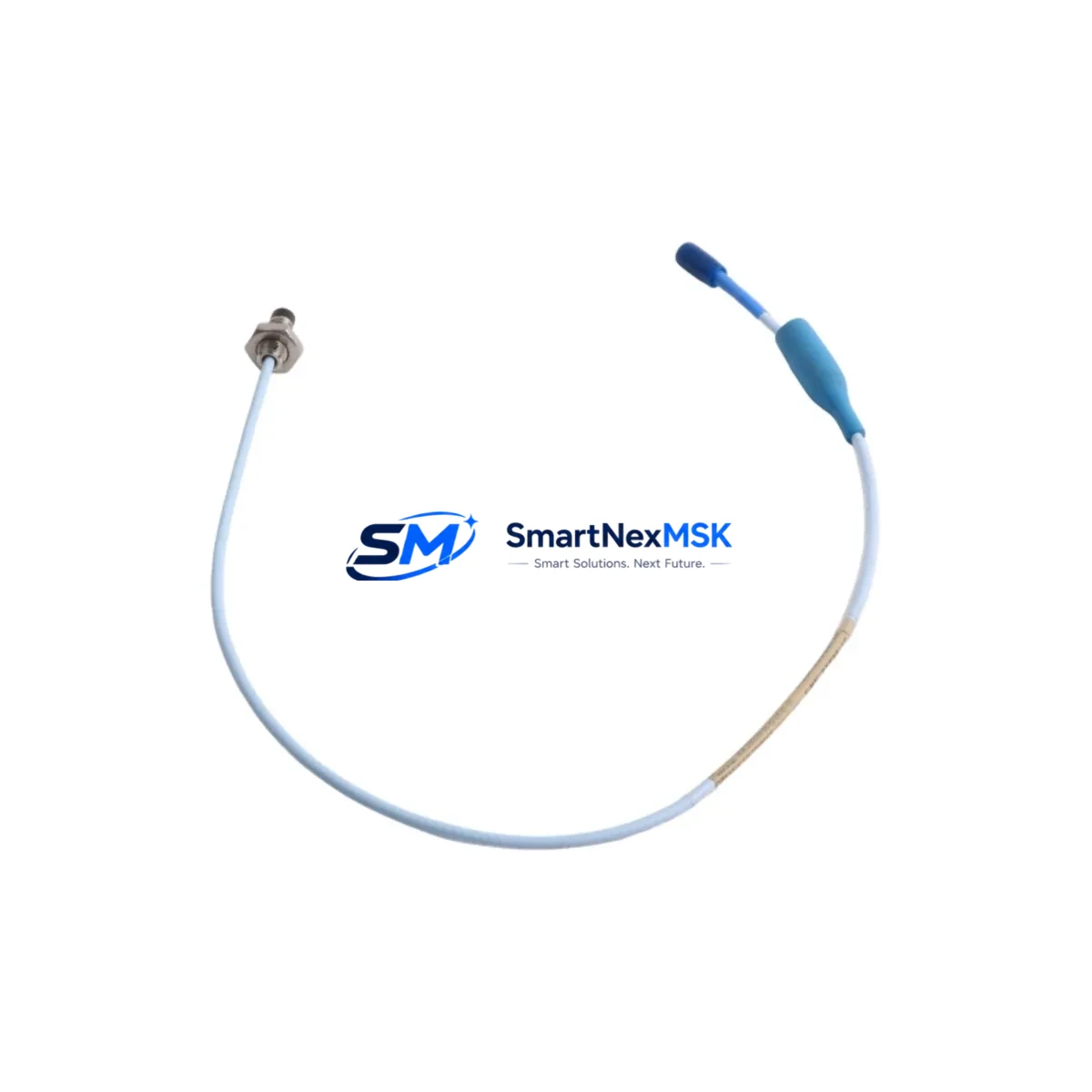

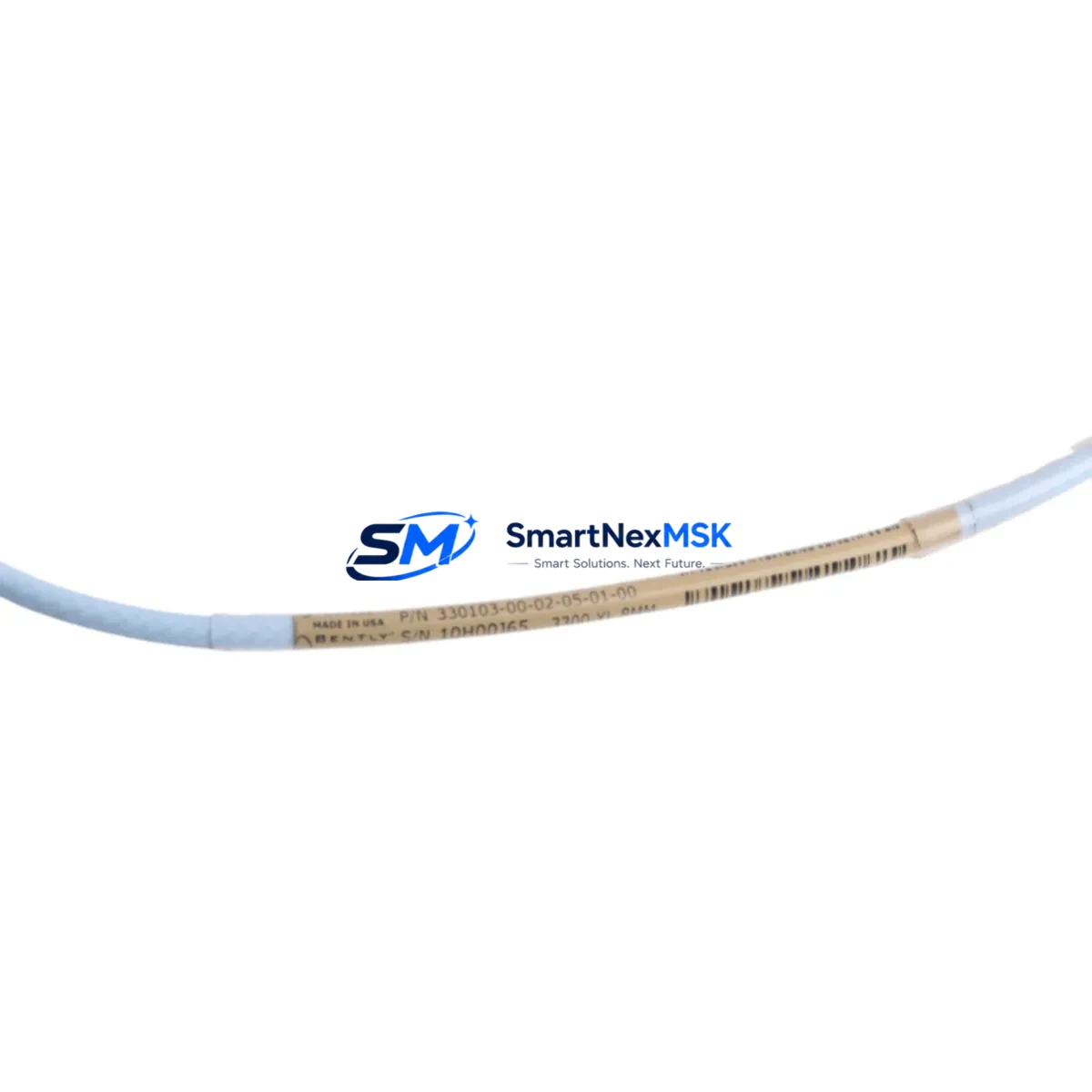

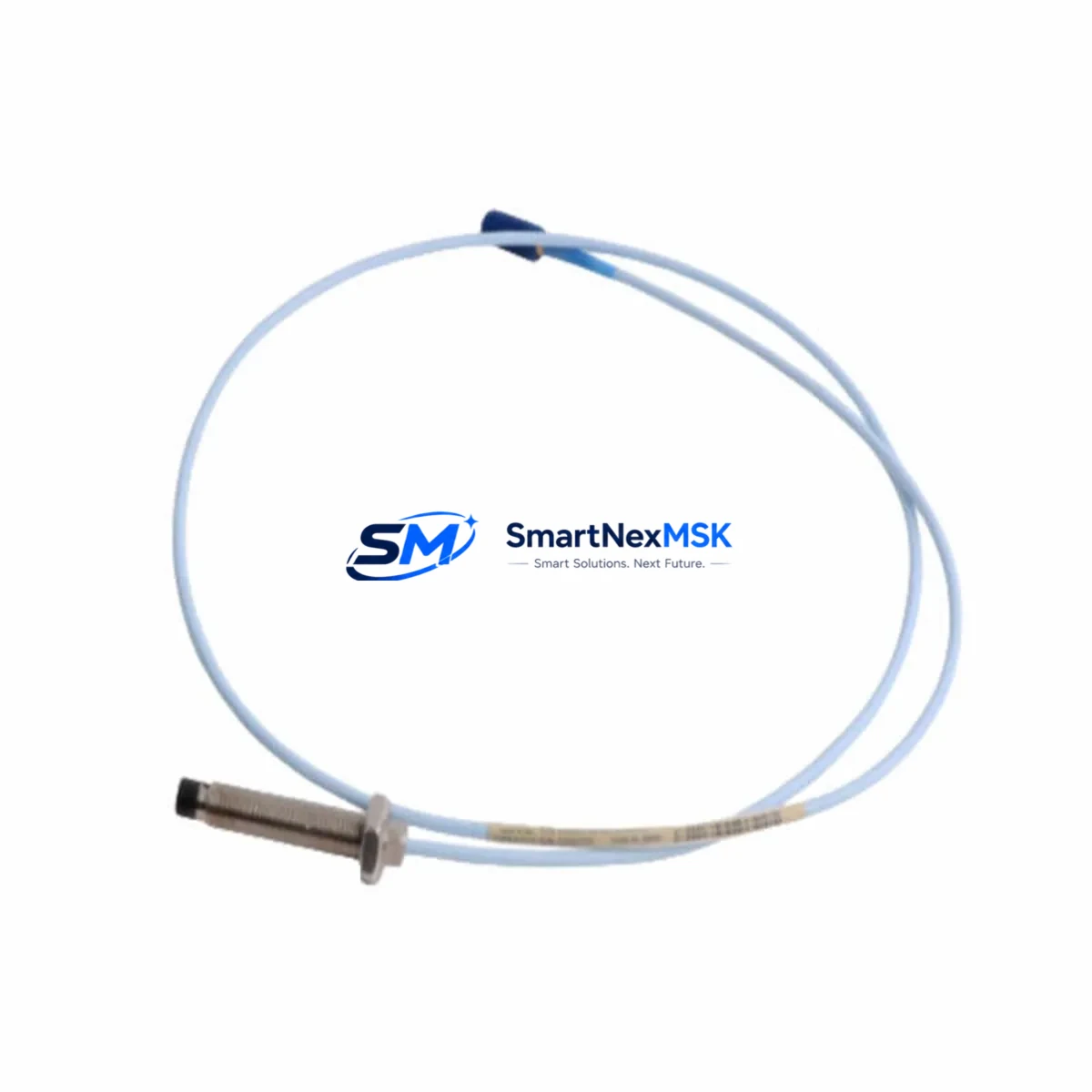

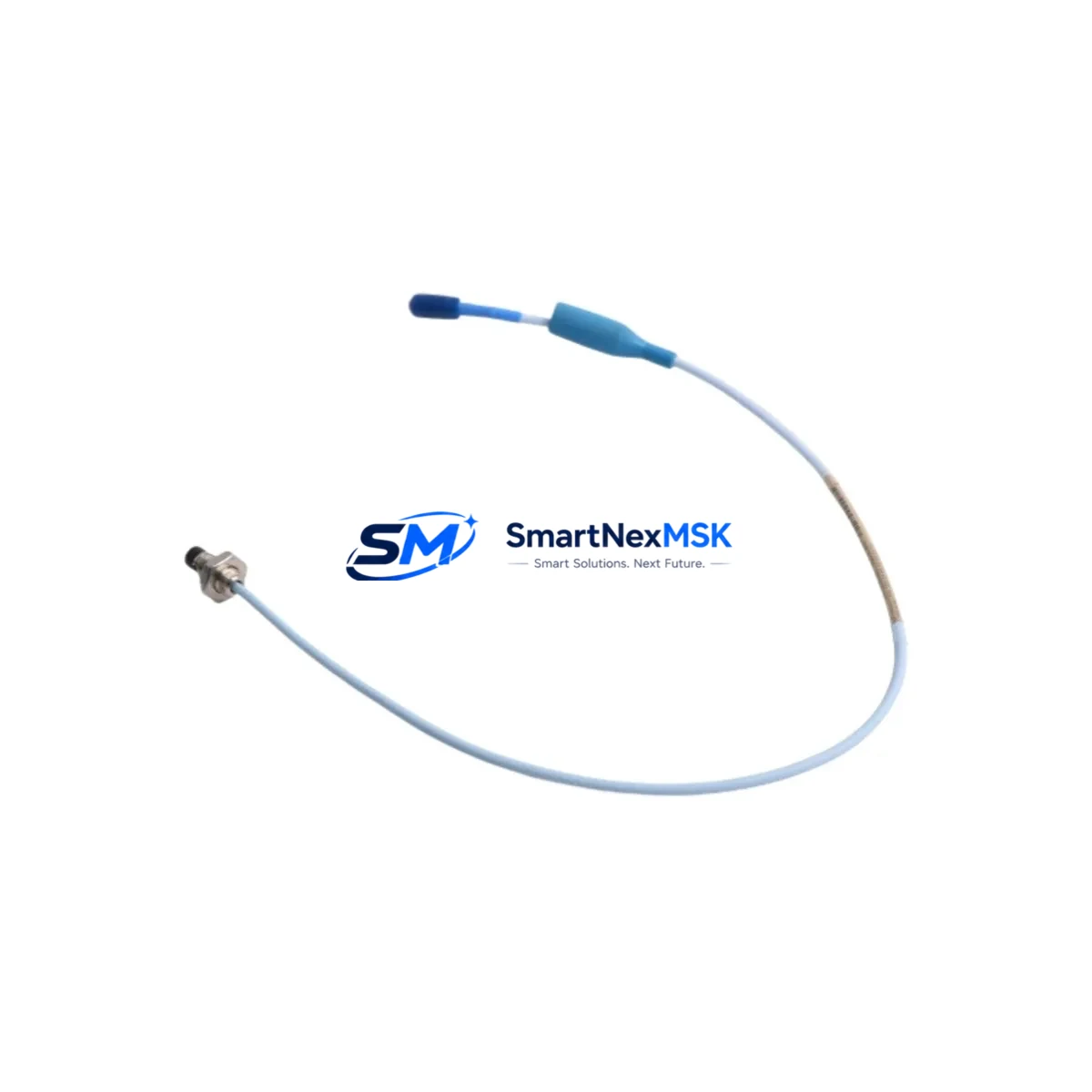

The Bently Nevada 330103-00-02-05-01-00 is an 8mm proximity probe engineered for the 3300 XL Series continuous vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications worldwide. Whether you are managing a planned turnaround, responding to an unplanned trip, or building a critical-spare inventory for a compressor train or steam turbine, this original probe delivers the measurement accuracy and mechanical reliability that the 3300 XL system demands.

For maintenance engineers and reliability teams, the 330103-00-02-05-01-00 is a direct replacement for worn, damaged, or end-of-life probes in existing 3300 XL installations. It is compatible with the standard Bently Nevada extension cable and proximitor/oscillator driver assemblies used throughout the 3300 XL architecture, eliminating the need for system reconfiguration or recalibration when replacing like-for-like. Each unit is tested prior to shipment and backed by a 12-month warranty, giving procurement engineers the confidence to stock this part as a certified ready-to-install spare.

Downtime on rotating machinery is expensive. A failed proximity probe that is not immediately available can extend an unplanned outage by days. Stocking the 330103-00-02-05-01-00 as part of your critical spare parts program is a straightforward risk-mitigation measure for any facility operating turbines, compressors, pumps, or motors monitored by the 3300 XL platform.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330103-00-02-05-01-00 proximity probe is flagged for replacement during a routine control cabinet inspection or a machinery protection system audit, experienced maintenance engineers know that the probe itself is rarely the only component that warrants attention. A thorough replacement workflow should include inspection of the matched 3300 XL extension cable (typically the 330130 series) for jacket cracking, connector corrosion, or continuity faults — a degraded cable will compromise probe output even with a new probe installed.

The 3300 XL Proximitor/Oscillator (such as the 330180 or 330190 series driver) should be verified for correct bias voltage output, typically -18 VDC ±0.5 V at the probe tip, before the new probe is commissioned. If the proximitor is approaching its recommended service interval or shows signs of drift, replacing it concurrently with the probe eliminates a second outage window. Similarly, the 3300 XL Monitor Module input channel should be checked for alarm setpoint integrity and OK relay function.

At the panel level, inspect the terminal blocks and field wiring connecting the proximitor to the monitor rack. Loose terminations or corroded DIN-rail terminal strips are a common source of intermittent OK faults that are misdiagnosed as probe failures. If the installation includes a signal isolator or barrier in the probe circuit — common in hazardous-area installations — verify that the isolator’s input impedance is within the specification required by the 3300 XL proximitor.

For facilities running integrated machinery protection and control systems, the 3300 XL monitor rack often interfaces with a DCS I/O module or a safety PLC input card via 4–20 mA or relay outputs. Confirm that the DCS analog input channel is reading correctly after probe replacement and that the vibration trip relay output is functional. Where Bently Nevada System 1 software is used for online monitoring, verify that the channel configuration and gap voltage calibration are updated to reflect the new probe installation.

Procurement engineers building a critical-spare kit around the 330103-00-02-05-01-00 should also consider stocking a spare 3300 XL Proximitor/Oscillator, at least one matched extension cable assembly, a set of probe mounting hardware (lock nuts and armor fittings), and a spare 3300 XL Monitor Module for the most critical measurement points. For older installations, a Bently Nevada 3500 series monitor module may already be in use alongside 3300 XL probes — confirm rack compatibility before ordering monitor spares.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a work permit and isolate the machinery protection channel at the monitor rack. Note the existing gap voltage reading (typically -10 to -18 VDC) before disconnecting the probe — this serves as a baseline for commissioning the replacement.

Step 2 — Probe removal: Disconnect the extension cable at the probe connector. Remove the probe from its mounting bracket, noting the installed gap distance (typically 1.0–1.5 mm for 8mm probes on steel targets). Inspect the probe tip for physical damage and the mounting threads for corrosion.

Step 3 — New probe installation: Install the 330103-00-02-05-01-00 into the mounting bracket. Set the gap distance to the value specified in the machinery OEM documentation or the previous baseline. Reconnect the extension cable and verify connector seating.

Step 4 — Commissioning verification: With the proximitor powered, measure the bias voltage at the monitor input. Confirm the OK relay is energized and the vibration reading is within the expected baseline range for the machine at rest. Update System 1 or the DCS historian with the new probe serial number and installation date.

Step 5 — Documentation: Record the replacement in the CMMS, update the spare parts inventory, and flag the next inspection interval. A probe replaced under planned maintenance conditions typically restores full channel availability within one shift, versus multi-day outages when replacement parts are not on hand.

This workflow applies equally to radial vibration, axial position, and differential expansion measurement points — the 330103-00-02-05-01-00 supports all three applications within the 3300 XL architecture, making it a versatile single-SKU spare for multi-point installations.

Spare Parts Support FAQ

Q1: Is the 330103-00-02-05-01-00 a direct drop-in replacement for older 3300 XL proximity probes?
Yes. The 330103-00-02-05-01-00 is designed as a direct replacement within the 3300 XL probe family. It uses the same connector standard and output characteristics as earlier 3300 XL 8mm probes, so no reconfiguration of the proximitor or monitor module is required when replacing like-for-like. Always verify the gap distance specification from the original installation record before commissioning.

Q2: How is the probe tested before shipment?
Each 330103-00-02-05-01-00 unit undergoes functional verification and calibration check prior to dispatch. The test confirms correct bias voltage output, OK relay behavior, and sensitivity within the Bently Nevada specification. A test report is available upon request for quality-critical applications.

Q3: What is the warranty coverage and what does it include?
The probe is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. Warranty claims are processed with return authorization and typically resolved within 10 business days.

Q4: Can this probe be used in hazardous-area (Ex) installations?
The 330103-00-02-05-01-00 is an intrinsically safe-compatible probe when used with an approved Bently Nevada barrier or isolator in the signal circuit. Confirm the Ex certification of the complete loop — probe, extension cable, proximitor, and barrier — against the area classification requirements of your installation before commissioning in Zone 1 or Zone 2 environments.
