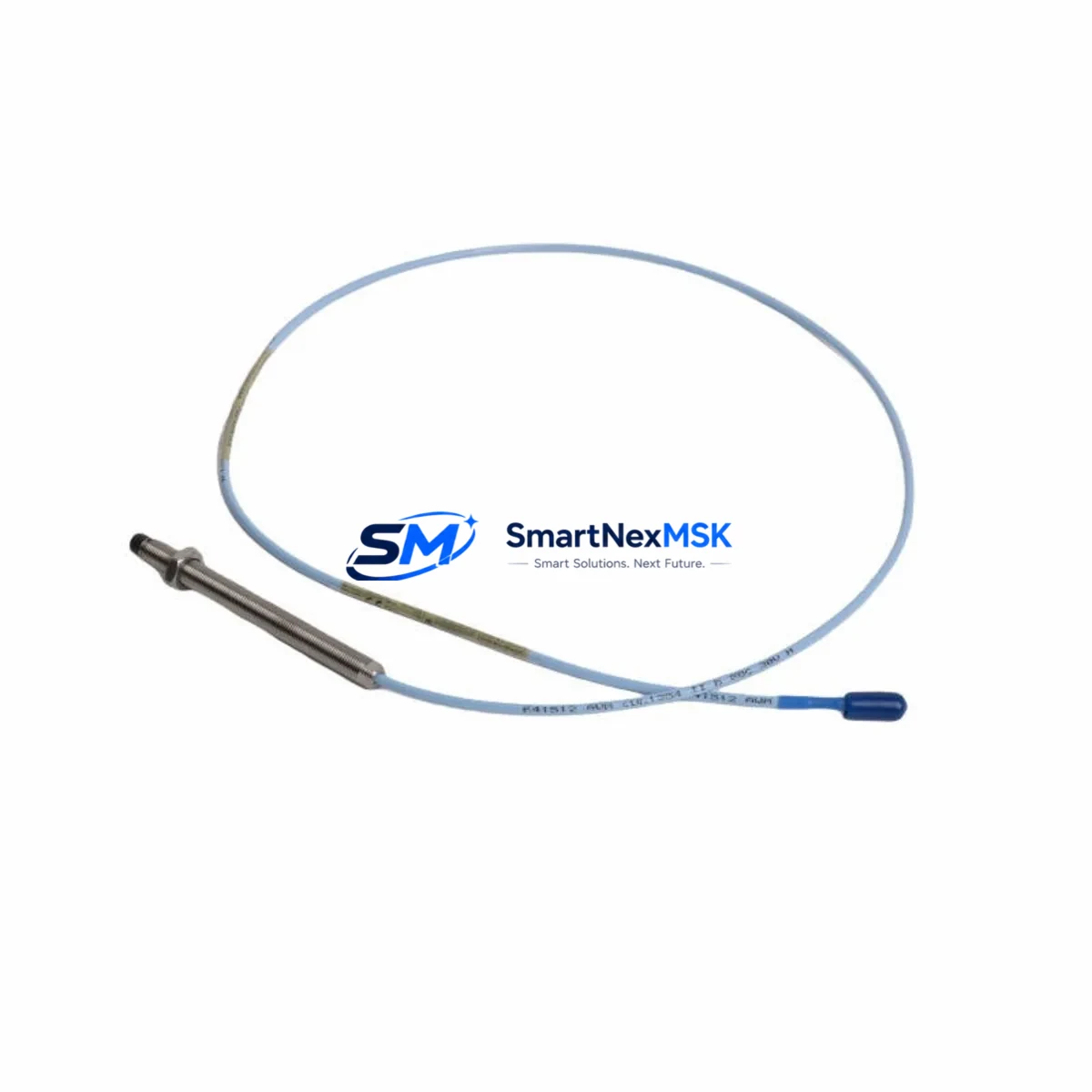

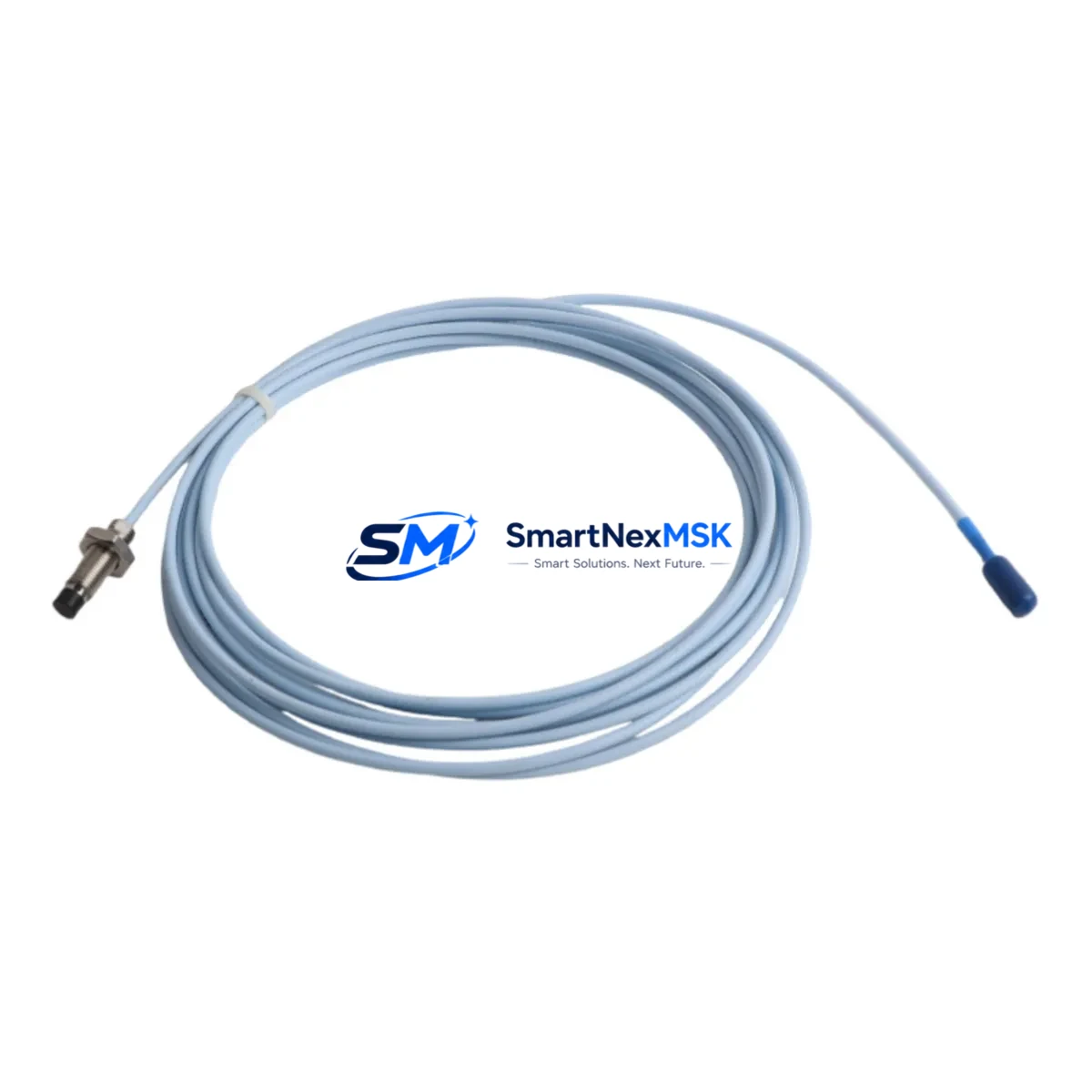

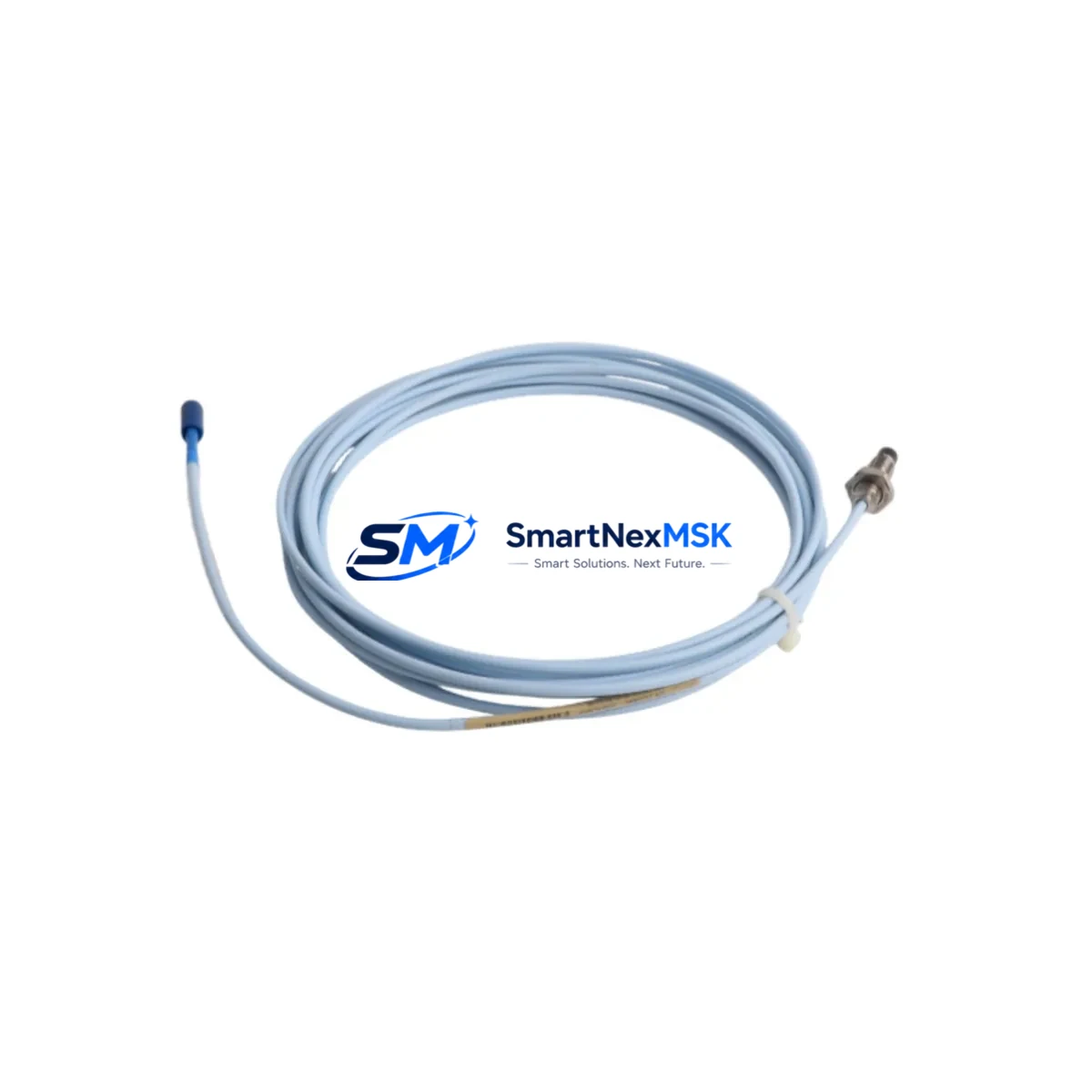

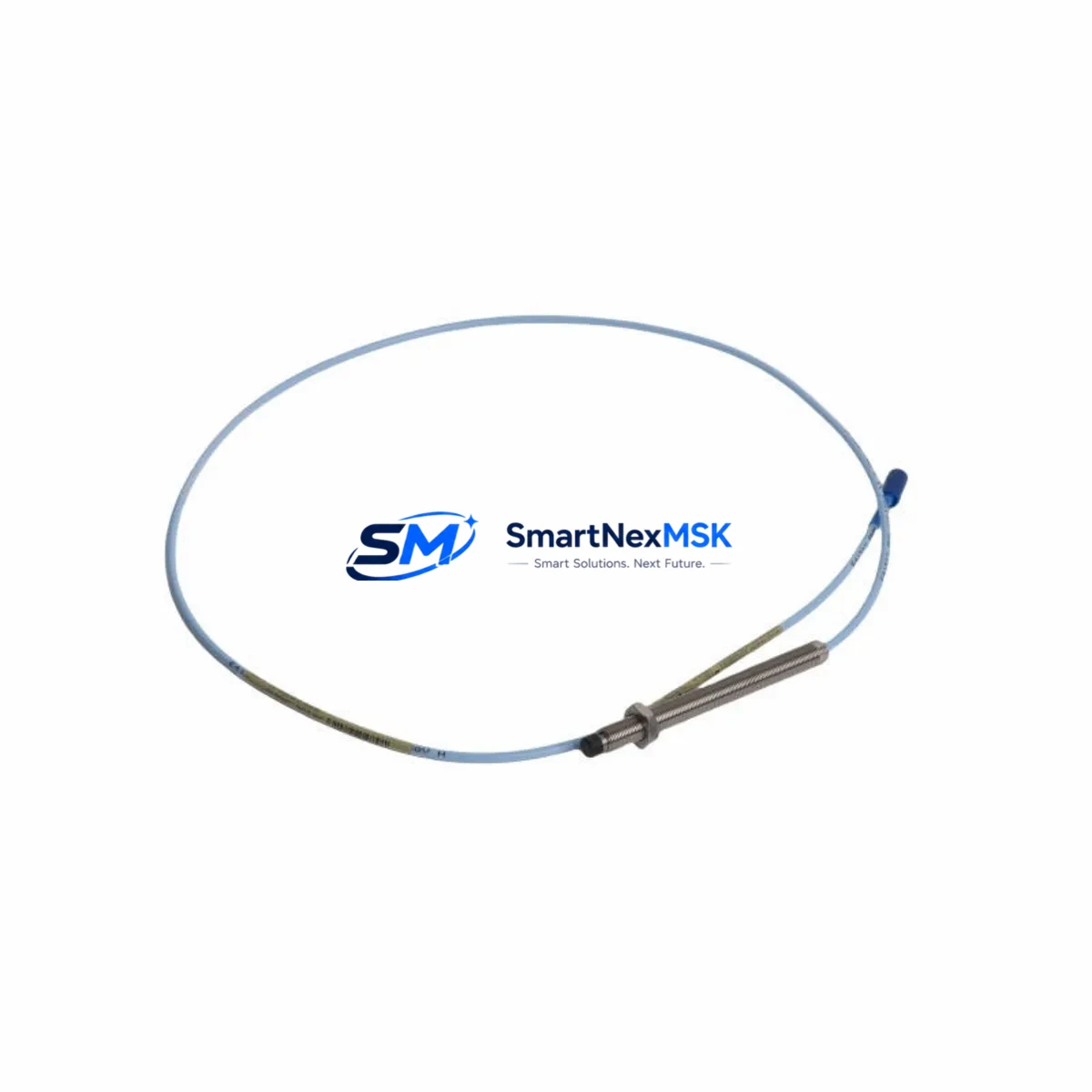

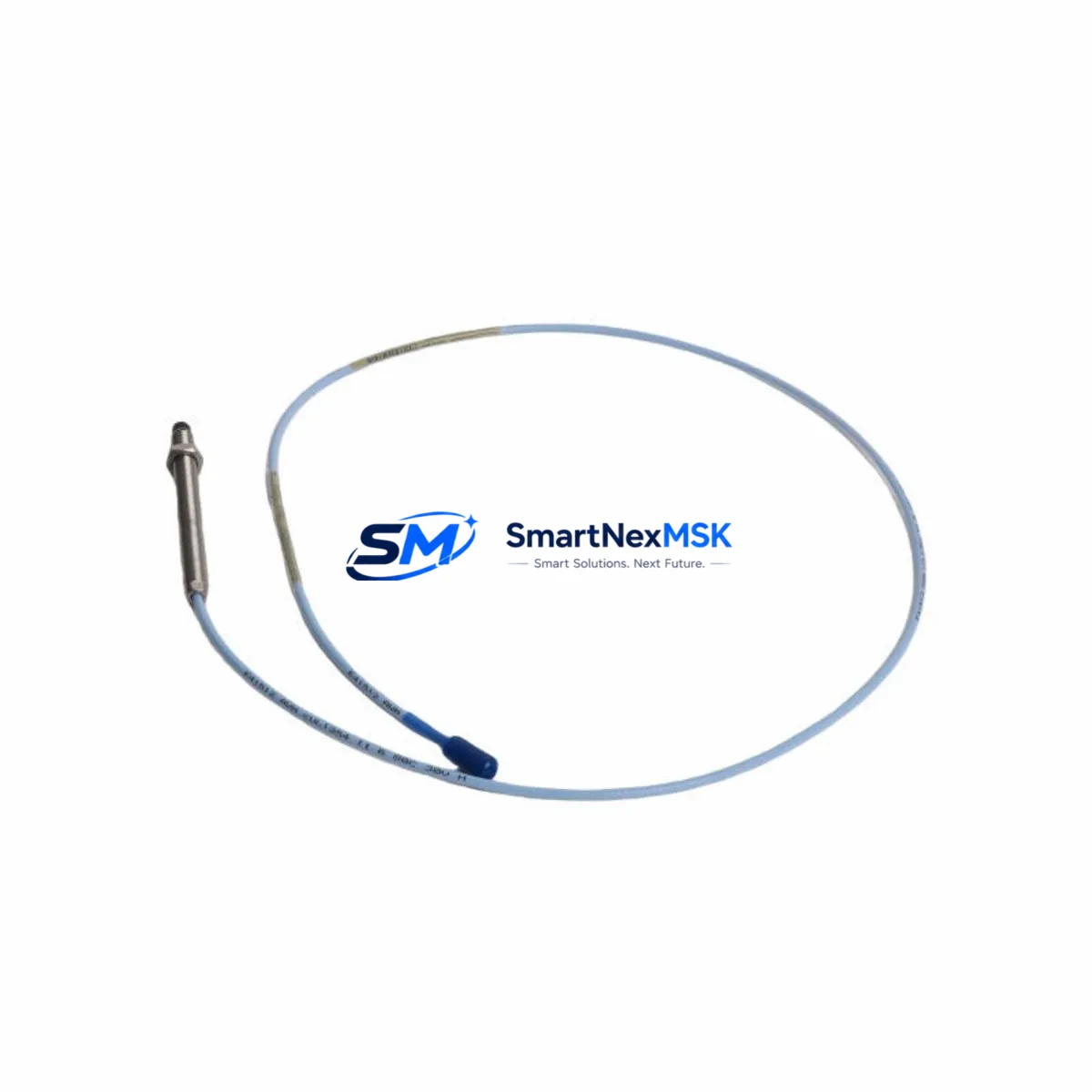

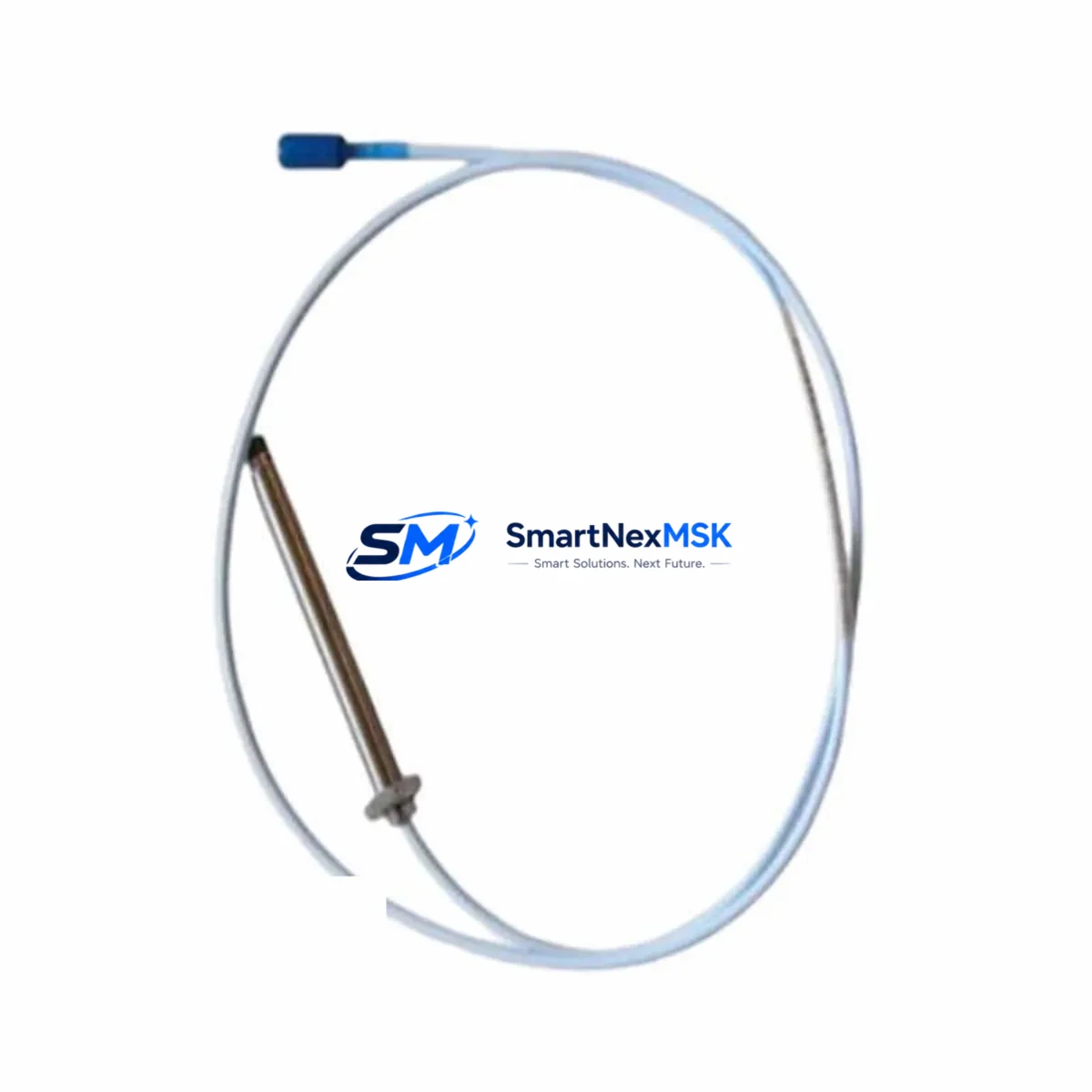

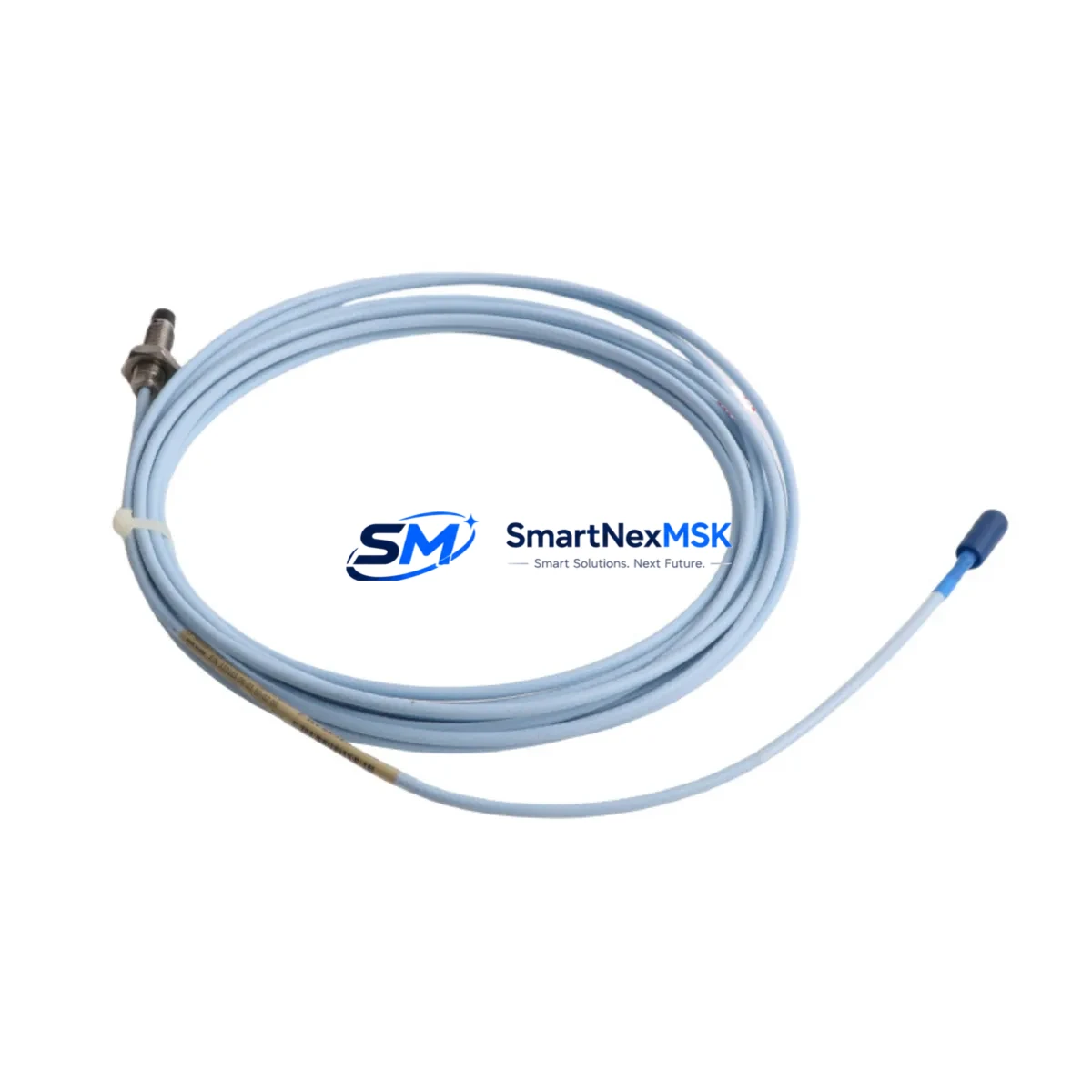

Bently Nevada 330103-00-03-50-02-00 Safety Proximity Probe

Bently Nevada 330103-00-03-50-02-00 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

In high-stakes industrial environments — petrochemical plants, power generation facilities, mining operations, and continuous-process manufacturing lines — the integrity of every vibration monitoring signal is a safety-critical matter. The Bently Nevada 330103-00-03-50-02-00 is a 3300 XL Series 8mm eddy-current proximity probe engineered to deliver uninterrupted, accurate shaft displacement measurements even under the most demanding field conditions. With a 0.5 m (50 cm) probe cable, a 5.0 m (500 cm) extension cable, and a standard 9 m total system length, this probe is designed to integrate directly into existing 3300 XL monitoring architectures without signal recalibration or system reconfiguration.

Industrial facilities operating rotating machinery — turbines, compressors, pumps, and gearboxes — depend on proximity probes to detect shaft orbit, radial vibration, axial position, and differential expansion. Any signal drift, intermittent contact, or probe failure in these applications can trigger unplanned shutdowns, damage expensive rotating assets, or — in the worst case — compromise personnel safety. The 330103-00-03-50-02-00 addresses these risks through its ruggedized construction: a stainless-steel housing rated for continuous operation in high-temperature, high-humidity, and chemically aggressive atmospheres, combined with an armored cable jacket that resists mechanical abrasion, oil contamination, and vibration-induced fatigue.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the 330103-00-03-50-02-00 as part of a comprehensive machinery protection strategy requires careful attention to the entire signal chain — from the probe tip to the monitoring rack. In a typical 3300 XL installation, the probe connects through a matched extension cable to a 3300 XL Proximitor Sensor, which conditions the raw eddy-current signal into a calibrated voltage output. This output feeds directly into a 3500/18 Proximitor I/O Module housed within a 3500 Series rack, where the 3500/20 Rack Interface Module manages communication between the monitoring system and the plant DCS or safety PLC.

Within the control cabinet, signal integrity depends on more than the probe itself. The 3500/15 Power Supply Module must deliver clean, regulated DC power to the entire rack; any ripple or transient on the supply rail can introduce noise into vibration channels and trigger false alarms. For installations in areas with significant electrical interference — near large motor drives, welding equipment, or high-voltage switchgear — the use of a dedicated 3500/05 System Rack with proper grounding and shielding practices is strongly recommended. Cable routing should keep the 330103-00-03-50-02-00 extension cable separated from power conductors by a minimum of 150 mm, and all cable entries into the control cabinet should be sealed with appropriate EMC glands to prevent ingress of conductive dust or moisture.

In safety instrumented systems (SIS), the proximity probe signal may feed a 3500/40M Proximitor/Seismic Monitor configured for API 670 compliance, where the monitor’s relay outputs connect to the plant’s emergency shutdown (ESD) logic. In these architectures, the reliability of the 330103-00-03-50-02-00 is not merely an operational concern — it is a functional safety requirement. Facilities should maintain a documented spare-parts inventory that includes matched probe-and-extension-cable sets, Proximitor Sensors, and coaxial connector assemblies to ensure rapid replacement without extended downtime.

Critical Industrial Safety Applications

The 330103-00-03-50-02-00 is deployed across a wide range of safety-critical industrial sectors where continuous, accurate shaft monitoring is non-negotiable.

In petrochemical and refinery operations, this probe monitors the radial vibration of centrifugal compressors and process pumps handling flammable or toxic media. A probe failure in these applications can delay the detection of developing bearing faults, increasing the risk of catastrophic mechanical failure and potential release of hazardous process fluids. The probe’s ATEX-compatible design makes it suitable for Zone 1 and Zone 2 classified areas where explosive atmospheres may be present.

In power generation — including gas turbines, steam turbines, and large synchronous generators — the 330103-00-03-50-02-00 provides the axial position and differential expansion measurements that protect turbine blades from contact with stationary components during thermal transients. These measurements feed directly into the turbine’s overspeed protection and thrust bearing monitoring systems, where response time and signal accuracy are critical to preventing multi-million-dollar rotor damage.

In mining and mineral processing, the probe operates in environments characterized by heavy vibration, abrasive dust, and wide temperature swings. Ball mills, SAG mills, and large slurry pumps subject their monitoring instrumentation to mechanical shock levels that would compromise lesser probes. The armored cable construction of the 330103-00-03-50-02-00 provides the mechanical resilience required to maintain continuous monitoring through these conditions.

In water and wastewater treatment, large vertical turbine pumps and blower trains rely on proximity probes to detect developing imbalance and bearing wear before they progress to failure. The 330103-00-03-50-02-00’s stable output over long cable runs — enabled by the matched Proximitor Sensor — ensures that monitoring accuracy is maintained even in installations where the control room is located far from the pump hall.

In metallurgical and steel production facilities, continuous casting machines, rolling mills, and large induction furnace drives operate under extreme thermal and electromagnetic stress. The probe’s shielded, armored construction provides the EMI immunity necessary to deliver clean vibration signals in the presence of high-current bus bars and large variable-frequency drives.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330103-00-03-50-02-00?
All units supplied by SMARTNEXMSK carry a 12-month warranty against manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly, with replacement units dispatched from stock to minimize any impact on plant operations.

Q2: Is pre-shipment functional testing performed on each unit?
Yes. Every 330103-00-03-50-02-00 unit undergoes a pre-shipment functional test that verifies probe sensitivity, cable continuity, connector integrity, and output linearity against Bently Nevada factory specifications. A test record is available upon request.

Q3: Is this probe compatible with existing 3300 XL Proximitor Sensors and 3500 Series monitors?
The 330103-00-03-50-02-00 is fully compatible with the 3300 XL Proximitor Sensor and the 3500/18 Proximitor I/O Module. It is a direct replacement for other 330103 series probes with the same cable configuration. No recalibration of the Proximitor Sensor is required when replacing a probe of identical part number.

Q4: Can long-term supply continuity be guaranteed for critical spare-parts programs?
SMARTNEXMSK maintains dedicated inventory of the 330103-00-03-50-02-00 and related 3300 XL series components to support planned maintenance programs, emergency replacements, and long-term spare-parts contracts. Customers with critical-asset protection requirements are encouraged to contact our team to discuss consignment stock or scheduled supply agreements.
