Bently Nevada 330103-00-04-10-12-05 Safety Proximity Probe

Bently Nevada 330103-00-04-10-12-05 Safety Proximity Probe: Reliable Control in Harsh Industrial Sites

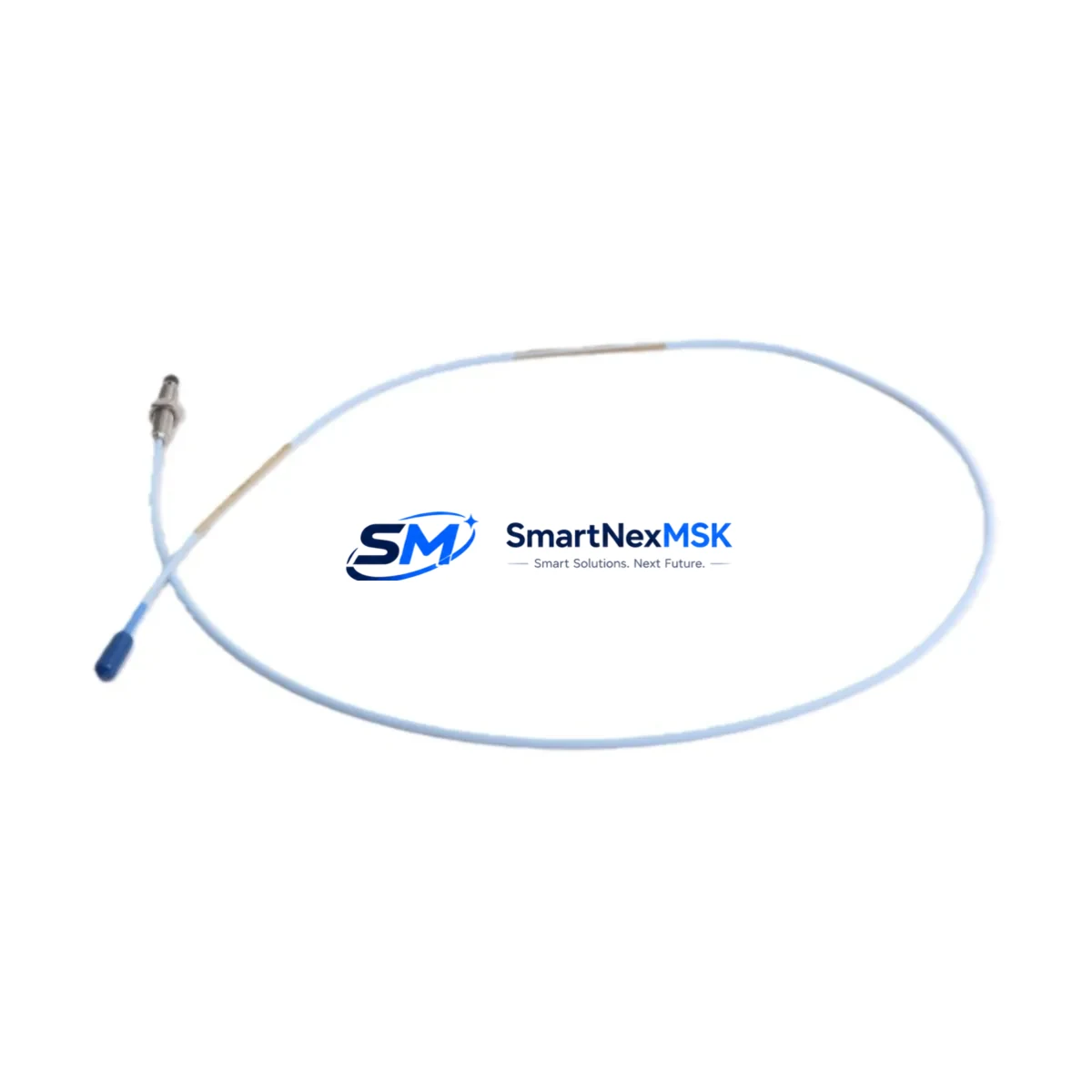

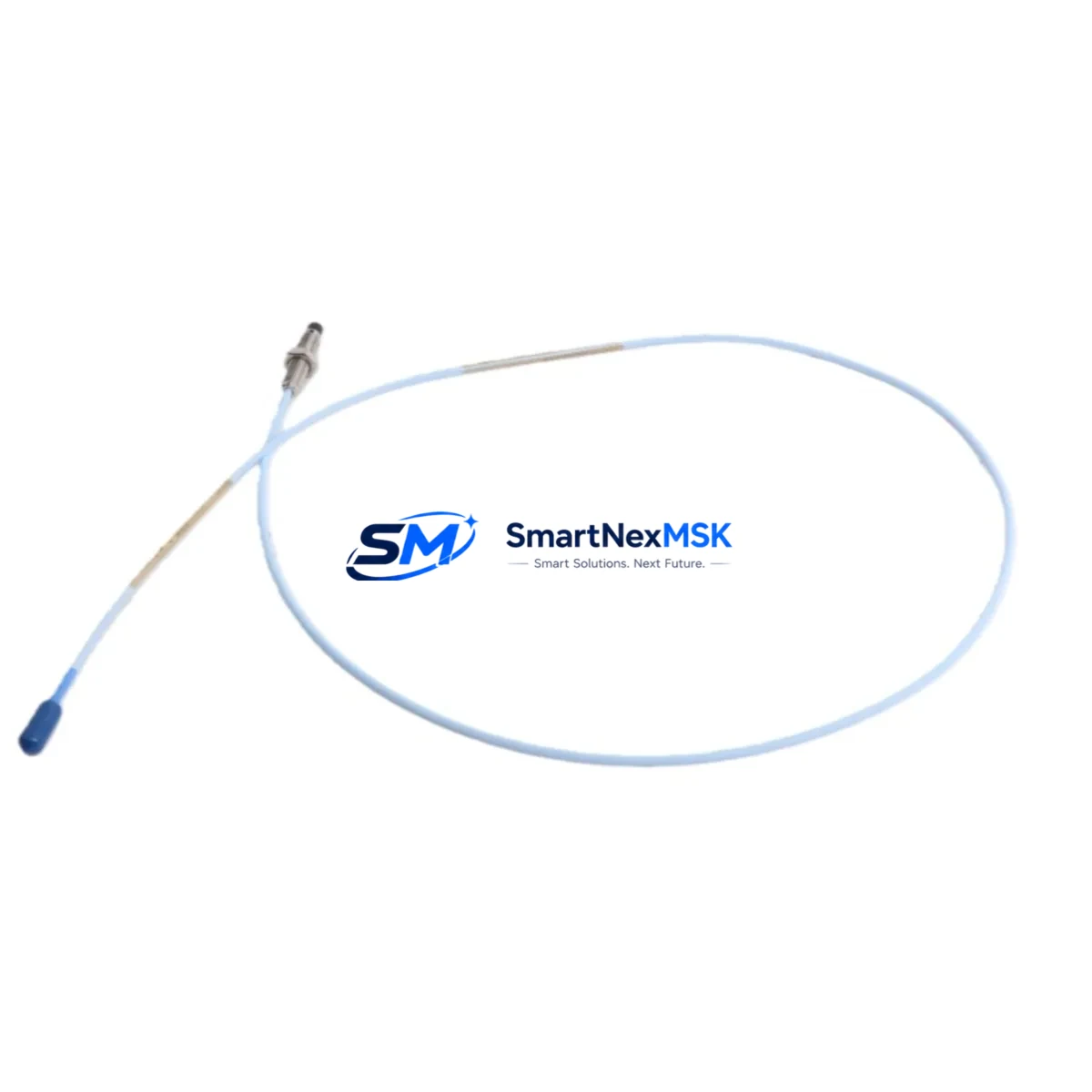

The Bently Nevada 330103-00-04-10-12-05 is an 8mm eddy current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high-temperature, high-vibration, and electromagnetically noisy conditions, this probe is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and continuous manufacturing facilities.

In safety-critical control architectures, signal integrity is non-negotiable. The 330103-00-04-10-12-05 delivers stable, drift-free output across its full operating range, minimizing the risk of false trips, missed alarms, and unplanned shutdowns. Its rugged stainless steel housing and hermetically sealed tip resist contamination from oil mist, process fluids, and particulate matter — common threats in heavy industrial control cabinets and field-mounted enclosures alike.

This probe is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180 series), forming a calibrated measurement chain that meets the precision requirements of API 670-compliant machinery protection systems. When paired with the 3500/42M Proximitor/Seismic Monitor module, it enables real-time shaft vibration, eccentricity, and axial position monitoring — all essential parameters for preventing catastrophic bearing failures and rotor damage in turbines, compressors, and pumps.

In high-load continuous production environments, control loop stability depends on every sensor in the chain performing within specification. The 330103-00-04-10-12-05 maintains its calibrated sensitivity factor (V/mm) across temperature excursions, ensuring that the 3500 Series rack — including the 3500/20 Rack Interface Module and 3500/15 Power Supply — receives clean, accurate signals at all times. This directly reduces the risk of nuisance trips caused by signal drift, which can interrupt production and trigger costly emergency shutdowns.

For installations in hazardous areas classified under ATEX or IECEx Zone 1/Zone 2, the probe’s intrinsically safe design options and robust shielded cable assemblies (such as the 330130 Extension Cable) ensure compliance with area classification requirements while maintaining measurement accuracy. The shielded coaxial cable construction suppresses electromagnetic interference from variable frequency drives, high-current bus bars, and adjacent power cabling — a critical advantage in dense control cabinet environments.

Surge protection is another key reliability factor. When installed alongside Bently Nevada 3500 Series I/O modules and properly grounded per system wiring guidelines, the probe system provides inherent protection against transient voltage spikes that can damage sensitive front-end electronics. In facilities where lightning strikes or switching transients are a recurring concern, this level of protection is essential for maintaining uptime in critical interlock loops.

The 330103-00-04-10-12-05 is also a direct replacement for legacy 7200 Series probes in many applications, making it a practical choice for brownfield upgrades where maintaining backward compatibility with existing 3300 Series Proximitor housings and cable runs is required. Its standardized connector interface simplifies field replacement, reducing mean time to repair (MTTR) and minimizing exposure time during maintenance windows in live production environments.

Every unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification, including output voltage linearity checks and insulation resistance testing, ensuring that the probe arrives ready for installation without requiring additional bench calibration. This is particularly important for spare parts held in critical machinery protection applications, where confidence in component readiness is essential.

Stock availability is maintained to support both planned maintenance schedules and emergency replacement scenarios. With a 12-month warranty covering manufacturing defects and performance deviations, and long-term supply continuity for the 3300 XL product family, the 330103-00-04-10-12-05 represents a dependable procurement choice for reliability engineers and maintenance planners managing rotating equipment fleets.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection architecture built around the 330103-00-04-10-12-05 extends well beyond the probe itself. In a typical heavy industrial control cabinet, the probe connects via a 330130 Series Extension Cable to a Bently Nevada 330180 Proximitor Sensor, which conditions the raw eddy current signal before feeding it to a 3500/42M Proximitor/Seismic Monitor housed in a 3500 Series Monitoring Rack. The rack’s 3500/15 Power Supply Module provides regulated, isolated DC power to all I/O modules, protecting the measurement chain from upstream power quality issues including voltage sags, surges, and harmonic distortion common in heavy industrial facilities.

For critical interlock and safety shutdown applications, the monitor outputs interface with Bently Nevada 3500/32 4-Channel Relay Module units, which drive emergency shutdown (ESD) logic in response to high-vibration or high-eccentricity alarm conditions. In facilities where functional safety requirements apply (SIL 1 or SIL 2), the relay outputs are typically wired into a Safety Instrumented System (SIS) controller, ensuring that the machinery protection layer operates independently of the basic process control system.

Surge and transient protection at the field junction box level — using DIN-rail mounted surge protection devices rated for the probe’s signal voltage range — further reduces the risk of probe or Proximitor damage from lightning-induced transients on long cable runs between the machine and the control room. Proper cable routing, separation from power cables, and use of dedicated cable trays are equally important in maintaining signal integrity across the full measurement chain.

For facilities managing multiple rotating machines, the System 1 Evolution software platform integrates data from all 3500 Series racks, providing centralized trending, alarm management, and predictive maintenance analytics — transforming raw proximity probe data into actionable reliability intelligence.

Critical Industrial Safety Applications

The Bently Nevada 330103-00-04-10-12-05 is deployed across a wide range of safety-critical industrial applications. In petrochemical and refinery environments, it monitors shaft radial vibration and axial position on centrifugal compressors, steam turbines, and boiler feed pumps — machines where an undetected bearing failure can trigger a process safety incident. In power generation facilities, it provides continuous eccentricity and differential expansion monitoring on large steam turbine-generator sets, supporting both normal operation and startup/shutdown protection sequences.

In mining and mineral processing plants, the probe monitors high-load crushers, ball mills, and slurry pumps operating in dusty, high-vibration environments where conventional sensors fail prematurely. Its hermetically sealed construction and wide operating temperature range make it equally suitable for metallurgical applications near furnaces and casting equipment, where ambient temperatures and electromagnetic interference levels are extreme.

In water and wastewater treatment facilities, the 330103-00-04-10-12-05 supports reliable monitoring of large vertical turbine pumps and blower trains, where continuous operation is essential for regulatory compliance and public safety. Port and marine terminal applications include monitoring of large crane drives and ship-to-shore conveyor systems, where saltwater corrosion resistance and vibration immunity are critical selection criteria.

Across all these applications, the probe’s role in the safety interlock chain is the same: deliver a stable, accurate signal that allows the protection system to distinguish between normal operating vibration and a developing fault condition — and to act decisively before equipment damage or personnel injury occurs.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330103-00-04-10-12-05?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and performance deviations from published specifications. Warranty claims are supported with replacement or repair, with priority handling for critical spare applications.

Q2: What pre-shipment testing is performed on each probe?
Each unit undergoes functional verification prior to shipment, including output voltage linearity testing across the specified gap range and insulation resistance measurement on the cable assembly. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 330103-00-04-10-12-05 compatible with existing 3300 Series and 3500 Series Bently Nevada systems?
Yes. This probe is designed for use with the 3300 XL Proximitor Sensor (330180 series) and is fully compatible with the Bently Nevada 3500 Series monitoring platform. It is also a functional replacement for many legacy 7200 Series probe installations when used with the appropriate Proximitor and calibration data.

Q4: Can long-term supply continuity be assured for critical spare parts programs?
SMARTNEXMSK maintains dedicated stock of the 330103-00-04-10-12-05 and related 3300 XL Series components to support both scheduled maintenance and emergency replacement requirements. We work with reliability and procurement teams to establish consignment or blanket order arrangements for facilities with high-availability requirements.
