Bently Nevada 330103-00-04-10-12-CN Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330103-00-04-10-12-CN Retrofit-Ready Proximity Probe for 3300 XL Control Systems

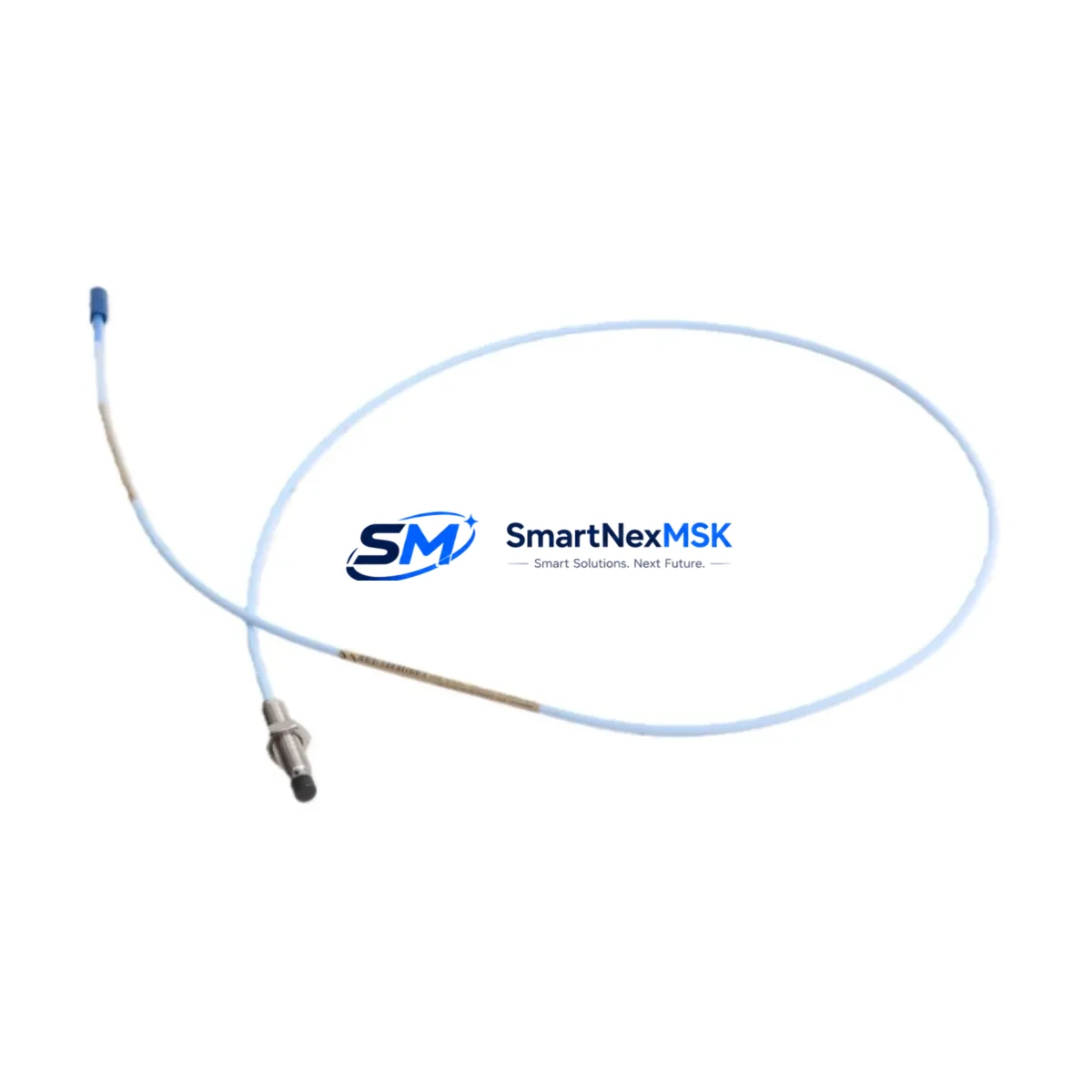

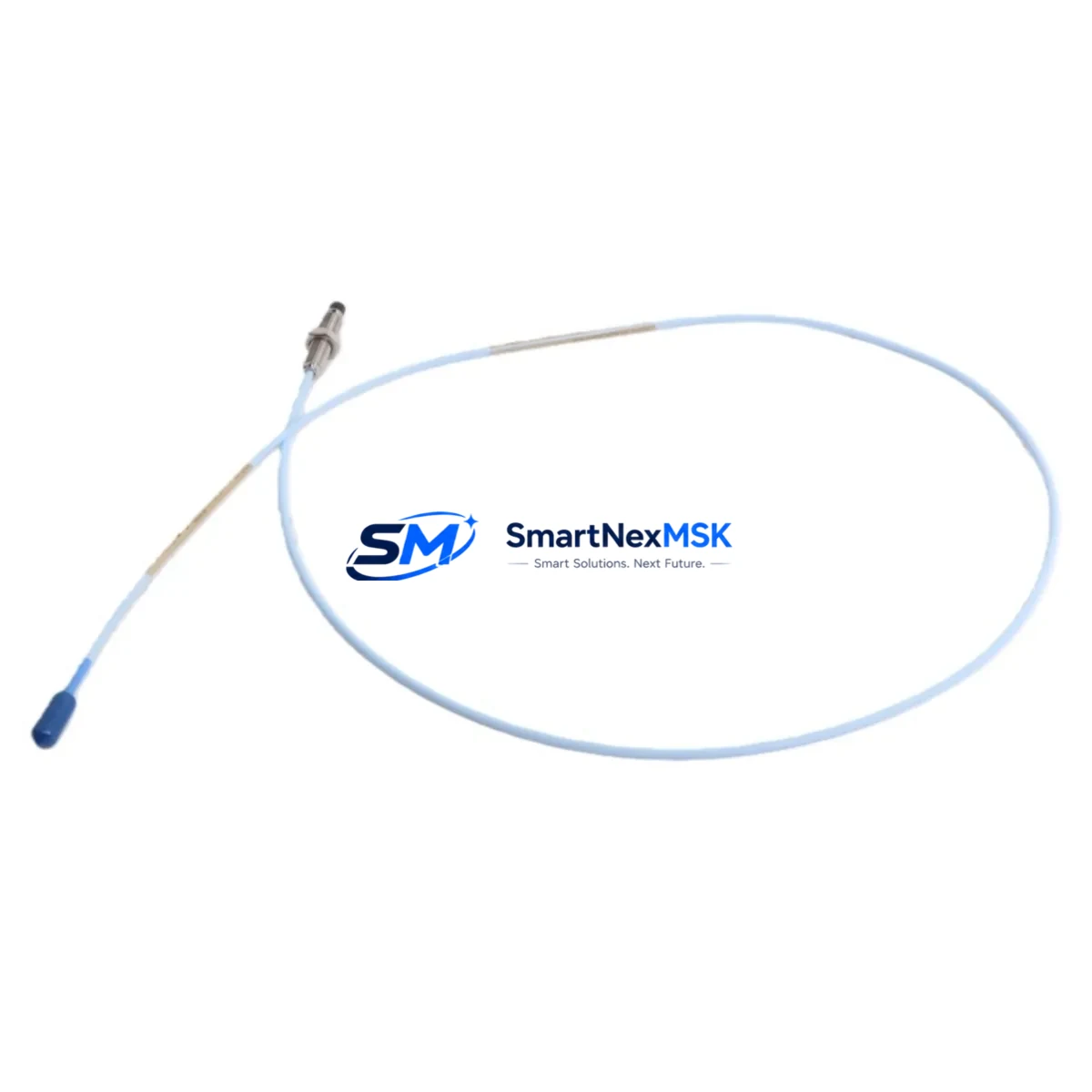

The Bently Nevada 330103-00-04-10-12-CN is an 8mm eddy-current proximity probe designed for the 3300 XL Series vibration monitoring system. As legacy rotating machinery protection systems reach end-of-life or face discontinued spare parts availability, this probe serves as a verified drop-in retrofit replacement for existing installations — enabling engineers to restore full vibration monitoring capability without redesigning the measurement chain or replacing the entire monitoring rack.

This probe is engineered to interface directly with the Bently Nevada 3300 XL proximitor/extension cable assemblies, maintaining the same sensitivity (200 mV/mil, 7.87 V/mm), gap voltage range, and output signal characteristics as the original OEM component. Whether you are replacing a failed probe on a critical compressor train, upgrading a turbine protection panel, or restoring a mothballed production line, the 330103-00-04-10-12-CN delivers the dimensional and electrical compatibility required for a controlled, low-risk retrofit.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the 330103-00-04-10-12-CN, the measurement chain must be evaluated as a complete system. The probe alone does not operate in isolation — it works in conjunction with the 3300 XL 8mm Proximitor (such as the 330180-X1-05), the extension cable assembly (typically the 330130-080-00-00 series), and the rack-mounted monitor module. Engineers should confirm that the existing proximitor is within calibration and that the extension cable shows no signs of shield damage or connector corrosion before reusing them with a new probe.

For installations where the entire measurement chain is being replaced — common in full control cabinet overhauls or after lightning strike events — it is advisable to source the probe, proximitor, and extension cable as a matched set. The 3300/16 Dual Vibration Monitor and 3300/20 Radial Vibration Monitor modules mounted in the 3300 rack accept the analog output from the proximitor and provide the OK relay, Alert, and Danger setpoint logic. If these monitor modules are also being replaced or upgraded, verify that the new module firmware is compatible with the existing Bently Nevada System 1 or System 1 Evolution condition monitoring software used for trend data and alarm management.

In applications where the 3300 XL rack is being migrated to a newer platform — such as the Bently Nevada 3500 Series — the probe itself may remain reusable if the gap and sensitivity specifications are matched. The 3500/42M Proximitor I/O Module and 3500/40M Proximitor I/O Module both support 8mm probe inputs, but require re-configuration of the rack via the 3500 Rack Configuration Software. During this migration, the I/O terminal block wiring must be re-mapped, and any existing Modbus or OPC-DA communication links to the plant DCS should be re-verified after the rack swap.

Power supply integrity is a critical checkpoint during any retrofit. The 3300 XL rack is typically powered by a dedicated 24 VDC or 28 VDC supply. Before installing the replacement probe, confirm that the power supply module — often a Bently Nevada 3300/05 Power Supply — is delivering stable voltage within specification. A marginal power supply can cause intermittent OK relay dropouts that are misdiagnosed as probe or proximitor failures, leading to unnecessary repeat replacements.

For sites running older Woodward or Emerson DeltaV DCS platforms with hardwired analog inputs from the 3300 XL monitors, the retrofit is generally transparent to the control system — the 4–20 mA or voltage output signal from the monitor module remains unchanged. However, if the plant is simultaneously upgrading the DCS analog input cards or migrating to a HART-enabled I/O infrastructure, the signal conditioning and scaling parameters in the DCS configuration must be reviewed and updated to reflect the new input range.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing proximity probes on running machinery. For critical assets such as compressors, turbines, and pumps that cannot be taken offline without a planned shutdown window, the recommended approach is to pre-stage all replacement components — probe, extension cable, and proximitor — and perform a bench verification of the measurement chain before the maintenance window opens.

During the shutdown window, the original probe should be removed carefully to preserve the thread condition in the probe holder. The replacement 330103-00-04-10-12-CN should be installed to the same thread engagement depth, and the gap voltage should be set to the target value (typically −10 VDC at the nominal air gap) before the machine is returned to service. The monitor module’s OK relay should be confirmed in the healthy state before the bypass is removed and the protection system is re-armed.

For sites using Bently Nevada System 1 or System 1 Evolution software, the historical trend data associated with the replaced probe channel should be reviewed after commissioning to confirm that the new probe’s baseline vibration signature is consistent with the pre-replacement trend. Any step change in the 1X or 2X vibration vectors should be investigated before the machine is returned to full load. This review protects the integrity of the long-term condition monitoring record and ensures that the retrofit has not introduced any measurement artifacts.

Where the plant control philosophy requires continuous protection during the probe swap — for example, on single-train critical assets — a temporary bypass of the affected monitor channel should be formally authorized via the plant’s management of change (MOC) process. The bypass duration should be minimized, and the channel should be re-armed and verified before the MOC is closed. All commissioning records, including gap voltage readings and OK relay status, should be documented and retained as part of the equipment maintenance history.

Retrofit Support FAQ

Q1: Is the 330103-00-04-10-12-CN a direct replacement for the original Bently Nevada part?
Yes. This probe is a verified drop-in replacement for the original 330103-00-04-10-12-CN, maintaining the same 8mm diameter, coaxial connector type, sensitivity (200 mV/mil), and gap voltage characteristics. No modification to the existing proximitor, extension cable, or monitor module is required for a like-for-like swap.

Q2: What commissioning steps are required after installation?
After installing the replacement probe, set the air gap to the target value specified in the original machine documentation (typically 1.0–1.5 mm for most rotating machinery applications). Measure the gap voltage at the proximitor output and confirm it is within the −10 VDC ±0.5 V target range. Verify that the monitor module’s OK relay is in the healthy state and that Alert and Danger setpoints are active before removing any channel bypass.

Q3: Can this probe be used with the Bently Nevada 3500 Series rack?
The 330103-00-04-10-12-CN probe is designed for the 3300 XL measurement chain. It can be used with the 3500 Series rack if the 3500/42M or 3500/40M Proximitor I/O Module is configured for 8mm probe input and the sensitivity and gap voltage parameters are matched in the rack configuration software. Consult the 3500 Series rack configuration documentation and verify compatibility before installation.

Q4: What warranty coverage is provided?
All units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and verified functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to confirm output signal integrity before dispatch. For warranty claims or technical support, contact our team directly.
