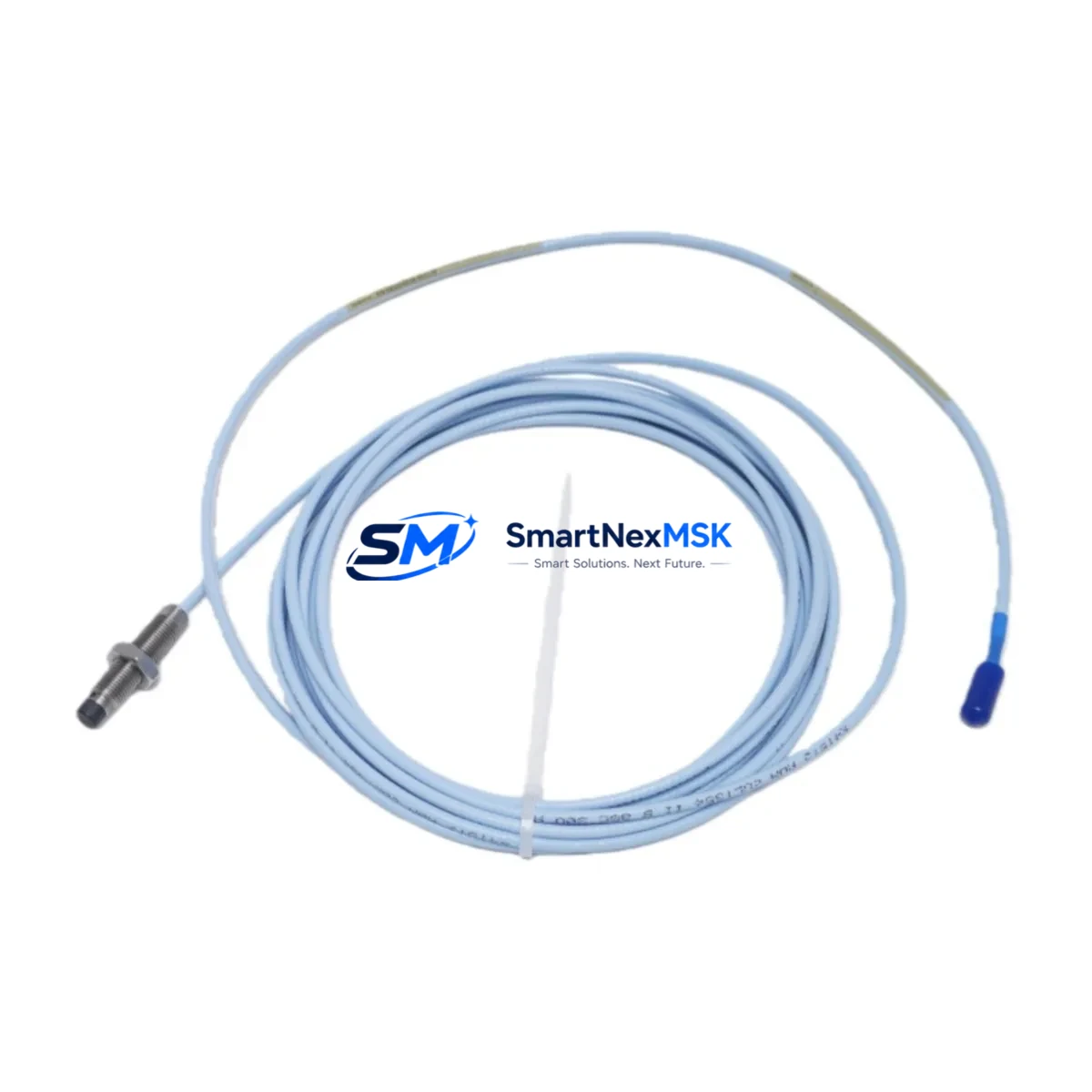

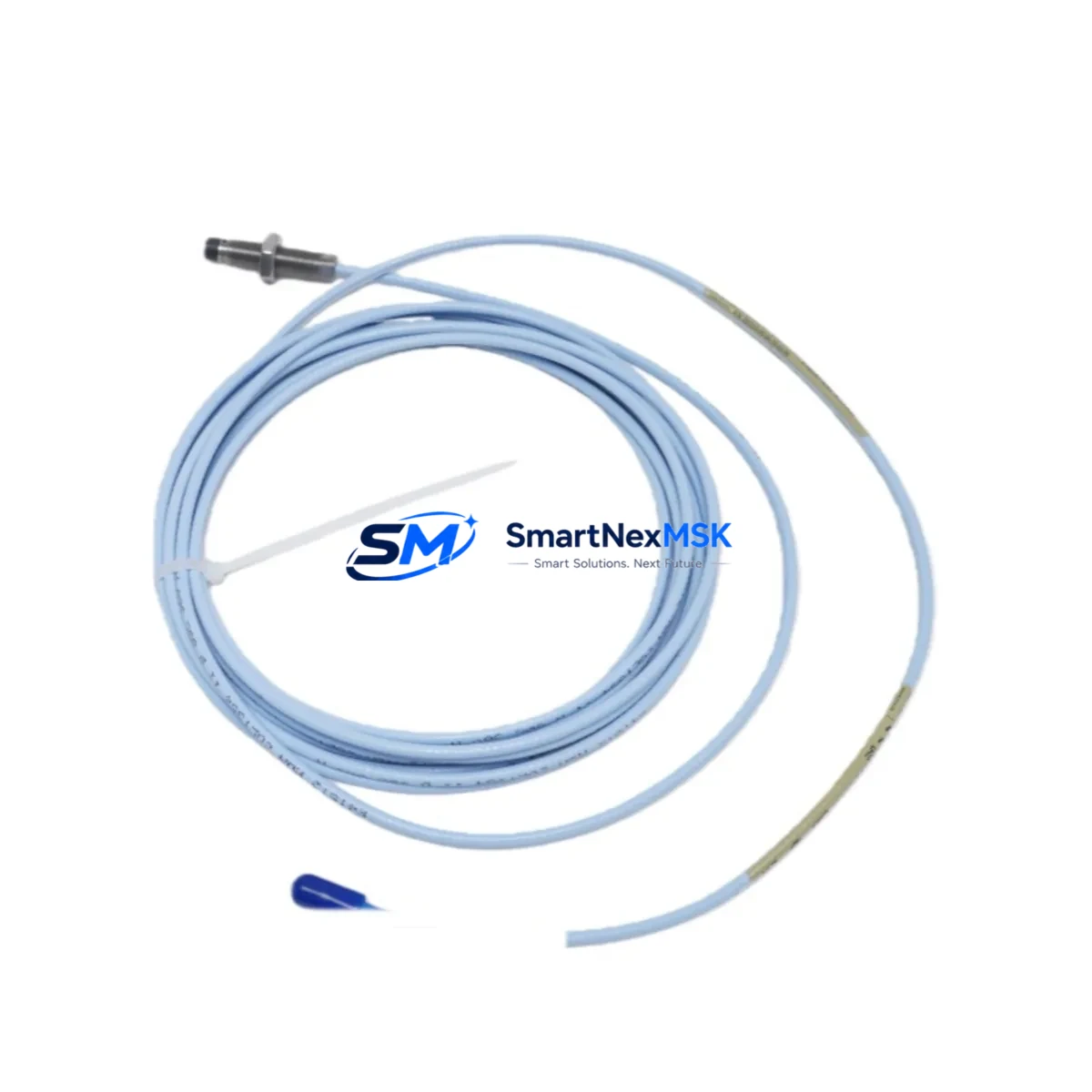

Bently Nevada 330103-00-04-50-12-CN Safety Proximity Probe

Bently Nevada 330103-00-04-50-12-CN Safety Proximity Probe: Reliable Control in Harsh Industrial Sites

The Bently Nevada 330103-00-04-50-12-CN is a ruggedized eddy-current proximity probe from the industry-proven 3300 XL 5mm Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably under high electromagnetic interference, mechanical shock, thermal cycling, and corrosive atmospheres, this probe is a cornerstone component in rotating machinery protection systems across heavy industry worldwide.

In high-stakes control architectures — including turbine overspeed protection loops, compressor surge detection circuits, and pump bearing monitoring systems — signal integrity is non-negotiable. The 330103-00-04-50-12-CN delivers stable, drift-free output across its full operating range, minimizing the risk of false trips, missed alarms, and unplanned shutdowns. Its ruggedized construction and hermetically sealed tip resist hydrocarbon vapors, cooling water ingress, and vibration-induced connector fatigue, making it a trusted choice for engineers specifying components in API 670-compliant machinery protection systems.

Whether deployed in a critical interlock loop on a gas turbine, a shaft displacement monitor on a steam turbine generator, or a radial vibration channel on a large centrifugal compressor, the 330103-00-04-50-12-CN integrates seamlessly with the Bently Nevada 3300 XL Proximitor Sensor (e.g., 330180-X1-05) and the 3500 Series Machinery Protection System rack, ensuring end-to-end signal chain reliability from probe tip to control room display.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330103-00-04-50-12-CN does not operate in isolation. Its output feeds directly into a Bently Nevada 3300 XL Proximitor Sensor, which conditions the raw probe signal into a calibrated DC voltage proportional to gap distance. This conditioned signal is then routed to a Bently Nevada 3500/40M Proximitor Monitor or 3500/42M Proximitor/Seismic Monitor card seated in the 3500 Series rack, where alarm and danger setpoints are enforced in real time.

To protect the entire signal chain from power-related disturbances, the 3500 rack is typically powered through a Bently Nevada 3500/15 Power Supply with redundant input capability, ensuring that voltage sags, surges, or momentary outages on the plant distribution network do not interrupt monitoring continuity. For installations in classified hazardous areas (Zone 1 or Zone 2), Bently Nevada Zener Barrier or galvanic isolator assemblies are inserted between the field probe and the safe-area monitor to maintain intrinsic safety integrity.

Communication from the 3500 rack to the plant DCS or safety instrumented system (SIS) is typically handled via Bently Nevada 3500/92 Communication Gateway modules supporting Modbus TCP, Profibus DP, or OPC-DA protocols, enabling real-time vibration data to be integrated into the plant historian and emergency shutdown logic. Complementary field instruments — such as Bently Nevada 330500 Series velocity transducers for absolute casing vibration and 330750 Series temperature sensors for bearing metal temperature — are co-located in the same protection loop, providing a multi-parameter view of machine health that no single sensor type can deliver alone.

For phase reference and speed measurement, a Bently Nevada 330130 Series keyphasor probe is typically paired with the 330103-00-04-50-12-CN on the same shaft, enabling vector-based vibration analysis and precise runup/coastdown diagnostics. Together, these components form a complete, API 670-compliant protection architecture capable of detecting imbalance, misalignment, rub, oil whirl, and other destructive rotor dynamic phenomena before they escalate to catastrophic failure.

Critical Industrial Safety Applications

The 330103-00-04-50-12-CN is deployed across the full spectrum of heavy industrial sectors where rotating machinery failure carries severe safety and financial consequences.

In petrochemical and refinery facilities, it monitors shaft radial vibration on critical compressors and pumps in continuous service, feeding trip signals to the emergency shutdown system (ESD) to prevent seal failures and hydrocarbon releases. In power generation plants — both gas turbine combined-cycle and steam turbine units — it provides the primary shaft displacement measurement used by the turbine control system to enforce overspeed and high-vibration trip logic, protecting assets worth hundreds of millions of dollars.

In mining and mineral processing operations, where large ball mills, SAG mills, and slurry pumps operate under extreme mechanical loading and dust-laden atmospheres, the ruggedized construction of the 330103-00-04-50-12-CN ensures reliable signal output even when conventional sensors would fail due to contamination or thermal shock. Water and wastewater treatment plants rely on it for continuous monitoring of large vertical turbine pumps and blower trains, where undetected bearing degradation can lead to flooding events or treatment process interruptions.

In metallurgical and steel plants, the probe is installed on rolling mill drive trains and large induction motor-driven compressors, where high ambient vibration and strong electromagnetic fields from arc furnaces and variable frequency drives (VFDs) demand a sensor with exceptional noise immunity. Port and bulk material handling facilities use it on ship unloader drives and conveyor head-end pulleys, where continuous operation is essential to maintain cargo throughput commitments.

Across all these applications, the 330103-00-04-50-12-CN contributes directly to reducing mean time between failures (MTBF), extending planned maintenance intervals, and supporting condition-based maintenance (CBM) programs that replace costly time-based overhauls with data-driven intervention strategies.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, contact sales@smartnexmsk.com with the order reference and a description of the fault. We will arrange replacement or repair at no additional cost, including return freight coordination.

Q2: What pre-shipment testing is performed on the 330103-00-04-50-12-CN?
Every unit undergoes full functional verification prior to dispatch, including sensitivity calibration check (7.87 V/mm ± 5%), cable continuity and insulation resistance testing, and connector integrity inspection. A test report is available upon request for quality-critical applications.

Q3: Is this probe compatible with existing Bently Nevada 3300 and 3500 Series systems already installed in the field?
Yes. The 330103-00-04-50-12-CN is a direct form-fit-function replacement for earlier 3300 XL 5mm probes and is fully compatible with all 3300 XL Proximitor Sensors and 3500 Series monitor cards. No recalibration of the monitor is required when replacing a like-for-like probe in the same gap range.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
Yes. SMARTNEXMSK maintains standing inventory of the 330103-00-04-50-12-CN and other high-demand Bently Nevada 3300 XL components to support planned maintenance shutdowns, emergency sparing, and multi-unit site contracts. Contact our team to discuss blanket order arrangements or consignment stock programs tailored to your site’s maintenance schedule.
