Bently Nevada 330103-00-05-10-10-02-00 Safety Proximity Transducer

Bently Nevada 330103-00-05-10-10-02-00 Safety-Enhanced Proximity Transducer for Harsh Industrial Sites

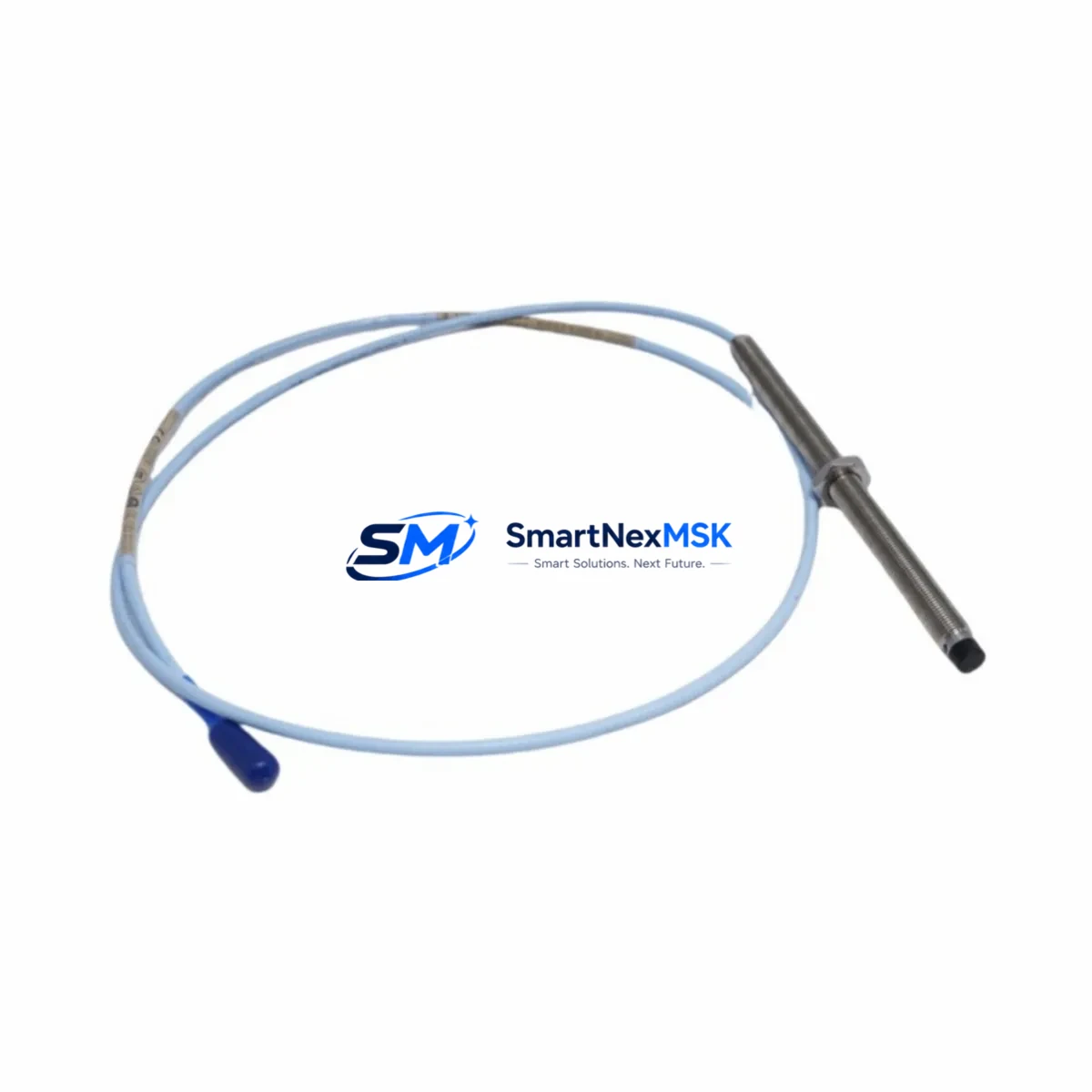

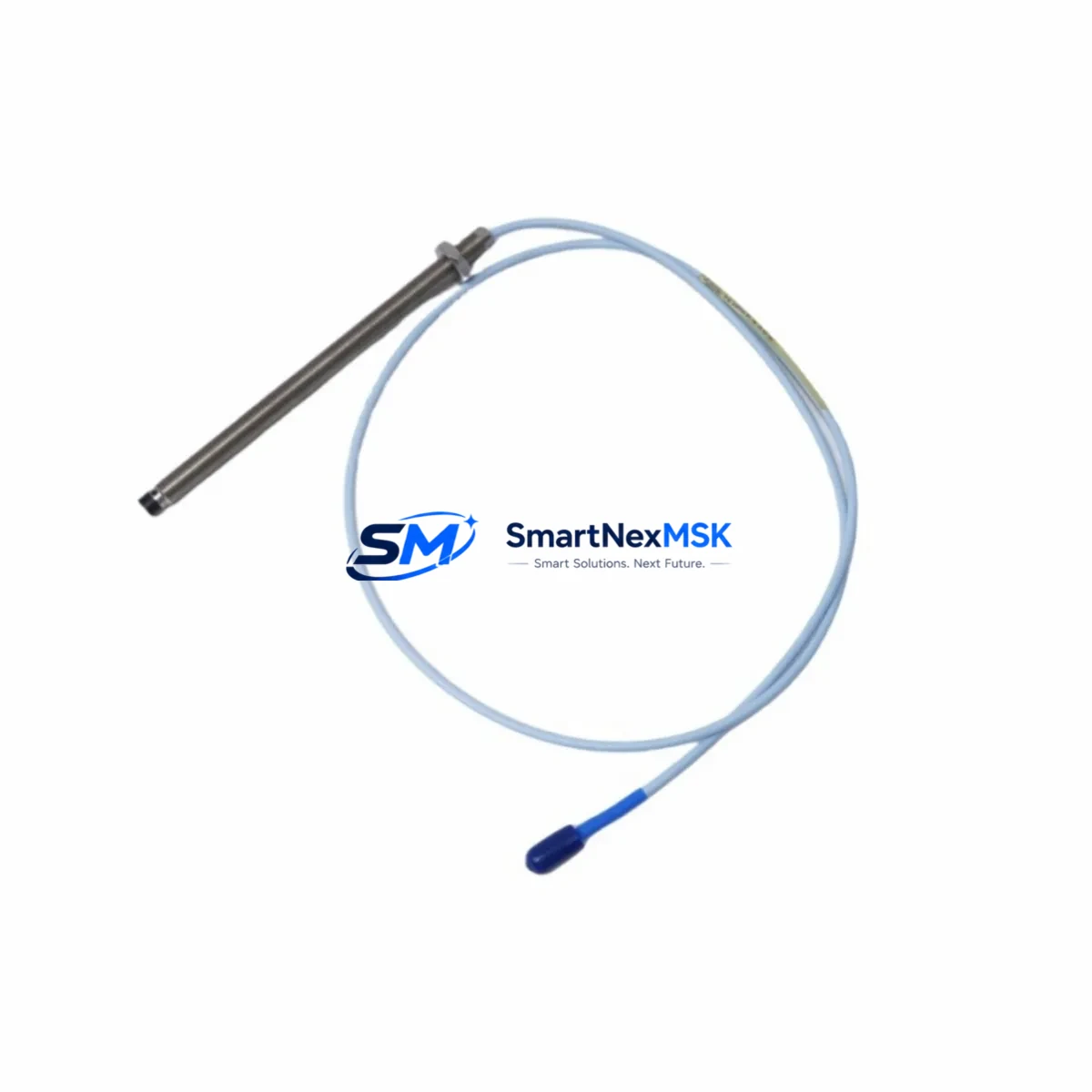

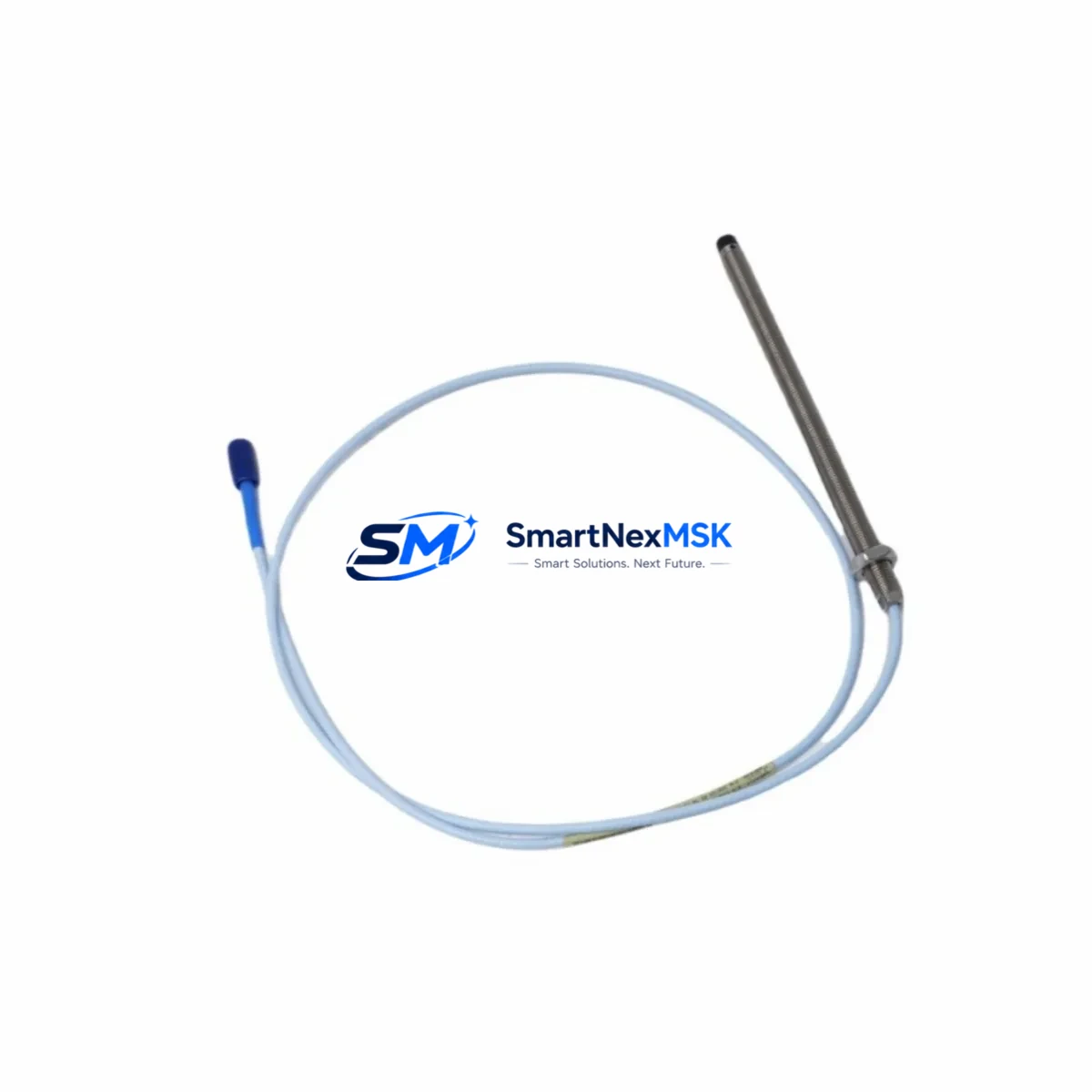

The Bently Nevada 330103-00-05-10-10-02-00 is an 8mm eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high-temperature, high-vibration, and electromagnetically noisy conditions, this transducer is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and continuous manufacturing facilities worldwide.

With a robust stainless-steel housing, hermetically sealed sensing tip, and wide operating temperature range, the 330103-00-05-10-10-02-00 delivers consistent, drift-free output signals even under severe mechanical shock, fluid ingress, and aggressive chemical exposure. Its compatibility with the Bently Nevada 3300 XL Proximitor® Sensor (such as the 330180 series) ensures a fully calibrated, plug-and-play measurement chain that minimises commissioning risk and eliminates field calibration errors — a critical advantage in safety instrumented systems (SIS) and machinery protection loops.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection architecture, the 330103-00-05-10-10-02-00 transducer does not operate in isolation. It forms the sensing front-end of a complete vibration monitoring chain that must be carefully matched and protected to ensure safety loop integrity. The transducer connects to a Bently Nevada 330180-X1-05 Proximitor® Sensor, which conditions the raw eddy-current signal into a calibrated DC voltage output suitable for direct input to a Bently Nevada 3500/42M Proximitor®/Seismic Monitor rack module — the backbone of most turbine and compressor protection panels.

Within the control cabinet, signal integrity is maintained by routing transducer cables through dedicated shielded conduits, separated from high-voltage power conductors. Surge protection devices — such as the Bently Nevada 330130 Proximitor® Extension Cable paired with appropriate terminal barrier assemblies — prevent transient voltage spikes from propagating into the monitor rack. For installations in classified hazardous areas, Zener barrier assemblies or galvanic isolators are inserted between the field device and the safe-area monitor to maintain intrinsic safety (IS) certification integrity.

Power supply stability is equally critical. The 3500 rack system typically draws from a redundant 24 VDC bus, often sourced from a Bently Nevada 3500/15 Power Supply Module, which provides isolated, regulated power to each monitor card. Any fluctuation in supply voltage directly affects Proximitor® bias voltage and, consequently, transducer gap measurement accuracy. Pairing the power supply with a quality UPS module or a Phoenix Contact QUINT series power supply ensures ride-through capability during grid disturbances — a non-negotiable requirement in continuous process plants.

For facilities running Bently Nevada System 1® Evolution software, the 330103-00-05-10-10-02-00 data feeds directly into real-time machinery health dashboards, enabling predictive maintenance decisions before a vibration exceedance triggers a protective shutdown. Complementary components such as the Bently Nevada 330500 Velomitor® CT Accelerometer and 330400 Accelerometer are often installed alongside proximity transducers to provide a complete vibration signature — radial displacement from the proximity probe, and high-frequency structural vibration from the accelerometer — giving operators a full-spectrum view of machine condition.

Critical Industrial Safety Applications

The Bently Nevada 330103-00-05-10-10-02-00 proximity transducer is deployed across the most safety-sensitive rotating machinery applications in heavy industry:

Petrochemical & Refinery Plants: Installed on centrifugal compressors, steam turbines, and boiler feed pumps in API 670-compliant machinery protection systems. In these environments, an undetected shaft displacement event can escalate to a catastrophic seal failure, hydrocarbon release, or fire. The 330103 series provides the sub-millisecond response speed required to trigger emergency shutdown (ESD) before mechanical damage propagates.

Power Generation: Used on gas turbine generator sets and steam turbine trains in combined-cycle power plants. Shaft eccentricity monitoring via proximity transducers is mandatory under IEC 61511 functional safety requirements for turbine overspeed and thrust position protection loops. The 330103-00-05-10-10-02-00 meets the sensitivity and linearity demands of these critical interlock circuits.

Mining & Mineral Processing: Applied to large ball mills, SAG mills, and slurry pumps operating in dusty, high-vibration environments. The IP67-rated stainless housing and wide temperature tolerance make the 330103 series suitable for above-ground and underground installations where conventional sensors fail prematurely.

Water & Wastewater Treatment: Monitors shaft position on high-speed centrifugal pumps and blowers in continuous-duty water treatment facilities. Reliable proximity measurement prevents bearing failures that would cause unplanned outages in critical municipal infrastructure.

Metallurgy & Steel Production: Deployed on rolling mill drive trains, converter vessel tilting drives, and continuous casting machine drives. The transducer’s resistance to electromagnetic interference from large motor drives and induction furnaces ensures signal fidelity in one of the most electrically noisy industrial environments.

Port & Heavy Lifting Equipment: Used on crane hoist gearboxes and ship-loader drive systems where continuous operation under variable load demands reliable shaft monitoring to prevent catastrophic mechanical failure during cargo handling operations.

Safety and Quality FAQ

Q1: What warranty coverage does the 330103-00-05-10-10-02-00 carry?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with priority turnaround to minimise your plant downtime exposure.

Q2: How is each unit tested before shipment?
Every 330103-00-05-10-10-02-00 transducer undergoes a full pre-shipment functional verification, including sensitivity output check, cable continuity test, and visual inspection of the sensing tip and connector. Units that do not meet Bently Nevada factory specifications are quarantined and not dispatched.

Q3: Is this transducer compatible with existing 3300 XL Proximitor® Sensors and 3500 monitor racks?
Yes. The 330103-00-05-10-10-02-00 is fully compatible with the Bently Nevada 3300 XL Proximitor® Sensor (330180 series) and integrates directly with 3500 series monitor rack inputs without requiring recalibration, provided the standard 5m cable and matching extension cable configuration is used.

Q4: Can SMARTNEXMSK support long-term and emergency spare parts supply?
Yes. SMARTNEXMSK maintains dedicated inventory of the 330103-00-05-10-10-02-00 and related 3300 XL series components to support both planned maintenance schedules and emergency breakdown replacements. We offer expedited shipping for critical plant situations and can provide documentation packages including test reports and certificates of conformance upon request.
