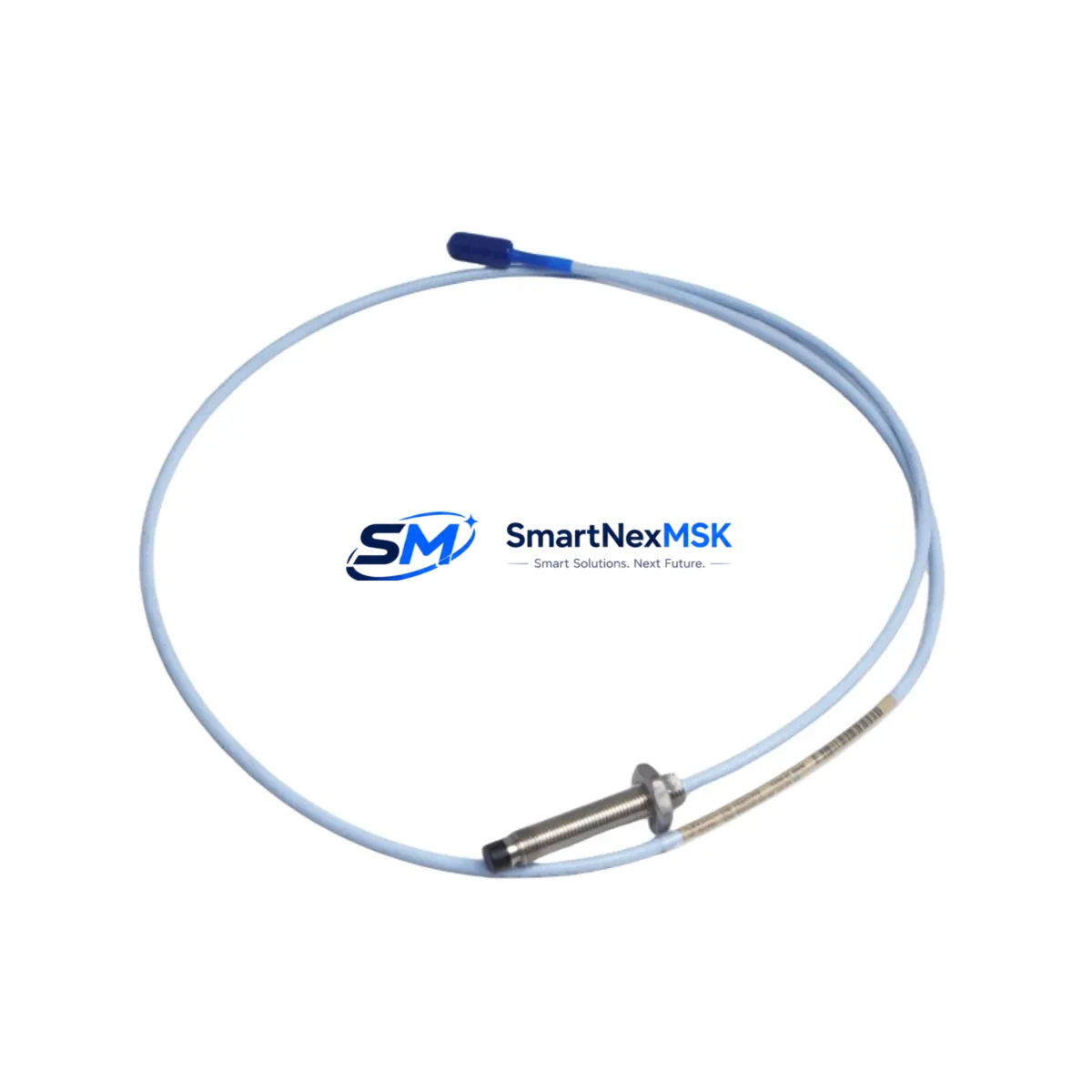

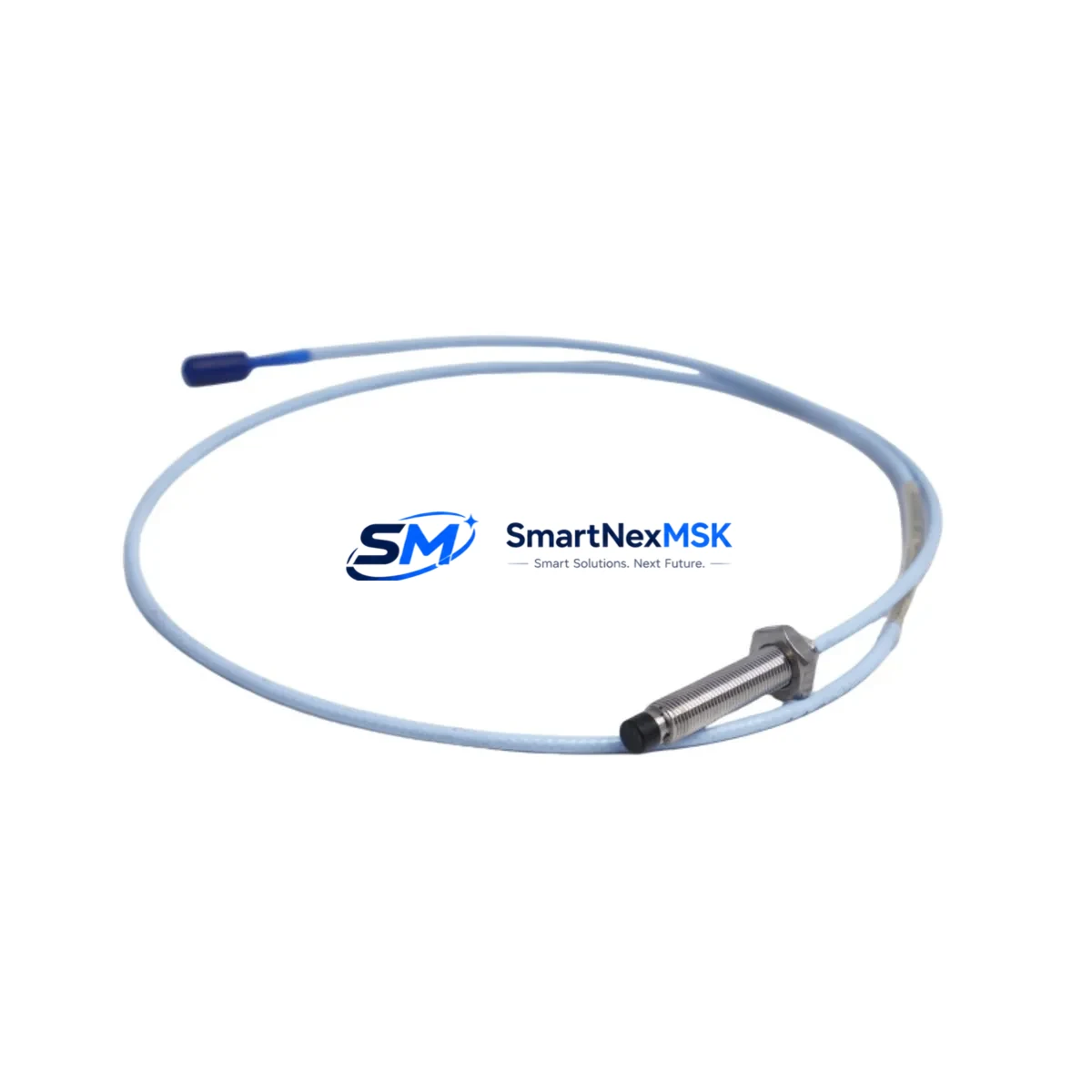

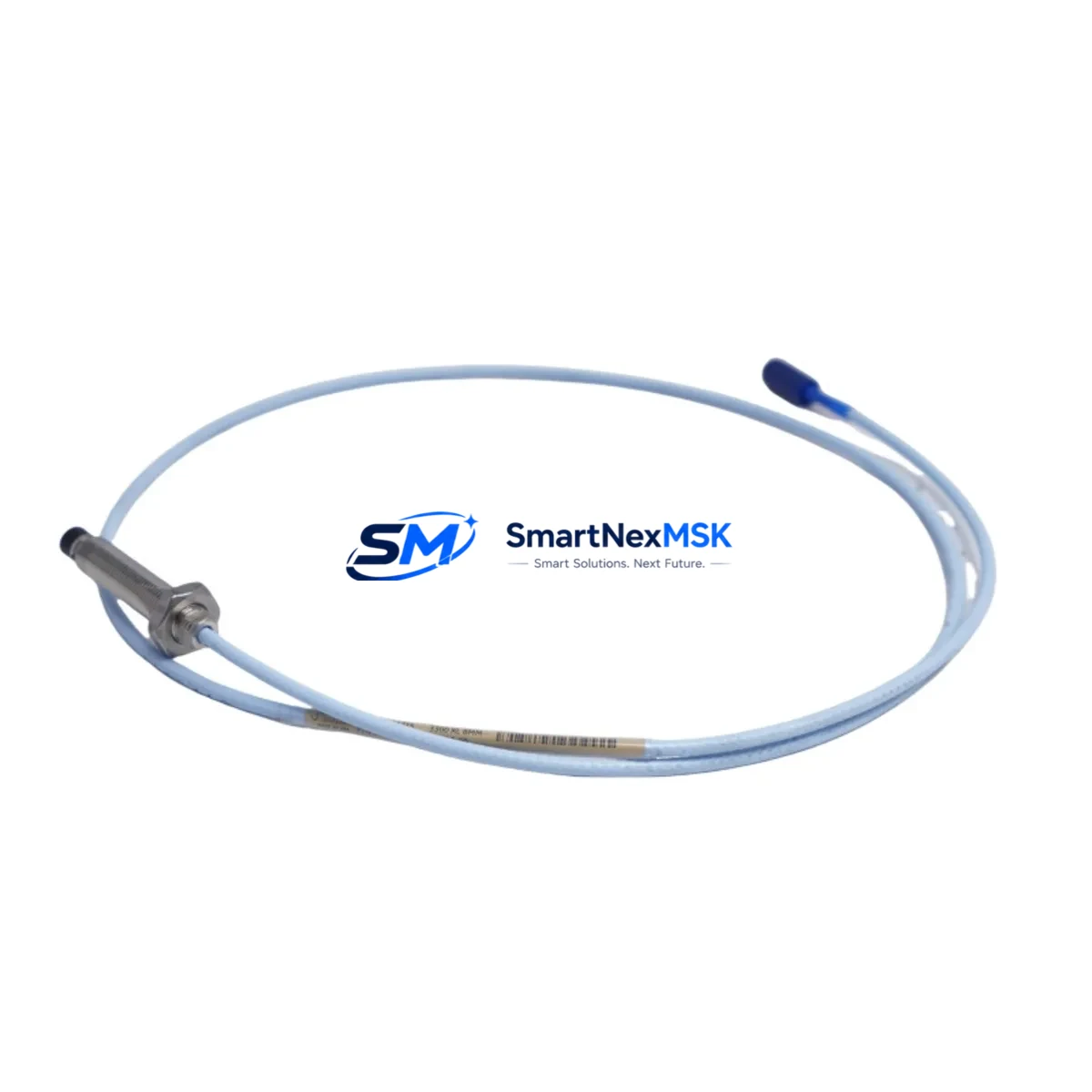

Bently Nevada 330103-00-05-10-12-00 Safety Proximity Probe: Reliable Vibration Control for Harsh Industrial Sites
The Bently Nevada 330103-00-05-10-12-00 is a 5mm eddy current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration monitoring in the most demanding industrial environments. Designed to deliver stable, drift-free position and vibration signals in high-temperature, high-vibration, and electromagnetically noisy plant conditions, this probe is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and water treatment facilities worldwide.
In critical control cabinets and safety interlock loops, signal integrity is non-negotiable. The 330103-00-05-10-12-00 provides consistent eddy current sensing with minimal susceptibility to electrical noise, ensuring that the Bently Nevada 3300 XL Proximitor Sensor receives clean, accurate gap voltage signals at all times. This directly reduces the risk of spurious trips, missed alarms, and unplanned shutdowns — protecting both personnel and production assets.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 330103-00-05-10-12-00 |
| Brand / Series | Bently Nevada / 3300 XL |
| Probe Tip Diameter | 5 mm |
| Cable Length | 5 m (standard) |
| Extension Cable | 3300 XL compatible (330130 series) |
| Operating Temperature | -35°C to +177°C (probe tip) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0.25 mm to 2.54 mm (10 to 100 mil) |
| Target Material | AISI 4140 steel (standard) |
| EMI/RFI Resistance | High — shielded coaxial cable construction |
| Ingress Protection | Suitable for oil mist, moisture, and particulate environments |
| Safety Application | API 670 machinery protection, vibration interlock loops |
| Compatibility | 3300 XL Proximitor, TK3 junction boxes, 3500 monitoring racks |
| Condition | New / Surplus New — fully tested before shipment |
| Warranty | 12 Months |
| Origin | USA |
Control Cabinet Protection Strategy
In a well-engineered rotating machinery protection system, the 330103-00-05-10-12-00 proximity probe does not operate in isolation — it is one element of a tightly integrated safety architecture. The probe connects via a matched Bently Nevada 330130-045-00-00 extension cable to a 3300 XL Proximitor Sensor (330180-91-00), which conditions the raw eddy current signal into a calibrated DC voltage output. This output feeds directly into a Bently Nevada 3500/42M Proximitor Monitor housed in the 3500 rack system, where alarm and danger setpoints are enforced in real time.
To protect the monitoring rack from power transients and voltage surges common in heavy industrial environments, a Bently Nevada 3500/15 Power Supply Module with redundant input capability is recommended. In facilities where electromagnetic interference from variable frequency drives (VFDs), large motors, or arc furnaces is a concern, proper grounding of the TK3 field junction box and use of shielded conduit for probe cable routing are essential practices that preserve signal fidelity.
For plants operating under API 670 machinery protection standards, the 330103-00-05-10-12-00 integrates seamlessly with Bently Nevada 3500/22M Transient Data Interface modules, enabling waveform capture and diagnostics without interrupting the primary protection loop. In safety instrumented systems (SIS), the probe signal may also be routed through a Bently Nevada 3500/32 4-Channel Relay Module to trigger automated shutdown sequences upon vibration threshold breach, providing a critical layer of defense against catastrophic bearing failure or rotor rub events.
Where redundant monitoring is required — such as in turbine-generator sets or compressor trains — dual-probe configurations using a second 330103-00-05-10-12-00 or a complementary 330103-00-05-10-05-00 (shorter cable variant) are commonly deployed at 90° offset to capture both X and Y axis vibration vectors, satisfying API 670 dual-channel requirements.
Critical Industrial Safety Applications
The Bently Nevada 330103-00-05-10-12-00 is deployed across a wide spectrum of safety-critical industrial applications where continuous, uninterrupted vibration monitoring is essential to plant integrity and personnel safety.
In petrochemical and refinery facilities, this probe monitors centrifugal compressors, steam turbines, and boiler feed pumps operating 24/7 in hydrocarbon-rich atmospheres. Any shaft displacement anomaly detected by the probe triggers interlock logic that can safely isolate rotating equipment before a seal failure or bearing collapse escalates into a process safety incident.
In power generation plants — including coal-fired, gas turbine, and hydroelectric stations — the 330103-00-05-10-12-00 is installed on turbine shafts and generator rotors where sub-millimeter positional accuracy is required. The probe’s stable sensitivity over wide temperature ranges ensures reliable performance from cold startup through full-load operation.
In mining and mineral processing environments, where dust, vibration, and electrical noise are extreme, the robust coaxial cable construction and high EMI rejection of this probe make it the preferred choice for SAG mill drive monitoring, crusher shaft protection, and slurry pump vibration surveillance.
In metallurgical and steel mill applications, the probe withstands radiant heat and electromagnetic interference from induction furnaces and rolling mill drives, providing reliable shaft gap measurement on continuous casting machine rolls and hot strip mill drive trains.
In water and wastewater treatment facilities, the 330103-00-05-10-12-00 monitors large vertical turbine pumps and blower trains in humid, corrosive environments, ensuring uninterrupted water supply and compliance with environmental discharge regulations.
Safety and Quality FAQ
Q1: What warranty does the 330103-00-05-10-12-00 carry?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional performance. Each probe undergoes pre-shipment functional testing including gap sensitivity verification and cable continuity checks before dispatch.
Q2: How is the probe tested before shipment?
Every 330103-00-05-10-12-00 is bench-tested against Bently Nevada calibration standards prior to shipment. Testing includes eddy current sensitivity measurement, insulation resistance check, and connector integrity verification. A test report is available upon request for critical safety applications.
Q3: Is this probe compatible with existing 3300 XL Proximitor systems?
Yes. The 330103-00-05-10-12-00 is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor and the broader 3500 Series monitoring rack ecosystem. It is a direct replacement for worn or failed probes in existing installations without requiring recalibration of the Proximitor, provided the target material and gap distance remain consistent with original design parameters.
Q4: Can long-term supply be guaranteed for maintenance and spare parts programs?
SMARTNEXMSK maintains dedicated inventory of the 330103-00-05-10-12-00 and related 3300 XL series components to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. We support both single-unit urgent orders and bulk procurement for plant-wide standardization programs.
