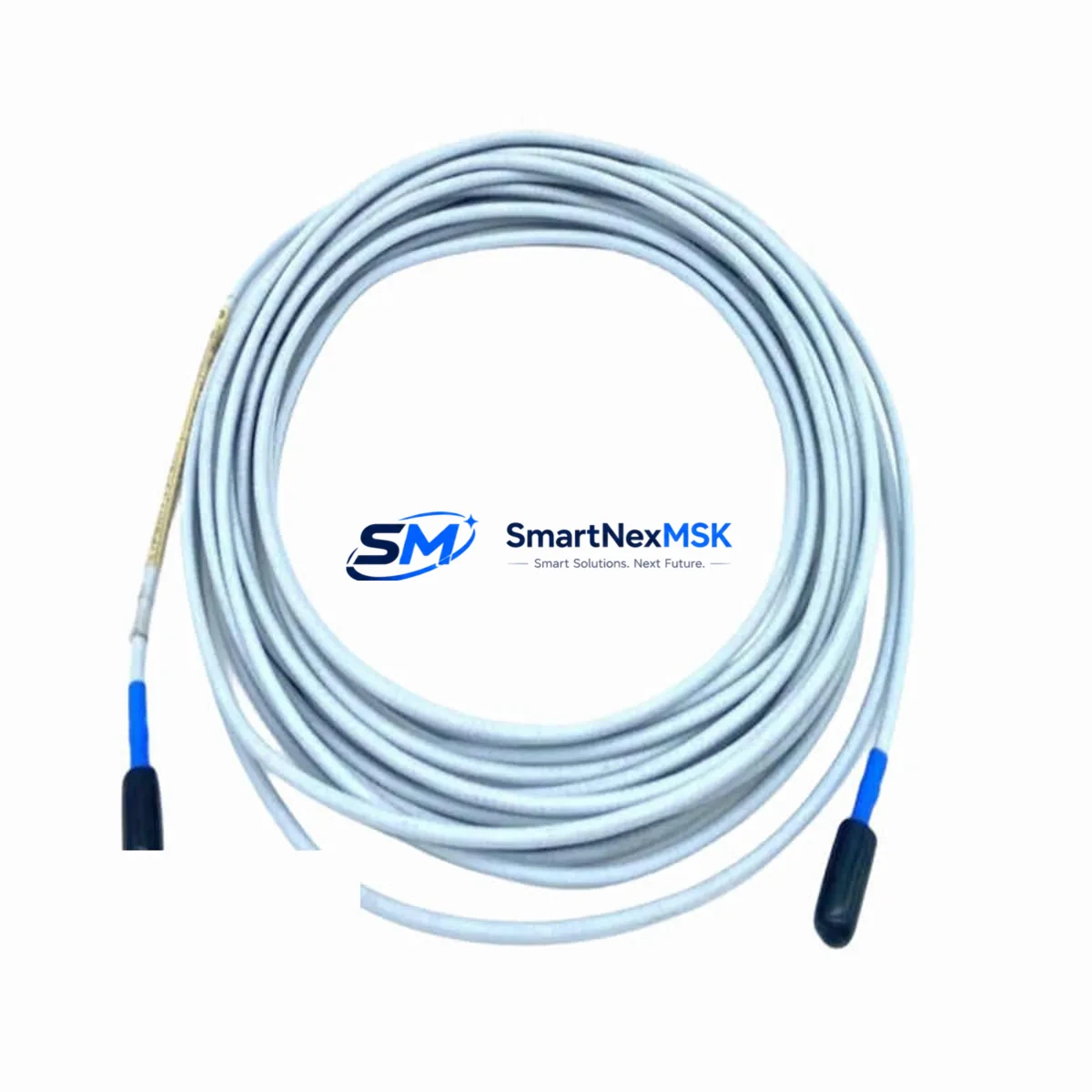

Bently Nevada 330103-00-05-15-02-CN Retrofit-Ready Proximity Probe

Bently Nevada 330103-00-05-15-02-CN Retrofit-Ready Proximity Probe for 3300 XL Control Systems

The Bently Nevada 330103-00-05-15-02-CN is an 8mm eddy current proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy machinery protection systems approach end-of-service milestones, this probe serves as a verified drop-in replacement and upgrade path for plants operating original 3300 Series hardware. Whether you are executing a full control system modernization or replacing a single failed sensor in a critical rotating machinery loop, the 330103-00-05-15-02-CN delivers the dimensional accuracy, signal linearity, and environmental tolerance required for continuous, uninterrupted plant operation.

This probe is compatible with the Bently Nevada 3300 XL 8mm Proximitor Sensor (typically the 330180 series) and integrates directly into existing 3300/16 Monitor and 3300/20 Monitor rack assemblies without requiring backplane modifications. For sites still running the earlier 7200 Series proximity system, a signal conditioner adapter and re-ranging of the Proximitor output may be required before the probe can be substituted — a step that should be confirmed during pre-installation engineering review.

In retrofit projects involving the System 1 condition monitoring software platform, the probe’s gap voltage and scale factor must be re-entered into the channel configuration to maintain alarm setpoint accuracy. Engineers migrating from the 3300 XL 5mm probe variant should note the difference in linear range and ensure the target material and surface finish remain within the 330103 specification envelope.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the maintenance window opens. When replacing the 330103-00-05-15-02-CN in an operating plant, the engineering team should first audit the existing 3300 XL Proximitor Sensor (330180) for output drift and confirm that the observed vibration readings are probe-related rather than a monitor card fault. If the 3300/16 Monitor or 3300/20 Monitor card is also suspect, it is common practice to replace both the probe assembly and the monitor card simultaneously to eliminate compounding failure modes and avoid a second outage.

Power supply integrity is a prerequisite for any probe swap. The 3300 XL rack draws regulated DC power from a dedicated Bently Nevada 3300/05 Power Supply or equivalent redundant supply module. Before pulling the probe, verify that supply voltage at the Proximitor terminals is within the ±24 VDC specification. A marginal power supply will cause erratic gap voltage readings even after a new probe is installed, leading to false diagnostics and wasted commissioning time.

Terminal wiring should be documented photographically before disconnection. The 330103-00-05-15-02-CN uses a standard coaxial cable assembly with a defined shield grounding scheme. Incorrect shield termination — particularly floating shields or double-grounded shields — introduces noise that can mask real vibration events or trigger nuisance trips. Reference the Bently Nevada installation drawing for the correct grounding topology at both the probe end and the Proximitor end.

For plants integrating the probe signal into a DCS I/O card (such as a Honeywell C300 Controller analog input or an Emerson DeltaV S-Series I/O module), confirm that the input channel is configured for the correct voltage range and that the engineering unit conversion in the DCS matches the Proximitor scale factor. Mismatched scaling is a common source of post-retrofit alarm nuisance that delays return-to-service sign-off.

Sites using Modbus RTU or FOUNDATION Fieldbus gateways to relay vibration data to a plant historian should verify that the gateway tag mapping is updated if the Proximitor channel address changes during the retrofit. Similarly, any HMI faceplate built on Wonderware InTouch or FactoryTalk View SE that displays shaft vibration trends should be reviewed to confirm that the tag reference and engineering unit display remain correct after the channel is re-commissioned.

If the retrofit scope extends to replacing the 3300 XL rack with a Bently Nevada 3500 Series rack, note that the 3500/40M Proximitor I/O Module accepts the same 8mm probe family, but the rack addressing, Keyphasor configuration, and System 1 database entries must all be rebuilt. In this scenario, it is advisable to pre-stage the new rack, load the configuration offline, and perform a bench functional test using a Bently Nevada 330130 Proximitor Simulator before the scheduled outage begins.

Downtime Control During System Migration

Minimizing unplanned downtime during a probe replacement requires a structured pre-outage checklist and a clearly defined rollback procedure. The following practices are recommended for the 330103-00-05-15-02-CN swap in a live machinery protection loop:

Pre-outage preparation: Export the current channel configuration from the 3300/16 or 3300/20 monitor using the rack configuration software. Save the gap voltage, scale factor, full-scale range, and all alarm and danger setpoints. This export serves as both a backup and a commissioning reference. If the plant uses System 1 Evolution for online monitoring, export the asset configuration and note the current baseline vibration spectrum for post-installation comparison.

Bypass and inhibit strategy: Before removing the probe, place the affected channel in bypass mode at the monitor card to prevent a spurious trip during disconnection. Confirm with the control room that the bypass is active and that the operator is aware of the reduced protection state. Document the bypass start time in the maintenance log.

Installation and gap setting: Install the replacement 330103-00-05-15-02-CN probe and set the air gap to the target voltage specified on the Proximitor label (typically –10.0 VDC ±0.5 V for a standard 8mm system). Use a calibrated digital voltmeter at the Proximitor output terminals — not at the monitor card input — to confirm the gap voltage before re-energizing the channel.

Return to service: Remove the channel bypass, confirm that the monitor card displays a valid vibration reading within the expected baseline range, and verify that no alarms are active. Update the maintenance record with the new probe serial number, installation date, and measured gap voltage. If the plant historian shows a step change in the vibration trend at the time of replacement, add a maintenance annotation to prevent the event from being misinterpreted during future trend analysis.

By following this sequence, most 330103-00-05-15-02-CN probe replacements can be completed within a two-hour maintenance window, preserving production continuity and maintaining the integrity of the machinery protection system throughout the transition.

Retrofit Support FAQ

Q1: Is the 330103-00-05-15-02-CN a direct replacement for earlier 330103 variants without the CN suffix?
A: The CN suffix denotes a specific cable and connector configuration. In most 3300 XL installations, the CN-suffix variant is dimensionally and electrically compatible with non-CN variants of the same probe body and cable length. However, you should verify the connector type at the Proximitor input and confirm that the cable jacket material meets your plant’s environmental classification before substituting. When in doubt, contact our technical team with your existing part number for a cross-reference confirmation.

Q2: What commissioning steps are required after installing the replacement probe?
A: After mechanical installation, set the air gap to achieve the target gap voltage (typically –10.0 VDC for an 8mm system at the nominal gap). Verify the output at the Proximitor terminals, then re-enter the scale factor and alarm setpoints in the monitor card or System 1 database. Perform a slow-roll check if the machine can be rotated, and confirm that the 1× and 2× vibration components are within the expected baseline range before returning the channel to normal protection mode.

Q3: Can this probe be used in a 3500 Series rack as part of a platform upgrade?
A: Yes. The 330103-00-05-15-02-CN is compatible with the Bently Nevada 3500/40M Proximitor I/O Module, which accepts standard 3300 XL 8mm probe assemblies. When migrating from a 3300 rack to a 3500 rack, the probe itself does not need to change — the primary effort involves rebuilding the rack configuration, updating the Keyphasor assignments, and re-validating all alarm and danger setpoints in the new rack manager software.

Q4: What does the 12-month warranty cover, and is a functional test report available?
A: All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional performance against the original OEM specification. Each unit undergoes a pre-shipment functional test including gap voltage linearity verification and cable continuity check. A test report is available upon request at the time of order. Warranty claims are processed directly through our technical support team — contact sales@smartnexmsk.com with your order number and a description of the observed fault.
