Bently Nevada 330103-00-06-10-02-05 Spare 3300 XL

Bently Nevada 330103-00-06-10-02-05 Spare 3300 XL: Precision Spare for Industrial Vibration Monitoring

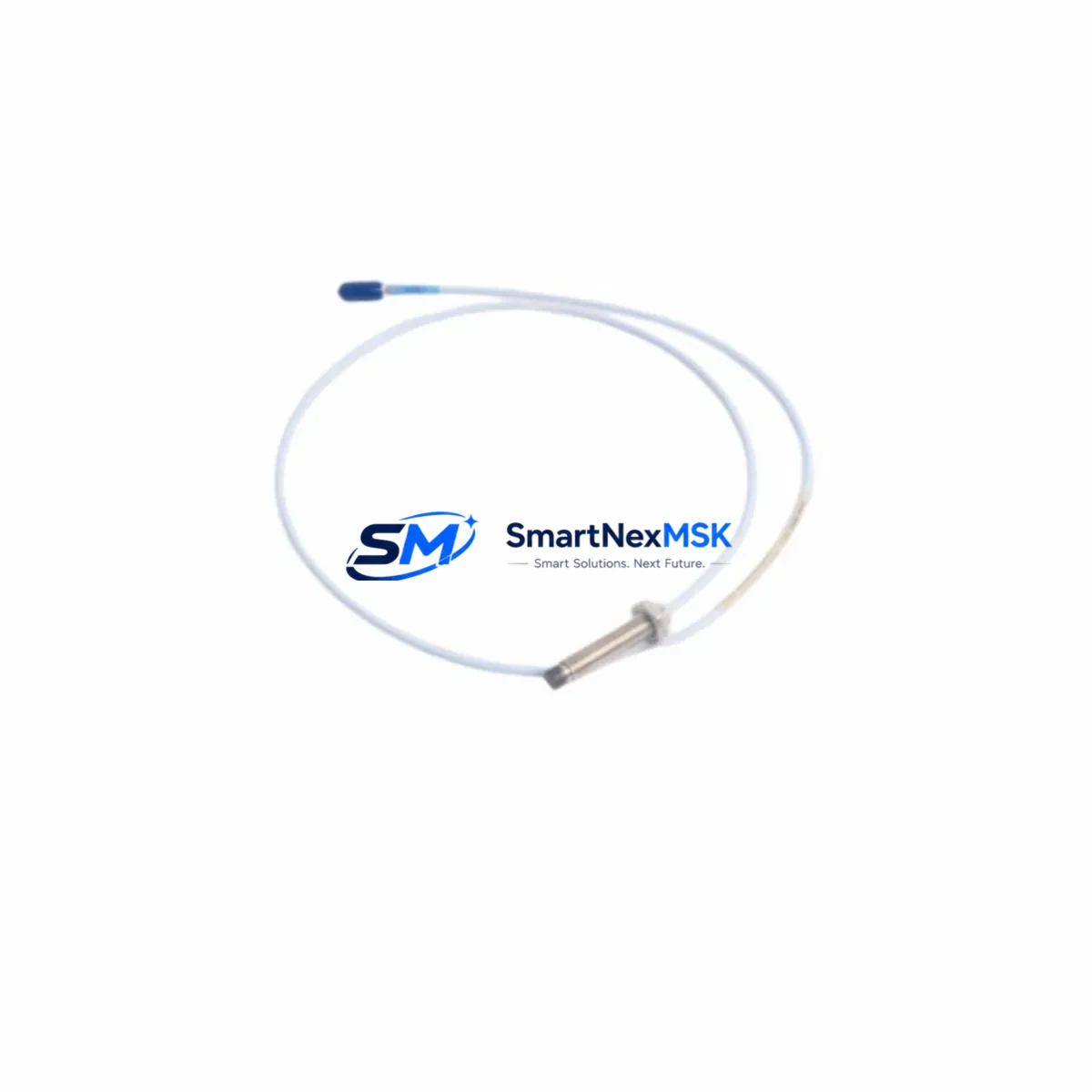

The Bently Nevada 330103-00-06-10-02-05 is an original eddy-current proximity sensor engineered for the 3300 XL Series vibration monitoring system. Designed for continuous shaft displacement and vibration measurement in rotating machinery, this sensor is a critical spare for turbines, compressors, pumps, and generators operating in demanding industrial environments. Sourced as an original spare part, each unit undergoes pre-shipment functional testing to ensure full compatibility and reliable performance upon installation.

For maintenance engineers managing planned shutdowns or responding to unplanned trips, having a verified replacement of the 330103-00-06-10-02-05 on the shelf eliminates the most costly variable in downtime recovery: sourcing time. This sensor integrates directly with the 3300 XL proximitor/seismic monitor and is compatible with standard 5-metre and 9-metre extension cable assemblies used throughout the 3300 XL system architecture.

Whether you are executing a scheduled overhaul, performing a post-trip root cause inspection, or building a strategic spare parts inventory for a critical asset, the 330103-00-06-10-02-05 delivers the dimensional accuracy, gap voltage linearity, and signal integrity required by Bently Nevada’s vibration monitoring specifications.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330103-00-06-10-02-05 proximity sensor during a planned or emergency maintenance event, a thorough inspection of the surrounding measurement chain is essential to prevent repeat failures and ensure signal integrity across the entire vibration monitoring loop.

Begin with the 3300 XL extension cable assembly — inspect the connector pins, cable jacket, and continuity end-to-end. A degraded extension cable is a common source of erratic gap voltage readings that can be misdiagnosed as a failed probe. Next, verify the condition of the 3300 XL Proximitor/Seismic Monitor module seated in the rack; check for corrosion on the I/O connector and confirm the bias voltage output is within specification before installing the new sensor.

Inspect the 3300 XL power supply module supplying -24 VDC to the proximitor. Voltage sag or ripple at the supply rail will directly affect sensor linearity and system alarm thresholds. If the cabinet houses a 3500 Series rack for integration with plant-wide condition monitoring, verify that the 3500/42M Proximitor I/O module is correctly configured for the replacement sensor’s scale factor.

For systems where the proximity measurement feeds a Bently Nevada 3500/25 keyphasor module, confirm that the keyphasor gap and signal amplitude remain within the accepted window after sensor replacement, as any mechanical shift during maintenance can alter the reference mark position. Also review the 3300 XL barrier assembly if the sensor is installed in a hazardous area — intrinsic safety barriers must be tested for continuity and correct zener voltage before recommissioning.

Where the vibration signal is routed to a DCS analog input card or a safety instrumented system (SIS) I/O module, verify the 4–20 mA or voltage signal at the marshalling terminal strip using a calibrated loop tester. Check the terminal block assemblies in the junction box for loose ferrules, corrosion, or moisture ingress. Finally, if the machine train includes a thrust position sensor of the same 3300 XL family, inspect it concurrently — thrust and radial sensors on the same shaft are typically replaced as a pair during major overhauls to maintain balanced monitoring coverage.

Maintaining a minimum stock of two 330103-00-06-10-02-05 sensors per critical machine train, alongside matched extension cables and a spare proximitor module, is a widely adopted strategy in turbomachinery maintenance programs to support rapid swap-out and reduce mean time to repair (MTTR).

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and isolate the measurement loop at the proximitor rack. Do not de-energize the entire monitoring rack if other channels remain in service; use the channel inhibit function in the 3500/3300 system to suppress alarms during the replacement.

Step 2 — Gap Measurement and Documentation: Record the existing probe gap voltage before removal. This baseline confirms whether the original sensor had drifted and provides a reference for setting the replacement gap. The nominal gap for the 330103-00-06-10-02-05 is typically 1.0 mm, corresponding to approximately -10.4 VDC bias output.

Step 3 — Sensor Removal: Loosen the locknut and unthread the probe from the bracket. Disconnect the integral cable from the extension cable at the junction box. Inspect the probe tip for mechanical damage, contamination, or shaft contact marks that may indicate a bearing or alignment issue requiring separate corrective action.

Step 4 — Installation of Replacement: Thread the new 330103-00-06-10-02-05 into the bracket, set the gap to OEM specification using a feeler gauge, and secure the locknut. Reconnect the extension cable and verify connector seating. Apply anti-vibration compound to the locknut if specified by the site maintenance procedure.

Step 5 — Functional Verification: Re-energize the channel and confirm bias voltage, vibration amplitude, and DC gap output are within the 3300 XL system’s acceptance criteria. Clear the channel inhibit and restore normal monitoring. Document the replacement in the equipment maintenance record.

This workflow minimises downtime, preserves system compatibility, and ensures the replacement sensor is commissioned to the same performance standard as the original factory installation.

Spare Parts Support FAQ

Q1: Is the 330103-00-06-10-02-05 a direct drop-in replacement for older 3300 Series proximity sensors?
The 330103-00-06-10-02-05 is designed for the 3300 XL Series and is not dimensionally or electrically identical to earlier 3300 non-XL probes. Before substitution, verify the proximitor model number and confirm the scale factor (V/mm) matches the system configuration. Consult the Bently Nevada 3300 XL installation manual or contact our technical team for compatibility confirmation.

Q2: What pre-shipment testing is performed on each unit?
Each 330103-00-06-10-02-05 is functionally tested for bias voltage output, gap linearity across the specified measurement range, and cable continuity prior to dispatch. A test report is available upon request. Units are packaged in anti-static, moisture-resistant packaging to preserve condition during transit.

Q3: What is the recommended spare parts holding strategy for this sensor?
For critical rotating machinery (turbines, compressors, large pumps), a minimum of two sensors per machine train is recommended, stored in a climate-controlled spare parts room. Sensors should be inspected annually for connector corrosion and replaced on a 5–7 year cycle or following any shaft contact event, whichever occurs first.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions as specified in the Bently Nevada 3300 XL product documentation. Warranty claims require return of the defective unit with a completed failure report. Damage resulting from incorrect installation, shaft contact, or operation outside rated environmental limits is excluded. Contact [email protected] to initiate a warranty claim.
