Bently Nevada 330103-00-06-50-01-00 Spare 3300 XL

Bently Nevada 330103-00-06-50-01-00 Spare 3300 XL: Precision Proximity Probe for Industrial Downtime Recovery

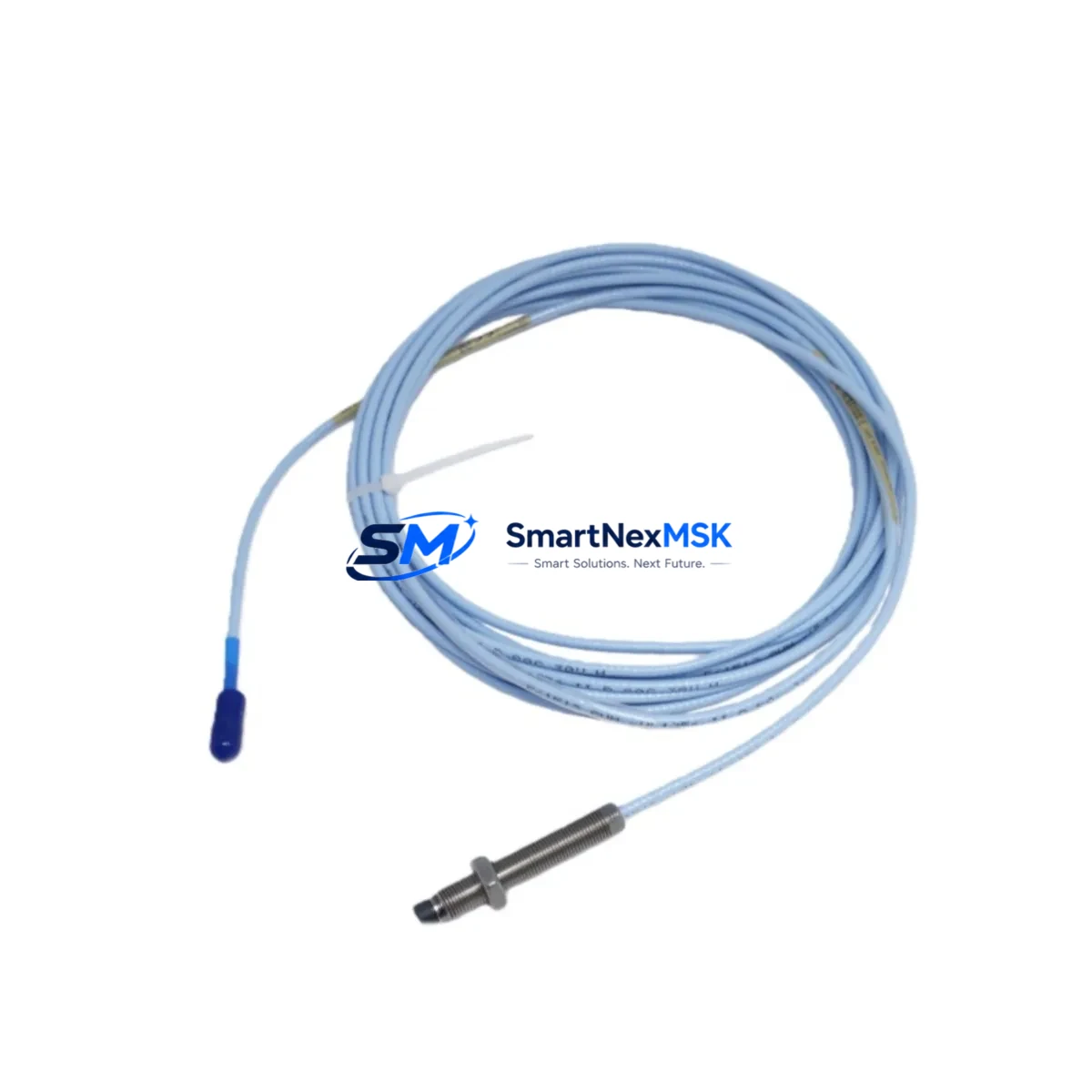

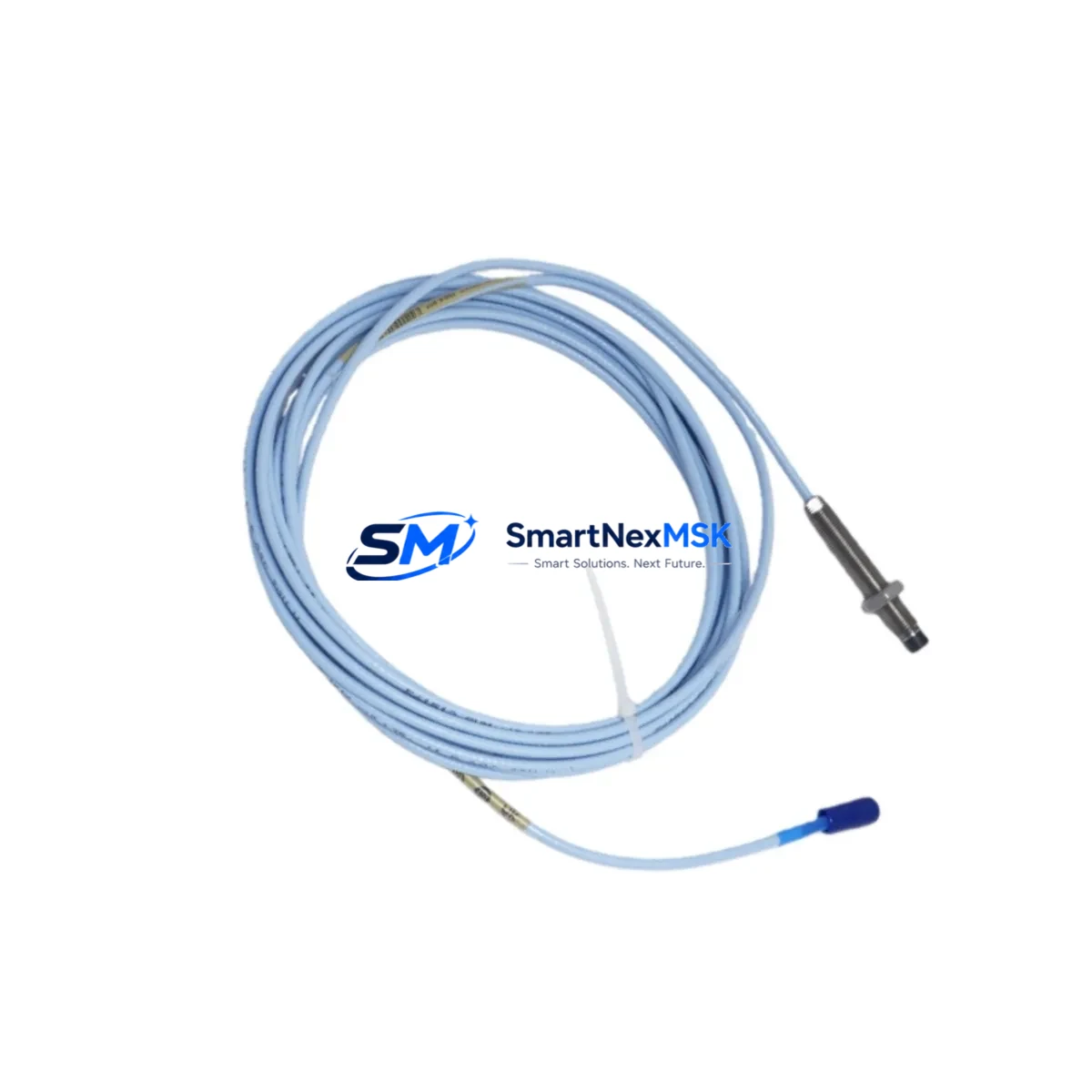

The Bently Nevada 330103-00-06-50-01-00 is an original eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring system. Designed for continuous-duty industrial environments, this probe delivers reliable shaft displacement and vibration measurements critical to rotating machinery protection in power generation, oil & gas, petrochemical, and heavy manufacturing facilities. When a proximity probe fails or degrades, the entire vibration monitoring loop is compromised — shaft position data is lost, machinery protection alarms become unreliable, and unplanned downtime risk escalates rapidly. Stocking a verified original replacement is the most effective strategy for minimizing mean time to repair (MTTR) and sustaining safe machine operation.

This unit is sourced as an original Bently Nevada spare, inspected and tested prior to shipment, and backed by a 12-month warranty. It is compatible with the 3300 XL proximitor/seismic monitor series and integrates directly with standard 3300 XL extension cables and proximitor housings without system reconfiguration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330103-00-06-50-01-00 proximity probe in a 3300 XL monitoring loop, maintenance engineers should treat the replacement as an opportunity for a full vibration channel audit. The probe does not operate in isolation — its accuracy depends on the integrity of the entire signal chain from the probe tip to the monitor output.

Begin by inspecting the 3300 XL extension cable (such as the 330130-080-00-00 or equivalent 8-meter extension) for jacket damage, connector corrosion, or continuity faults. A degraded extension cable will introduce signal noise even with a new probe installed. Next, verify the 3300 XL Proximitor Monitor (e.g., 3300/16-13-01-01-00-00-00) output voltage and gap voltage are within specification using a calibrated digital multimeter — a drifting proximitor is a common root cause of false probe failures.

Check the power supply module feeding the monitor rack, such as the 3300/05 or equivalent rack power supply, for output voltage stability under load. Voltage sag or ripple will directly affect probe sensitivity and alarm thresholds. If the control cabinet houses a 3300/55 or 3300/46 I/O module, inspect terminal block connections for looseness or oxidation, as high-impedance connections corrupt the millivolt-level signals from the proximity loop.

For facilities running integrated machinery protection, also inspect the 3500 Series rack if the 3300 XL system feeds into a 3500/22M or 3500/42M transient data interface — signal handoff integrity between systems is critical during probe replacement. Where applicable, review the Keyphasor module (e.g., 3300 XL Keyphasor Proximitor) to confirm phase reference signals remain stable after the probe swap, as Keyphasor drift will affect all synchronous vibration measurements on the shaft.

Procurement engineers building a spare parts kit for a 3300 XL-equipped machine train should consider stocking the probe alongside a matched 3300 XL extension cable, a spare proximitor module, and a set of terminal block connectors for the I/O interface. For facilities with multiple monitored machines, a portable calibration simulator compatible with the 3300 XL system enables rapid in-situ verification without removing the monitor from service. All replacement components should be sourced as original Bently Nevada parts to maintain system calibration traceability and warranty validity.

Site Replacement Workflow

Step 1 — Isolation and Safety: Coordinate with operations to place the affected machine in a safe state. Do not remove the probe while the machine is at operating speed. Follow site LOTO (Lockout/Tagout) procedures for the monitoring cabinet and machine coupling area.

Step 2 — Gap Voltage Baseline: Before removal, record the existing gap voltage from the proximitor output. This baseline confirms the probe’s pre-failure installation depth and provides a reference for reinstallation of the new 330103-00-06-50-01-00.

Step 3 — Probe Removal: Disconnect the extension cable at the probe connector. Unthread the probe from the bracket using the appropriate spanner. Inspect the probe tip for physical damage, contamination, or target surface scoring that may indicate a mechanical contact event.

Step 4 — New Probe Installation: Install the replacement 330103-00-06-50-01-00 to the same thread depth as the original, targeting the gap voltage baseline recorded in Step 2. Reconnect the extension cable and verify connector seating. Do not overtighten the locknut — follow Bently Nevada torque specifications.

Step 5 — Calibration Verification: Power the proximitor and measure gap voltage at the monitor terminal. Adjust probe depth until gap voltage matches the system’s configured linear center point (typically -10 VDC for a 2 mm gap). Confirm alarm and danger setpoints are active and within specification.

Step 6 — Return to Service: Document the replacement in the maintenance management system (CMMS), including the new probe serial number, installation date, and gap voltage reading. Update the spare parts inventory to trigger reorder of the consumed 330103-00-06-50-01-00 unit.

This workflow applies equally to planned outage replacements and emergency corrective maintenance scenarios. Using an original Bently Nevada spare eliminates compatibility risk and ensures the replacement probe meets the factory sensitivity and linearity specifications required for API 670-compliant machinery protection.

Spare Parts Support FAQ

Q1: Is the 330103-00-06-50-01-00 compatible with both 3300 XL and older 3300 Series monitors?
The 330103-00-06-50-01-00 is designed and calibrated for the 3300 XL proximitor system. While the physical connector may be compatible with some earlier 3300 Series proximitors, sensitivity and linearity specifications are optimized for the XL platform. For legacy 3300 (non-XL) systems, verify the proximitor part number and confirm compatibility with Bently Nevada documentation before installation.

Q2: What is included in the 12-month warranty, and what does it cover?
Each 330103-00-06-50-01-00 unit is tested for electrical continuity, output sensitivity, and connector integrity before shipment. The 12-month warranty covers manufacturing defects and performance deviations from published specifications under normal operating conditions. Warranty claims require the unit to be returned with documentation of the installation environment and failure mode. Physical damage from mechanical contact, chemical exposure, or improper installation is excluded.

Q3: How should this probe be stored as a long-term spare?
Store the 330103-00-06-50-01-00 in its original packaging in a dry, temperature-controlled environment (10°C–35°C, <70% RH non-condensing). Protect the probe tip from physical contact and keep the connector capped to prevent oxidation. Inspect stored units annually for connector corrosion and cable jacket integrity. Rotate stock on a first-in, first-out basis if multiple units are held.

Q4: Can this unit be shipped internationally for emergency maintenance situations?
Yes. We support expedited international shipment for emergency maintenance scenarios. Each unit ships with a test report and commercial invoice. Export classification and customs documentation are prepared in accordance with the destination country’s import requirements. Contact our sales team at sales@smartnexmsk.com or +86 18259474341 to confirm lead time and shipping options for your location.
