Bently Nevada 330103-00-07-05-01-00 3300 XL Spare

Bently Nevada 330103-00-07-05-01-00 3300 XL Spare: Precision Proximity Probe for Industrial Downtime Control

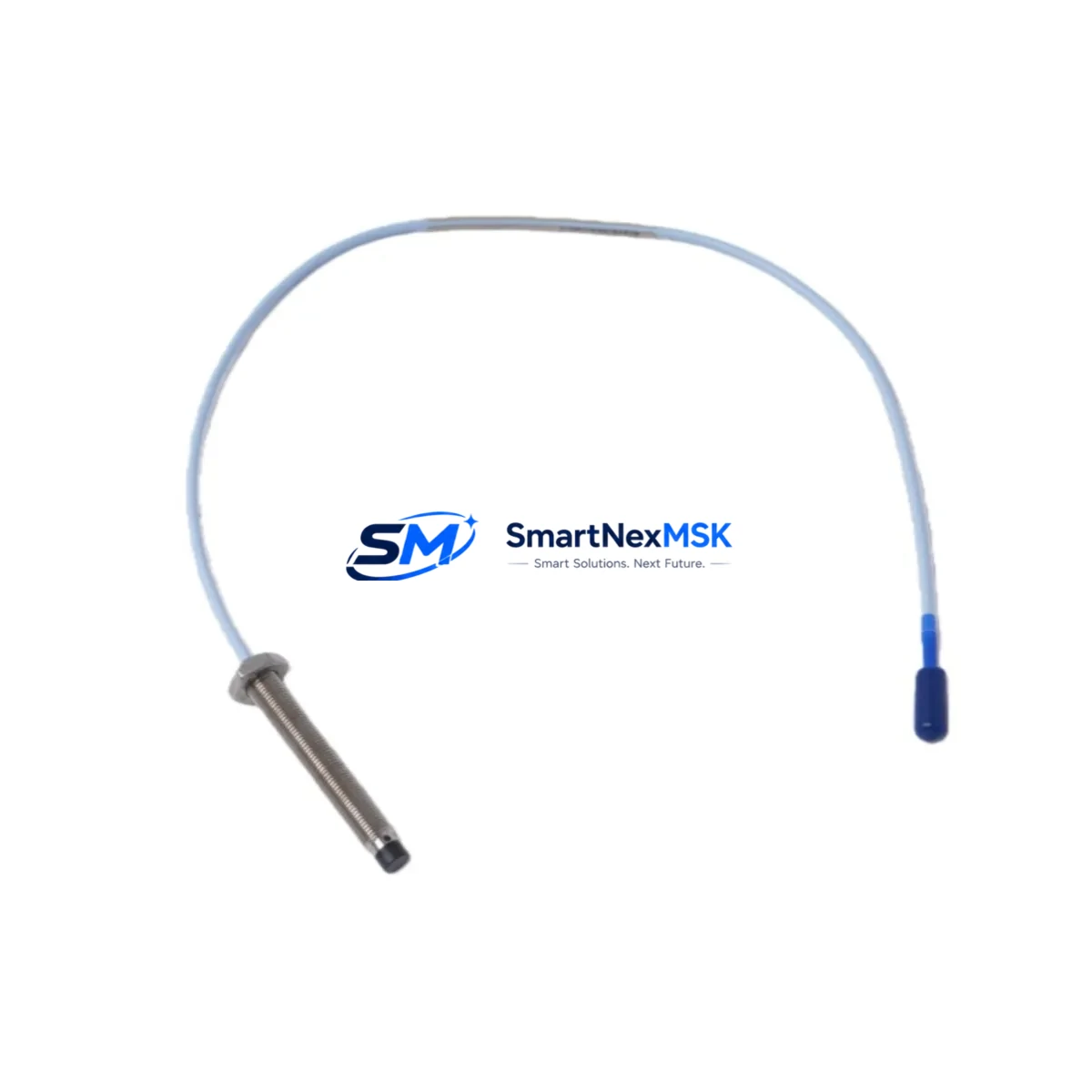

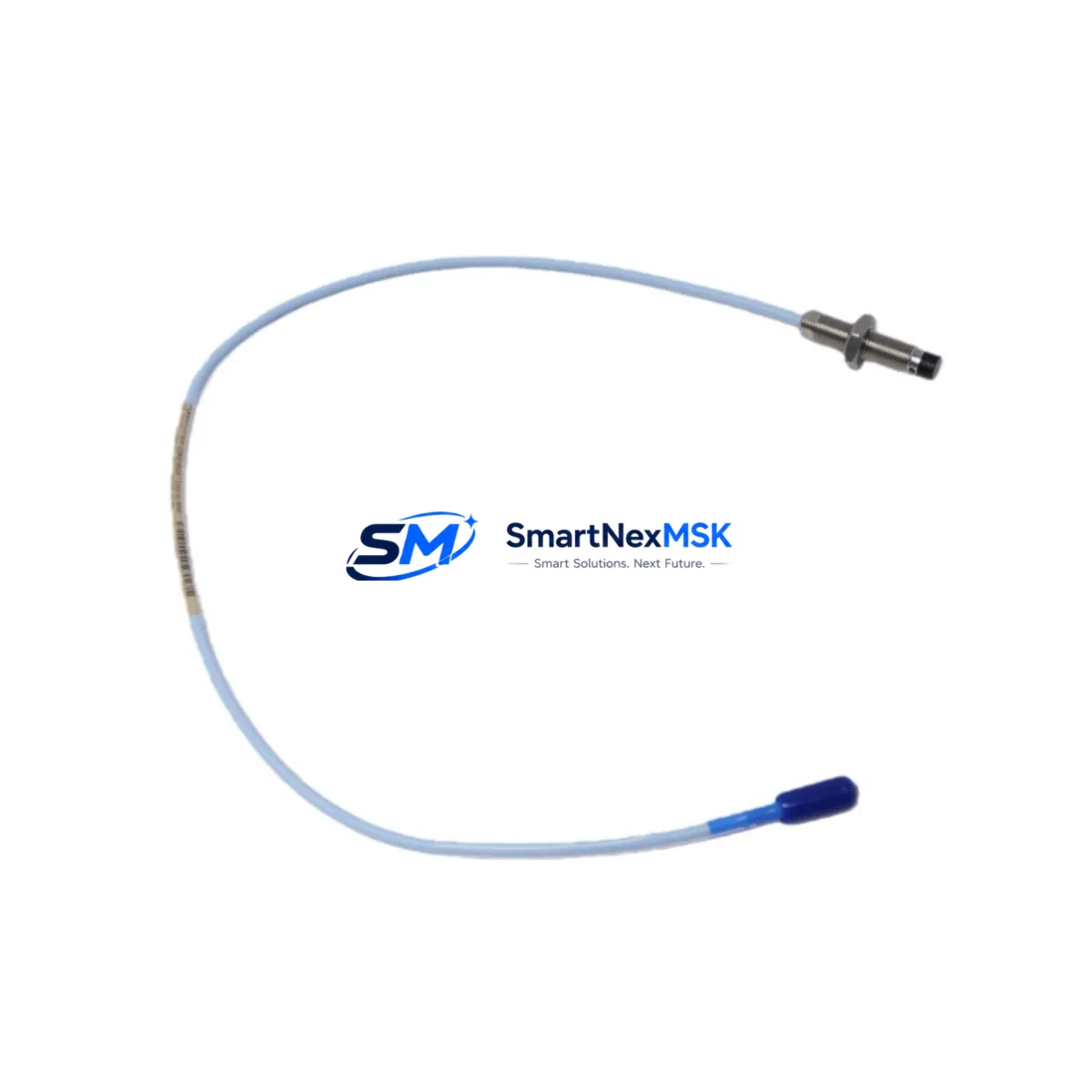

The Bently Nevada 330103-00-07-05-01-00 is an original 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Widely deployed in rotating machinery protection — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — this probe is a critical sensing element in any plant-floor condition monitoring architecture. Holding a verified stock of this spare directly reduces mean time to repair (MTTR) and protects against unplanned production shutdowns that can cost thousands of dollars per hour.

For maintenance engineers managing aging turbomachinery or DCS-integrated protection systems, the 330103-00-07-05-01-00 delivers consistent gap voltage linearity, stable output across temperature extremes, and direct compatibility with the 3300 XL proximitor/driver electronics. Each unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification and is backed by a 12-month warranty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330103-00-07-05-01-00 proximity probe is flagged during a routine vibration survey or fails a gap voltage check, the replacement event is an ideal trigger for a broader control-cabinet and field-wiring inspection. Experienced maintenance engineers treat probe replacement not as an isolated task but as a checkpoint for the entire measurement chain.

Start at the 330180 Series 3300 XL 8mm Proximitor — the driver electronics that power the probe and convert gap distance to a DC voltage signal. A degraded proximitor can mask probe faults or introduce false readings even after a new probe is installed. Inspect the proximitor’s supply voltage (nominally -24 VDC) and verify the output is within the linear range before closing the work order.

Next, examine the 330130 Series extension cable connecting the probe to the proximitor. Cracked insulation, corroded connectors, or a kinked cable jacket are common failure modes in high-vibration environments and will corrupt the gap signal regardless of probe condition. Replace the extension cable as a matched set whenever probe replacement is planned.

At the rack level, confirm the 3300/16 or 3500/42 Proximitor I/O Module is seating correctly in the backplane and that all terminal block connections are torqued to specification. Loose field wiring on the I/O module is a frequent source of intermittent alarms that are misdiagnosed as probe failures. While the rack is open, inspect the 3300 or 3500 Series power supply module — a sagging -24 VDC rail will shift the probe’s operating point and trigger nuisance trips.

For plants running a Bently Nevada 3500 Series rack alongside legacy 3300 XL hardware, verify that the 3500/22M Transient Data Interface or 3500/40M Proximitor Monitor channel configuration matches the new probe’s sensitivity constant. An incorrect sensitivity entry in the monitor configuration will produce erroneous vibration amplitude readings even with a perfectly functional probe.

If the machine is also equipped with a 330500 Series velocity transducer or a 330400 Series accelerometer for seismic or casing vibration measurement, include those sensors in the same inspection round. Co-locating the inspection reduces scaffold or access time and ensures the full vibration protection loop is validated in a single maintenance window.

Finally, check the Keyphasor® transducer (typically a 330980 or 330850 Series probe) if the machine uses phase-referenced vibration analysis. A misaligned or worn Keyphasor probe will invalidate 1X and 2X vector data, making it impossible to distinguish mechanical looseness from imbalance during post-maintenance trending.

Stocking the 330103-00-07-05-01-00 alongside its matched extension cable, a spare proximitor, and at least one I/O module card ensures that any single-point failure in the measurement chain can be resolved within a single shift — keeping your rotating equipment protection system fully operational.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. De-energize the proximitor supply at the rack power supply module before disconnecting field wiring.

Step 2 — Gap Measurement: Record the existing probe gap voltage before removal. A reading outside -10 VDC ± 1 VDC at nominal gap (1.0 mm / 40 mil) confirms the probe or extension cable is the fault source.

Step 3 — Probe Removal: Unthread the probe from the mounting bracket using the correct spanner. Inspect the probe tip for impact damage or target-material buildup. Clean the mounting bore.

Step 4 — New Probe Installation: Thread the 330103-00-07-05-01-00 into the bracket and set the gap to the system-specified value (typically 1.0–1.5 mm depending on target material and monitor configuration). Lock the jam nut to the torque value specified in the Bently Nevada installation drawing.

Step 5 — Extension Cable Connection: Connect the 330130 Series extension cable. Verify connector seating and apply thread-locking compound if required by site standards.

Step 6 — Functional Verification: Re-energize the proximitor supply and measure output voltage at the proximitor output terminals. Confirm the reading is within the linear range and matches the expected gap voltage. Check the monitor channel for a valid OK status and no active alarms.

Step 7 — Documentation: Record the new gap voltage, installation date, and probe serial number in the equipment maintenance log. Update the spare parts inventory to trigger reorder of the consumed probe.

This workflow is compatible with both in-situ replacement on running-spare machines and planned outage replacement on critical trains, minimizing downtime to under two hours for a trained technician.

Spare Parts Support FAQ

Q1: Is the 330103-00-07-05-01-00 a direct drop-in replacement for older 3300 Series probes?
The 330103-00-07-05-01-00 is designed for the 3300 XL 8mm system. It is a direct replacement for other 330103 suffix variants with matching cable length and connector type. Replacing a legacy 3300 5mm probe requires a mechanical adapter and a proximitor change to the 330180 8mm driver. Always verify the monitor channel sensitivity constant matches the new probe specification before returning the machine to service.

Q2: What pre-shipment testing does SMARTNEXMSK perform?
Every 330103-00-07-05-01-00 unit is functionally tested prior to shipment: output voltage linearity is verified across the specified gap range, and the integral cable and connector are inspected for continuity and insulation integrity. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: How many units should a plant stock as critical spares?
For a facility operating more than four proximity probe measurement planes on a single critical machine train, a minimum of two probe assemblies (probe + matched extension cable) is recommended as on-site critical spares. Plants with multiple trains or remote locations should consider a consignment stock arrangement. SMARTNEXMSK supports long-term supply agreements to ensure consistent availability of the 330103-00-07-05-01-00 and associated 3300 XL components.

Q4: Can this probe be used in hazardous-area (Ex) installations?
The standard 330103-00-07-05-01-00 is not intrinsically safe rated. For Zone 1 or Zone 2 hazardous-area installations, consult the Bently Nevada 3300 XL system documentation for the appropriate Ex-certified probe and barrier/isolator combination. SMARTNEXMSK can advise on compatible signal isolators and Zener barriers for hazardous-area measurement loops — contact our technical sales team for details.
