Bently Nevada 330103-00-07-05-02-00 3300 XL Proximity Probe

Bently Nevada 330103-00-07-05-02-00 3300 XL Proximity Probe: Safety Control for Harsh Industrial Sites

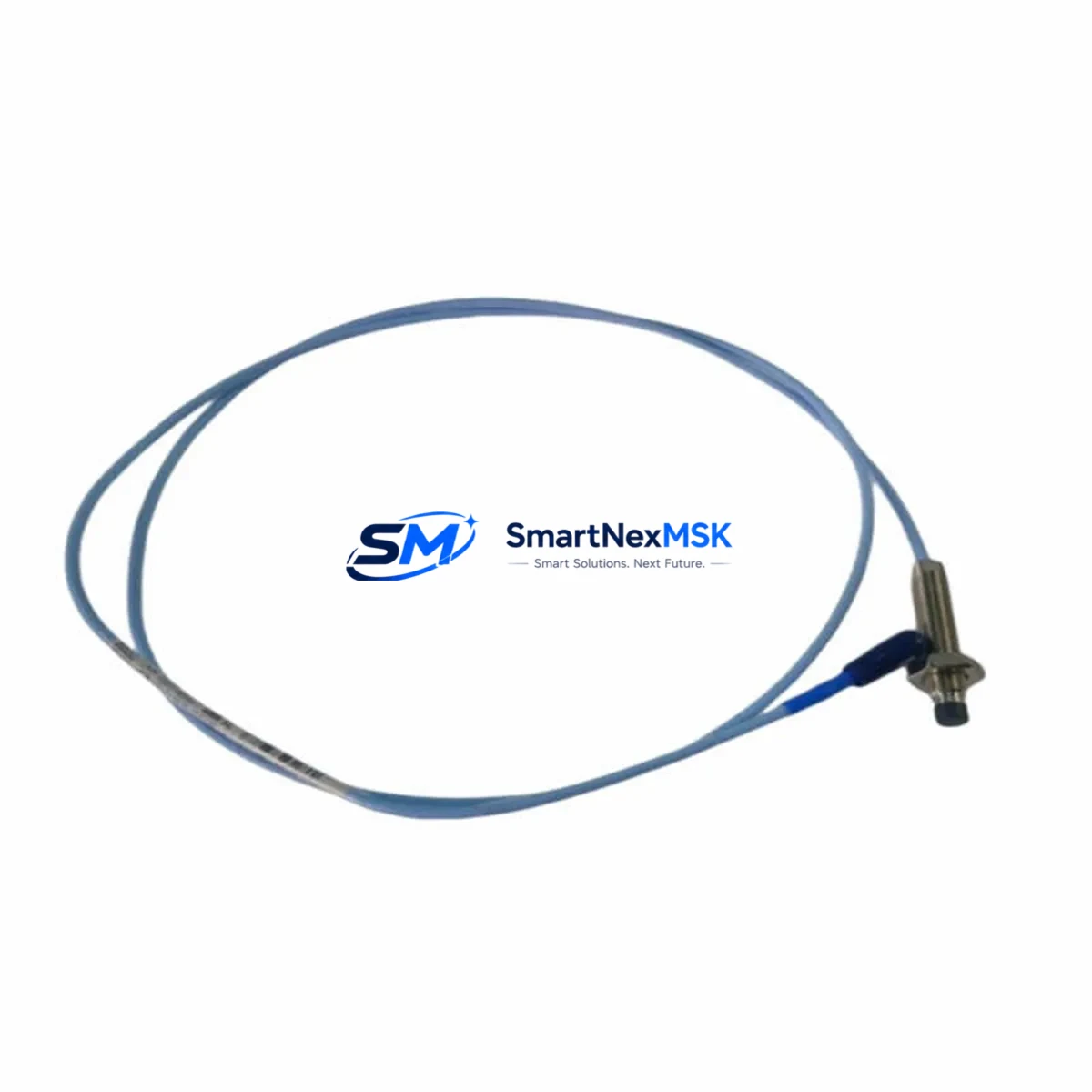

The Bently Nevada 330103-00-07-05-02-00 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, non-contact vibration and position measurement in the most demanding industrial environments. Designed to operate reliably in high-temperature, high-vibration, and chemically aggressive conditions, this probe is a cornerstone component in rotating machinery protection systems across petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and continuous manufacturing lines.

In safety-critical control architectures, signal integrity is non-negotiable. The 330103-00-07-05-02-00 delivers stable, low-noise output across its full operating range, minimizing the risk of signal drift that could trigger false trips or — more dangerously — mask genuine fault conditions. Its robust stainless-steel housing and hermetically sealed tip resist moisture ingress, chemical exposure, and mechanical shock, ensuring that the probe continues to deliver accurate shaft displacement data even when the surrounding environment is hostile.

When integrated into a complete Bently Nevada 3300 XL monitoring system, this probe works in concert with the 3300 XL 8mm Extension Cable (typically the 330130 series) and the 3300 XL Proximitor Sensor (such as the 330180 series) to form a fully calibrated measurement chain. The Proximitor converts the probe’s raw impedance signal into a conditioned DC voltage output, which feeds directly into the 3500 Series Machinery Protection System rack — a modular platform housing I/O modules, power supply cards, and communication interface modules that collectively enforce alarm and trip logic for critical rotating assets.

In high-load, continuous-production environments, the reliability of every component in the vibration monitoring loop directly impacts plant uptime. A failing or miscalibrated proximity probe can allow a developing bearing fault or rotor imbalance to go undetected, leading to catastrophic machinery failure, unplanned shutdowns, and significant safety hazards for field personnel. The 330103-00-07-05-02-00 is manufactured and tested to Bently Nevada’s stringent quality standards, providing the measurement accuracy and long-term stability that safety engineers and reliability teams depend on.

For installations in hazardous classified areas — including Zone 1 and Zone 2 gas atmospheres common in petrochemical and offshore environments — this probe carries ATEX certification, confirming its suitability for use where ignition risk must be rigorously controlled. Its IP67 ingress protection rating ensures full dust exclusion and temporary immersion resistance, making it equally suitable for wet process areas, outdoor installations, and washdown zones in food-grade or pharmaceutical manufacturing.

The probe’s compatibility with the broader Bently Nevada ecosystem means it can be paired with 3500/42M Proximitor/Seismic Monitor modules, 3500/22M Transient Data Interface cards, and System 1 Evolution condition monitoring software for comprehensive asset health tracking. In safety instrumented systems (SIS), where SIL 2 integrity levels are required for overspeed or high-vibration trip functions, the 330103-00-07-05-02-00 serves as the field sensing element in loops that may also include Bently Nevada 3500/53 Overspeed Detection modules and dedicated safety logic solvers.

Every unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification, including gap voltage linearity checks and insulation resistance testing, to confirm that the probe meets its published sensitivity specification of 7.87 V/mm (200 mV/mil) before it leaves our facility. This outgoing quality control step is critical for customers replacing probes on live machinery during scheduled maintenance windows, where installation time is limited and there is no tolerance for a defective spare.

Stock availability is maintained to support both planned maintenance programs and emergency breakdown situations. Whether you are building a new control cabinet, commissioning a greenfield plant, or sourcing a replacement for an aging monitoring system, SMARTNEXMSK provides reliable supply with short lead times and full traceability documentation.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered rotating machinery protection cabinet, the 330103-00-07-05-02-00 proximity probe is never an isolated component — it is the field-sensing foundation of a layered protection architecture. The probe’s coaxial signal cable connects to a Bently Nevada 330180-51-05 Proximitor Sensor mounted inside or adjacent to the control enclosure, which conditions the raw probe signal and provides the buffered and direct output voltages consumed by the monitoring rack.

Within the Bently Nevada 3500 rack, a 3500/40M Proximitor/Seismic Monitor module processes the conditioned signals from multiple probes simultaneously, applying alarm and danger setpoints for radial vibration, axial position, and differential expansion. The rack’s 3500/15 Power Supply module — available in redundant configurations — ensures that a single power supply failure does not interrupt protection coverage, a critical design requirement in continuous-process industries where an unprotected machine represents both a safety hazard and a significant financial liability.

For installations requiring communication with a distributed control system (DCS) or safety PLC, the 3500/22M Transient Data Interface provides high-speed waveform data export, while standard 4–20 mA analog outputs from the monitor modules feed directly into Emerson DeltaV or Honeywell Experion DCS I/O cards. In safety instrumented function (SIF) loops, the vibration trip signal may be hardwired to a Pilz PNOZ or Rockwell Allen-Bradley GuardLogix safety PLC input, ensuring that the machinery trip action is executed by a certified safety logic solver independent of the basic process control system.

Surge protection at the cabinet entry point — using devices such as Phoenix Contact TRABTECH transient voltage suppressors on the probe signal lines — prevents lightning-induced or switching-transient surges from propagating into the sensitive Proximitor circuitry, protecting both the monitoring system and the accuracy of the safety function. Proper cable segregation, shielded conduit routing, and grounding discipline at the Proximitor barrier further reduce the risk of electromagnetic interference corrupting the displacement signal in electrically noisy environments such as variable-frequency drive (VFD) installations or high-current bus zones.

Critical Industrial Safety Applications

The Bently Nevada 330103-00-07-05-02-00 is deployed across a wide spectrum of heavy industrial applications where rotating machinery reliability is directly linked to process safety and production continuity.

In petrochemical and refinery operations, this probe monitors the radial vibration of centrifugal compressors, reactor charge pumps, and steam turbine-driven blowers. An undetected rotor imbalance or bearing degradation event in these machines can result in seal failure, hydrocarbon release, and fire or explosion risk. The probe’s ATEX certification makes it the correct choice for installation in classified hazardous areas surrounding these assets.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — proximity probes on turbine shafts and generator rotors provide the primary vibration and eccentricity signals used by the turbine supervisory instrumentation (TSI) system. The 330103-00-07-05-02-00’s wide frequency response and stable sensitivity ensure that both slow-roll runout data and high-frequency subsynchronous instability events are captured accurately.

In mining and mineral processing environments, where dust loading, vibration, and temperature extremes are severe, the probe’s IP67 rating and stainless-steel construction provide the environmental robustness needed for long service intervals on ball mill drives, crusher main shafts, and slurry pump assemblies.

In water and wastewater treatment plants, the probe monitors large vertical turbine pumps and blower trains that must operate continuously to maintain regulatory compliance. In metallurgical and steel mill applications, it is used on rolling mill main drives and continuous caster pinch roll assemblies, where thermal cycling and mechanical shock are constant challenges. In port and bulk material handling facilities, it protects the large electric motors and gearboxes driving ship loaders, stackers, and reclaimers.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the 330103-00-07-05-02-00?
Every unit supplied by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides replacement support and failure analysis documentation to assist with root-cause investigations and insurance claims.

Q2: What pre-shipment testing is performed on each probe?
Each 330103-00-07-05-02-00 unit undergoes functional verification prior to dispatch, including gap voltage linearity testing across the full linear range, insulation resistance measurement, and visual inspection of the probe tip, housing, and cable termination. A test report is available upon request for quality-critical procurement processes.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL Proximitor Sensors and 3500 Series racks?
Yes. The 330103-00-07-05-02-00 is a standard 3300 XL series component and is fully compatible with all Bently Nevada 3300 XL Proximitor Sensors (including the 330180 series) and the complete 3500 Series Machinery Protection System rack family. No recalibration of the monitoring system is required when replacing a like-for-like probe, provided the extension cable length is maintained.

Q4: Can SMARTNEXMSK support long-term or scheduled maintenance supply programs?
Yes. SMARTNEXMSK maintains stock of the 330103-00-07-05-02-00 and related 3300 XL series components to support both emergency breakdown orders and planned annual maintenance programs. We can provide blanket order arrangements, reserved stock agreements, and advance shipment scheduling to ensure that critical spare parts are available when your maintenance window opens, minimizing the risk of extended unplanned downtime.
