Bently Nevada 330103-00-11-50-02-05 Safety Proximity Probe

Bently Nevada 330103-00-11-50-02-05 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

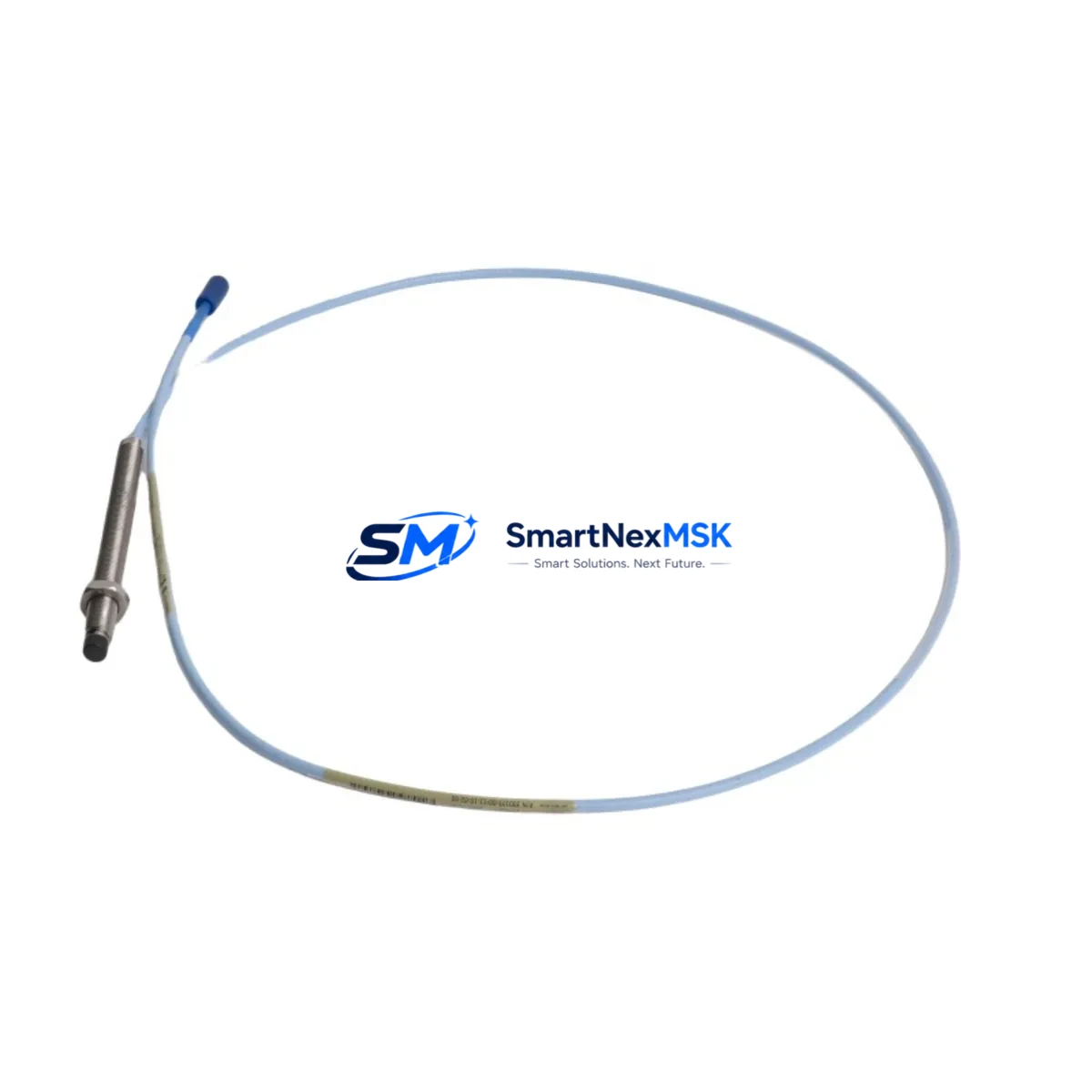

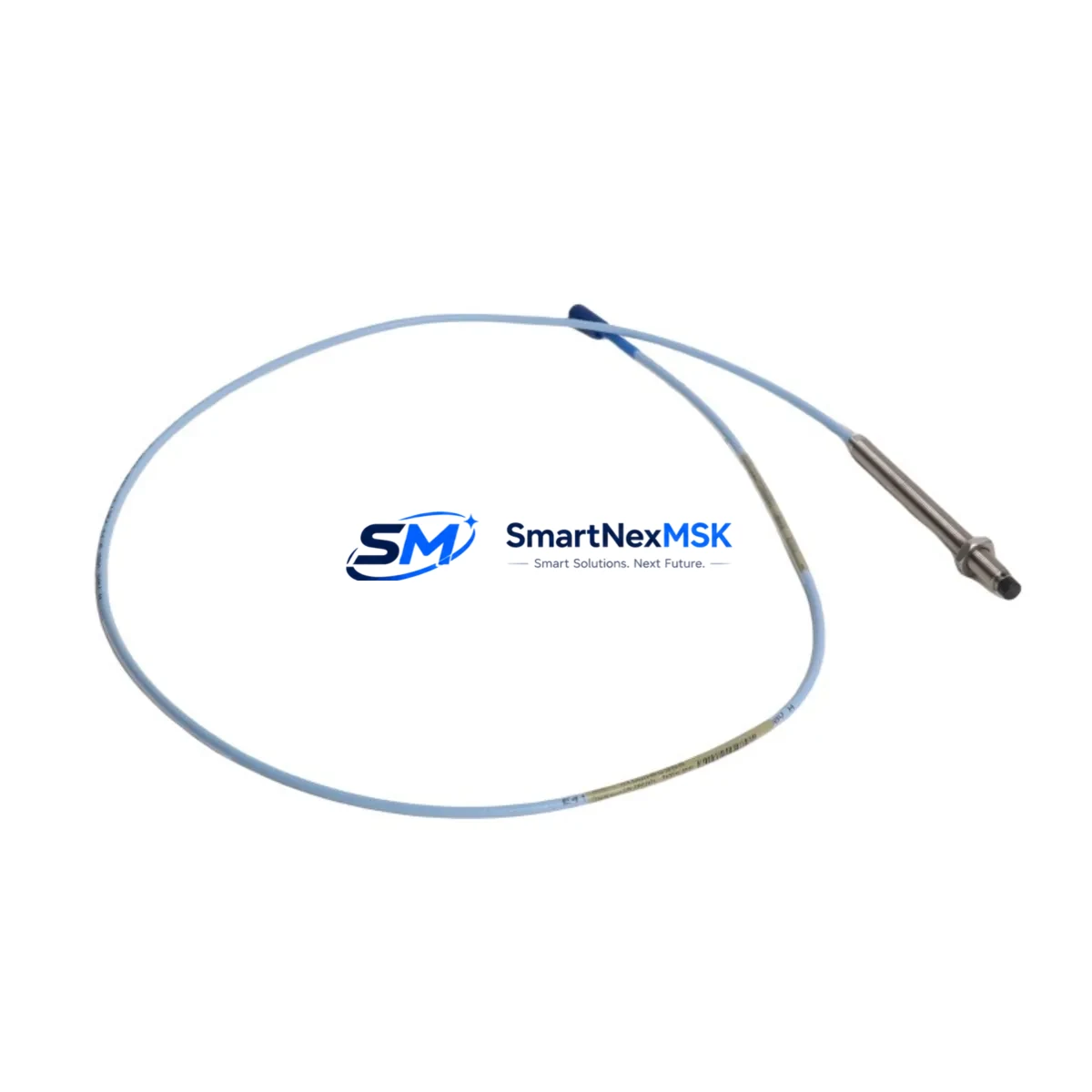

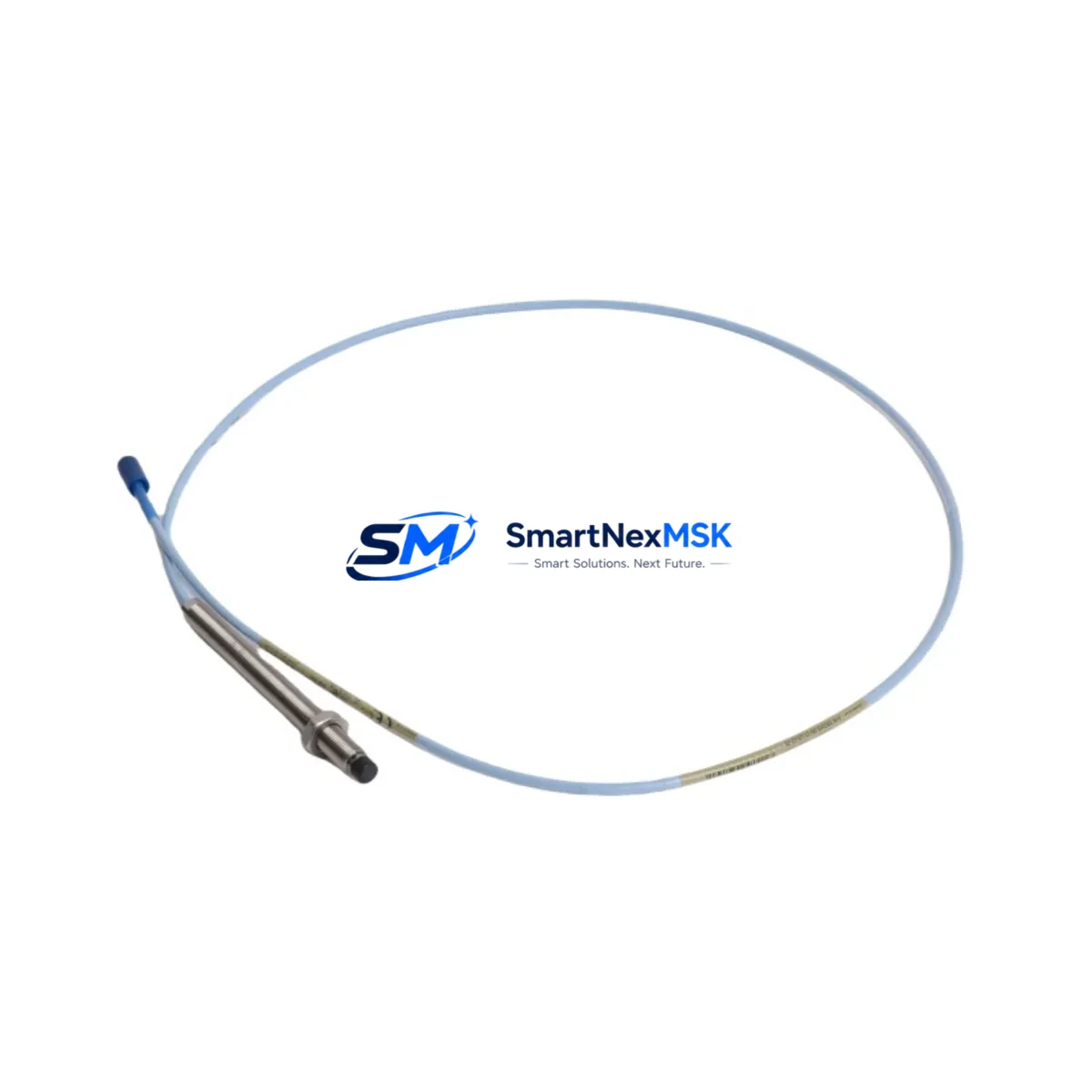

The Bently Nevada 330103-00-11-50-02-05 is an 8mm eddy-current proximity probe engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. As part of the 3300 XL Series platform, this probe delivers exceptional signal stability, high electromagnetic interference (EMI) rejection, and robust mechanical protection — making it the preferred choice for rotating machinery protection in petrochemical plants, power generation facilities, mining operations, metallurgical processing lines, and water treatment infrastructure.

In high-load, high-interference control environments, signal integrity is not optional — it is a safety imperative. The 330103-00-11-50-02-05 is designed to maintain consistent output linearity even when subjected to strong magnetic fields, ground loop interference, and voltage transients common in heavy industrial control cabinets. Its ruggedized stainless steel housing and IP67-rated sealing ensure reliable operation in environments with oil mist, coolant splash, high humidity, and mechanical vibration — conditions that routinely cause premature failure in standard-grade sensors.

This probe is fully compatible with the Bently Nevada 3300 XL 8mm Extension Cable system, and integrates directly with the 3300 XL Proximitor Sensor (such as the 330180 series) to form a complete proximity measurement chain. The Proximitor converts the raw eddy-current signal into a calibrated voltage output, which feeds directly into the 3500 Series Machinery Protection System rack — a modular platform widely deployed in turbine, compressor, and pump protection applications. Within the 3500 rack, modules such as the 3500/42M Proximitor/Seismic Monitor and the 3500/22M Transient Data Interface process the probe signal and trigger protective relay outputs when vibration thresholds are exceeded, preventing catastrophic equipment failure and protecting personnel safety.

For installations requiring integration with distributed control systems, the probe chain output is typically routed through the 3500/92 Communication Gateway Module, enabling Modbus or Ethernet-based data transmission to plant DCS or SCADA platforms. This architecture ensures that vibration data from critical assets remains continuously available to control room operators, supporting both real-time safety decisions and long-term predictive maintenance programs.

When deploying or replacing the 330103-00-11-50-02-05 in an existing machinery protection loop, engineers should verify the total system scale factor — the combined sensitivity of the probe, extension cable, and Proximitor — against the original calibration records. The standard 3300 XL 8mm system delivers a scale factor of 7.87 V/mm (200 mV/mil), and any deviation introduced by cable length changes or connector condition can affect alarm and trip setpoint accuracy. The 3300 XL Driver (Proximitor) power supply, typically sourced from a dedicated –24 VDC instrument power rail, should also be verified for voltage stability before commissioning the replacement probe.

In critical interlock and safety instrumented system (SIS) applications — such as turbine overspeed protection or compressor surge control — the 330103-00-11-50-02-05 is often installed in redundant two-of-three (2oo3) voting configurations. In these architectures, the 3500/53 Overspeed Detection Module or equivalent safety relay module evaluates probe signals from multiple measurement planes simultaneously, ensuring that a single sensor fault does not cause a spurious trip or, more critically, a failure to trip. Replacement of any probe in a redundant safety loop must be coordinated with the site safety management system and documented in the plant’s functional safety records.

All units supplied by SMARTNEXMSK are sourced from verified industrial channels, subjected to pre-shipment electrical performance testing, and shipped with full documentation. Each 330103-00-11-50-02-05 probe carries a 12-month warranty covering manufacturing defects and electrical performance, with rapid replacement support to minimize any impact on plant availability.

Safety Reliability Table

Control Cabinet Protection Strategy

Effective protection of rotating machinery begins at the control cabinet level, where signal quality, power stability, and module integrity must all be maintained simultaneously. When the 330103-00-11-50-02-05 is installed as part of a machinery protection loop, the surrounding cabinet infrastructure plays a critical role in ensuring measurement accuracy and safety response reliability.

The probe signal is carried through the 3300 XL Extension Cable — available in armored and non-armored variants — to the Bently Nevada 330180 Proximitor Sensor, which is typically DIN-rail or panel-mounted within the control cabinet. The Proximitor requires a stable –24 VDC supply; in high-availability installations, this is provided by a redundant instrument power supply module with automatic switchover, ensuring that a single power supply failure does not interrupt the protection loop. Surge protection devices installed on the instrument power rail protect the Proximitor and connected modules from voltage transients caused by nearby motor starts, welding operations, or lightning-induced surges on field cable runs.

Within the 3500 Series rack, the 3500/20 Rack Interface Module manages communication between the rack and the plant control network, while the 3500/15 Power Supply Module provides conditioned power to all installed monitor cards. For installations requiring local display and alarm annunciation, the 3500/94 Display Interface Module can be integrated to provide operators with real-time vibration readings at the cabinet face. Barrier modules or galvanic isolators installed between the field wiring terminals and the monitor inputs provide an additional layer of protection against ground loops and common-mode interference — a particularly important consideration in large industrial facilities where cable runs may span multiple earthing zones.

In applications where the machinery protection system must interface with a safety PLC or emergency shutdown (ESD) system, the relay output contacts from the 3500 rack are wired to the ESD logic solver input terminals. The integrity of this wiring, including terminal block condition, cable shielding continuity, and relay contact resistance, should be verified during any probe replacement activity to ensure the complete safety loop remains functional.

Critical Industrial Safety Applications

The Bently Nevada 330103-00-11-50-02-05 proximity probe is deployed across a wide range of safety-critical industrial applications where continuous, reliable vibration monitoring is essential to protect both equipment and personnel.

In petrochemical and refinery operations, this probe monitors shaft radial vibration and axial position on process compressors, steam turbines, and boiler feed pumps — assets where an undetected bearing failure or rotor rub can escalate rapidly to a fire or explosion hazard. The probe’s IP67 rating and high-temperature tolerance make it suitable for installation in hot, hydrocarbon-rich environments where standard sensors would degrade quickly.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the 330103-00-11-50-02-05 is used in turbine shaft monitoring systems where API 670-compliant protection is mandated by insurance and regulatory requirements. The probe’s consistent scale factor and long-term stability reduce the frequency of calibration interventions, supporting high plant availability targets.

In mining and mineral processing operations, the probe is installed on large grinding mills, conveyor drive gearboxes, and slurry pump sets operating in environments with extreme dust loading, mechanical shock, and wide ambient temperature swings. Its ruggedized construction and armored cable option provide the mechanical durability required to survive these conditions over extended service intervals.

In metallurgical and steel production facilities, the probe monitors rolling mill drive trains and continuous casting machine components, where vibration anomalies can cause product quality defects as well as equipment damage. The high EMI rejection of the 3300 XL system is particularly valuable in these environments, where large electric arc furnaces and variable-frequency drives generate intense electromagnetic interference.

In water and wastewater treatment plants, the probe is used on large centrifugal pumps and blower units in continuous-duty service, where unplanned downtime directly impacts public health infrastructure. The 12-month warranty and verified stock availability from SMARTNEXMSK support the rapid spare parts response that utility operators require.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330103-00-11-50-02-05?
The 12-month warranty covers all manufacturing defects and electrical performance deviations from the published 3300 XL Series specifications. If the probe fails to meet its specified sensitivity, linearity, or environmental protection ratings within the warranty period under normal operating conditions, SMARTNEXMSK will provide a replacement unit. Warranty claims are supported by our pre-shipment test records, which document the electrical performance of each unit prior to dispatch.

Q2: How is each unit tested before shipment?
Every 330103-00-11-50-02-05 unit undergoes pre-shipment electrical performance testing, including verification of probe sensitivity (scale factor), coil resistance, and cable insulation integrity. Units that do not meet the 3300 XL Series specification are quarantined and not dispatched. Test records are available upon request and can be provided with the shipment documentation.

Q3: Is the 330103-00-11-50-02-05 compatible with existing 3300 XL extension cables and Proximitor sensors already installed on site?
Yes. The 330103-00-11-50-02-05 is a standard 3300 XL Series 8mm probe and is fully compatible with all 3300 XL extension cables and 330180 series Proximitor sensors. The complete system scale factor of 7.87 V/mm is maintained when the probe is used with the correct matching extension cable and Proximitor. If the existing extension cable is being reused, its condition — particularly connector integrity and shield continuity — should be verified before commissioning the replacement probe.

Q4: Can SMARTNEXMSK support long-term supply of this probe for ongoing maintenance programs?
Yes. SMARTNEXMSK maintains stock of the 330103-00-11-50-02-05 and related 3300 XL Series components to support planned maintenance schedules, emergency replacements, and strategic spare parts programs. For customers with high-volume or recurring requirements, we can discuss reserved stock arrangements to ensure supply continuity. Contact our team at sales@smartnexmsk.com or +86 18259474341 to discuss your specific requirements.
