Bently Nevada 330103-00-12-10-11-05 Retrofit Proximity Probe

Bently Nevada 330103-00-12-10-11-05 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

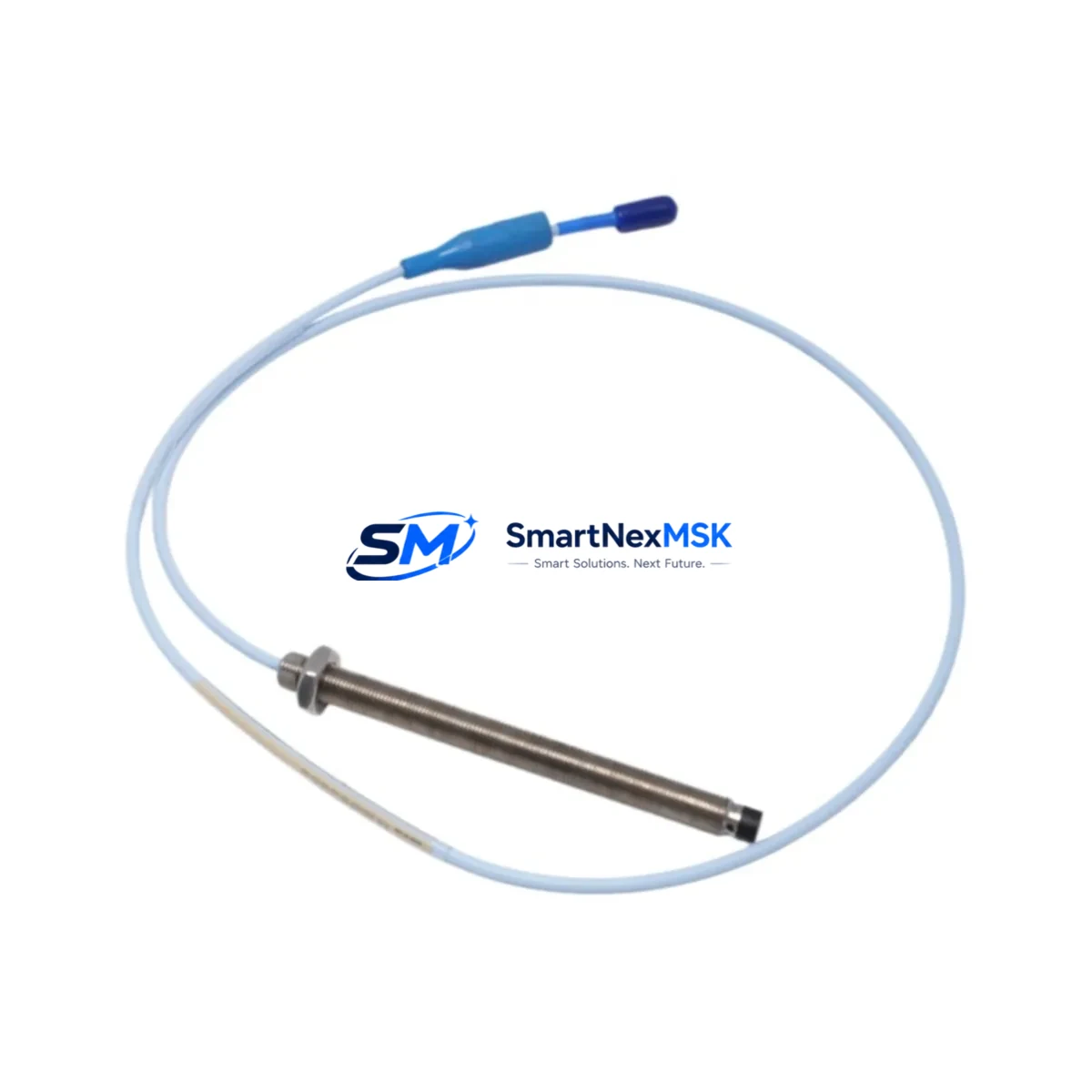

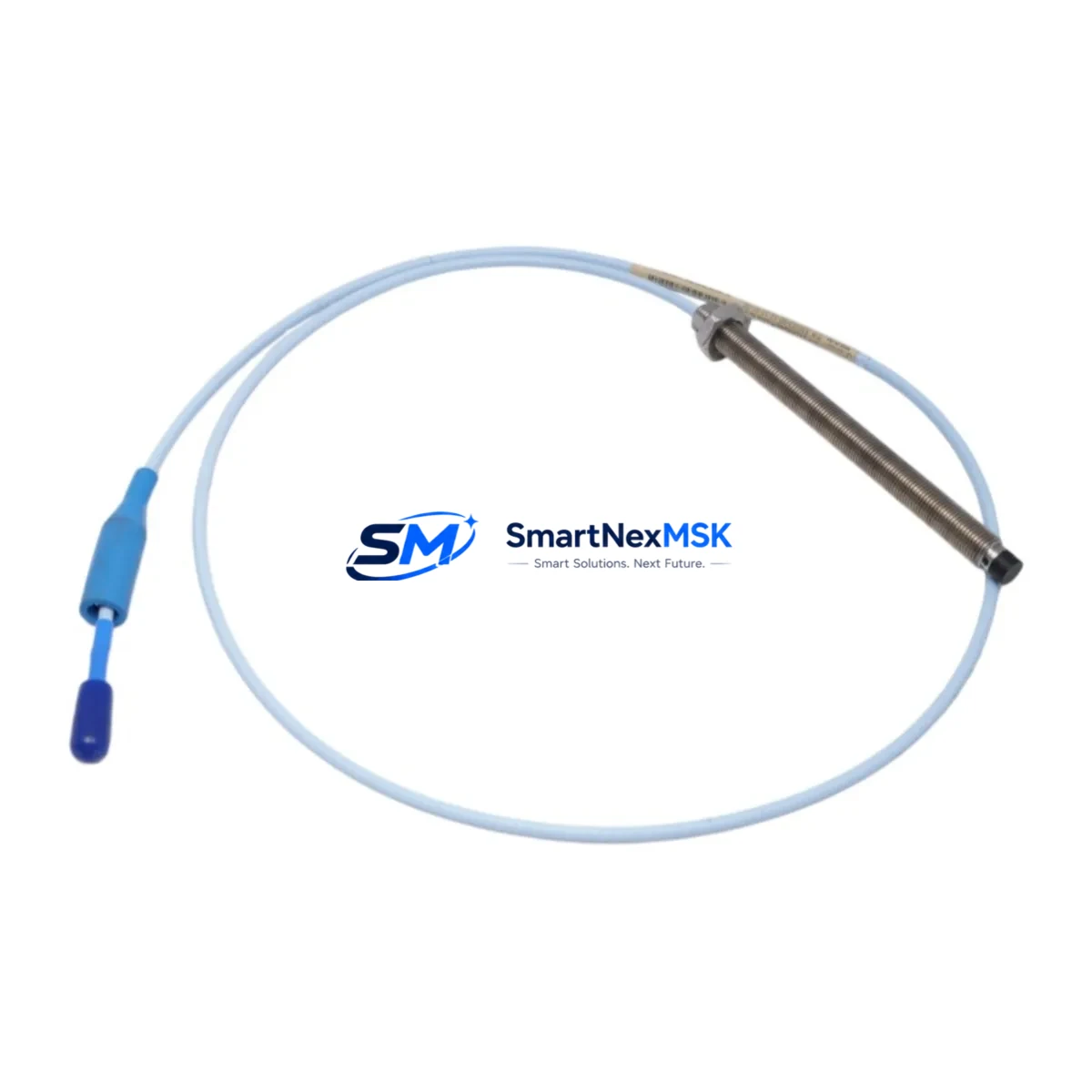

The Bently Nevada 330103-00-12-10-11-05 is a high-precision eddy current proximity probe engineered for continuous vibration and position monitoring in rotating machinery applications. Designed as a verified retrofit replacement within the Bently Nevada 3300 XL series platform, this probe delivers reliable non-contact measurement performance in environments where legacy components have reached end-of-life or are no longer available through standard OEM supply channels. Whether you are managing a planned upgrade, responding to an unplanned failure, or executing a phased modernization of your condition monitoring infrastructure, the 330103-00-12-10-11-05 provides a confirmed drop-in solution that preserves your existing wiring topology, signal chain, and system calibration.

The 3300 XL series remains one of the most widely deployed vibration monitoring platforms in oil and gas, power generation, petrochemical, and heavy industrial sectors. As original equipment ages and OEM support windows close, procurement teams and reliability engineers increasingly rely on qualified replacement sources to maintain system uptime without committing to full platform migrations. The 330103-00-12-10-11-05 addresses this need directly, offering a stocked, tested, and warranted alternative that integrates seamlessly with existing 3300 XL monitor racks, extension cables, and signal conditioning modules.

When planning a retrofit using this probe, engineers should verify several key parameters before installation. The probe tip diameter and target material compatibility must be confirmed against the existing machinery gap specification. The standard 5-metre armored extension cable — typically the Bently Nevada 330130-045-00-00 or equivalent — must be inspected for continuity and shielding integrity, as cable degradation is a common source of signal noise in aging installations. The proximitor sensor, such as the 3300 XL 8mm proximitor module, must be confirmed to be within its calibration window, since probe replacement without recalibration of the proximitor can introduce measurement offset errors that affect alarm and trip setpoints.

Terminal wiring at the junction box and monitor rack should be documented before disconnection. The 330103-00-12-10-11-05 uses the standard Bently Nevada coaxial connector interface, and polarity and shield grounding must be maintained to prevent common-mode noise injection into the 3300 XL monitor inputs. If the installation includes a 3300 XL 16-channel monitor or a 3500 series rack operating in a mixed-platform configuration, the signal levels and gap voltage outputs of the replacement probe must be verified against the monitor’s input range specifications before returning the machine to service.

For sites running Bently Nevada System 1 software for online condition monitoring, probe replacement should be followed by a gap voltage verification procedure within the System 1 configuration interface to confirm that the new probe’s output aligns with the stored baseline. Any deviation beyond the acceptable tolerance band should trigger a full recalibration sequence before the channel is returned to active monitoring status.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330103-00-12-10-11-05 into an operating plant environment requires a structured approach that accounts for the interdependencies between the probe, the extension cable, the proximitor sensor, and the monitor rack. In a typical 3300 XL installation, the probe is paired with a 330130-045-00-00 armored extension cable and a 3300 XL 8mm proximitor module mounted in a 3300 XL monitor rack. Each of these components must be assessed individually before the replacement probe is installed.

Begin by auditing the existing 330130 extension cable for physical damage, connector corrosion, and shield continuity. A degraded cable will compromise the signal quality of even a new probe and can produce false vibration readings that trigger nuisance trips. If the cable is beyond its service life, replacement with a new 330130-045-00-00 should be scheduled concurrently with the probe swap to avoid a second outage window.

The 3300 XL 8mm proximitor sensor should be tested for output linearity across the expected gap range. If the proximitor is operating outside its calibrated range or shows signs of drift, replacement with a new 3300 XL proximitor module is recommended before the new probe is commissioned. In installations where the monitor rack includes a 3300 XL dual-channel monitor or a 3300 XL 16-channel monitor, the channel configuration should be reviewed to confirm that the input sensitivity and gap voltage range settings match the output characteristics of the 330103-00-12-10-11-05.

For plants that have migrated portions of their monitoring infrastructure to the Bently Nevada 3500 series, the 330103-00-12-10-11-05 can be used in conjunction with a 3500/42M proximitor I/O module, provided that the module’s input configuration is verified against the probe’s output specifications. The 3500 series rack’s Transient Data Interface and the associated System 1 software configuration should be updated to reflect the new probe’s calibration data before the channel is enabled.

In control cabinet environments where the 3300 XL monitor rack is co-located with a DCS I/O module or a safety instrumented system input card, the probe replacement should be coordinated with the control system engineer to ensure that the 4–20 mA or relay output signals from the monitor are not interrupted during the swap. If the installation includes a Bently Nevada 3300 XL keyphasor module for phase reference, the keyphasor channel should be verified independently after the proximity probe replacement to confirm that the phase reference signal remains stable.

Sites operating older Bently Nevada 7200 series or 9000 series monitors in parallel with 3300 XL racks should note that the 330103-00-12-10-11-05 is not directly compatible with 7200 series proximitor modules without a signal conditioning adapter. In these mixed-platform environments, a full channel-by-channel compatibility review is recommended before proceeding with a bulk probe replacement program. Where the control platform includes a Rockwell Automation ControlLogix or Siemens S7-300 DCS receiving analog inputs from the 3300 XL monitor, the I/O termination panel wiring and scaling parameters should be confirmed unchanged after the probe swap.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires pre-staging all replacement components, documenting the existing wiring and gap settings, and executing the swap within a defined maintenance window. Before the machine is taken offline, the existing gap voltage for each probe channel should be recorded from the 3300 XL monitor display or from the System 1 software trend archive. This baseline data serves as the reference for post-installation verification and allows the commissioning engineer to confirm that the new 330103-00-12-10-11-05 is installed at the correct mechanical gap.

The replacement procedure should follow a channel-by-channel approach rather than a simultaneous multi-channel swap, particularly in installations where the monitor rack is configured for voted trip logic. Replacing one probe at a time allows the remaining channels to continue providing protection coverage while the replacement channel is being commissioned. Once the new probe is installed and the gap voltage is confirmed within the acceptable range, the channel can be returned to active monitoring status before the next probe is addressed.

Program logic in the associated DCS or safety PLC should not require modification for a like-for-like probe replacement, provided that the signal levels and alarm setpoints remain unchanged. However, if the replacement is part of a broader upgrade that includes a change in monitor rack type — for example, migrating from a 3300 XL monitor to a 3500 series rack — the DCS engineer should review the output signal mapping and confirm that the new rack’s relay and analog outputs are correctly wired to the existing DCS I/O termination panels. Any changes to the HMI faceplate or alarm display associated with the vibration channels should be tested in simulation mode before the machine is returned to service. Where the HMI is a Bently Nevada Operator Display or a third-party SCADA system receiving data via Modbus or OPC-DA from the System 1 server, the communication link should be verified live before the maintenance window is closed.

All replacement components, including the 330103-00-12-10-11-05 probe, the 330130 extension cable, and any proximitor modules, are shipped with factory test documentation. This documentation should be retained as part of the plant’s maintenance record and referenced during the next scheduled calibration audit. The 12-month warranty covers manufacturing defects and provides a defined support window that aligns with most annual turnaround maintenance cycles. Inventory is maintained in stock for immediate dispatch, supporting both emergency breakdown response and planned shutdown procurement schedules.

Retrofit Support FAQ

Q: Is the 330103-00-12-10-11-05 a direct replacement for the original Bently Nevada part?
A: Yes. The 330103-00-12-10-11-05 is a direct retrofit replacement for the original Bently Nevada part of the same SKU. It maintains the same probe tip geometry, coaxial connector interface, and output characteristics required for compatibility with the 3300 XL proximitor and monitor rack. Post-installation gap voltage verification is recommended to confirm correct mechanical installation.

Q: Does the replacement probe require recalibration of the 3300 XL proximitor?
A: The 3300 XL proximitor calibration is specific to the probe-cable-proximitor system as a matched set. If the extension cable is also being replaced, a full system recalibration is required. If only the probe is being replaced and the cable and proximitor remain in service, a gap voltage verification is the minimum recommended step, with full recalibration performed if the output deviates from the stored baseline.

Q: What is the warranty coverage for this replacement probe?
A: All units are covered by a 12-month warranty against manufacturing defects from the date of shipment. Each unit is shipped with factory test documentation confirming electrical performance within specification. Warranty claims are processed through our sales team at [email protected].

Q: Can this probe be used with a Bently Nevada 3500 series monitor rack?
A: The 330103-00-12-10-11-05 can be used with a 3500 series rack when paired with a compatible 3500/42M proximitor I/O module. The module’s input configuration must be verified against the probe’s output specifications, and the System 1 software configuration should be updated to reflect the new probe’s calibration data. Contact our technical team to confirm compatibility for your specific rack configuration before ordering.
