Bently Nevada 330103-00-13-10-02-05 Safety Proximity Probe

Bently Nevada 330103-00-13-10-02-05 Safety Proximity Probe: Reliable Vibration Control for Harsh Industrial Sites

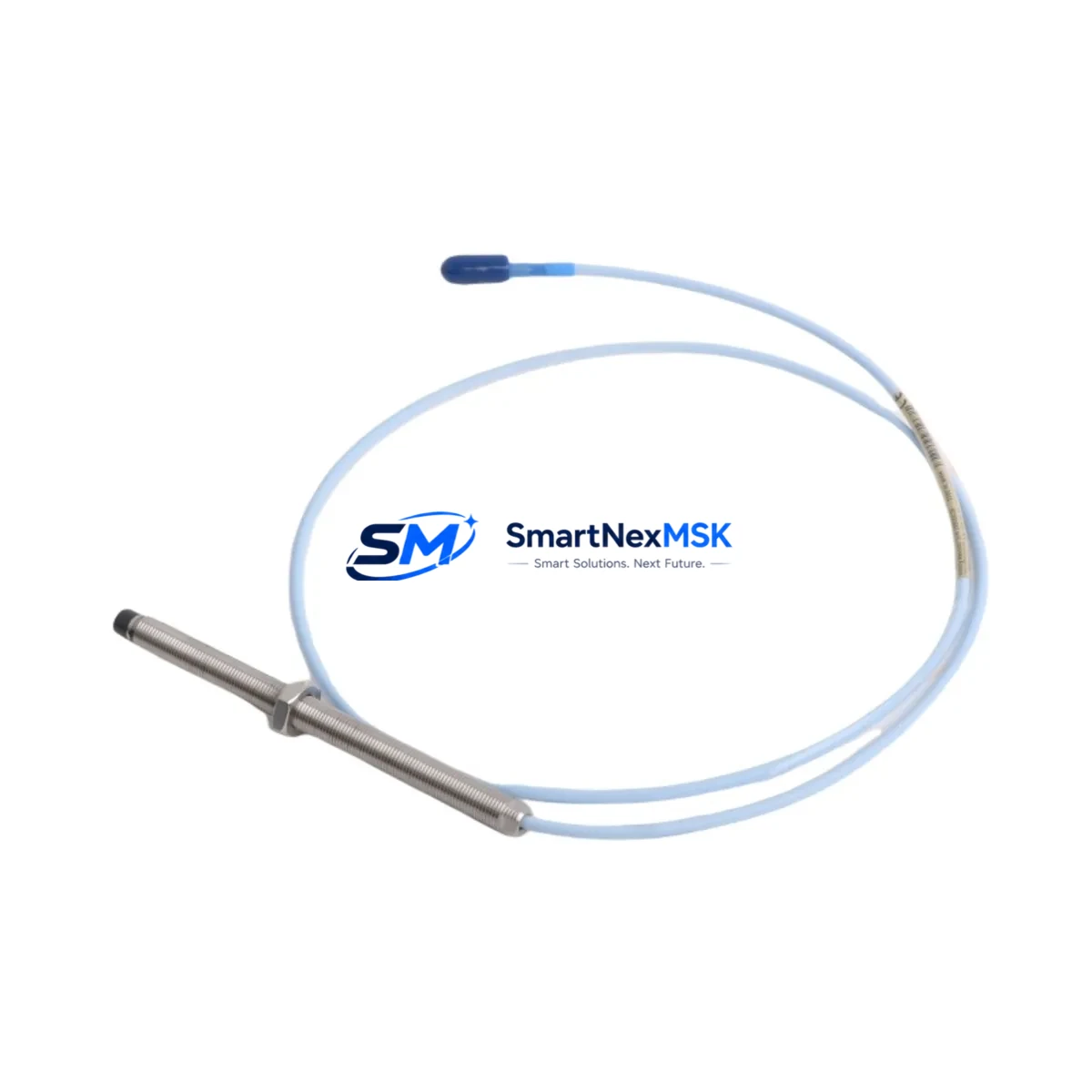

The Bently Nevada 330103-00-13-10-02-05 is an 8mm eddy current proximity probe from the industry-leading 3300 XL Series, engineered for continuous, safety-critical shaft vibration and position monitoring in the most demanding industrial environments. With a 5-meter armored extension cable and precision-matched tip geometry, this probe delivers stable, drift-free output signals even under extreme electromagnetic interference, mechanical shock, high-temperature gradients, and aggressive chemical exposure — conditions routinely encountered in petrochemical plants, power generation turbines, mining compressors, and metallurgical process lines.

In high-stakes rotating machinery protection systems, signal integrity is not optional — it is the foundation of safe operation. The 330103-00-13-10-02-05 is factory-calibrated to interface directly with the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180 series), ensuring a matched system response that eliminates calibration drift between probe and driver. This matched pairing is essential when the probe feeds into a Bently Nevada 3500 Series Machinery Protection System, where any signal anomaly can trigger false trips or, worse, mask a genuine rotor fault. The probe’s non-contact sensing principle removes mechanical wear from the measurement chain entirely, guaranteeing measurement repeatability across years of continuous service without recalibration.

Safety Reliability Table

Control Cabinet Protection Strategy

A proximity probe alone does not constitute a complete protection architecture — it is the front-end sensor in a layered safety chain that must be carefully engineered for reliability. In a typical turbine or compressor control cabinet, the 330103-00-13-10-02-05 probe connects via its 5m cable to a Bently Nevada 330180-51-05 Proximitor Sensor, which conditions the raw eddy current signal into a clean DC voltage proportional to gap distance. This conditioned signal feeds into a Bently Nevada 3500/42M Proximitor Monitor card housed in the 3500 rack, where trip and alarm setpoints are enforced in hardware — independent of the DCS or PLC logic layer.

For power supply integrity within the protection cabinet, dedicated 24 VDC redundant power supply modules (such as the Phoenix Contact QUINT series or equivalent) are recommended to eliminate voltage sag events that can cause Proximitor output shifts. Surge protection devices — for example, MTL 5053 Zener barriers or Pepperl+Fuchs Z787 isolators — should be installed on all field signal lines entering the cabinet to absorb transient energy from nearby motor starts, welding operations, or lightning-induced surges on cable trays.

In safety instrumented systems (SIS) where the vibration trip signal must reach a Triconex Tricon Safety Controller or a Hima HIMatrix F60 safety PLC, the 3500 monitor’s relay output is wired through Phoenix Contact PSR safety relays to ensure de-energize-to-trip (DTT) logic integrity. Communication between the 3500 rack and the plant DCS — typically a Honeywell Experion PKS or Emerson DeltaV system — is handled via Modbus RTU or the Bently Nevada System 1 software gateway, providing continuous online diagnostics without interrupting the protection function. Grounding discipline across all shield terminations in the junction box and marshalling cabinet is critical: a single ground loop can introduce 50/60 Hz noise that mimics a real vibration event and triggers nuisance trips.

Critical Industrial Safety Applications

Petrochemical & Refinery: In fluid catalytic cracking (FCC) units and centrifugal compressor trains, continuous shaft radial vibration monitoring with the 330103-00-13-10-02-05 provides the earliest warning of rotor imbalance, bearing wear, or seal degradation — allowing planned maintenance shutdowns rather than catastrophic failures that risk personnel safety and environmental compliance.

Power Generation: Steam turbine and gas turbine generator sets operating at 3000 or 3600 RPM demand sub-millisecond response vibration protection. This probe’s high-frequency bandwidth and stable scale factor ensure that the 3500 protection system can discriminate between normal operational vibration and genuine rotor instability events, preventing costly blade-off or bearing seizure incidents.

Mining & Mineral Processing: Large ball mill drives, SAG mill pinion bearings, and slurry pump shafts operate in environments saturated with conductive dust, water spray, and mechanical shock. The armored cable construction and wide operating temperature range of the 330103-00-13-10-02-05 make it suitable for direct installation in these harsh conditions without additional protective enclosures.

Water & Wastewater Treatment: High-speed centrifugal pumps and blower trains in water treatment facilities benefit from non-contact proximity monitoring to detect impeller wear and shaft deflection before seal failure leads to process contamination or unplanned downtime in critical municipal infrastructure.

Metallurgy & Steel: Rolling mill main drive motors and continuous caster pinch roll assemblies experience extreme thermal cycling and electromagnetic interference from high-current bus bars. The eddy current sensing principle of this probe is immune to optical contamination (scale, steam, oil mist) that would defeat laser or optical displacement sensors, making it the preferred technology for these environments.

Port & Heavy Lifting: Crane hoist motor bearings and gantry drive gearboxes in port terminals require reliable condition monitoring to prevent catastrophic mechanical failure during cargo handling operations. Proximity probes installed on the motor shaft provide continuous radial position data that feeds into predictive maintenance programs, reducing unplanned downtime and improving operational safety.

Safety and Quality FAQ

Q1: What warranty does the 330103-00-13-10-02-05 carry?
All units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. This covers functional failure under normal operating conditions. Each unit undergoes a full functional test — including output voltage verification across the linear range and cable continuity check — before dispatch. A test report is available upon request.

Q2: Is this probe compatible with existing 3300 XL Proximitor Sensors and 3500 monitors?
Yes. The 330103-00-13-10-02-05 is a factory-matched component of the Bently Nevada 3300 XL system. It is designed to operate with the 330180 series Proximitor Sensors and is fully compatible with the 3500/42M and 3500/40M monitor cards. No additional calibration is required when replacing a like-for-like unit in an existing installation — the scale factor and linear range are factory-set to API 670 standard values.

Q3: Can this probe be used in hazardous (Ex) classified areas?
The 3300 XL probe system, when used with appropriate Zener barriers or galvanic isolators (such as the MTL 5053 or equivalent), is suitable for installation in Zone 1 / Zone 2 (ATEX) and Division 1 / Division 2 (NEC) classified areas. Customers should verify the complete system certification with their site safety engineer before installation in classified locations. SMARTNEXMSK can provide documentation support for compliance verification.

Q4: What is the lead time and long-term supply availability?
SMARTNEXMSK maintains stock of the 330103-00-13-10-02-05 and related 3300 XL series components to support both planned maintenance programs and emergency replacement requirements. Standard orders ship within 3–5 business days. For projects requiring multiple units or scheduled delivery programs, contact our sales team to arrange a supply agreement with guaranteed allocation. Long-term supply continuity for legacy Bently Nevada parts is a core competency of our business.
