Bently Nevada 330103-00-15-50-02-00 Spare 3300 XL Probe

Bently Nevada 330103-00-15-50-02-00 Spare 3300 XL Probe: Precision Replacement for Industrial Vibration Monitoring

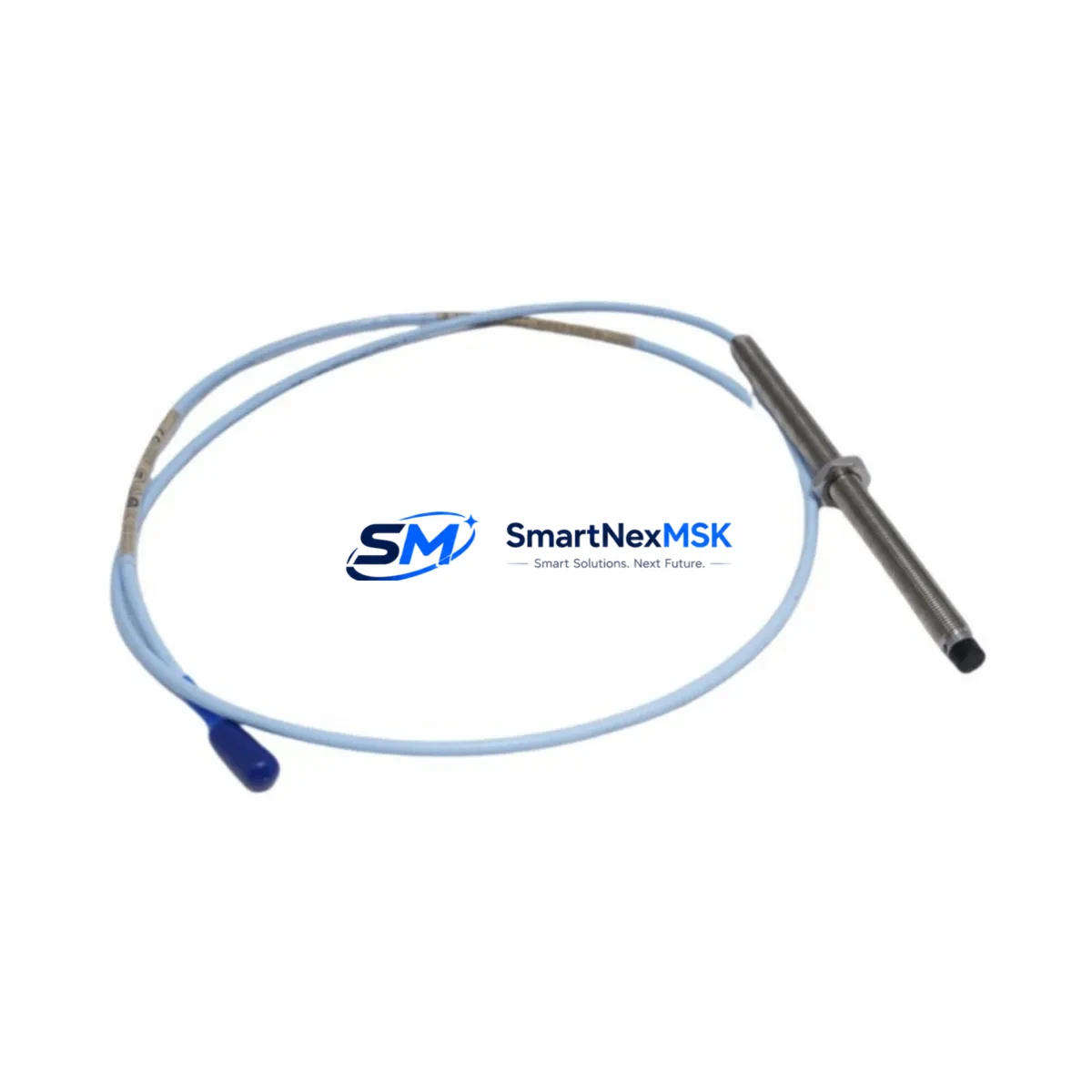

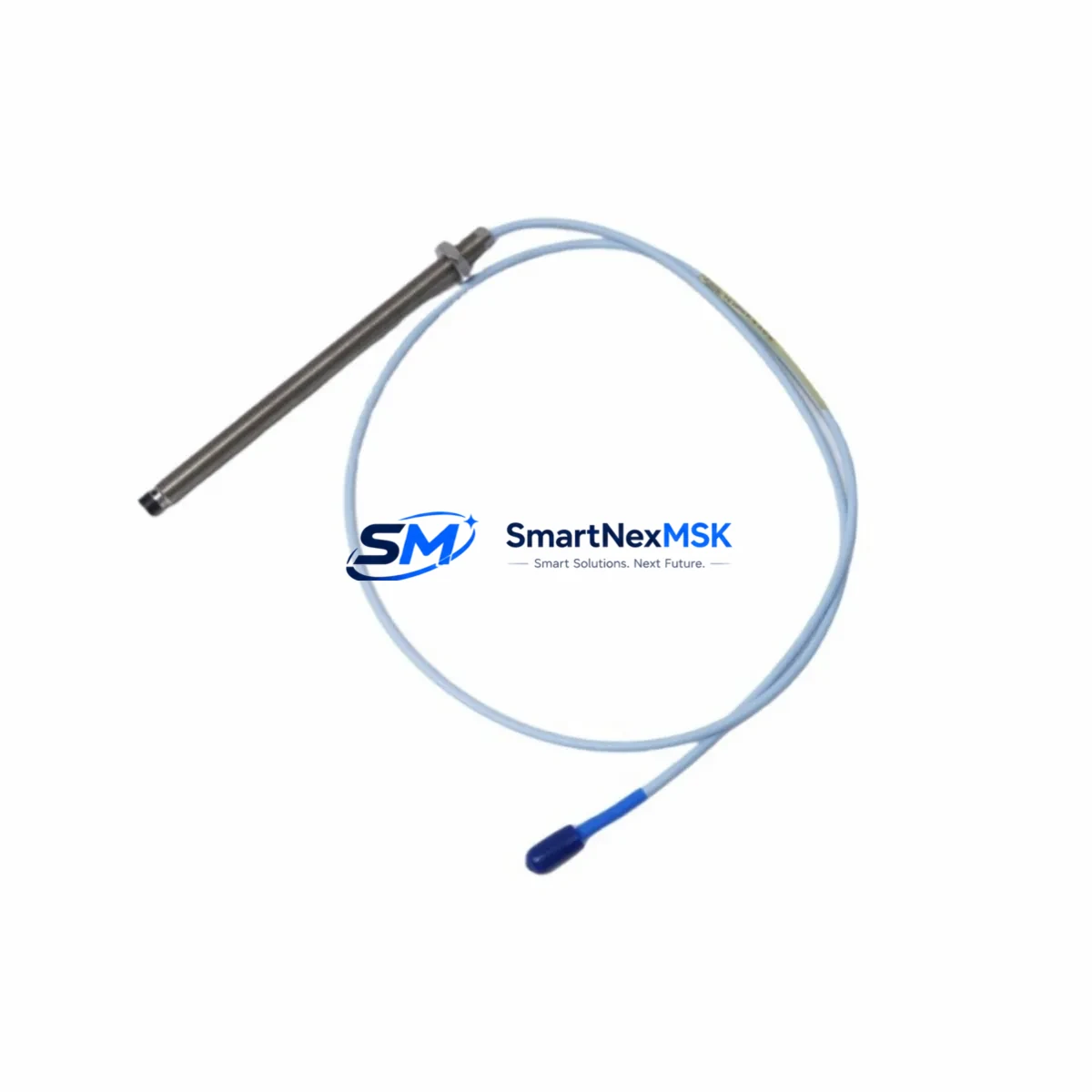

The Bently Nevada 330103-00-15-50-02-00 is an original 8mm eddy current proximity probe engineered for the 3300 XL Series vibration monitoring system. Designed for continuous shaft displacement and vibration measurement in rotating machinery, this probe is a critical spare for turbines, compressors, pumps, and motors operating in demanding industrial environments. When a proximity probe fails or degrades, the entire vibration monitoring loop is compromised — risking undetected shaft excursions, missed imbalance events, and unplanned shutdowns. Stocking a verified replacement of the 330103-00-15-50-02-00 is a fundamental element of any predictive maintenance strategy for machinery protected by the Bently Nevada 3300 XL platform.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330103-00-15-50-02-00 proximity probe is rarely an isolated task. A thorough site inspection and planned replacement workflow should address the entire signal chain to prevent repeat failures and ensure measurement integrity. Maintenance engineers should simultaneously inspect the 330130 Series extension cable for jacket abrasion, connector corrosion, and continuity — a degraded extension cable is a common root cause of intermittent probe output that is often misdiagnosed as a probe failure. The 330180 Series 3300 XL 8mm Proximitor should be bench-tested or swapped with a known-good unit, as a failing Proximitor can damage a new probe within hours of installation.

Within the same control cabinet, engineers should verify the condition of the 3300 XL Power Supply module supplying the –24 VDC rail; voltage sag or ripple directly affects probe gap voltage and output linearity. Terminal blocks and field wiring connections at the 3300 XL I/O rack should be inspected for loose terminations and oxidation, particularly in high-vibration or high-humidity environments. If the system includes a 3500/42M Proximitor I/O Module or a 3500/22M Transient Data Interface, confirm that channel configuration and alert setpoints are intact after any hardware swap.

For facilities running legacy Bently Nevada 7200 Series or 3300/16 Series probes alongside the 3300 XL platform, a compatibility audit is recommended to ensure no cross-series wiring errors exist in the junction box. Where the machinery train includes thrust bearing monitoring, the 330106 Series thrust probe and its associated Proximitor should be inspected concurrently. Signal isolators or Bently Nevada 3300 XL Signal Conditioner cards installed between the Proximitor output and the DCS or safety system input should be verified for correct scaling and loop integrity. Fuse holders and terminal fuses on the –24 VDC supply rail are frequently overlooked during probe replacement and should be checked for continuity and correct rating.

Site Replacement Workflow

The 330103-00-15-50-02-00 is a direct replacement for worn, damaged, or end-of-life 8mm proximity probes in the 3300 XL system. Before installation, confirm the probe gap target material and surface finish meet Bently Nevada specifications — a rough or plated shaft surface will shift the calibration curve and produce erroneous readings. Set the probe gap to the manufacturer-specified nominal value (typically 1.0–1.5 mm) using a calibrated gap meter or oscilloscope monitoring the Proximitor DC output voltage.

After installation, perform a static calibration check by slowly moving the probe through its linear range and verifying output voltage tracks the expected sensitivity of 7.87 V/mm. Confirm alert and danger setpoints in the monitoring system are correctly configured before returning the machine to service. Document the replacement in the maintenance management system with the new probe serial number, installation date, and gap setting to support future predictive maintenance trending. This workflow minimizes downtime, ensures system compatibility, and supports the 12-month warranty validation process.

Spare Parts Support FAQ

Q1: Is the 330103-00-15-50-02-00 compatible with both the 3300 XL and the 3500 Series monitoring systems?
The 330103-00-15-50-02-00 is designed for the 3300 XL 8mm system. It is compatible with 3500 Series racks when used with the appropriate 3500/42M Proximitor I/O module configured for 8mm probes. Always verify channel configuration in the 3500 rack software before installation.

Q2: What is included with the shipment and how is the probe tested before dispatch?
Each 330103-00-15-50-02-00 is inspected and electrically tested prior to shipment. The probe is verified for output sensitivity, insulation resistance, and connector integrity. A test report is available upon request. The unit ships with original packaging and is covered by a 12-month warranty from the date of delivery.

Q3: How should I manage inventory levels for this probe in a critical machinery protection program?
For facilities with multiple 3300 XL-protected machines, a minimum stock of two probes per critical train is recommended. Probes should be stored in a dry, temperature-controlled environment away from strong magnetic fields. Rotate stock on a first-in, first-out basis and inspect stored probes annually for connector corrosion and cable jacket integrity.

Q4: Can this probe replace older Bently Nevada 3300 5mm probes without system reconfiguration?
Direct substitution of a 5mm probe with an 8mm probe requires a compatible 8mm Proximitor and may require changes to the probe mounting bracket and gap setting. The monitoring system channel must be reconfigured for 8mm sensitivity (7.87 V/mm vs. 7.87 V/mm for 5mm at different gap ranges). Consult the Bently Nevada 3300 XL installation manual and confirm with your system integrator before proceeding.
