Bently Nevada 330103-00-16-10-02-05 Spare 3300 XL Automation

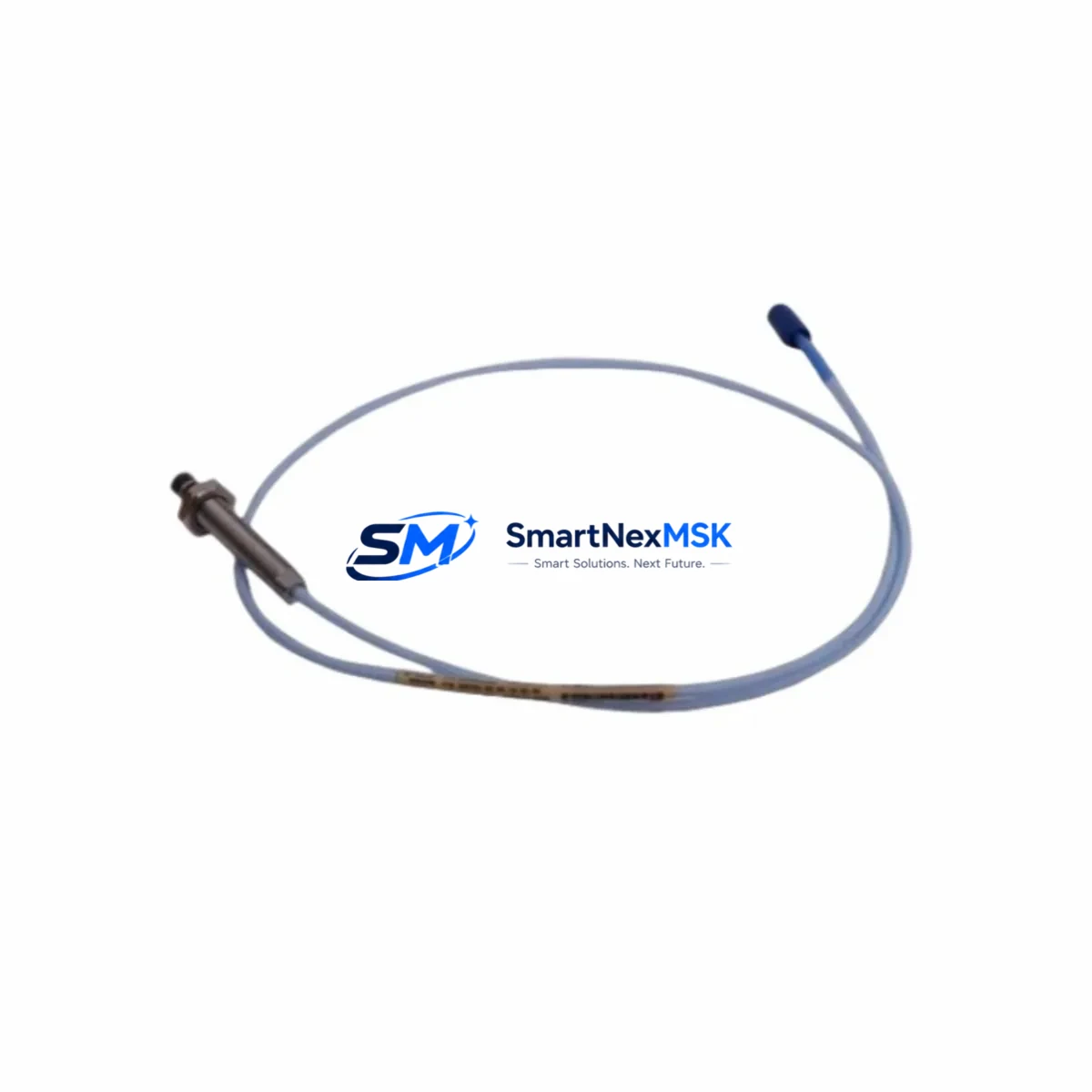

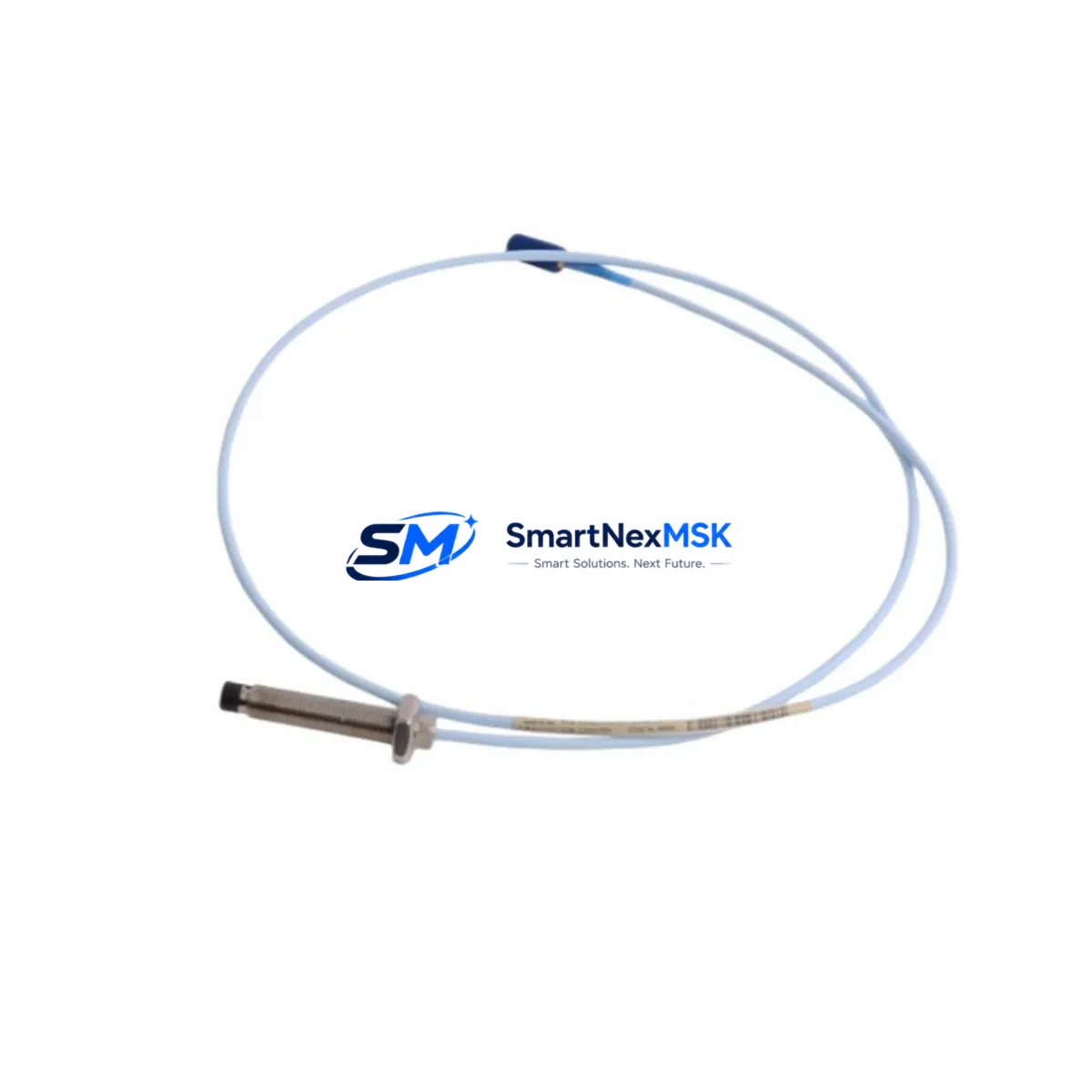

The Bently Nevada 330103-00-16-10-02-05 is an original eddy-current proximity transducer engineered for the 3300 XL continuous vibration monitoring system. In rotating machinery protection — turbines, compressors, pumps, and gearboxes — this transducer serves as the primary sensing element for shaft radial vibration, axial position, and differential expansion measurement. When this component degrades or fails, the entire protection loop is compromised, exposing critical rotating assets to undetected mechanical faults and unplanned shutdown events.
For maintenance engineers managing aging turbomachinery or DCS-integrated protection systems, having a verified original spare on the shelf is the single most effective strategy for minimizing mean time to repair (MTTR). This unit ships tested, serialized, and ready for immediate field installation.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | 330103-00-16-10-02-05 |
| Brand | Bently Nevada |
| Series | 3300 XL |
| Sensor Type | Eddy-Current Proximity Transducer |
| Cable Length | 16 ft (approx. 5 m) — encoded in SKU segment “-16” |
| Thread Size | 10-32 UNF (encoded in SKU segment “-10”) |
| Tip Diameter | 8 mm (standard 3300 XL probe) |
| Operating Voltage | -24 VDC (nominal, supplied by proximitor/driver) |
| Output Signal | -2 VDC to -18 VDC linear range |
| Sensitivity | 200 mV/mil (7.87 V/mm) |
| Linear Range | 80 mil (2.03 mm) |
| Temperature Range | -35°C to +177°C (probe tip) |
| Target Material | AISI 4140 steel or equivalent ferromagnetic alloy |
| Compatibility | 3300 XL Proximitor (330180), 3300 XL 8mm System |
| Application | Radial vibration, axial position, differential expansion |
| Installation | Threaded mounting into proximity probe holder/bracket |
| Connector | Integral coaxial cable with MIL-spec connector |
| Origin | United States |
| Warranty | 12 Months — tested and serialized before shipment |
Maintenance Planning for Continuous Operation
When a 330103-00-16-10-02-05 proximity transducer is flagged for replacement during a planned outage or emergency shutdown, the maintenance scope should extend beyond the probe itself. A disciplined inspection of the full vibration monitoring loop prevents repeat failures and ensures the protection system is restored to full specification.
Begin with the 330180-91-00 3300 XL Proximitor/Driver — the signal conditioning module paired with this probe. Proximitor output drift or internal component aging can mimic probe failure symptoms; always bench-test the driver independently before condemning the transducer. Inspect the 330130-080-00-00 extension cable connecting the probe to the proximitor for jacket abrasion, connector corrosion, and impedance continuity. A degraded extension cable introduces measurement error that no probe replacement can correct.
At the rack level, verify the 3300/20 Rack Interface Module (RIM) and associated 3300/25 or 3300/55 monitor cards for alarm setpoint integrity and channel health. If the plant runs a System 1 Evolution or System 1 Optimizer condition monitoring platform, confirm that the channel configuration — gap voltage, scale factor, and OK limits — matches the replacement transducer’s calibration certificate.
For the power supply feeding the monitoring rack, inspect the 3500/15 Power Supply Module or equivalent DC distribution panel for output voltage stability. A sagging -24 VDC rail will shift the transducer’s linear operating range and generate false OK/Not-OK transitions. While the cabinet is open, audit the terminal blocks and field wiring for loose terminations, moisture ingress, and ground loops — common root causes of intermittent vibration signal noise in older installations.
If the machine also uses 330425 or 330500 series velocity transducers for seismic casing vibration measurement, inspect those sensors concurrently; they share the same environmental exposure and often reach end-of-life within the same maintenance window. Similarly, check any 330750 or 330900 series temperature sensors installed on the same bearing housing, as thermal data complements vibration trending for predictive maintenance decisions.
For plants operating legacy 3300 (non-XL) or 7200 series monitoring systems, confirm that the replacement 330103-00-16-10-02-05 is compatible with the installed proximitor model before installation. Cross-series substitution without compatibility verification is a leading cause of post-maintenance protection system faults.
Site Replacement Workflow
Step 1 — Pre-replacement verification: Confirm the installed probe part number against the machine’s vibration monitoring loop drawing. Verify gap voltage at the proximitor output terminal (nominal -10.0 VDC ±0.5 VDC at mid-gap) to establish a baseline before removal.
Step 2 — Safe isolation: Follow site LOTO (Lockout/Tagout) procedures. Bypass the protection channel in the monitor card to prevent spurious trip during probe removal. Document the bypass in the maintenance log.
Step 3 — Probe removal and inspection: Remove the probe from the holder using the correct spanner. Inspect the probe tip for mechanical damage, pitting, or contamination. Inspect the probe holder bore for wear or eccentricity that could affect the replacement probe’s gap setting.
Step 4 — Installation and gap setting: Install the 330103-00-16-10-02-05 into the cleaned probe holder. Set the air gap to the manufacturer’s recommended value (typically 50 mil / 1.27 mm for 8 mm probes) using a non-ferrous feeler gauge. Verify gap voltage at the proximitor output; adjust probe depth until the output reads within the specified linear range.
Step 5 — System restoration and functional test: Remove the channel bypass. Verify OK LED status on the monitor card. Confirm vibration readings are within expected baseline range for the machine’s operating condition. Log the replacement, gap voltage, and post-installation readings in the equipment history file.
This workflow supports rapid, first-time-right replacement that minimizes machine downtime and eliminates the risk of protection system misconfiguration after maintenance.
Spare Parts Support FAQ
Q: Is the 330103-00-16-10-02-05 compatible with both 3300 XL and legacy 3300 series proximitors?
A: The 330103-00-16-10-02-05 is designed and calibrated for the 3300 XL 8mm system. While physical installation may be possible in legacy 3300 holders, electrical compatibility with non-XL proximitors must be verified against the specific proximitor model’s input specifications. We recommend confirming the installed proximitor part number before ordering.
Q: What pre-shipment testing is performed on each unit?
A: Every 330103-00-16-10-02-05 unit undergoes electrical continuity verification, coil impedance measurement, and output linearity testing against a calibrated target before shipment. A test report is available upon request. Units are serialized and traceable to the test record.
Q: What is the recommended spare parts inventory strategy for this transducer?
A: For plants with 4 or more machines monitored by 3300 XL systems, maintaining a minimum of 2 units per cable-length variant on the shelf is standard practice. Proximity transducers are consumable items with a service life influenced by temperature cycling, vibration amplitude, and cable flexing. Annual inspection and gap voltage trending are recommended to identify degradation before failure.
Q: What is the warranty coverage and what does it include?
A: All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and electrical performance outside published specifications. Warranty claims are supported by the pre-shipment test record. Units damaged by installation error, overvoltage, or mechanical impact are not covered under warranty terms.
