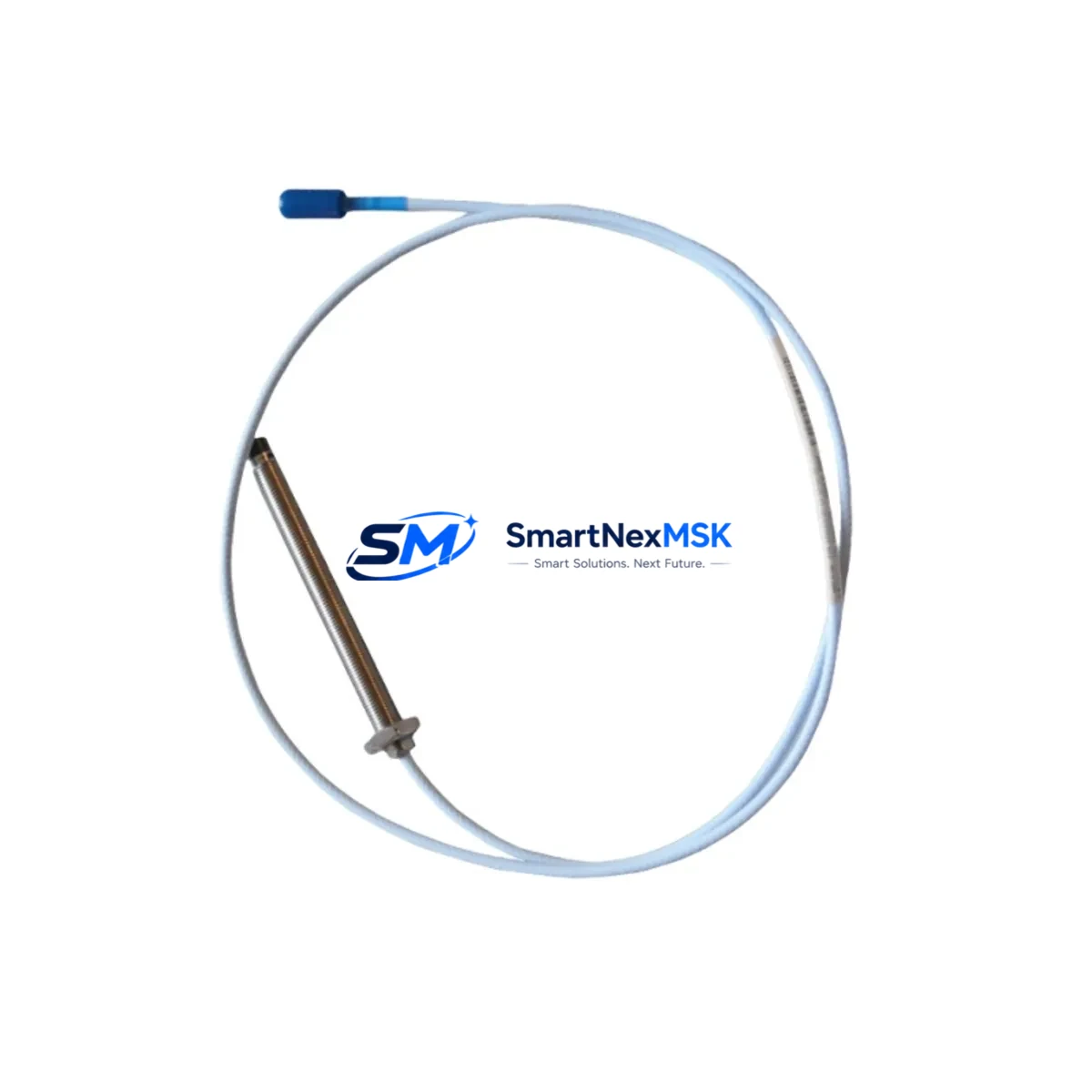

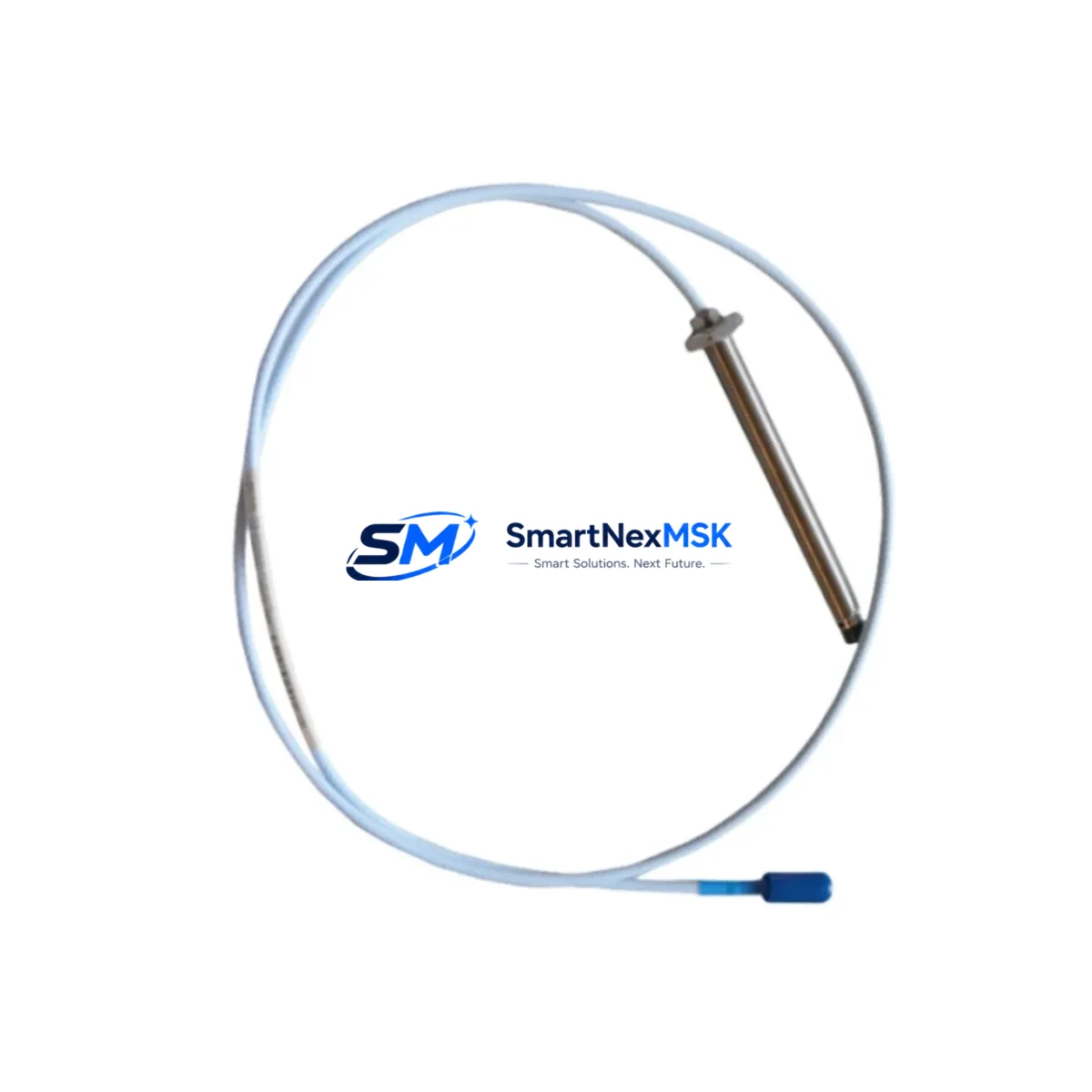

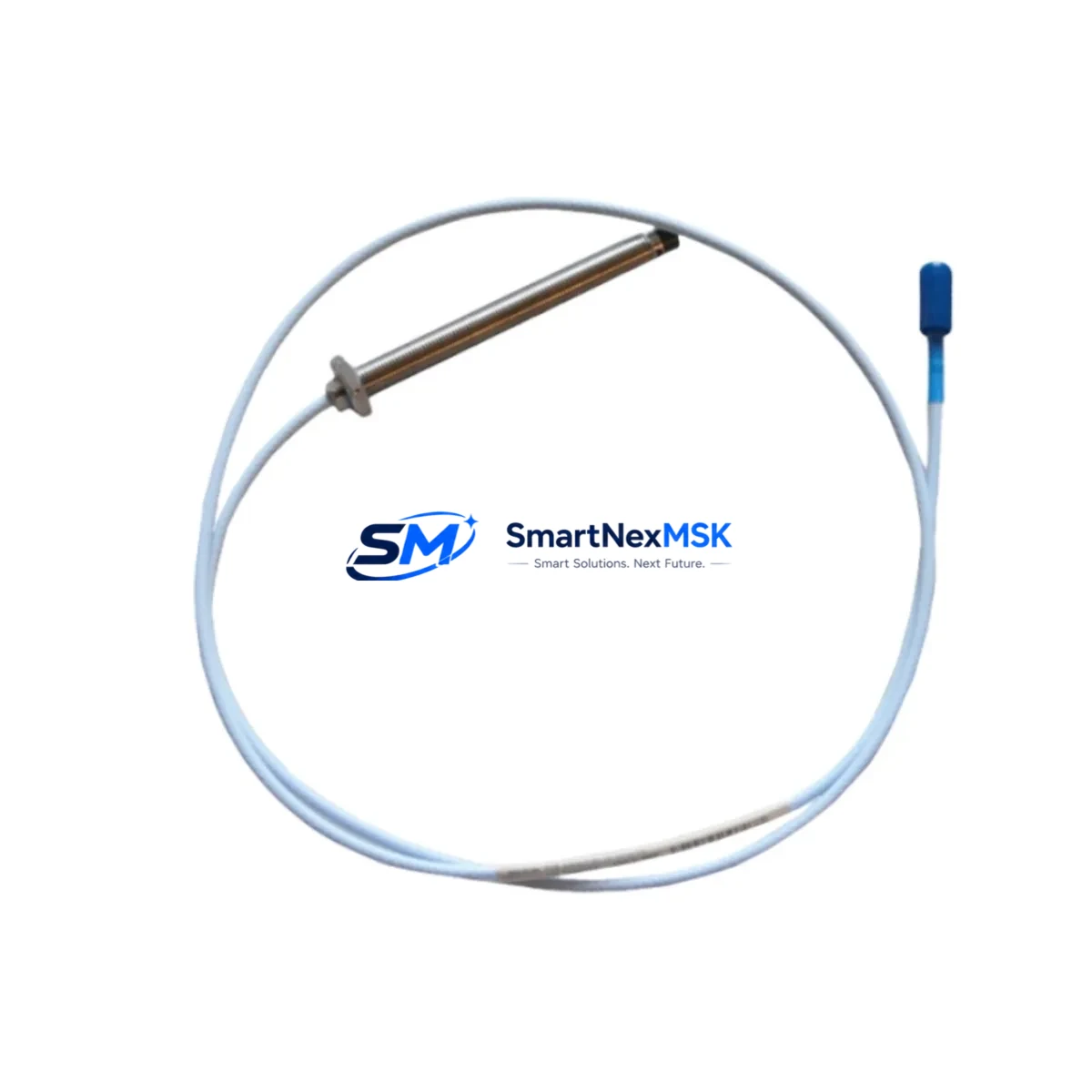

Bently Nevada 330103-00-19-10-12-00 Retrofit-Ready 8mm Proximity Probe for 3300 XL Control Systems
The Bently Nevada 330103-00-19-10-12-00 is an 8mm eddy-current proximity probe engineered for continuous vibration and position monitoring in rotating machinery protection systems. As a retrofit-ready replacement for legacy 3300 XL installations, this probe delivers full signal compatibility with the Bently Nevada 3300 XL proximitor/seismic monitor series, enabling plant engineers to restore or upgrade aging condition monitoring infrastructure without redesigning the measurement loop or replacing the entire monitoring rack.
Whether you are recovering from an unplanned shutdown, executing a planned turnaround, or modernizing a legacy vibration monitoring panel, the 330103-00-19-10-12-00 provides a verified drop-in solution. Its 19mm probe body length, 10mm cable connector, and 12-inch (approximately 305mm) armored extension cable are factory-matched to the standard 3300 XL system geometry, eliminating the need for field-fabricated cable extensions or adapter hardware.
This probe is compatible with the Bently Nevada 3300 XL 8mm Proximitor Sensor (part series 330180) and integrates directly into existing DIN-rail or panel-mounted monitor modules such as the 3300/16 and 3300/20 series cards. When replacing a failed probe in a running system, engineers should verify that the proximitor output voltage falls within the –10 VDC to –18 VDC linear range at the target gap before returning the channel to active protection status.
Upgrade Compatibility Table
| Parameter | 330103-00-19-10-12-00 (This Unit) | Retrofit Notes |
|---|---|---|
| Probe Diameter | 8mm | Matches standard 3300 XL 8mm probe bore; no bushing required |
| Probe Body Length | 19mm | Verify clearance in existing probe holder before installation |
| Cable Connector | 10mm integral | Mates directly with 330130 extension cable series |
| Extension Cable Length | 12 inches (~305mm) | Confirm total system cable length ≤ 5m for standard calibration |
| Target Material | Steel / Iron (standard) | Recalibrate if target is non-ferrous (e.g., aluminum, titanium) |
| Output Sensitivity | 200 mV/mil (7.87 V/mm) | Matches 3300 XL proximitor scale factor; no re-ranging needed |
| Operating Temperature | –35°C to +121°C (probe tip) | Suitable for most turbine, compressor, and pump applications |
| Communication / Protocol | Analog (DC voltage) | Compatible with 3300/16, 3300/20, and 3500/42 monitor cards |
| Installation Interface | Standard 3300 XL probe holder | No mechanical modification required for direct swap |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment functional test |
Retrofit Planning for Existing Automation Systems
Successful integration of the 330103-00-19-10-12-00 into an existing machinery protection system requires a structured pre-installation review. Begin by auditing the current probe holder and confirming that the 8mm bore diameter and thread pitch are undamaged. If the holder shows signs of fretting or corrosion, replacement with a new Bently Nevada probe holder is recommended before installing the new probe.
Next, inspect the extension cable. The 330103-00-19-10-12-00 ships with a 12-inch integral cable, which must be connected to a compatible 330130-series armored extension cable to reach the proximitor. Total system cable length — probe cable plus extension cable — must not exceed 5 meters for the standard 200 mV/mil calibration to remain valid. If your existing installation uses a longer cable run, a field recalibration using the Bently Nevada calibration procedure (or a replacement proximitor pre-calibrated for the extended cable) will be required.
At the proximitor end, confirm that the 3300 XL Proximitor Sensor (330180 series) is receiving the correct supply voltage, typically –24 VDC from the monitor rack’s power supply module. A degraded rack power supply — common in systems that have been in service for more than ten years — can cause erratic gap voltage readings that mimic probe failure. Before condemning a probe, always verify supply voltage at the proximitor terminals using a calibrated multimeter.
For systems using the Bently Nevada 3500 series as the monitoring platform, the 330103-00-19-10-12-00 is also compatible with the 3500/42 Proximitor/Seismic Monitor module, provided the channel is configured for 8mm probe operation in the System 1 or Rack Configuration Software. Engineers migrating from a 3300 XL rack to a 3500 rack as part of a broader control system upgrade should update the I/O module address assignments and verify that the 3500/20 Power Supply Module output is within specification before energizing the new rack.
In multi-channel installations — such as a four-probe radial vibration setup on a large centrifugal compressor — it is advisable to replace all probes in the measurement plane simultaneously rather than replacing only the failed unit. Mixed-age probes can introduce subtle sensitivity mismatches that complicate vibration vector analysis. Spare probe inventory should also include matched 330130 extension cables and a replacement 330180 proximitor to support rapid channel restoration during unplanned outages.
For plants running Bently Nevada System 1 condition monitoring software, probe replacement does not require changes to the software configuration provided the replacement probe is the same model. However, if the replacement is part of a broader migration to a newer monitoring platform — such as integrating with a DCS via a 3500/92 Communication Gateway Module using Modbus TCP or OPC-DA — the communication link configuration and tag mapping should be validated in a staging environment before cutover.
Downtime Control During System Migration
Minimizing production downtime during a probe replacement or system migration requires careful sequencing of mechanical, electrical, and software tasks. The recommended approach is to pre-stage all replacement components — including the 330103-00-19-10-12-00 probe, the extension cable, and a spare 330180 proximitor — and to perform a bench-level functional check before the maintenance window opens.
During the maintenance window, begin by placing the affected monitor channel in bypass mode within the 3300 XL or 3500 monitor rack to prevent a spurious trip while the probe is disconnected. Document the existing gap voltage and vibration baseline values from the System 1 historian or the local rack display before removing the old probe. This baseline will serve as the acceptance criterion for the new probe after installation.
After installing the 330103-00-19-10-12-00 and reconnecting the extension cable, adjust the probe gap to achieve a proximitor output voltage of approximately –10.4 VDC (the nominal center-of-range gap for 8mm probes), then verify that the vibration reading is within ±10% of the pre-removal baseline on a slow-roll or coast-down run. Once the channel is confirmed healthy, remove the bypass and return the channel to active protection. The entire probe swap — from isolation to return-to-service — can typically be completed within 60 to 90 minutes by a trained instrumentation technician, keeping unplanned downtime to a minimum.
For planned turnarounds involving a full rack migration from 3300 XL to 3500 architecture, a parallel-run strategy is recommended: install the new 3500 rack alongside the existing 3300 XL rack, wire the new probes in parallel with the existing probes using a signal splitter, and validate all channels in the new system before decommissioning the old rack. This approach preserves the original program logic and HMI display configurations in the plant DCS while the new monitoring system is commissioned, eliminating the risk of losing protection coverage during the transition.
Retrofit Support FAQ
Q1: Is the 330103-00-19-10-12-00 a direct drop-in replacement for my existing 3300 XL 8mm probe?
Yes. The 330103-00-19-10-12-00 is dimensionally and electrically identical to the original Bently Nevada 3300 XL 8mm proximity probe specification. It mates with the standard 330130 extension cable and 330180 proximitor without any adapter hardware or recalibration, provided the total system cable length does not exceed 5 meters.
Q2: What pre-shipment testing is performed on each unit?
Each 330103-00-19-10-12-00 undergoes a functional output test prior to shipment, verifying sensitivity (200 mV/mil ±1%), linearity across the measurement range, and cable continuity. A test report is available upon request. All units are covered by a 12-month warranty against manufacturing defects from the date of shipment.
Q3: Can this probe be used with a Bently Nevada 3500 series monitor rack?
Yes. The 330103-00-19-10-12-00 is compatible with the 3500/42 Proximitor/Seismic Monitor when the channel is configured for 8mm probe operation. Ensure the 3500/20 Power Supply Module is providing the correct –24 VDC supply and that the rack configuration software reflects the correct probe model and cable length.
Q4: What should I check if the gap voltage reading is unstable after installing the new probe?
Unstable gap voltage is most commonly caused by a loose cable connection at the proximitor or extension cable junction, a damaged probe tip (check for mechanical contact marks), incorrect supply voltage at the proximitor, or a total cable length exceeding the calibrated range. Verify each of these in sequence before suspecting a defective probe. If the issue persists, contact our technical support team for remote diagnostic assistance.
