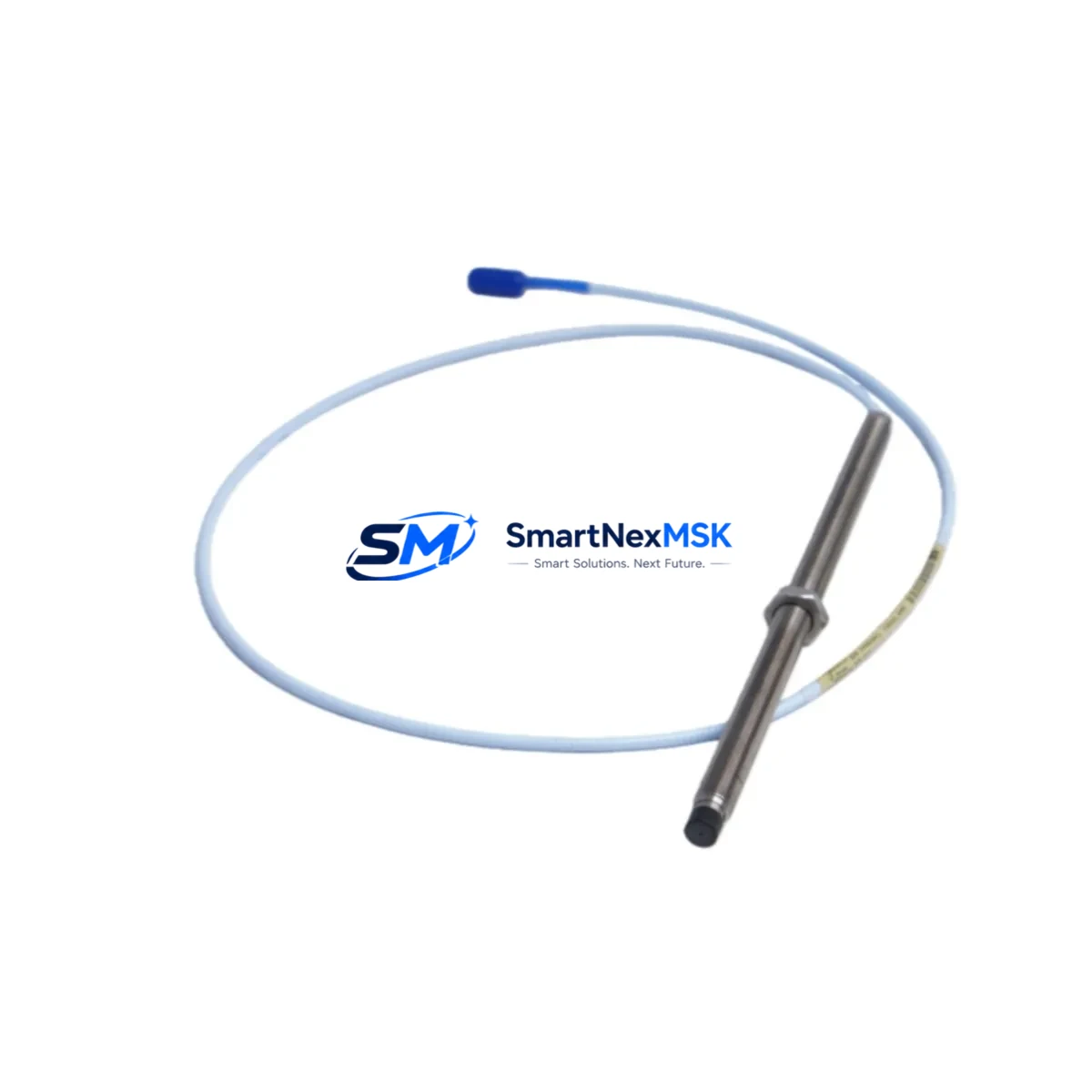

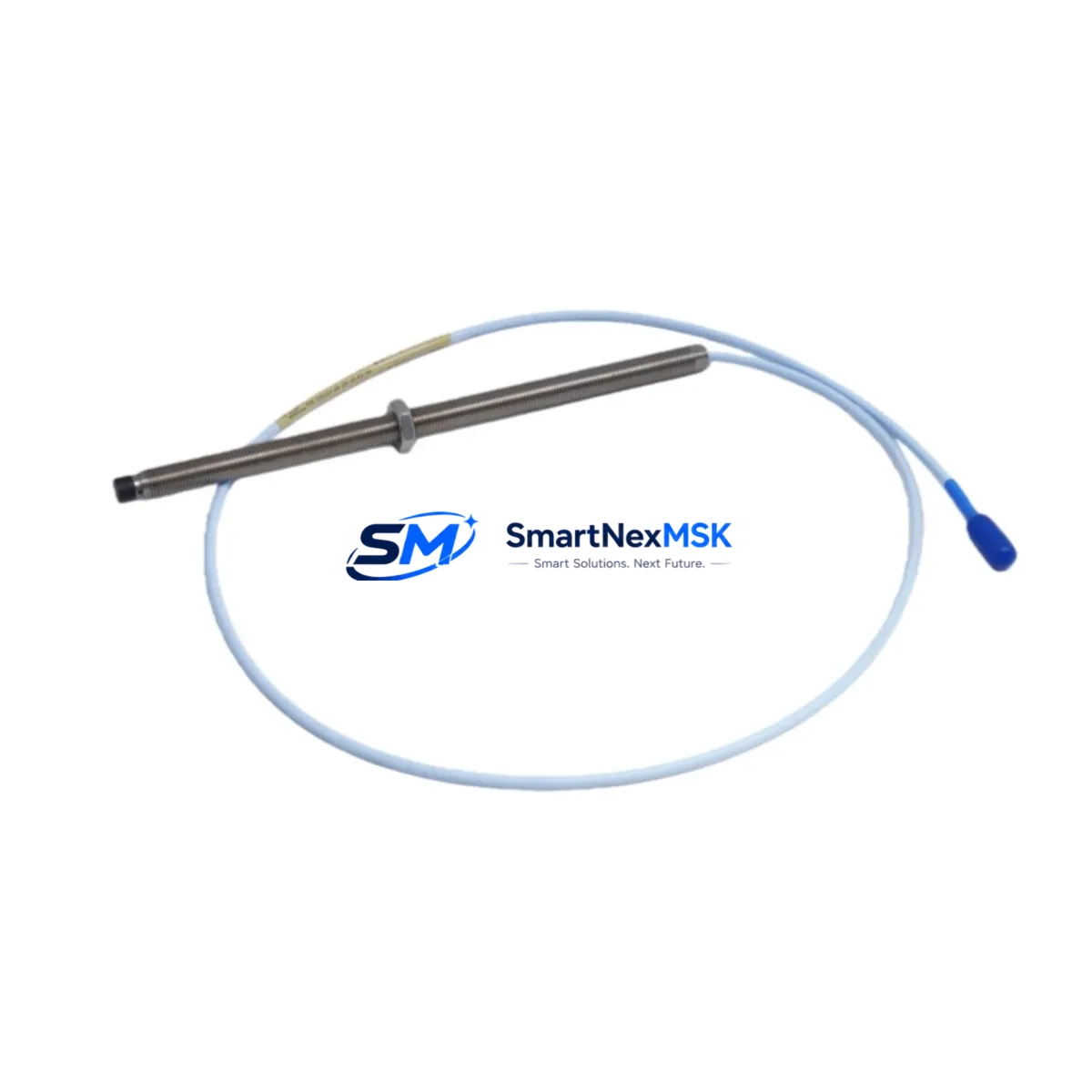

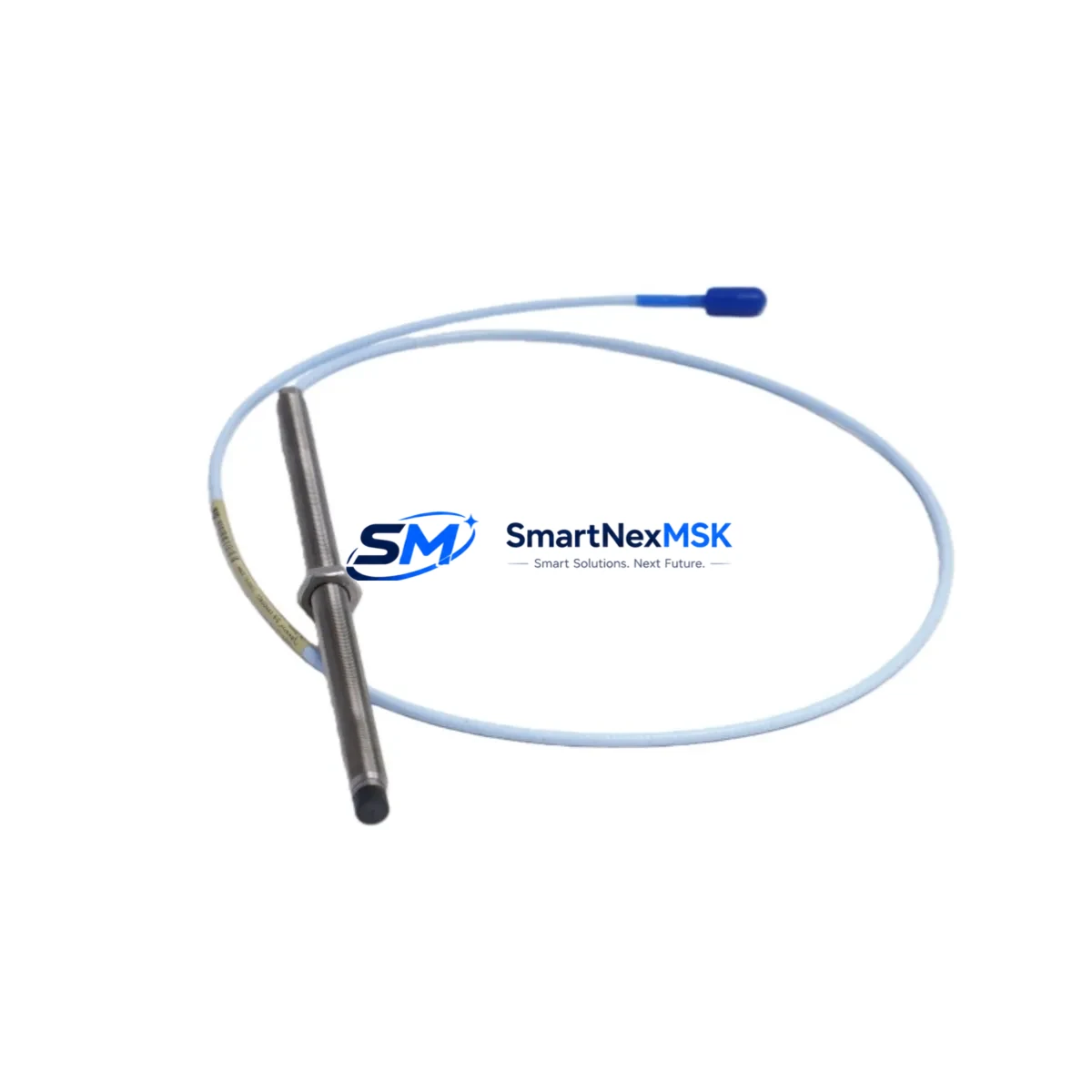

The Bently Nevada 330103-00-60-05-02-05 is an original 8mm proximity probe from the 3300 XL Series, designed for continuous shaft vibration and position monitoring in rotating machinery. With a 5-metre armored extension cable and a measurement range optimized for the 3300 XL monitoring system, this probe is a critical spare for turbines, compressors, pumps, and other high-value rotating assets in oil & gas, power generation, petrochemical, and heavy industrial facilities.

For maintenance engineers managing aging machinery protection systems, having a verified, tested replacement of the 330103-00-60-05-02-05 on the shelf is the single most effective way to eliminate unplanned downtime caused by probe degradation, cable damage, or connector failure. This unit ships fully tested against Bently Nevada factory specifications, with a 12-month warranty covering electrical performance and mechanical integrity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330103-00-60-05-02-05 proximity probe, a thorough site inspection of the surrounding measurement chain is essential to prevent repeat failures and ensure accurate vibration data. Maintenance engineers should begin by inspecting the 330130-080-00-00 extension cable — the armored interconnect between the probe and driver — for kinking, abrasion, or connector corrosion, as cable degradation is the most common cause of probe signal drift. The 330180-91-00 proximitor/driver (or equivalent 3300 XL driver module) should be bench-tested for output voltage linearity before reinstallation, since a faulty driver will cause false readings even with a new probe.

At the rack level, verify the 3300/16 dual-channel vibration monitor card for alarm setpoint integrity and channel-to-channel isolation. If the system uses a 3300/55 keyphasor module, confirm that the reference signal is clean and phase-locked, as a degraded keyphasor will corrupt all dynamic measurements across the rack. For facilities running older 3300 Series racks alongside newer 3500 Series infrastructure, check that the 3500/42M proximitor I/O module is correctly mapped if a cross-system migration is underway.

Beyond the measurement chain, inspect the 24 VDC power supply module feeding the proximitor — voltage sag or ripple above 50 mV will shift the probe gap voltage and trigger nuisance alarms. Terminal blocks and field wiring should be checked for loose connections, particularly on DIN rail-mounted terminal strips in the junction box, where vibration-induced loosening is common in compressor trains. If the installation includes a signal isolator or galvanic isolator between the field device and the control room, verify isolation resistance and confirm the isolator’s bandwidth is sufficient for the probe’s frequency range.

For facilities with Bently Nevada System 1 software, confirm that the communication gateway module (Ethernet or Modbus) is correctly polling the new probe channel after replacement, and that historical baseline data has been reset to reflect the new probe’s gap voltage. Where HMI trend screens are used, update the operator interface panel display tags to confirm the new channel is live before returning the machine to service.

Site Replacement Workflow

Step 1 — Isolation: De-energize the proximitor driver and lock out the 24 VDC supply rail. Confirm zero voltage at the probe connector before disconnecting.

Step 2 — Removal: Unscrew the probe from the mounting bracket using the correct spanner. Note the gap distance (typically 1.0–1.5 mm for 8mm probes) using a feeler gauge or gap voltage reading before removal.

Step 3 — Inspection: Inspect the probe tip for scoring, contamination, or mechanical damage. Inspect the target area on the shaft for runout, scratches, or material buildup that could affect the new probe’s linearity.

Step 4 — Installation: Thread the new 330103-00-60-05-02-05 into the bracket and set the gap to the system-specified distance. Reconnect the extension cable and verify connector seating.

Step 5 — Commissioning: Re-energize the driver and confirm the gap voltage is within the linear range (typically -10 VDC ± 1 V at nominal gap). Check the monitor card for valid signal and clear any latched alarms.

Step 6 — Documentation: Record the replacement date, gap voltage, and probe serial number in the maintenance management system (CMMS). Update the spare parts inventory to trigger reorder of a replacement unit.

This workflow minimizes machine downtime to under two hours for a planned replacement and under four hours for an emergency swap, preserving production continuity and protecting the rotating asset from unmonitored operation.

Spare Parts Support FAQ

Q1: Is the 330103-00-60-05-02-05 compatible with both 3300 and 3500 Series Bently Nevada systems?
The 330103-00-60-05-02-05 is natively designed for the 3300 XL monitoring system. It can be used with 3500 Series racks when paired with the appropriate 3500/42M I/O module and a compatible extension cable. Always verify the driver module’s input impedance and supply voltage before cross-series installation.

Q2: What is the recommended spare parts stocking strategy for this probe?
For critical rotating machinery (turbines, compressors, large pumps), a minimum of two probes per measurement plane is recommended — one installed, one on the shelf. For facilities with multiple identical machines, a pooled inventory of 4–6 units reduces per-machine holding cost while maintaining coverage for simultaneous failures during a major outage.

Q3: How is the probe tested before shipment?
Each 330103-00-60-05-02-05 unit is electrically tested for sensitivity (V/mm), linear range, and insulation resistance prior to dispatch. A test certificate is available on request. Units are packaged in anti-static foam with connector caps to prevent transit damage.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers electrical performance (sensitivity, linearity, insulation resistance) and mechanical integrity (cable armor, connector, probe body) under normal operating conditions. Warranty claims are supported by return-and-replace or advance replacement depending on urgency. Contact sales@smartnexmsk.com for warranty service initiation.
