Bently Nevada 330103-02-08-10-02-05 Spare for 3300 XL Automation

Bently Nevada 330103-02-08-10-02-05 Spare for 3300 XL Automation: Precision Replacement for Vibration Monitoring Continuity

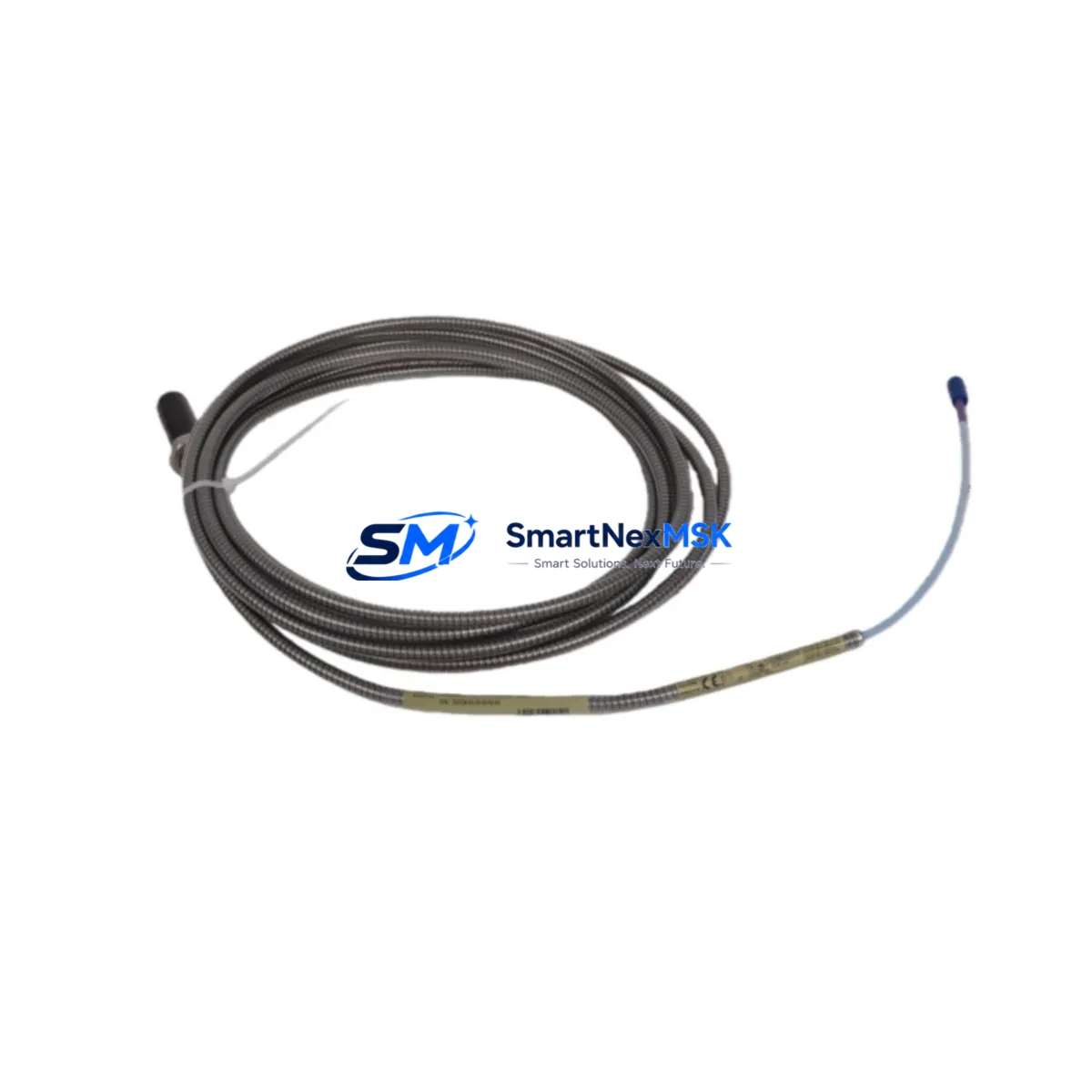

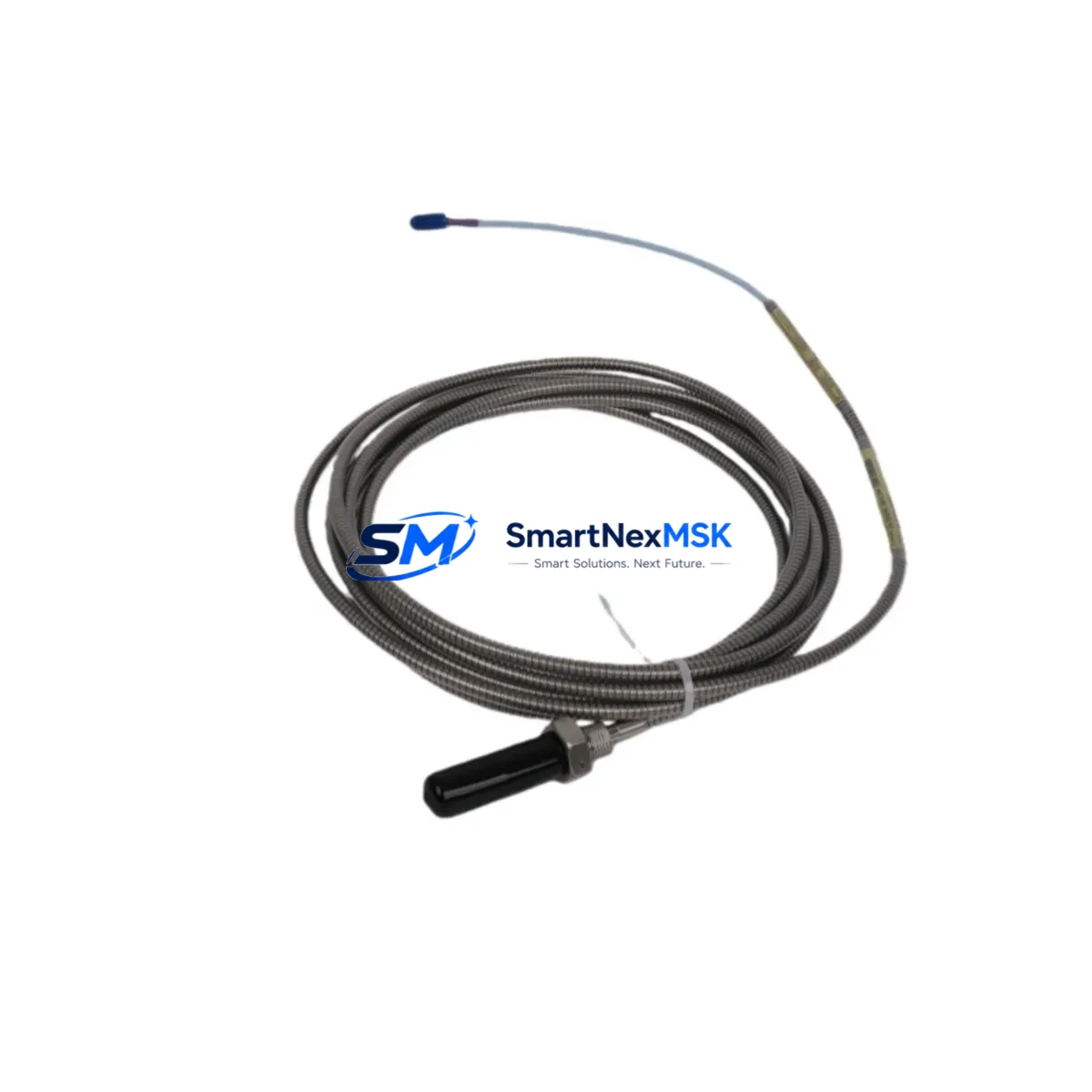

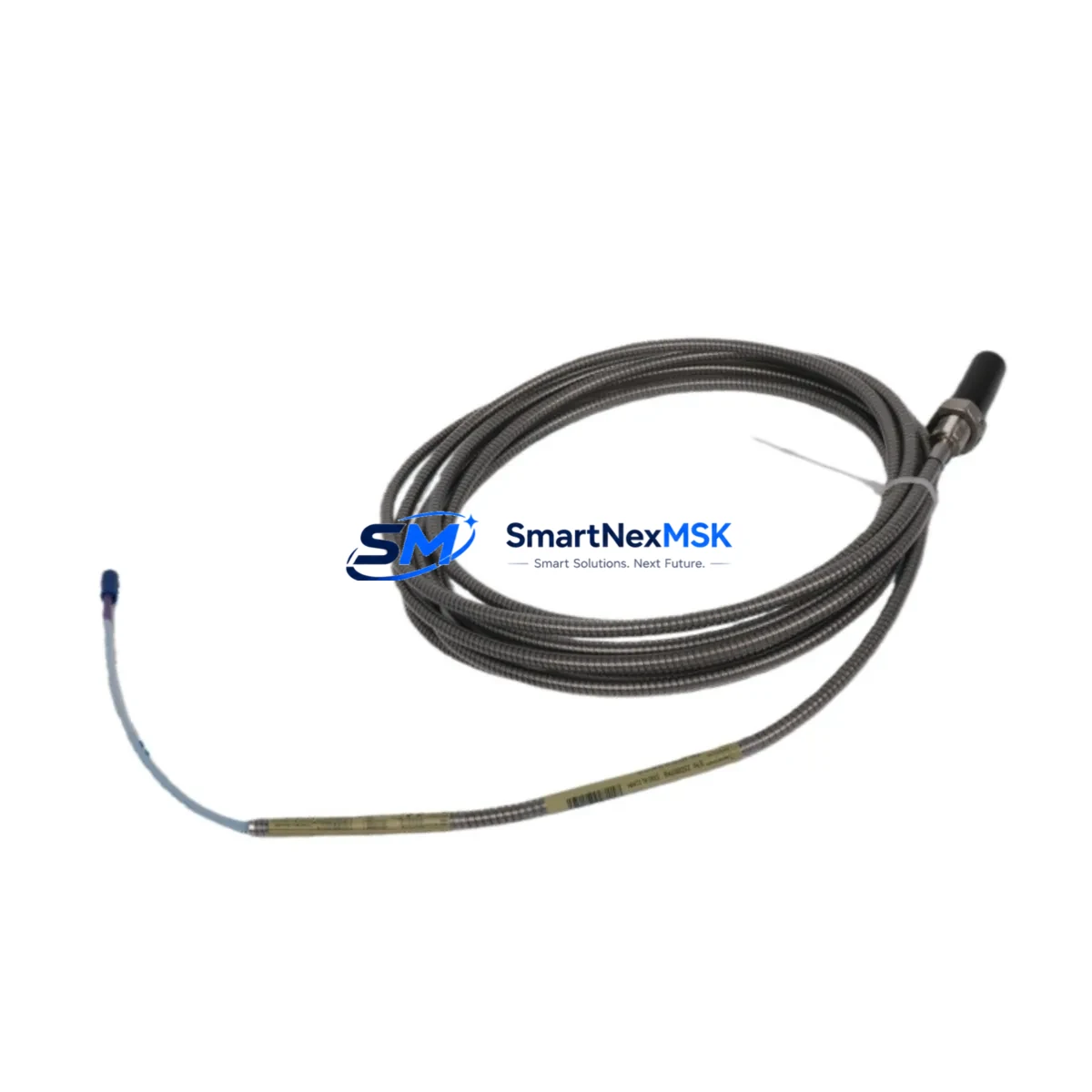

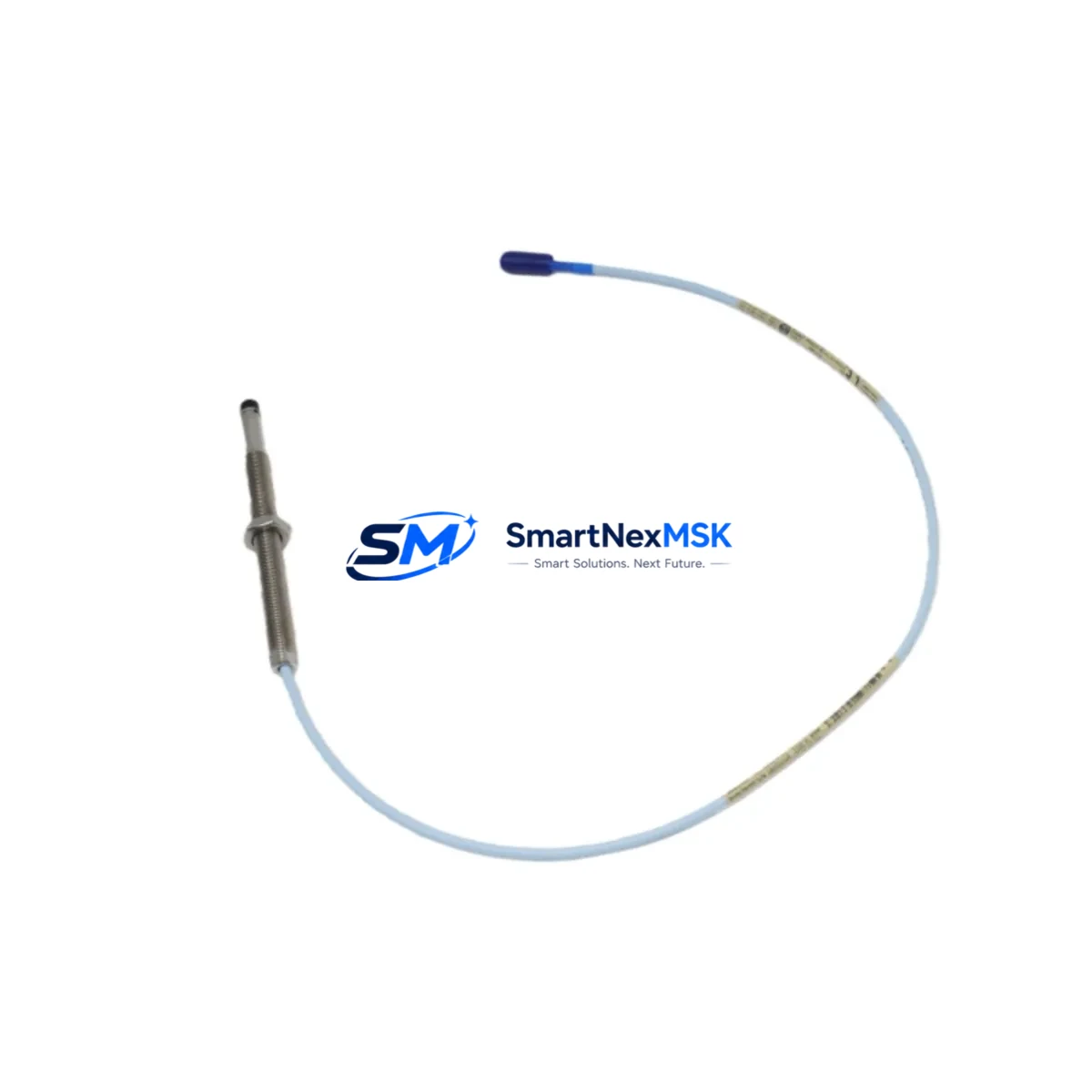

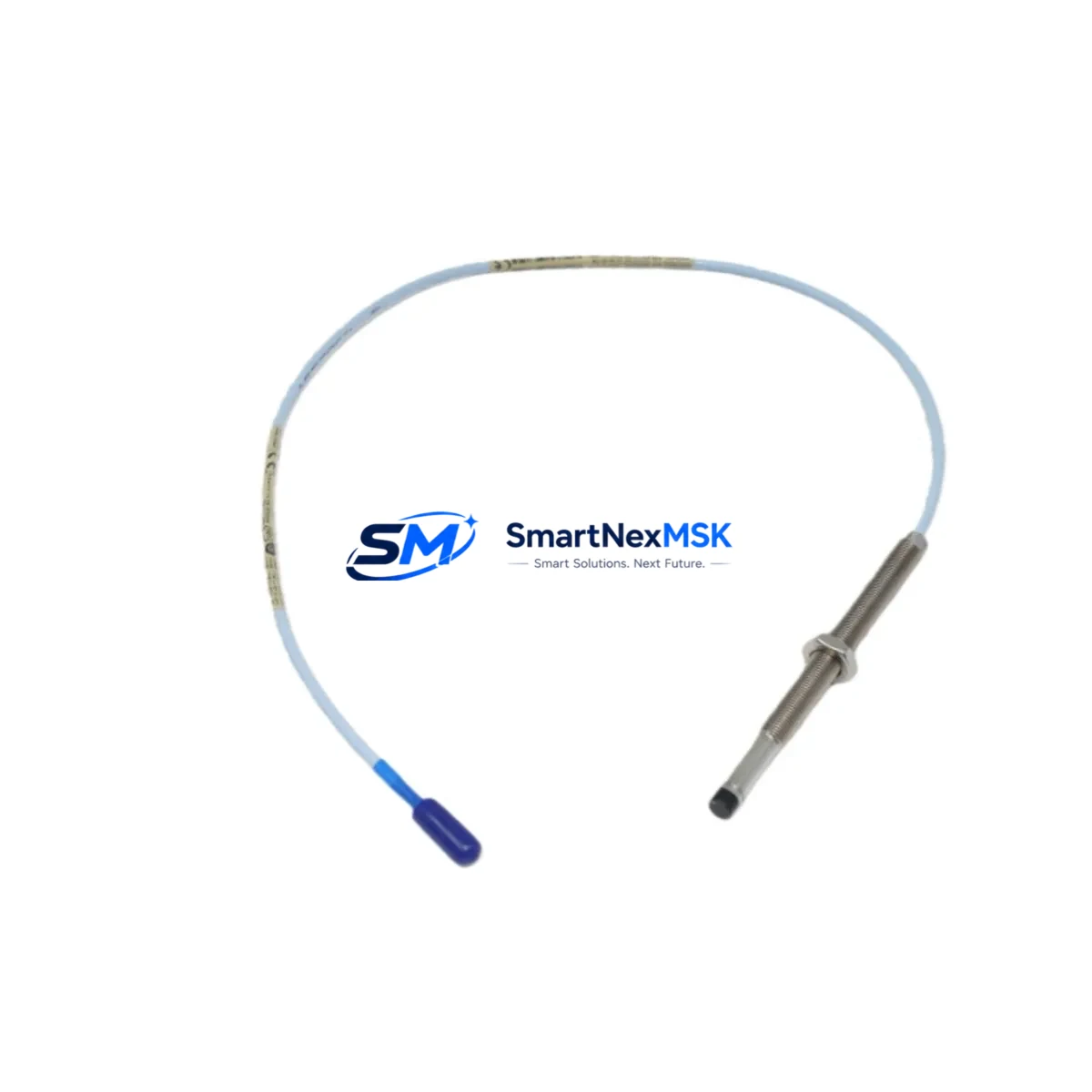

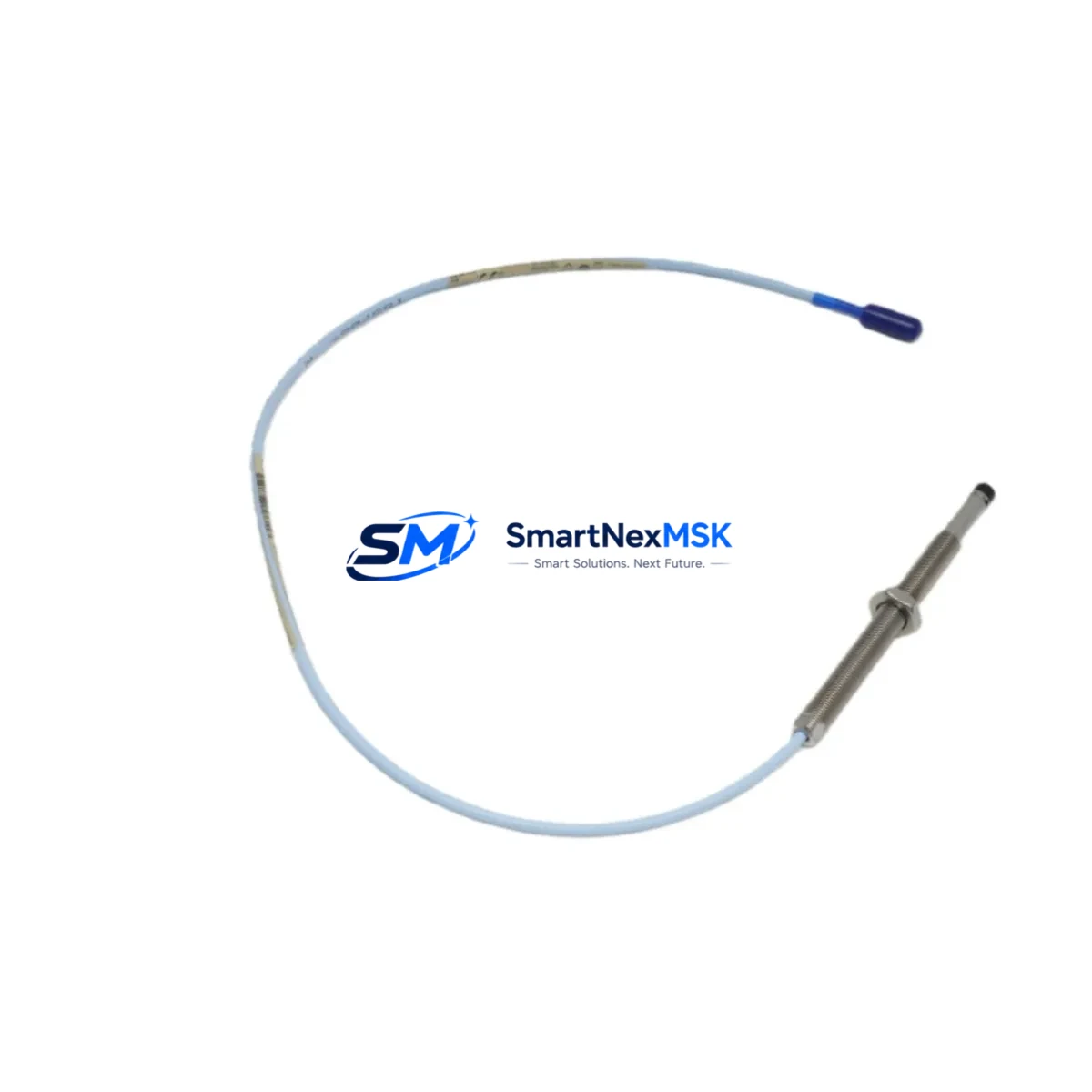

The Bently Nevada 330103-02-08-10-02-05 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. In rotating machinery protection — turbines, compressors, pumps, and gearboxes — this probe is a front-line sensor responsible for shaft displacement, radial vibration, and eccentricity measurement. When this component fails or degrades, the entire protection loop is compromised, exposing critical assets to undetected mechanical faults and unplanned downtime. Stocking a verified original spare is not optional; it is a fundamental element of any serious predictive maintenance program.

This listing supplies maintenance engineers and spare parts procurement teams with a factory-original 330103-02-08-10-02-05 probe, pre-tested, serialized, and shipped with a 12-month warranty. Every unit undergoes output voltage verification, gap sensitivity calibration check, and cable continuity testing before dispatch, ensuring drop-in readiness on arrival at site.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity probe replacement is rarely an isolated event. When a 330103-02-08-10-02-05 probe is pulled from service — whether due to tip damage, cable abrasion, sensitivity drift, or a machinery overhaul — the maintenance window should be used to audit the entire measurement chain and adjacent protection components.

Begin with the 330130 series extension cable: inspect the coaxial connector for corrosion, the armor jacket for crush damage, and the termination at the junction box for moisture ingress. A degraded extension cable will introduce noise and offset errors even with a new probe installed. Next, verify the 330180 series 3300 XL Proximitor® Sensor output voltage at the nominal gap — if the driver is aging, replace it concurrently to avoid a repeat outage within the same maintenance cycle.

At the rack level, inspect the 3300/16 or 3300/20 monitor card for alarm setpoint integrity and relay output function. Confirm that the 3300/55 or 3300/65 I/O module terminal connections are torqued to specification and free of oxidation. If the system feeds a DCS analog input card (4–20 mA or ±10 V), verify the signal scaling and confirm the input card’s channel is not saturated or faulted.

For installations where the 3300 XL rack communicates over Modbus RTU or Ethernet/IP, check the communication module firmware version and confirm the watchdog timer is active. A probe swap that inadvertently disrupts the communication loop can trigger nuisance trips downstream.

In control cabinets housing multiple measurement loops, this is also the right moment to inspect terminal blocks and DIN rail fuse holders for the −24 VDC probe power supply circuit. Blown or degraded fuses on the probe power rail are a common root cause of apparent probe failures that are actually power supply interruptions. Verify the 24 VDC power supply module output voltage under load and check for ripple exceeding 50 mV peak-to-peak.

If the machinery train includes a Keyphasor® transducer (typically a 330980 or 330905 series), confirm its gap and output simultaneously — Keyphasor signal integrity is essential for phase-referenced vibration analysis and balancing. Finally, review the barrier or signal isolator in any intrinsically safe installation to confirm it remains within its certified operating range after the probe replacement.

Proactive replacement of the 330103-02-08-10-02-05 during planned shutdowns — rather than waiting for alarm or trip — is the most cost-effective strategy for aging 3300 XL installations. Pairing this probe with a stocked extension cable and a spare Proximitor® sensor creates a complete measurement channel kit that can restore full protection loop functionality within a single shift.

Site Replacement Workflow

Step 1 — Isolation & Documentation: Inhibit the monitor channel at the rack before removing the probe. Record the existing gap voltage (typically −10 VDC ±0.5 V at nominal gap) as a baseline for the new installation.

Step 2 — Probe Removal: Loosen the locknut and back the probe out carefully. Inspect the probe tip for target contact marks — if contact has occurred, inspect the shaft journal for scoring before reinstalling any sensor.

Step 3 — New Probe Installation: Thread the 330103-02-08-10-02-05 into the bracket and set the gap to 1.27 mm (50 mil) using a feeler gauge or gap-setting tool. Torque the locknut to the manufacturer’s specification. Connect the extension cable and verify the coaxial connection is fully seated and hand-tight.

Step 4 — Gap Verification: With the system powered, measure the Proximitor® output voltage. Confirm it falls within the linear range (−10 VDC ±1 V at nominal gap). Adjust gap as needed and re-torque.

Step 5 — Functional Test: Remove the channel inhibit and confirm the monitor displays a valid vibration reading. Verify alarm and danger setpoints are active. Log the replacement in the equipment maintenance record with the new probe serial number.

This workflow is compatible with legacy 3300 Series installations and current 3300 XL racks, making the 330103-02-08-10-02-05 a direct drop-in replacement that requires no firmware changes or rack reconfiguration.

Spare Parts Support FAQ

Q1: Is the 330103-02-08-10-02-05 compatible with both the original 3300 Series and the 3300 XL Series racks?
The 330103-02-08-10-02-05 is a 3300 XL series probe. It is mechanically and electrically compatible with 3300 XL Proximitor® sensors and monitors. For original (non-XL) 3300 Series systems, verify the Proximitor® model number before installation — some early-generation drivers have different sensitivity calibration. Contact our technical team with your rack model for confirmation.

Q2: What pre-shipment testing is performed on each unit?
Every 330103-02-08-10-02-05 unit is tested for output voltage linearity across the full gap range, cable continuity and insulation resistance, and connector integrity. A test report is available upon request. Units are serialized and traceable to the original manufacturer’s quality records.

Q3: How should this probe be stored as a long-term spare?
Store in the original packaging or an anti-static, moisture-proof bag at 15–35°C with relative humidity below 75% non-condensing. Avoid storage near strong magnetic fields or solvents. Inspect the probe tip and cable connector annually. Properly stored units maintain calibration for 3–5 years; re-verification is recommended before installation if stored beyond 24 months.

Q4: What does the 12-month warranty cover?
The warranty covers manufacturing defects, output sensitivity deviation beyond ±5% of specification, and cable or connector failures under normal operating conditions. It does not cover physical damage from machinery contact, improper installation, or operation outside the rated temperature and voltage range. Warranty claims are processed within 5 business days with advance replacement available for critical applications.
