Bently Nevada 330103-02-10-05-01-05 Spare for 3300 XL Automation: Precision Spare Parts for Industrial Downtime Control

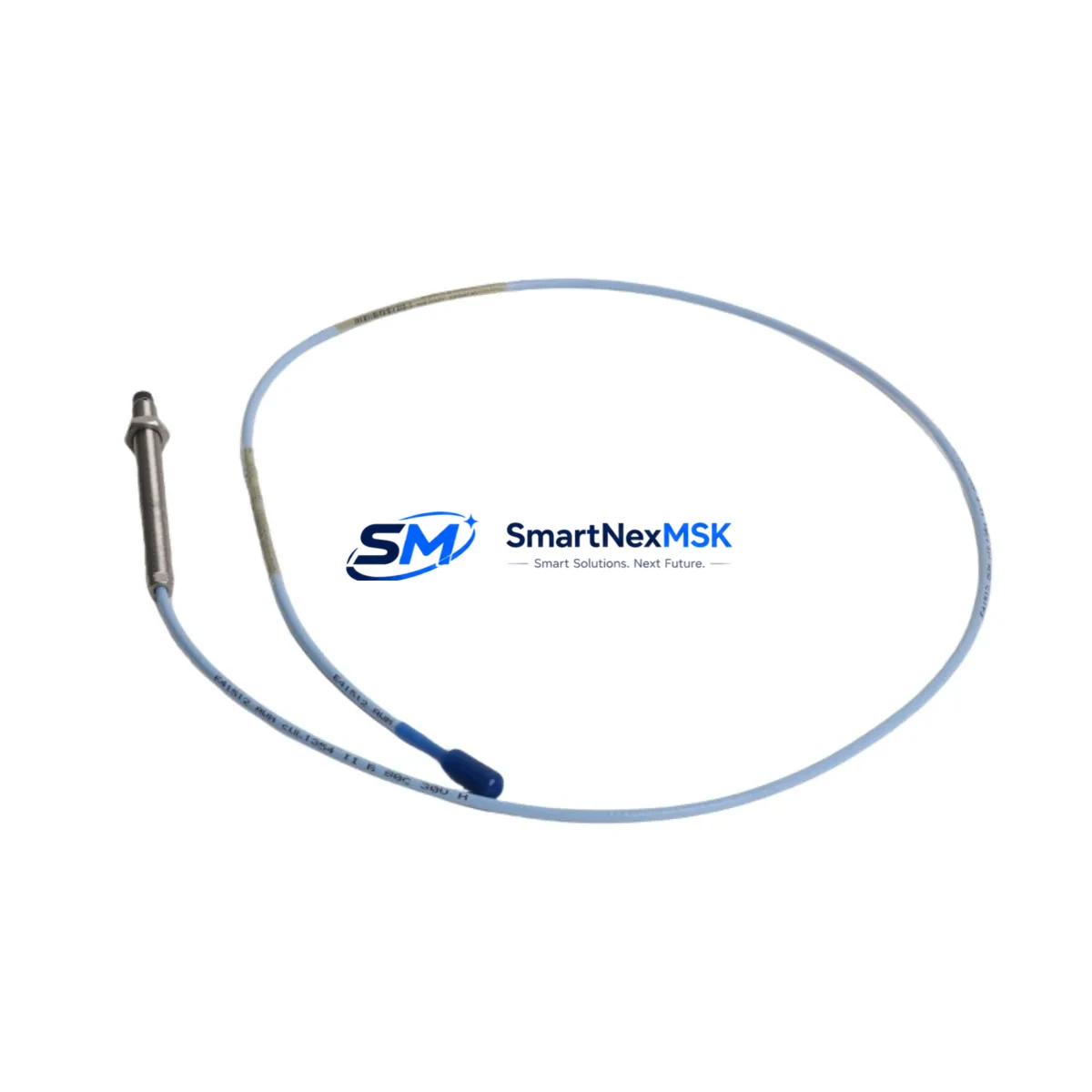

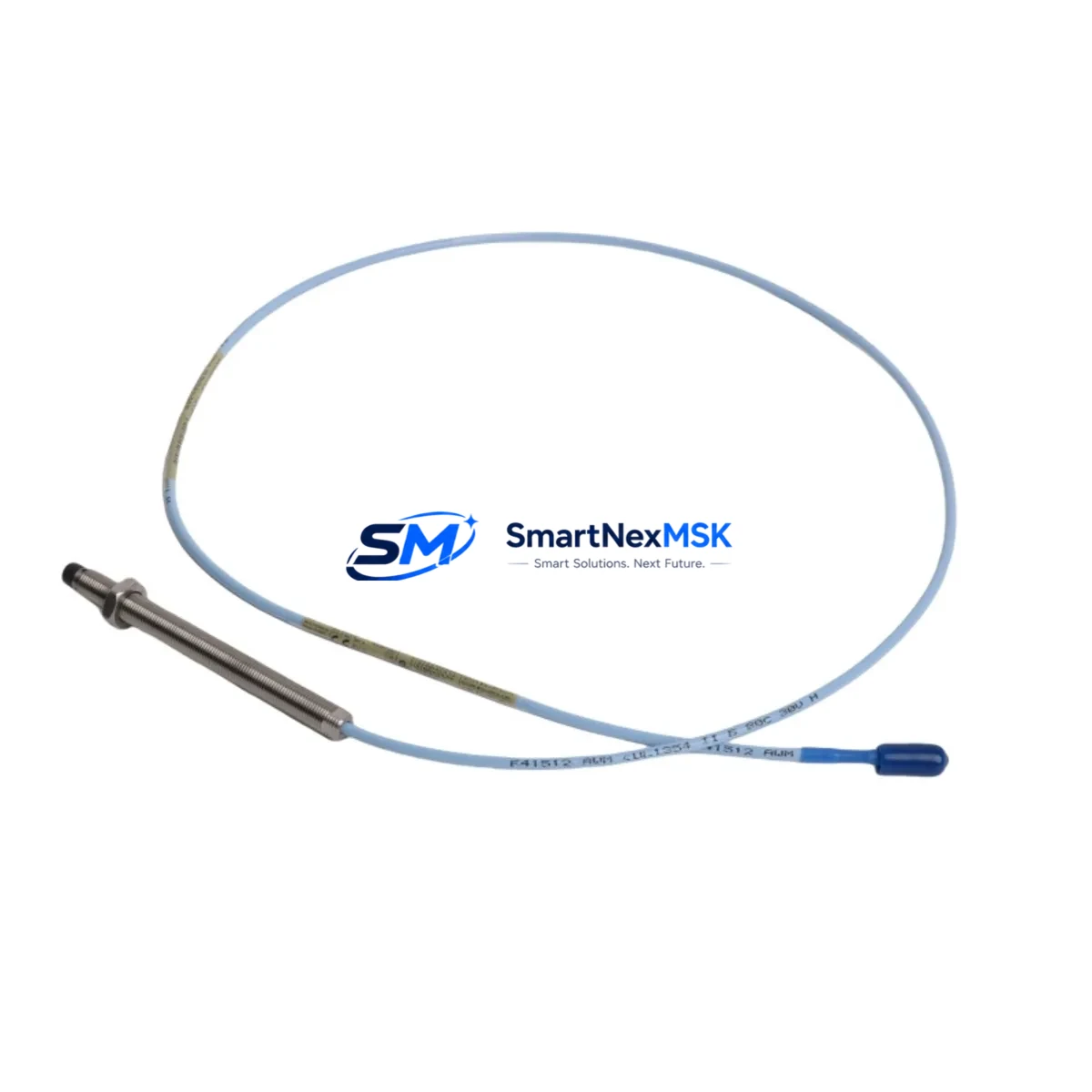

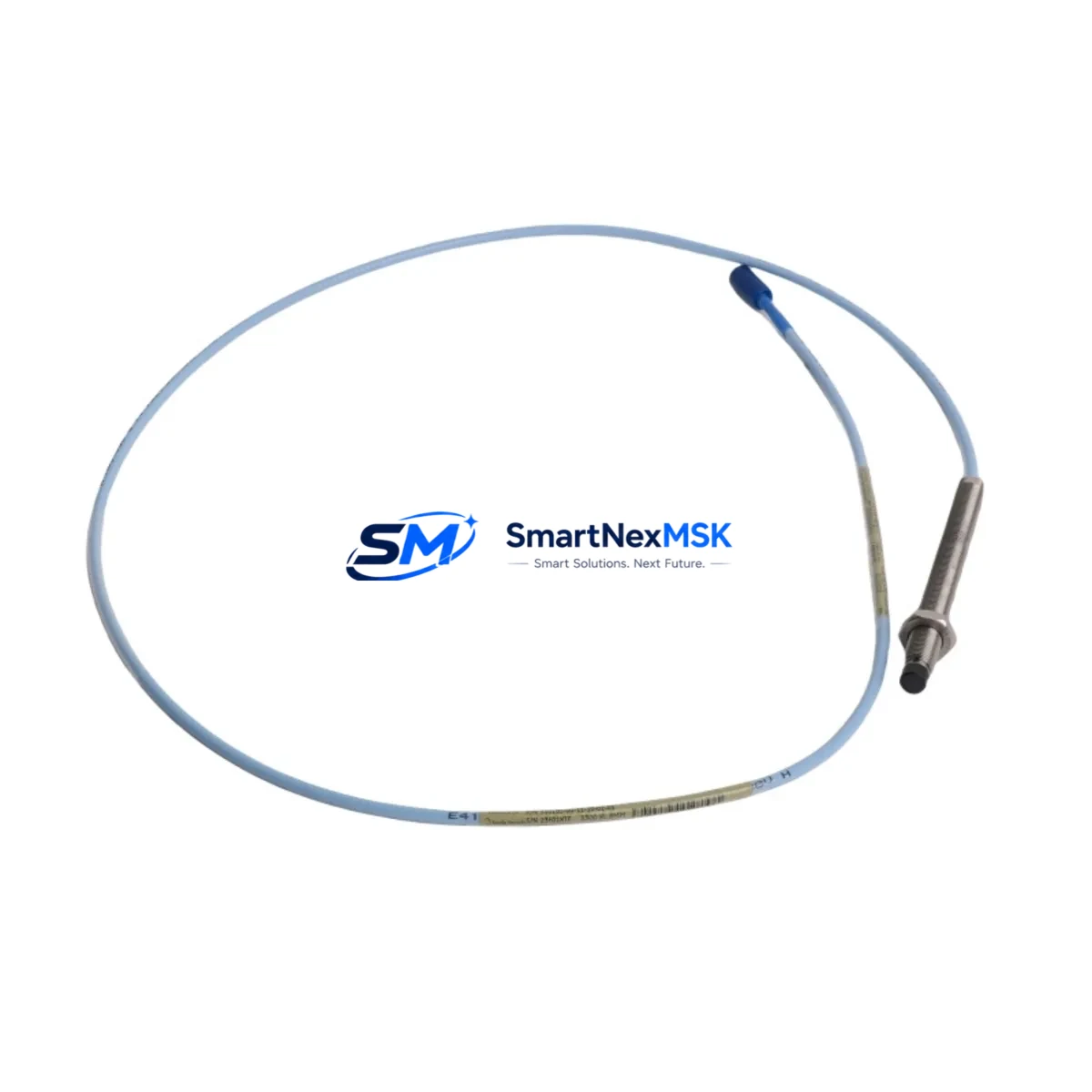

The Bently Nevada 330103-02-10-05-01-05 is an original 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed for critical rotating machinery — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — this probe delivers reliable shaft displacement and vibration measurements in demanding industrial environments. Maintaining a verified spare of this component is a cornerstone of any proactive maintenance strategy for facilities running Bently Nevada monitoring infrastructure.

For maintenance engineers and procurement teams managing aging or active 3300 XL installations, sourcing an original replacement probe with confirmed compatibility eliminates the risk of signal drift, false trips, and unplanned shutdowns. This unit ships fully tested, with documentation confirming electrical performance against factory specifications, and is backed by a 12-month warranty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a proximity probe such as the 330103-02-10-05-01-05 is flagged during routine vibration analysis or a scheduled outage, experienced maintenance engineers know that replacing the probe alone is rarely sufficient for a complete and reliable restoration. A thorough inspection of the entire measurement loop is essential to prevent repeat failures and ensure signal integrity.

Begin by inspecting the 330130 or 330180 series extension cable that connects the probe to the Proximitor sensor. Cable jacket abrasion, connector corrosion, or shield continuity loss are common causes of noisy or erratic vibration signals that are often misattributed to the probe itself. Replace the extension cable as a matched set whenever probe replacement is performed.

The 3300 XL 8mm Proximitor® Sensor (typically a 330180-X1-05 or equivalent) should be bench-tested for output voltage linearity and gap voltage stability. A Proximitor that has drifted out of calibration will produce inaccurate readings even with a new probe installed. Keep at least one spare Proximitor per critical machine train in your on-site inventory.

Within the 3500 Series monitoring rack, verify the condition of the relevant 3500/42M Proximitor/Seismic Monitor module or equivalent I/O card. Check for blown fuses on the power distribution board, inspect the 3500/15 Power Supply module for output voltage stability, and confirm that the 3500/20 Rack Interface Module (RIM) is communicating correctly with the plant DCS or historian.

For facilities using a System 1 Evolution or System 1 Optimizer software platform, confirm that the channel configuration reflects the new probe’s gap voltage and scale factor after replacement. Incorrect software configuration is a leading cause of nuisance trips following maintenance interventions.

Also inspect the terminal strip and field junction box associated with the measurement loop. Loose terminations, moisture ingress, and oxidized contacts on the 3500 series I/O terminal blocks can introduce resistance that shifts the gap voltage and triggers false alarms. A thermal imaging scan of the junction box during the next planned inspection interval is recommended.

For machines in high-temperature or high-vibration zones, consider stocking a 330105 series high-temperature proximity probe alongside the standard 330103 variant to cover contingencies during emergency replacements. Pairing this with a spare 330130-080-00-00 armored extension cable ensures the complete measurement chain can be restored within a single maintenance window, minimizing mean time to repair (MTTR).

Site Replacement Workflow

Step 1 — Isolation and Lockout/Tagout: Follow site LOTO procedures. Notify the control room to place the affected channel in bypass mode within the 3500 rack to prevent spurious trips during probe removal.

Step 2 — Gap Measurement and Documentation: Before removing the old probe, record the existing gap voltage from the Proximitor output. This baseline confirms whether the original probe had drifted and provides a reference for setting the replacement.

Step 3 — Probe Removal and Thread Inspection: Remove the 330103-02-10-05-01-05 probe using the correct M10 × 1.0 spanner. Inspect the mounting boss threads and clean with a thread chaser if necessary. Damaged threads are a common source of probe misalignment and measurement error.

Step 4 — Installation and Gap Setting: Install the replacement probe and adjust the gap to achieve the nominal –10.0 VDC output from the Proximitor (corresponding to approximately 1.27 mm gap for 8mm probes on standard steel targets). Use a calibrated gap-setting tool or feeler gauge.

Step 5 — Signal Verification: With the channel still in bypass, verify the Proximitor output voltage is within the linear range. Confirm the reading in System 1 or the rack display matches the expected gap voltage before removing the bypass.

Step 6 — Return to Service: Remove bypass, confirm alarm setpoints are active, and log the replacement in the CMMS with the new probe serial number and gap voltage. Update the spare parts inventory accordingly.

This workflow is applicable to both planned turnaround replacements and emergency in-situ swaps, and is designed to restore full monitoring capability with minimal downtime impact on the production unit.

Spare Parts Support FAQ

Q1: Is the 330103-02-10-05-01-05 compatible with both 3300 XL and 3500 series racks?
Yes. The 330103-02-10-05-01-05 probe is natively designed for the 3300 XL system. It is also compatible with 3500 series racks when paired with the correct 3300 XL 8mm Proximitor sensor. Always verify the Proximitor part number and rack I/O module configuration before installation to ensure the complete measurement chain is matched.

Q2: What pre-shipment testing is performed on this spare?
Each unit undergoes electrical continuity verification, output voltage linearity testing across the full gap range, and insulation resistance checks before dispatch. A test report is available upon request. Units are shipped in anti-static, moisture-resistant packaging to preserve probe tip and cable integrity during transit.

Q3: How should this probe be stored in a spare parts inventory?
Store in a dry, temperature-controlled environment (10°C–35°C) away from strong magnetic fields and mechanical vibration. Keep the probe in its original packaging until installation. Inspect the cable jacket and connector annually for signs of degradation. Recommended maximum shelf life before re-testing is 3 years from the date of manufacture.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects, electrical performance deviations from published specifications, and premature failure under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, chemical exposure, or operation outside the rated temperature and target material specifications. Warranty claims are processed with return of the defective unit and a completed failure report.
