Bently Nevada 330103-04-13-10-02-00 Safety Proximity Probe

Bently Nevada 330103-04-13-10-02-00 Safety Proximity Probe: Reliable Control in Harsh Industrial Sites

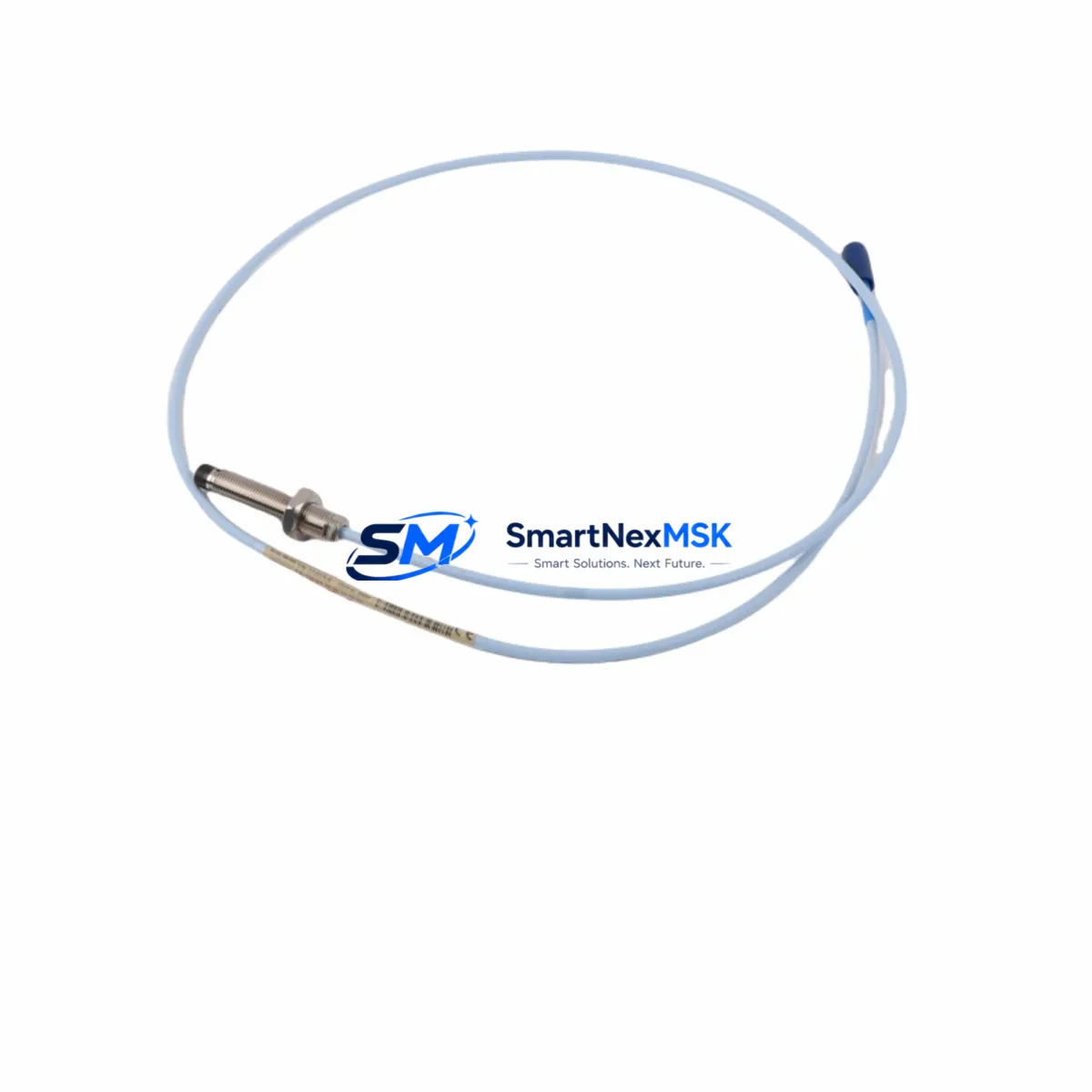

The Bently Nevada 330103-04-13-10-02-00 is a ruggedized 8mm eddy-current proximity probe engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. As part of the proven Bently Nevada 3300 XL Series, this probe is designed to deliver uninterrupted shaft displacement and radial vibration measurements in rotating machinery — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — where control loop integrity is non-negotiable.

In high-load, high-interference production facilities such as petrochemical plants, power generation stations, metallurgical mills, and offshore platforms, signal drift and sensor failure can cascade into unplanned shutdowns, equipment damage, or safety incidents. The 330103-04-13-10-02-00 addresses these risks through its hardened stainless-steel housing, fluoropolymer-jacketed cable, and precision-wound sensing coil — all calibrated to maintain stable output across wide temperature swings, aggressive chemical exposure, and intense electromagnetic interference from variable-frequency drives, high-current bus bars, and adjacent motor starters.

When integrated into a complete Bently Nevada 3300 XL monitoring system, this probe pairs directly with the 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor (such as the 330180-X1-05 or 330130-040-00-00) to form a fully calibrated measurement chain. The Proximitor converts the probe’s raw impedance signal into a clean, linear DC voltage — typically –24 VDC at gap — that feeds into the 3500/40M Proximitor/Seismic Monitor rack card or equivalent 3500 Series I/O module. This architecture ensures that any shaft excursion beyond alarm setpoints triggers a deterministic, latency-free response in the safety interlock or DCS shutdown logic.

In control cabinet protection strategies for rotating equipment, the 330103-04-13-10-02-00 is typically deployed alongside surge-protective devices on the –24 VDC Proximitor supply rail, Bently Nevada 3500/15 Power Supply modules with redundant input capability, and 3500/22M Transient Data Interface cards for waveform capture during transient events. Complementary field instruments — including Bently Nevada 330500 Velomitor velocity sensors for high-frequency structural vibration, 330900 Series thrust position probes for axial displacement monitoring, and 190501 keyphasor probes for phase reference and speed measurement — are routinely installed in the same machinery train to provide a complete, multi-parameter safety picture. On the power and communications side, 3500/92 Communication Gateway modules relay real-time vibration data over Modbus TCP or OPC-DA to the plant DCS or SCADA historian, ensuring that control room operators receive continuous, high-fidelity machine health data without polling delays that could mask developing faults.

The probe’s –200 mV/mil (–7.87 V/mm) nominal scale factor, combined with its 5 mm linear measurement range and ±10% calibration tolerance, makes it directly interchangeable with legacy 3300 Series installations — simplifying spare-parts management and reducing the risk of miscalibration during emergency replacements. Its IP67-rated connector and 316 stainless-steel housing withstand wash-down, steam ingress, and hydrocarbon condensate without signal degradation, making it suitable for Zone 2 / Division 2 hazardous area installations when used with appropriate barriers or Zener diode safety barriers on the Proximitor supply circuit.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the 330103-04-13-10-02-00 within a well-engineered control cabinet protection strategy requires attention to the entire signal chain and power architecture. The probe’s –24 VDC supply should be sourced from a dedicated, regulated rail within the Bently Nevada 3500/15 Power Supply module, which provides redundant AC input and internal diagnostics to flag supply anomalies before they affect measurement integrity. Surge protection on both the supply rail and the coaxial signal cable — using transient voltage suppression (TVS) devices rated for the Proximitor’s input impedance — guards against voltage spikes induced by nearby contactor switching, VFD PWM harmonics, or lightning-coupled transients on cable runs exceeding 10 meters.

Within the same machinery protection rack, the 3500/22M Transient Data Interface captures full waveform data during startup, coastdown, and trip events, enabling post-incident analysis without requiring additional portable data collectors. The 3500/92 Communication Gateway bridges the rack’s internal backplane to plant Ethernet, delivering vibration vectors, gap voltages, and alarm states to the DCS historian in real time. For machinery trains where axial thrust is a concurrent safety concern, Bently Nevada 330900 Series thrust probes share the same rack architecture and calibration workflow, reducing commissioning time and spare-parts complexity.

In safety instrumented systems (SIS) applications, the probe’s output feeds into a 3500/40M Proximitor/Seismic Monitor configured for voted 2oo3 or 1oo2 logic, ensuring that a single sensor failure does not cause a spurious trip or, conversely, mask a genuine machine fault. Complementary Bently Nevada 330500 Velomitor sensors mounted on bearing housings provide a redundant vibration measurement path using velocity rather than displacement, cross-validating the proximity probe signal and improving overall SIL compliance confidence.

Critical Industrial Safety Applications

Petrochemical & Refinery: In fluid catalytic cracking (FCC) units and ethylene compressor trains, the 330103-04-13-10-02-00 monitors journal bearing clearance and shaft orbit in real time. Its resistance to hydrocarbon condensate and H₂S-laden atmospheres — combined with the fluoropolymer cable jacket — ensures measurement continuity in environments where standard PVC-jacketed sensors degrade within months.

Power Generation: Steam turbine-generator sets in coal, gas, and nuclear power plants rely on proximity probes for shaft eccentricity monitoring during startup and continuous radial vibration surveillance at rated speed. The 3300 XL probe’s wide temperature range accommodates the thermal cycling inherent in peaking-unit operation, where machines start cold and reach full load within minutes.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in copper, iron ore, and gold processing circuits operate under extreme mechanical shock and dust loading. The probe’s stainless-steel housing and IP67 connector maintain calibration integrity even when subjected to the vibration levels and abrasive particulate common in mill drive trains.

Water & Wastewater Treatment: High-service pumping stations and blower trains in municipal water treatment plants require continuous, unattended operation. The 330103-04-13-10-02-00 provides the long-term measurement stability needed for condition-based maintenance programs, reducing the frequency of manual inspections in confined-space environments.

Metallurgy & Steel: Rolling mill main drives and continuous caster pinch rolls operate under high radial loads and significant electromagnetic interference from large DC drive systems. The probe’s shielded coaxial cable and the Proximitor’s differential input architecture reject common-mode noise, preserving signal fidelity in environments where unshielded sensors produce unreliable readings.

Port & Heavy Lifting Equipment: Crane hoist motors and ship-loader drives in port terminals benefit from proximity-based shaft monitoring to detect bearing wear before it progresses to catastrophic failure — a critical consideration where unplanned downtime directly impacts vessel turnaround and port throughput.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330103-04-13-10-02-00?
The 12-month warranty covers manufacturing defects, calibration drift beyond published tolerance, and functional failure under normal operating conditions as defined in the Bently Nevada 3300 XL product specification. It does not cover damage resulting from installation errors, overvoltage events outside the Proximitor’s rated input range, or physical impact. Warranty claims are supported with a return-material-authorization (RMA) process and replacement from in-stock inventory.

Q2: What pre-shipment testing is performed on each probe?
Each 330103-04-13-10-02-00 unit undergoes functional verification including gap-voltage linearity check across the full 5 mm measurement range, scale factor confirmation at –200 mV/mil, cable continuity and shield integrity test, and connector sealing inspection. Units that do not meet Bently Nevada OEM calibration specifications are quarantined and not shipped. A test record is available upon request.

Q3: Is the 330103-04-13-10-02-00 directly compatible with existing 3300 and 3500 Series installations?
Yes. The 330103-04-13-10-02-00 is fully compatible with all 3300 XL Proximitor Sensors (330180, 330130 series) and all 3500 Series monitor cards that accept standard –24 VDC eddy-current probe inputs, including the 3500/40M and 3500/42M. It is also backward-compatible with legacy 3300 Series Proximitors, making it a direct drop-in replacement for older 330103 variants without requiring recalibration of the monitor rack.

Q4: Can long-term supply continuity be guaranteed for critical spare-parts programs?
Yes. We maintain dedicated buffer stock of the 330103-04-13-10-02-00 to support planned maintenance outages, emergency replacements, and annual spare-parts replenishment programs. Orders are confirmed with lead-time commitments, and expedited shipping is available for unplanned outage situations. Customers running multi-unit machinery trains are encouraged to discuss consignment or blanket-order arrangements to ensure zero-delay availability during critical maintenance windows.
