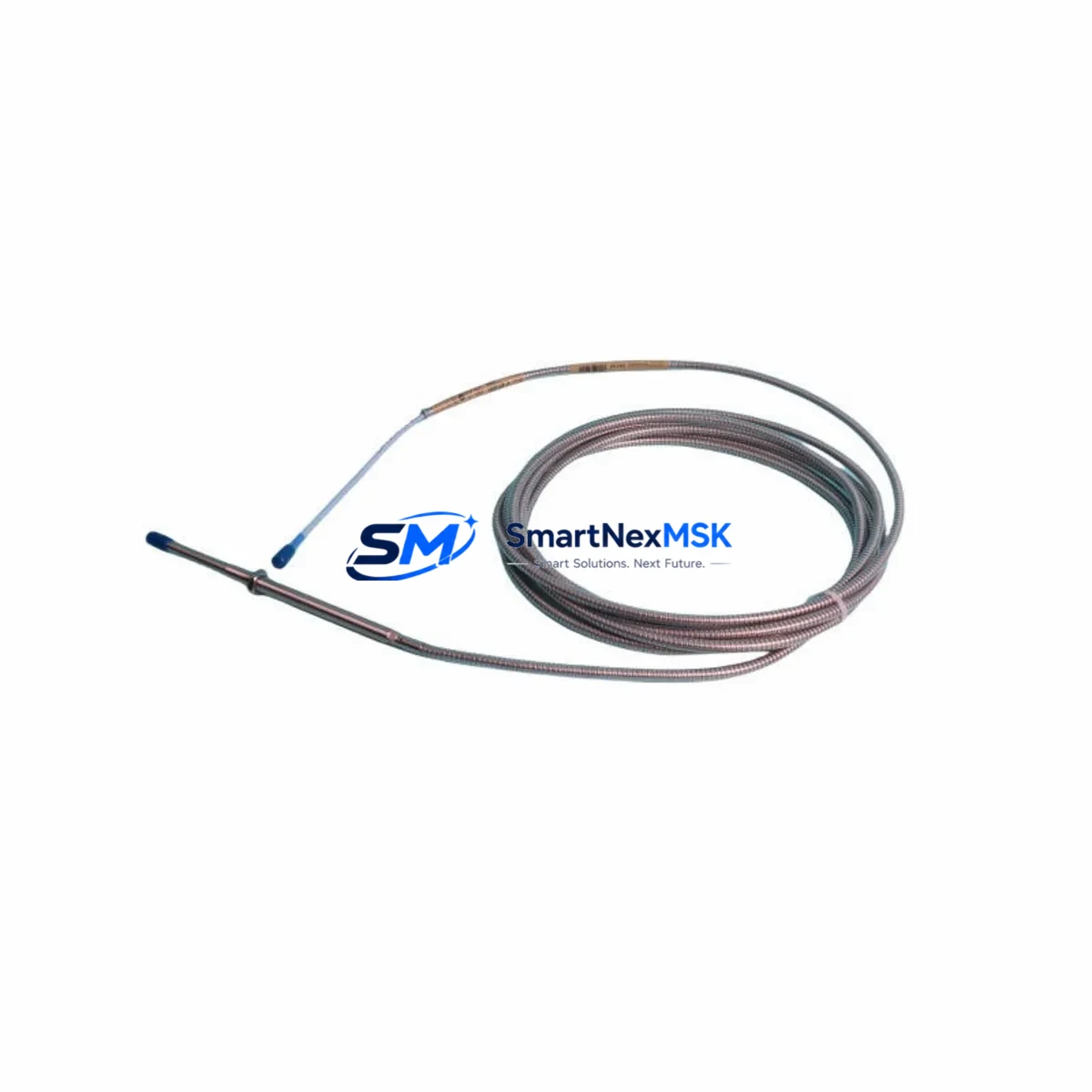

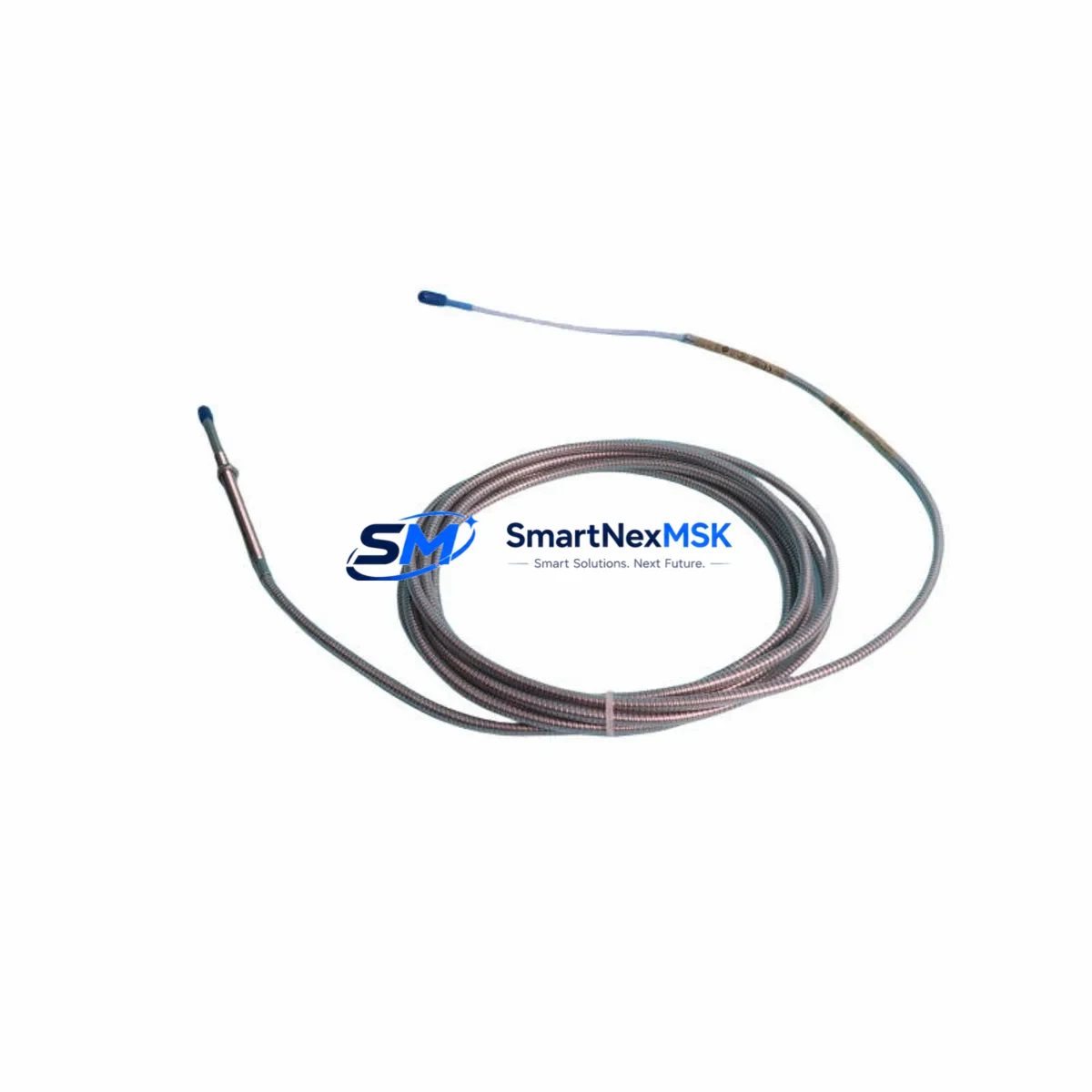

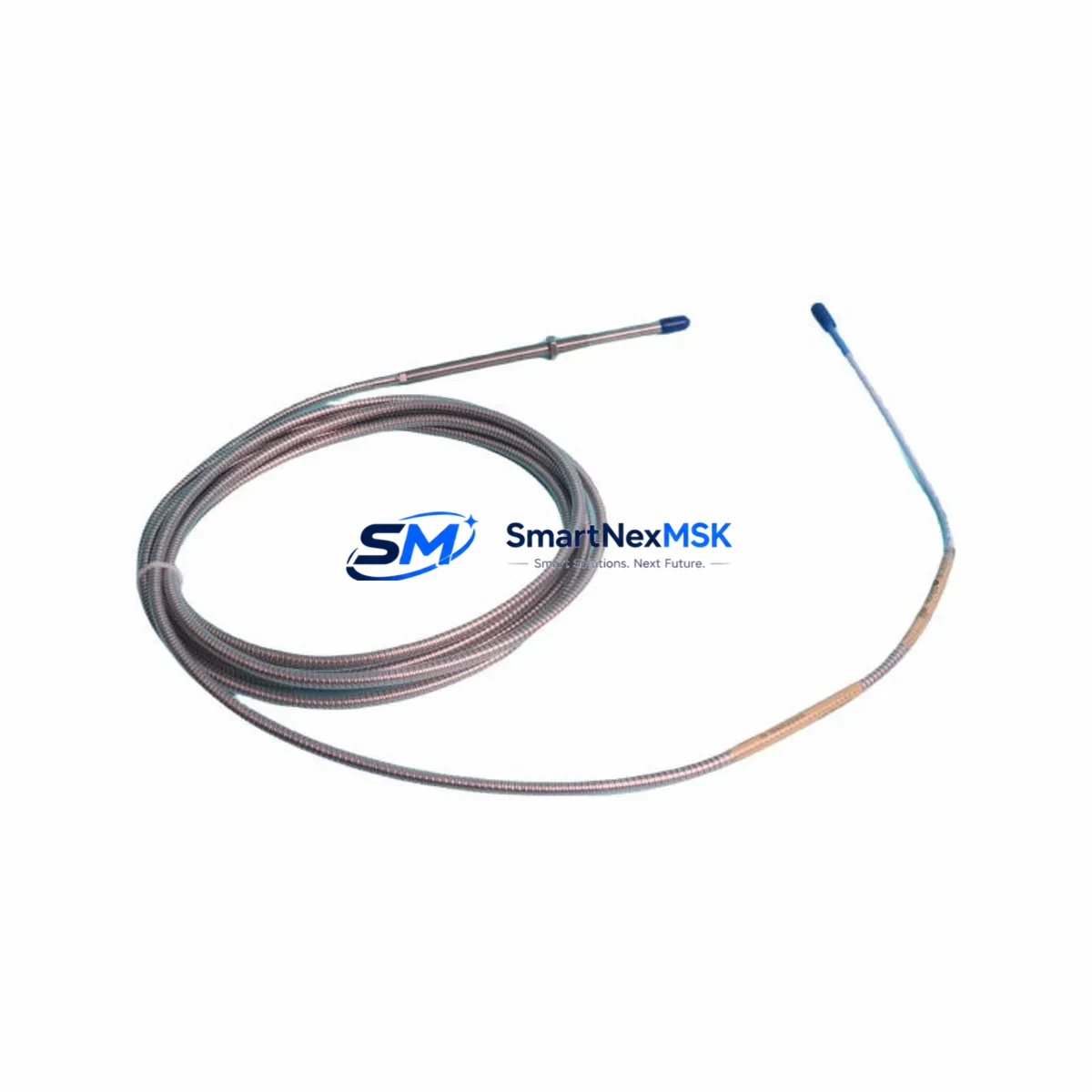

Bently Nevada 330104-00-02-50-02-00 Safety-Enhanced Proximity Transducer

Bently Nevada 330104-00-02-50-02-00 Safety-Enhanced Proximity Transducer for Harsh Industrial Sites

The Bently Nevada 330104-00-02-50-02-00 is a high-reliability eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered for continuous shaft vibration and position monitoring in the most demanding industrial environments. Designed to operate without physical contact with the rotating target, this transducer delivers stable, drift-free output signals even under extreme electromagnetic interference, mechanical shock, high ambient temperatures, and aggressive chemical exposure — conditions routinely encountered in petrochemical plants, power generation facilities, mining operations, metallurgical furnaces, and continuous process manufacturing lines.

In safety-critical control architectures, signal integrity is non-negotiable. The 330104-00-02-50-02-00 is built to maintain consistent gap voltage output across its full operating range, minimizing the risk of false trips, missed alarms, or nuisance shutdowns in turbine protection systems, compressor safety interlocks, and rotating machinery monitoring loops. Its ruggedized stainless-steel housing and armored cable assembly resist vibration fatigue, fluid ingress, and corrosive atmospheres — ensuring the sensor remains operational through extended production campaigns without requiring unplanned maintenance intervention.

Every unit shipped from our inventory undergoes pre-delivery functional verification, including output linearity checks and insulation resistance testing, so your maintenance team receives a sensor that is ready for immediate installation and commissioning. We maintain consistent stock of the 330104-00-02-50-02-00 to support both planned turnaround schedules and emergency spare-part requirements, backed by a 12-month warranty covering manufacturing defects and performance deviations.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the Bently Nevada 330104-00-02-50-02-00 as part of a comprehensive machinery protection strategy requires careful attention to the entire signal chain — from the rotating shaft to the control room display. In a typical heavy-industry control cabinet, this transducer interfaces with a Bently Nevada 330180-X1-05 proximitor driver, which conditions the raw eddy-current signal into a calibrated voltage output suitable for direct input to a Bently Nevada 3500/42M Proximitor / Seismic Monitor module. The monitor module then evaluates the signal against pre-configured alert and danger setpoints, triggering protective relay outputs through the 3500/32 Relay Module when vibration or position thresholds are exceeded.

To protect the integrity of the measurement loop against power supply fluctuations and ground loops — common sources of signal corruption in large industrial facilities — the system should be powered through a dedicated Bently Nevada 3500/15 Power Supply Module with redundant input capability. In installations where the control cabinet is located in a classified hazardous area, the signal wiring between the proximitor and the monitor rack must be routed through certified Zener barrier assemblies or galvanic isolators to maintain intrinsic safety compliance and prevent ignition risk from fault currents.

For plants operating Emerson Ovation DCS or Honeywell Experion PKS distributed control systems, the 3500 rack communicates vibration data via Modbus TCP or OPC DA/UA gateway modules, enabling real-time integration of machinery health data into the plant-wide safety and process control network. Complementary components such as the Bently Nevada 3500/22M Transient Data Interface allow high-resolution waveform capture during startup and shutdown transients — critical for diagnosing rotor instability before it escalates to a protective trip. Surge protection devices installed at the cabinet entry points further reduce the risk of transient overvoltage damage to sensitive monitor electronics during nearby lightning events or bus switching operations.

When planning spare-parts inventory for a continuous production facility, it is best practice to maintain at least one replacement 330104-00-02-50-02-00 probe assembly alongside a matched 330130-080-01-00 extension cable and a spare 330180 proximitor to enable rapid like-for-like replacement without requiring system recalibration. This approach minimizes mean time to repair (MTTR) and supports the plant’s overall equipment effectiveness (OEE) targets.

Critical Industrial Safety Applications

The Bently Nevada 330104-00-02-50-02-00 proximity transducer is deployed across a wide spectrum of safety-critical rotating machinery applications in heavy industry:

Petrochemical and Refinery Plants: In high-pressure centrifugal compressor trains and steam turbine-driven pumps, this transducer provides continuous radial vibration monitoring to detect rotor imbalance, bearing wear, and oil whirl instability. Early detection of these conditions allows operators to schedule corrective maintenance during planned outages rather than responding to catastrophic failures that can result in fire, explosion, or toxic release incidents.

Power Generation Facilities: Gas turbines, steam turbines, and large synchronous generators in utility-scale power plants rely on proximity transducer arrays to maintain shaft centerline position within safe operating limits. The 330104-00-02-50-02-00 contributes to the turbine protection system’s ability to initiate an emergency trip before rotor-to-stator contact occurs — a failure mode that can cause catastrophic equipment destruction and extended generation outages.

Mining and Mineral Processing: Large ball mills, SAG mills, and crusher drives in mining operations subject their rotating components to extreme mechanical loads and shock vibration. Proximity transducers installed on pinion shaft bearings and trunnion assemblies provide early warning of bearing degradation, enabling planned replacement during scheduled maintenance windows rather than unplanned production stoppages.

Water and Wastewater Treatment: High-capacity centrifugal pumps and blower units in water treatment infrastructure operate continuously, often in unmanned or remotely monitored facilities. Proximity-based vibration monitoring integrated with SCADA systems enables remote condition assessment and automated protective shutdown before mechanical failures result in service interruptions or environmental compliance violations.

Metallurgical and Steel Production: Rolling mill drives, continuous casting machines, and large induction furnace cooling pumps operate in environments characterized by intense electromagnetic fields, high ambient temperatures, and heavy vibration. The ruggedized construction of the 330104-00-02-50-02-00 ensures reliable signal output under these conditions, supporting the safety interlock systems that protect both equipment and personnel.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the Bently Nevada 330104-00-02-50-02-00?
Every unit is covered by a 12-month warranty from the date of shipment, covering manufacturing defects, output linearity deviations, and premature component failure under normal operating conditions. Warranty claims are processed promptly with replacement units dispatched from stock to minimize your downtime exposure.

Q2: What pre-shipment testing is performed on each unit?
Prior to dispatch, each 330104-00-02-50-02-00 undergoes functional output verification, cable continuity and insulation resistance testing, and visual inspection of the probe tip, housing, and connector assembly. Units that do not meet specification are quarantined and not shipped, ensuring that every transducer you receive is ready for immediate installation.

Q3: Is this transducer compatible with existing Bently Nevada 3300 and 3500 system installations?
Yes. The 330104-00-02-50-02-00 is fully compatible with the Bently Nevada 3300 XL driver and proximitor ecosystem, including the 330180 series proximitors and the 3500 Series Machinery Protection System rack. It can be used as a direct replacement for worn or failed probes in existing installations without requiring recalibration of the driver or monitor, provided the gap is set correctly during installation.

Q4: Can long-term supply continuity be assured for ongoing maintenance programs?
We maintain dedicated inventory of the 330104-00-02-50-02-00 to support both scheduled turnaround procurement and emergency spare-part requirements. For facilities with large fleets of 3300 XL-equipped machinery, we can discuss framework supply agreements to guarantee availability and pricing stability over multi-year maintenance cycles. Contact our technical sales team to discuss your specific inventory planning requirements.
