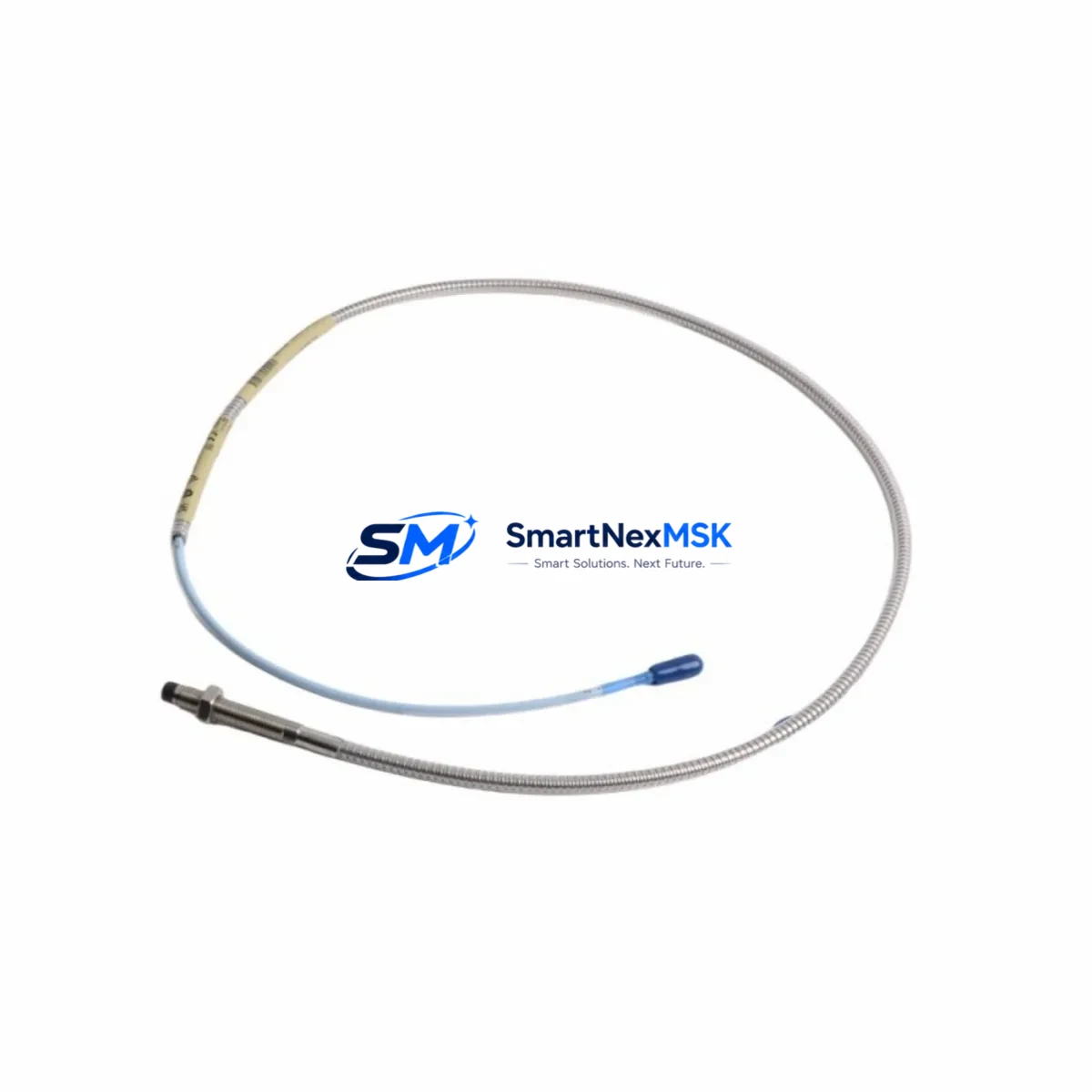

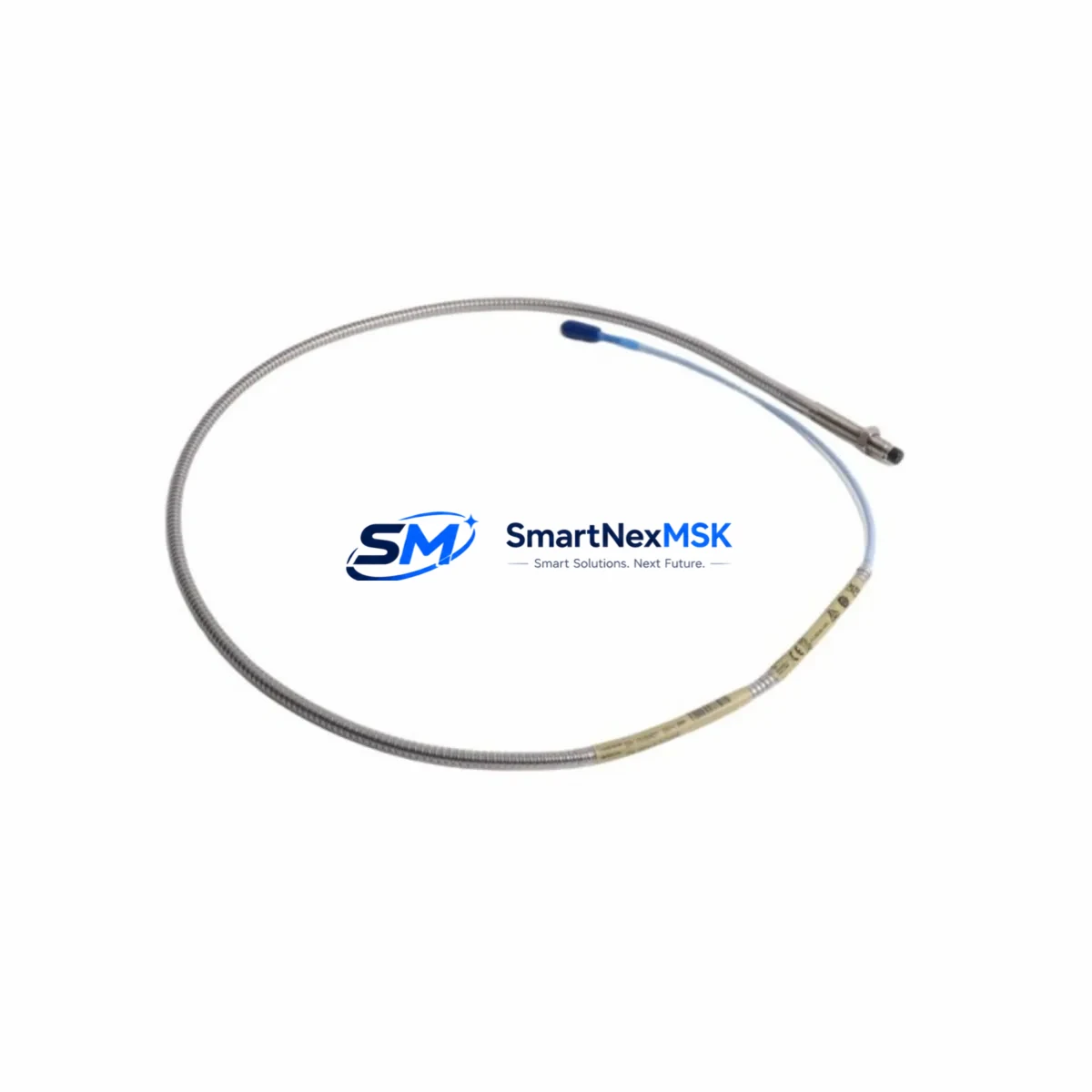

Bently Nevada 330104-00-03-50-02-05 Safety Proximity Transducer

Bently Nevada 330104-00-03-50-02-05 Safety Proximity Transducer: Reliable Vibration Monitoring for Harsh Industrial Sites

The Bently Nevada 330104-00-03-50-02-05 is an 8mm eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, safety-critical shaft vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high-temperature, high-vibration, and chemically aggressive conditions, this transducer is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and water treatment facilities worldwide.

Where control interruption is not an option — in critical turbine trains, compressor strings, pump protection loops, and motor drive systems — the 330104-00-03-50-02-05 delivers consistent, drift-free proximity signals that feed directly into safety shutdown logic and condition monitoring platforms. Its robust construction minimizes the risk of signal drift, false trips, and missed fault detection that can lead to catastrophic machinery failure or unplanned plant downtime.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330104-00-03-50-02-05 transducer does not operate in isolation. It is the field-sensing front end of a complete vibration protection chain. The transducer connects to a Bently Nevada 330130 Proximitor® Sensor (driver/oscillator), which conditions the raw eddy-current signal into a calibrated DC voltage proportional to gap distance. This conditioned signal is then routed to a Bently Nevada 3500/40M Proximitor® Monitor or 3500/42M Proximitor®/Seismic Monitor rack card, where alarm and danger setpoints are enforced in real time.

To protect the signal path from power-line surges and transient overvoltages — a common threat in heavy industrial switchgear rooms — surge protection devices such as the Phoenix Contact TRABTECH PT 2X2-24DC-ST or equivalent DIN-rail transient suppressors are installed at the cabinet entry point. Stable, clean DC power to the Proximitor® driver is supplied through a Bently Nevada 3500/15 Power Supply Module, which provides regulated, isolated 24 VDC with built-in redundancy support.

For facilities running integrated safety instrumented systems (SIS), the proximity transducer output is often hardwired in parallel to both the condition monitoring rack and a Triconex 3700A Safety Manager or Rockwell Automation GuardLogix 5580 safety PLC, ensuring that vibration-based trip signals are captured within the SIL-rated safety loop. Cable routing from the field junction box to the control room typically uses Belden 9182 or equivalent armored instrumentation cable to maintain signal integrity across long cable runs in electrically noisy environments.

In multi-machine protection architectures — such as a gas turbine-generator train or a centrifugal compressor string — multiple 330104-00-03-50-02-05 transducers are deployed at each bearing location (X-Y radial pairs plus thrust position), all feeding into a centralized Bently Nevada 3500 Series Rack. The rack’s communication gateway, such as the 3500/92 Communication Gateway Module, transmits real-time vibration data via Modbus TCP or OPC-UA to the plant DCS — typically a Honeywell Experion PKS or Emerson DeltaV — enabling operators to trend shaft dynamics and act before a fault escalates to a trip event.

Critical Industrial Safety Applications

The Bently Nevada 330104-00-03-50-02-05 is deployed across the full spectrum of heavy industry where rotating machinery reliability is directly linked to process safety and production continuity.

In petrochemical and refinery environments, this transducer monitors shaft vibration on critical service compressors, reactor charge pumps, and crude distillation column overhead compressors. ATEX Zone 1 certification makes it suitable for installation in flammable gas atmospheres without additional explosion-proof housing. A single undetected bearing fault in these services can trigger a process safety event; the 330104-00-03-50-02-05 provides the early warning margin that allows safe, controlled shutdown before catastrophic failure.

In power generation — including coal-fired, gas turbine, and combined-cycle plants — the transducer is installed on steam turbine journal bearings, generator shaft extensions, and boiler feed pump drives. Continuous shaft position monitoring via this sensor feeds directly into the turbine protection system, enabling automatic trip on high vibration or shaft displacement before blade rub or bearing seizure occurs.

In mining and mineral processing, where ball mills, SAG mills, and large slurry pumps operate under extreme mechanical loads and shock vibration, the IP67-rated, high-temperature-tolerant 330104-00-03-50-02-05 maintains reliable signal output even when exposed to dust ingress, water spray, and structural vibration that would compromise lesser sensors.

In water and wastewater treatment facilities, the transducer protects large vertical turbine pumps and blower trains that must run continuously to maintain regulatory compliance. In metallurgical and steel mill applications, it monitors rolling mill drive motors and continuous caster pinch roll drives operating in high-temperature, high-EMI environments. In port and bulk material handling facilities, it is used on conveyor drive gearboxes and ship unloader slewing drives where unplanned downtime has direct financial and logistical consequences.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330104-00-03-50-02-05?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are supported with replacement or full refund, and our technical team provides remote troubleshooting assistance throughout the warranty period.

Q2: How is each unit tested before shipment?
Every 330104-00-03-50-02-05 transducer undergoes pre-shipment functional verification including gap-versus-output linearity check, insulation resistance test, and connector integrity inspection. Units sourced as surplus new are additionally inspected for physical condition, cable sheath integrity, and connector pin condition before dispatch.

Q3: Is this transducer compatible with existing Bently Nevada 3300 and 3500 Series systems?
Yes. The 330104-00-03-50-02-05 is fully compatible with the Bently Nevada 3300 XL Proximitor® driver family and integrates directly with 3500 Series monitor racks. It is also backward-compatible with legacy 3300 Series installations, making it an ideal drop-in replacement for aging sensors without requiring recalibration of the monitoring system.

Q4: Can long-term supply and replacement support be guaranteed?
SMARTNEXMSK maintains standing inventory of the 330104-00-03-50-02-05 and related 3300 XL Series components to support planned maintenance programs, emergency replacements, and multi-unit project requirements. We provide export documentation, country-of-origin certificates, and material traceability records to meet procurement compliance requirements in regulated industries.
