Bently Nevada 330104-00-04-10-02-00 Retrofit-Ready Probe

Bently Nevada 330104-00-04-10-02-00 Retrofit-Ready Eddy Current Probe for 3300 XL Control Systems

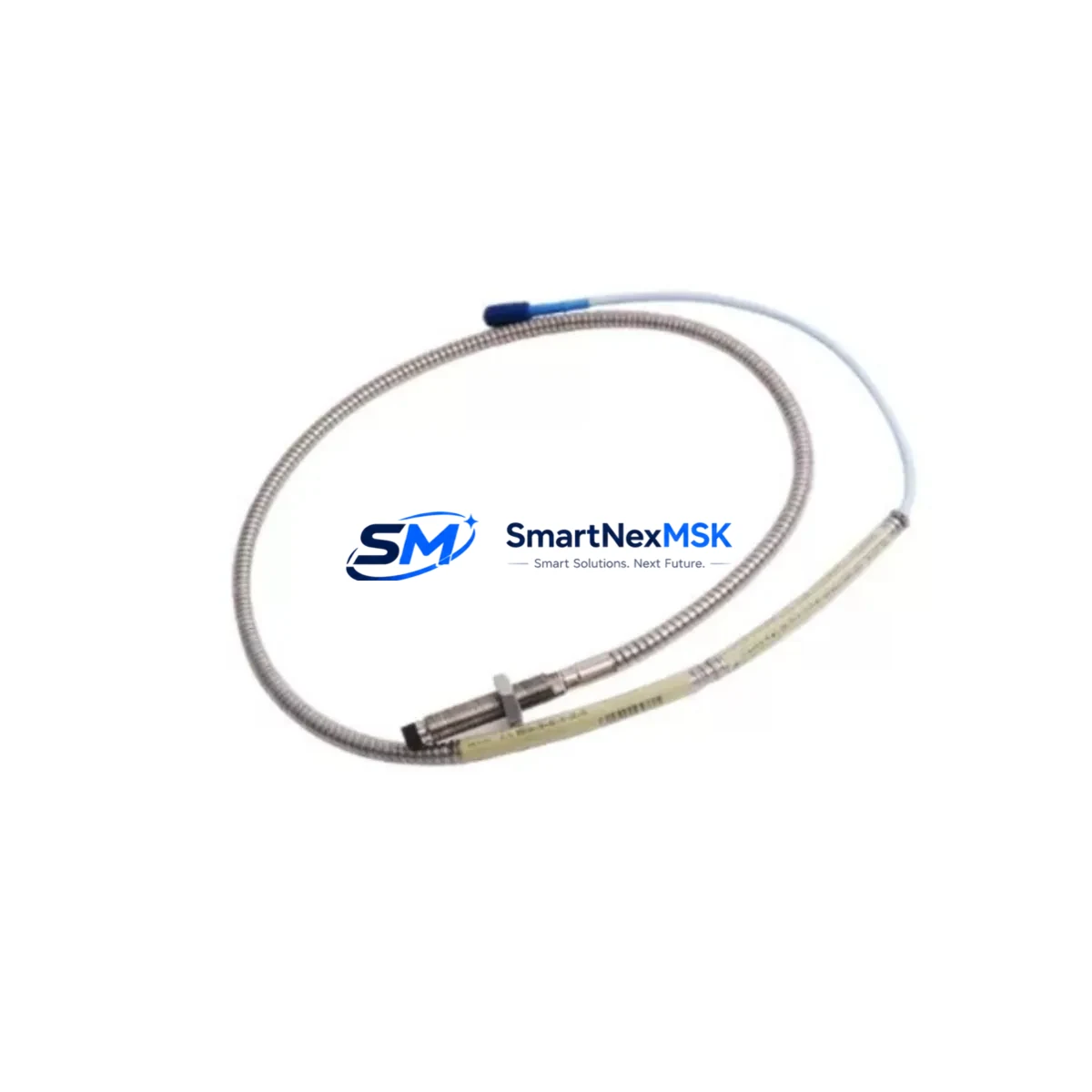

The Bently Nevada 330104-00-04-10-02-00 is an 8mm eddy current proximity probe engineered for the 3300 XL Series continuous machinery monitoring platform. Designed as a retrofit-ready, drop-in replacement for aging or discontinued probe assemblies, this unit supports smooth modernization of vibration and position measurement loops in rotating machinery protection systems — without requiring changes to existing field wiring, rack architecture, or software configuration.

Whether you are replacing a failed probe in a critical turbine train, upgrading a legacy 3300 Series installation to 3300 XL specification, or restoring a mothballed compressor line, the 330104-00-04-10-02-00 delivers the dimensional accuracy, gap voltage linearity, and signal integrity required by Bently Nevada’s API 670-compliant monitoring philosophy. The probe ships pre-tested against factory calibration standards and is backed by a 12-month warranty covering both parts and workmanship.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330104-00-04-10-02-00 into an operating plant begins well before the maintenance window opens. Engineers should first audit the existing 3300 XL proximitor driver — typically the 3300/16 or 3300/20 monitor module installed in the 3300 rack — to confirm that the driver’s scale factor and gap setpoints are configured for an 8mm probe system. If the plant previously operated a 5mm probe assembly, the driver module must be reconfigured or replaced before the new probe is installed.

Field wiring from the junction box to the rack should be inspected for continuity and shield integrity. The 3300 XL system uses a three-conductor shielded cable arrangement: the center conductor carries the oscillator drive signal, the return conductor carries the gap voltage back to the proximitor, and the shield is grounded at the rack end only. Any compromise in shield continuity will introduce noise into the gap voltage signal and trigger nuisance alarms on the 3500/42M or 3500/40M vibration monitor cards installed in the adjacent 3500 Series rack, if the plant has migrated part of its monitoring infrastructure to the newer platform.

For plants running a mixed 3300 XL and 3500 Series architecture, the probe signal is typically routed through a 3300 XL extension cable — available in standard lengths of 5 m, 9 m, and 15 m — before terminating at the proximitor driver. Confirm that the total cable system length (probe integral cable plus extension cable) does not exceed the calibrated system length specified on the proximitor driver label. Exceeding this length degrades linearity and invalidates the factory calibration.

Where the plant’s DCS or safety system reads the gap voltage via a 4–20 mA transmitter, verify that the transmitter’s input range is scaled to the probe’s linear output window. Plants using Emerson Ovation DCS or Honeywell Experion PKS as the supervisory layer should confirm that the analog input card assigned to the vibration channel is configured for the correct engineering unit conversion — typically micrometers peak-to-peak or mils peak-to-peak — before the probe is energized. HMI faceplate displays on the operator console should be reviewed to ensure that the vibration trend historian tag is mapped to the correct I/O address after any rack slot reassignment.

If the retrofit involves relocating the probe to a different rack slot in the 3300 XL chassis, the module address must be updated in the System 1 condition monitoring software database. Failure to update the channel address will result in the historian logging data to the wrong asset tag, which can corrupt long-term trend baselines used for predictive maintenance decisions. The Keyphasor® module — often a 3300/25 or 3500/17 — should also be verified for phase reference signal continuity if the probe is installed on a shaft that requires once-per-revolution synchronization for spectrum analysis.

Downtime Control During System Migration

Minimizing unplanned downtime during a probe replacement requires a structured hot-swap protocol. Where the process permits a brief bypass, the 3300 XL monitor’s bypass switch should be activated before the probe is disconnected to prevent a spurious trip signal from reaching the emergency shutdown system. The bypass state should be logged in the plant’s permit-to-work system and communicated to the control room operator before any field work begins.

The original probe should be removed carefully, preserving the mounting bracket alignment. The replacement 330104-00-04-10-02-00 should be threaded into the bracket by hand until the tip is approximately 2.5 mm from the shaft surface, then adjusted to achieve the target gap voltage of –10 VDC ± 0.5 VDC as read on the proximitor driver’s test point. A calibrated digital voltmeter should be used for this measurement — do not rely solely on the monitor card’s OK LED, as the OK relay has a hysteresis band that may mask a marginally out-of-range gap condition.

Once the gap voltage is confirmed, the extension cable connector should be torqued to the manufacturer’s specification and the cable secured to the bracket with the original cable clamp. The bypass should then be released and the monitor card’s OK status confirmed before the permit-to-work is closed. The entire swap procedure, when pre-staged with the replacement probe and tools, can typically be completed within 30 to 45 minutes, keeping the machinery protection system offline for the minimum possible duration.

For plants where a cold shutdown is required, the opportunity should be used to inspect the proximitor driver, the 3300 XL rack backplane connectors, and the power supply module — often a 3300/05 or 3300/10 — for signs of corrosion or loose terminations. Addressing these ancillary components during the same maintenance window avoids a second outage and extends the overall reliability of the monitoring system.

Retrofit Support FAQ

Q1: Is the 330104-00-04-10-02-00 a direct drop-in replacement for my existing 3300 XL 8mm probe?
Yes. The 330104-00-04-10-02-00 is dimensionally and electrically identical to the standard Bently Nevada 3300 XL 8mm probe assembly. It uses the same M10 × 1.0 mounting thread, the same 3-pin connector interface, and the same 200 mV/mil sensitivity specification. No changes to the proximitor driver, rack wiring, or monitor configuration are required when replacing a like-for-like 8mm probe.

Q2: What commissioning checks are required after installation?
After installation, verify the gap voltage at the proximitor driver test point (target: –10 VDC ± 0.5 VDC), confirm the OK relay is energized, and check that the vibration channel reads a plausible baseline value in the System 1 software or the DCS historian. If a Keyphasor® reference is used on the same shaft, confirm that the phase mark is detected correctly before releasing the bypass.

Q3: Can this probe be used with a 3500 Series monitor rack?
The 330104-00-04-10-02-00 is calibrated for the 3300 XL proximitor driver system. It can be used with a 3500 Series rack only if the 3500/42M or 3500/40M monitor card is configured to accept an external proximitor input (i.e., the probe and driver are used as a system, with the driver’s analog output fed into the 3500 rack’s input terminals). Direct connection of the probe to a 3500 Series internal driver is not supported without recalibration.

Q4: What does the 12-month warranty cover, and how is it processed?
The 12-month warranty covers manufacturing defects and workmanship failures under normal operating conditions. Each unit is tested against factory calibration standards before shipment. In the event of a warranty claim, contact our sales team with the order reference and a description of the failure mode. We will arrange for a replacement unit to be dispatched and provide a return label for the defective probe. Warranty claims are typically resolved within 5 business days of the defective unit being received.
