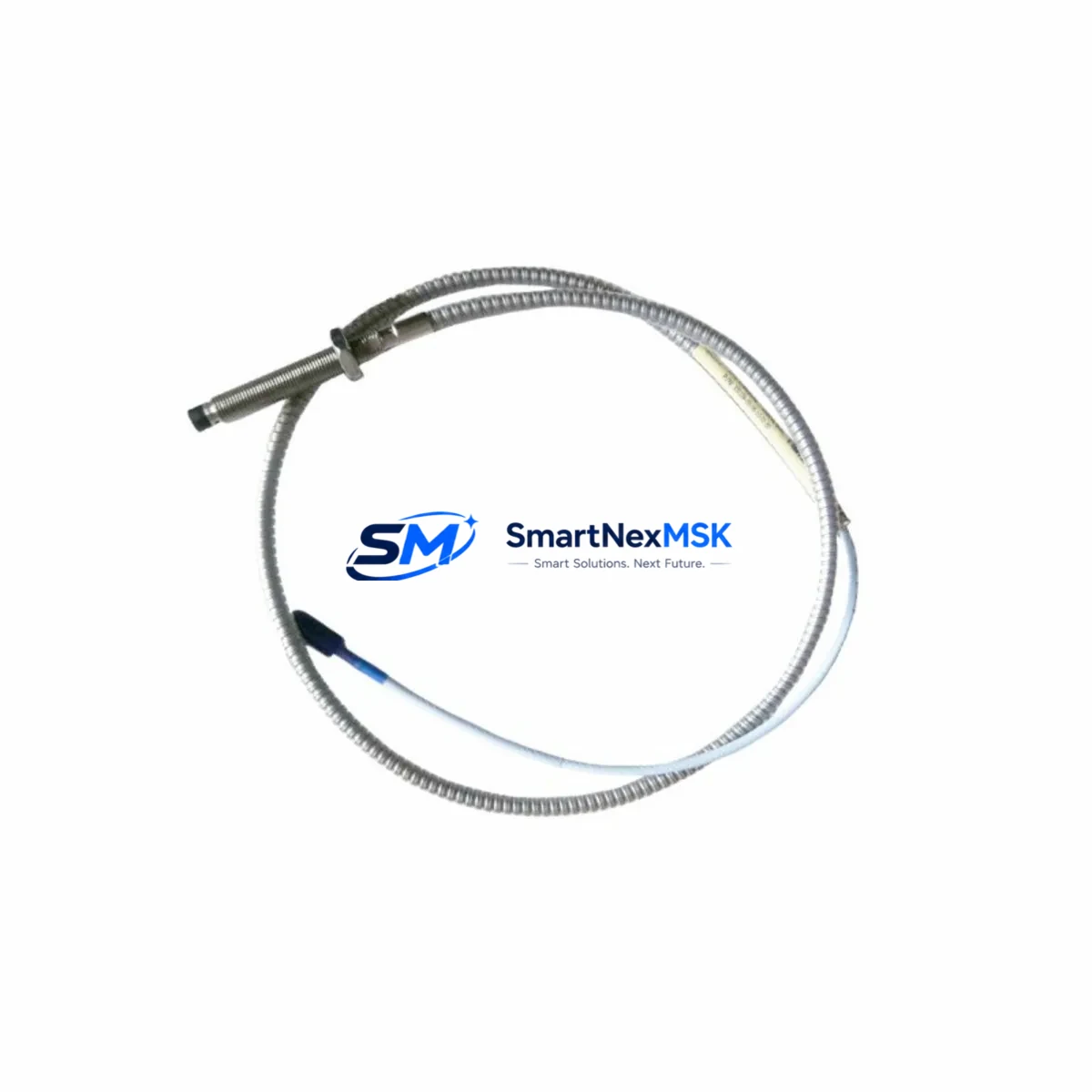

Bently Nevada 330104-00-04-10-02-05 3300 XL Proximity Transducer

Bently Nevada 330104-00-04-10-02-05: Retrofit-Ready Proximity Transducer for 3300 XL Control Systems

The Bently Nevada 330104-00-04-10-02-05 is a high-precision eddy-current proximity transducer engineered for seamless integration into Bently Nevada 3300 XL vibration monitoring systems. Designed to serve as a direct retrofit replacement for aging or discontinued transducer assemblies, this unit supports continuous shaft displacement and vibration measurement in rotating machinery applications including turbines, compressors, pumps, and gearboxes. Whether you are upgrading an existing 3300 Series installation, recovering from an unplanned failure, or executing a planned control system modernization, the 330104-00-04-10-02-05 delivers the signal fidelity, mechanical compatibility, and electrical interface required for a smooth, low-risk transition.

This transducer is part of the 3300 XL 8mm proximity transducer family, offering a sensitivity of 7.87 V/mm (200 mV/mil), a measurement range of 0.25 mm to 2.25 mm (10 to 90 mil), and a supply voltage of -24 VDC nominal. The output is a standard DC voltage proportional to the gap between the probe tip and the observed target surface, making it fully compatible with the Bently Nevada 3300 XL proximitor/seismic monitor modules installed in your existing control cabinet. The cable assembly and connector configuration match the original factory specification, eliminating the need for field rewiring or terminal block modifications during replacement.

For facilities operating legacy 3300 Series (non-XL) racks, the 330104-00-04-10-02-05 can serve as an upgrade path when paired with the appropriate 3300 XL proximitor module. Engineers should verify the existing Bently Nevada 3300 XL proximitor extension cable length and confirm that the overall system cable length — including the probe, extension cable such as the 330130 series, and proximitor — does not exceed the calibrated system specification. Mismatched cable lengths are a common source of calibration drift during retrofit projects and must be addressed before commissioning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 330104-00-04-10-02-05 into an operating plant begins well before the maintenance window opens. The first step is a thorough audit of the existing 3300 XL rack configuration. Identify the proximitor module slot assignments, confirm the channel-to-machine-train mapping documented in the original system design, and cross-reference with the current DCS or safety system I/O list. In many plants, the Bently Nevada 3500 rack system has replaced the 3300 XL as the primary machinery protection platform; if your facility is executing a parallel migration from 3300 XL to 3500 Series, the 330104-00-04-10-02-05 can continue to serve the 3300 XL channels while the new 3500/22M transient data interface modules are being commissioned on the upgraded rack.

Terminal block wiring is a critical checkpoint. The 3300 XL proximitor accepts the probe signal via a coaxial input; however, the field junction box or marshalling cabinet may use terminal strips that interface with the extension cable shield and center conductor separately. Verify that the existing Bently Nevada 330130-080-00-00 or equivalent extension cable is undamaged and that the connector at the proximitor end is free of corrosion. If the extension cable is being replaced simultaneously, ensure the new cable is factory-matched to the probe to maintain system calibration — field-assembled cable sets are not recommended for 3300 XL systems without recalibration.

For plants integrating vibration data into a DCS such as a Honeywell Experion PKS, Emerson DeltaV, or ABB System 800xA, the analog output from the 3300 XL proximitor module feeds into the DCS analog input card. Confirm the input range configuration on the DCS AI module matches the proximitor output span. If the control narrative references specific vibration alarm setpoints in the DCS graphics or HMI faceplate, these values should be validated against the new transducer’s calibrated output before returning the machine to service. HMI screens built on Wonderware InTouch or Ignition SCADA platforms may display gap voltage or converted displacement values — verify the engineering unit conversion factors are consistent with the 7.87 V/mm sensitivity of the 330104-00-04-10-02-05.

I/O expansion considerations arise when a plant is adding new measurement points to an existing 3300 XL rack. The 3300 XL accepts up to a defined number of proximitor channels per rack; if all slots are occupied, a rack expansion using a Bently Nevada 3300 XL rack extender or migration to a 3500 rack with a 3500/42M proximitor monitor may be required. In either case, the 330104-00-04-10-02-05 probe and its associated extension cable remain reusable, protecting the capital investment in field-installed hardware.

Programming compatibility is another dimension of retrofit planning. If the machine protection logic is implemented in a safety PLC — for example, a Triconex Tricon or a Rockwell Automation GuardLogix — the analog input module receiving the proximitor signal must be confirmed to accept the DC voltage range produced by the 3300 XL system. Function block logic for high-vibration trip, alarm, and bypass should be reviewed and, where necessary, updated to reflect any changes in signal scaling introduced by the replacement transducer. A Bently Nevada System 1 condition monitoring software installation, if present, should also be updated with the new transducer configuration file to ensure accurate trend data continuity.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary commercial driver behind stocking retrofit-ready components such as the 330104-00-04-10-02-05. The recommended approach is a staged replacement strategy: pre-stage the replacement probe, extension cable, and any required proximitor module at the maintenance staging area before the maintenance window begins. Confirm that the Bently Nevada System 1 historian has archived the pre-replacement vibration baseline so that post-installation trends can be compared directly.

During the physical swap, place the affected machine protection channel in bypass mode through the 3300 XL rack front panel or through the DCS maintenance override, following your site’s management-of-change procedure. This preserves the overall machinery protection system integrity while the channel is temporarily out of service. Document the as-found probe gap reading using a calibrated gap meter before removing the old probe — this value serves as the baseline for setting the replacement probe gap and confirms whether the original installation was within specification.

After installing the 330104-00-04-10-02-05, perform a static gap calibration by adjusting the probe standoff until the proximitor OK relay energizes and the output voltage falls within the linear range. Verify the OK relay status at the 3300 XL rack front panel and confirm the signal is received correctly at the DCS AI module. Run the machine at low speed if possible to confirm dynamic signal response before releasing the bypass and returning the channel to active protection. This commissioning sequence typically requires 30 to 90 minutes per channel and can be executed without interrupting production on adjacent machine trains sharing the same rack.

For facilities maintaining a critical spare inventory, stocking one 330104-00-04-10-02-05 per machine train — alongside a matched 330130 extension cable and a spare 3300 XL proximitor module — is the industry-standard approach to achieving a mean-time-to-repair of under two hours for proximity transducer failures. All units supplied by SMARTNEXMSK are pre-tested prior to shipment and covered by a 12-month warranty, ensuring that your spare stock is ready for immediate deployment when needed.

Retrofit Support FAQ

Q1: Is the 330104-00-04-10-02-05 a direct replacement for earlier 330104 variants?
Yes. The 330104-00-04-10-02-05 is part of the Bently Nevada 330104 8mm proximity probe family and is electrically and mechanically compatible with other 330104 variants used in 3300 XL systems. However, always verify the total system cable length (probe + extension cable) matches the calibrated system specification for your specific proximitor module. If the extension cable length differs from the original configuration, a system recalibration is required before returning the channel to service.

Q2: What wiring checks are required before installation?
Inspect the coaxial connector at both the probe and extension cable ends for corrosion, mechanical damage, or contamination. Verify that the extension cable shield continuity is intact using a multimeter. At the proximitor module, confirm the input connector is seated correctly and that the OK relay is de-energized (indicating an open circuit) before connecting the new probe. After connection, the OK relay should energize when the probe gap is within the specified linear range (0.25 – 2.25 mm).

Q3: How is compatibility with our existing DCS analog input cards verified?
The 3300 XL proximitor outputs a DC voltage in the range of approximately -2 VDC to -18 VDC depending on gap. Confirm that the DCS analog input module is configured for this voltage range and that the engineering unit scaling in the DCS matches the 7.87 V/mm (200 mV/mil) sensitivity of the 330104-00-04-10-02-05. If the DCS AI card is configured for 4–20 mA input, a signal conditioner or the proximitor’s built-in 4–20 mA output option (if equipped) must be used. Review the I/O list and loop drawing before installation.

Q4: What does the 12-month warranty cover, and is pre-shipment testing performed?
All 330104-00-04-10-02-05 units supplied by SMARTNEXMSK undergo full functional testing — including OK relay verification, output linearity check, and sensitivity confirmation — prior to shipment. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Units showing physical damage resulting from improper installation, incorrect gap setting, or electrical overstress are not covered. Warranty claims are processed promptly with replacement units dispatched from stock to minimize your downtime exposure.
