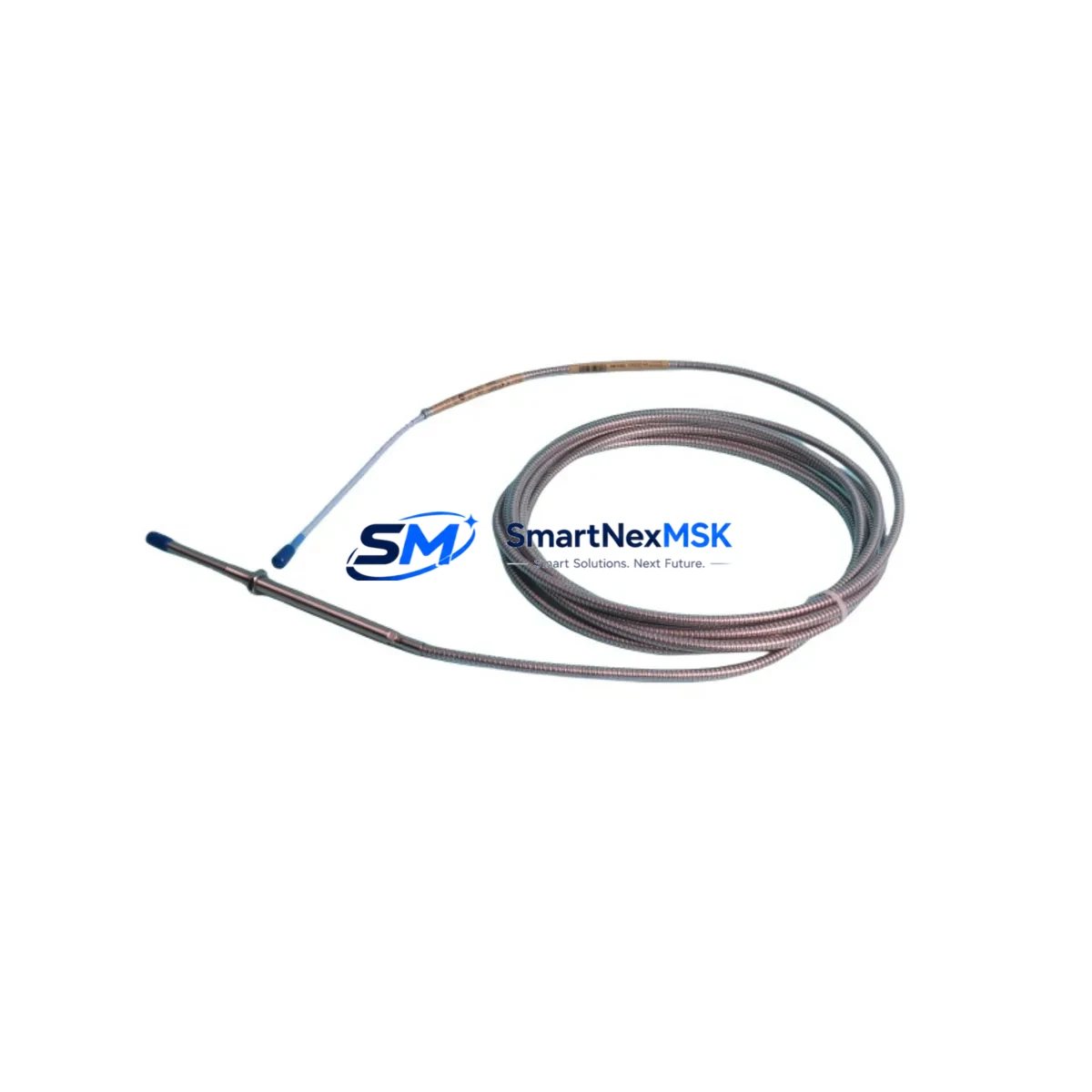

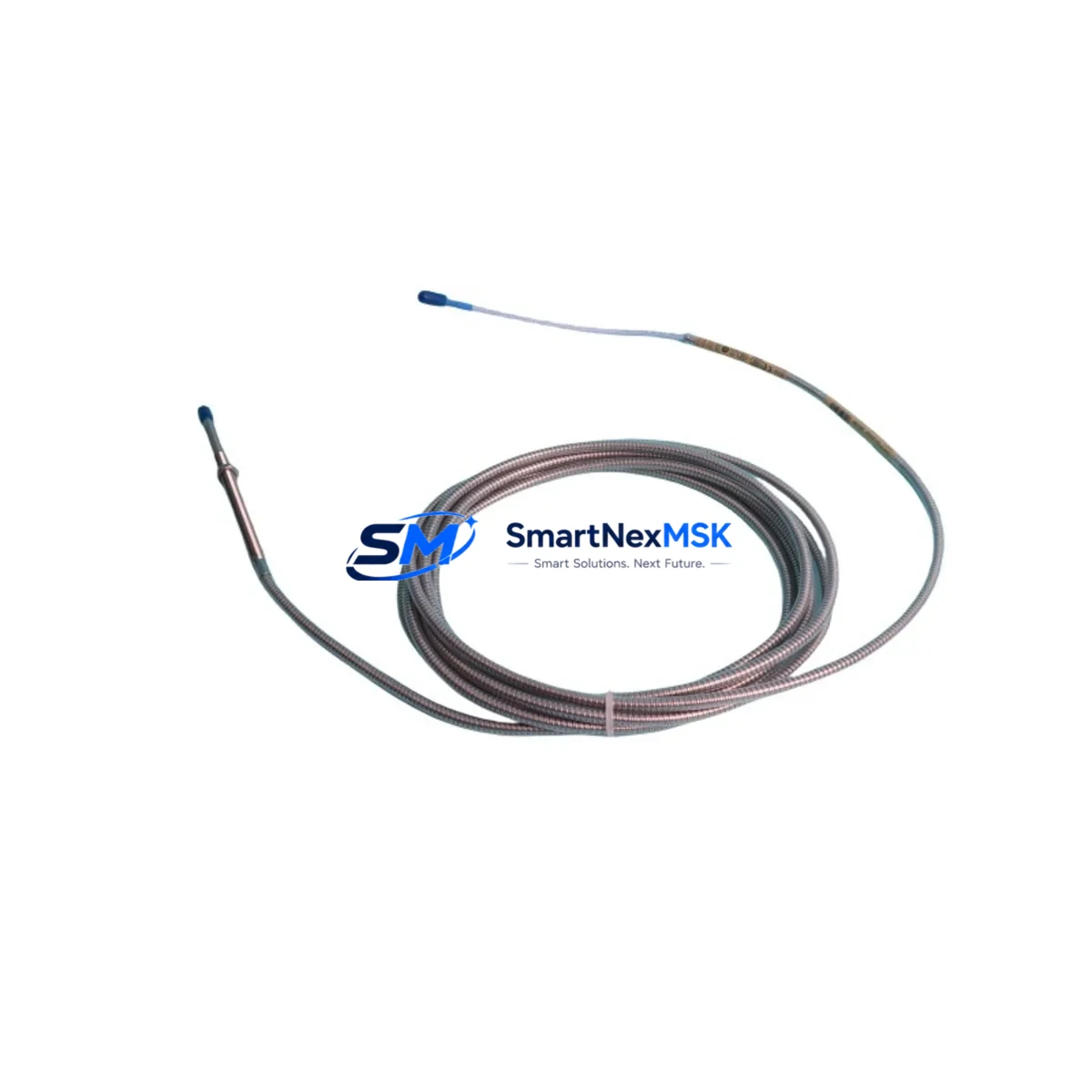

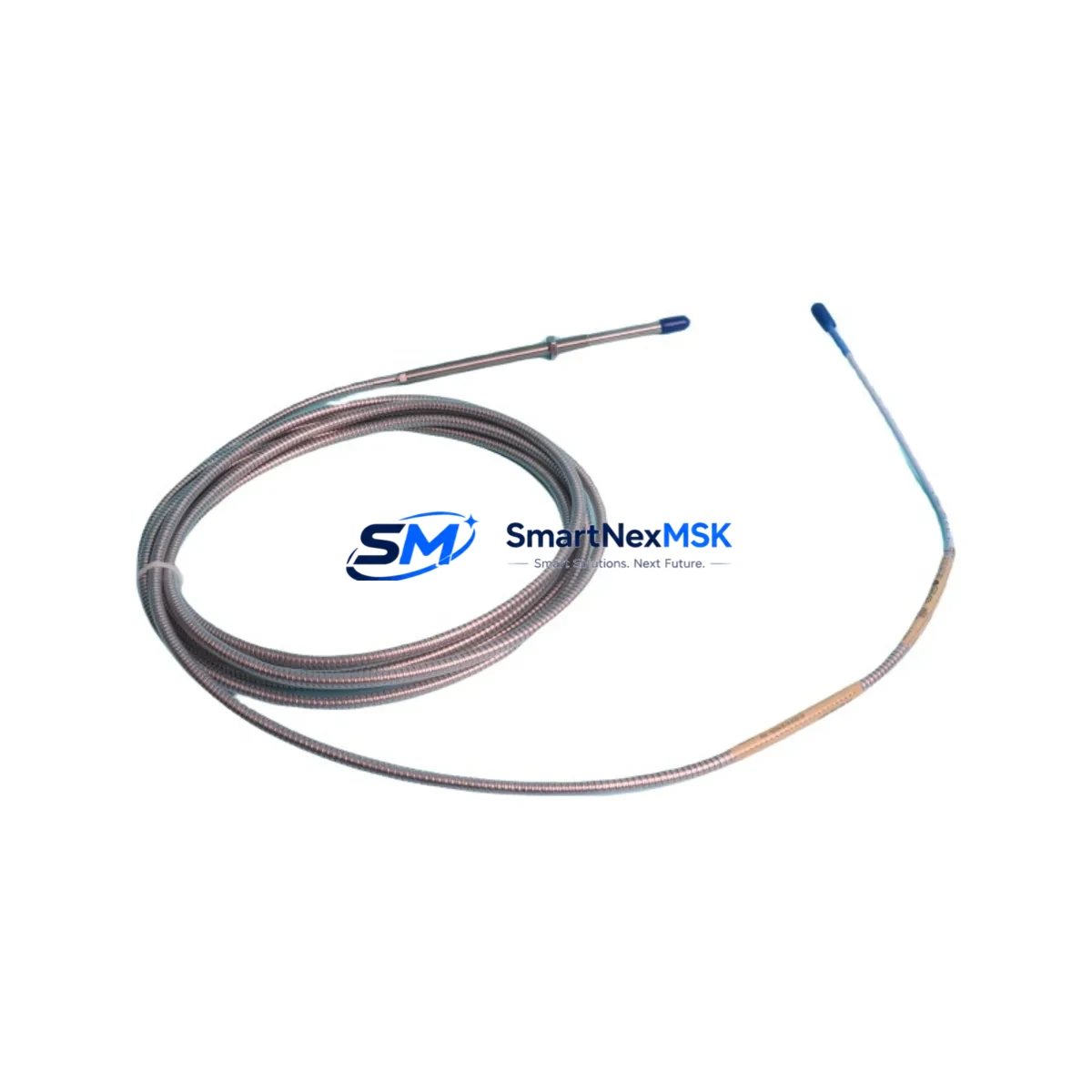

Bently Nevada 330104-00-04-50-02-00 Safety Proximity Probe

Bently Nevada 330104-00-04-50-02-00 Safety Proximity Probe: Reliable Vibration Control for Harsh Industrial Sites

The Bently Nevada 330104-00-04-50-02-00 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and displacement monitoring in the most demanding industrial environments. Whether deployed in rotating machinery protection systems, critical interlock loops, or high-availability control cabinets, this probe delivers the measurement accuracy and environmental resilience that plant engineers and reliability teams depend on to prevent unplanned shutdowns and protect personnel.

In high-load, high-interference production facilities — including petrochemical plants, power generation stations, mining operations, metallurgical mills, water treatment infrastructure, and continuous-process manufacturing — vibration monitoring is not optional. It is the first line of defense against catastrophic bearing failure, shaft misalignment, rotor instability, and mechanical resonance events. The 330104-00-04-50-02-00 is purpose-built to operate without signal drift, false trips, or measurement degradation even when subjected to electromagnetic interference, ground loops, thermal cycling, moisture ingress, and mechanical shock.

Safety Reliability Table

Control Cabinet Protection Strategy

The 330104-00-04-50-02-00 probe does not operate in isolation — it is the sensing front-end of a complete machinery protection architecture. In a properly configured control cabinet or machinery protection rack, this probe pairs with the Bently Nevada 330180-X1-05 3300 XL Proximitor Sensor, which conditions the raw eddy-current signal into a clean, calibrated DC voltage output suitable for monitoring systems and safety PLCs. The Proximitor is typically mounted in a DIN-rail or rack enclosure alongside the Bently Nevada 3500/22M Transient Data Interface or a 3500/42M Proximitor/Seismic Monitor module, which provides alarm, danger, and relay output functions for automated shutdown interlock circuits.

To protect the signal path from surge events and ground potential differences — common in heavy industrial sites with large motor drives, arc furnaces, or high-voltage switchgear — the probe cable system should be routed with appropriate shielding and terminated through a Bently Nevada 330130 Series Extension Cable, which maintains the coaxial impedance and shielding integrity of the 3300 XL system from probe tip to Proximitor input. In environments with severe electromagnetic interference, additional protection can be achieved by installing the Proximitor in a shielded, grounded enclosure with filtered power supplied by a dedicated 24 VDC industrial power supply with surge and transient suppression.

For plants operating under functional safety requirements (IEC 61511 or IEC 61508), the vibration monitoring loop built around the 330104-00-04-50-02-00 can be integrated with a Safety Instrumented System (SIS) controller or a dedicated Bently Nevada 3500 Series rack to achieve the required Safety Integrity Level (SIL) for machinery overspeed, high vibration, and axial displacement protection. Complementary components in this safety loop often include Bently Nevada 330500 Series Velomitor Piezo-Velocity Sensors for absolute vibration measurement, 330850 Series Keyphasor Probes for phase reference and speed measurement, and Bently Nevada 3500/53 Overspeed Detection Modules for turbine and compressor protection. Together, these components form a layered, redundant protection strategy that minimizes the risk of control interruption, module misoperation, and unplanned field shutdowns.

Power quality within the control cabinet is equally critical. Voltage fluctuations and power surges can cause Proximitor output drift, false alarms, or relay misoperation. Specifying a high-quality, regulated 24 VDC DIN-rail power supply with built-in surge protection — and pairing it with a DC UPS module for ride-through during momentary power interruptions — ensures that the vibration monitoring system remains operational during grid disturbances, generator switchovers, and load-shedding events common in industrial facilities.

Critical Industrial Safety Applications

The Bently Nevada 330104-00-04-50-02-00 proximity probe is deployed across a wide range of safety-critical industrial applications where continuous, accurate shaft vibration and displacement monitoring is essential to safe operation:

Petrochemical and Refining: In compressor trains, centrifugal pumps, and turbine-driven process equipment, this probe monitors radial shaft vibration and journal bearing clearance in real time. Early detection of bearing wear, rotor imbalance, or seal degradation allows operators to schedule maintenance before a failure event, preventing hazardous hydrocarbon releases and protecting personnel in classified hazardous areas.

Power Generation: Steam turbines, gas turbines, and large generator sets in power plants rely on proximity probe systems to maintain safe operating clearances between rotating and stationary components. The 330104-00-04-50-02-00 provides the high-resolution, low-noise displacement signal required for turbine supervisory instrumentation (TSI) systems, supporting both normal operation monitoring and emergency shutdown interlock functions.

Mining and Mineral Processing: Ball mills, SAG mills, conveyor drives, and large slurry pumps in mining operations are subject to extreme mechanical loads, dust, and moisture. The IP67-rated, ruggedized construction of this probe ensures reliable signal output even in these harsh conditions, supporting predictive maintenance programs that reduce unplanned downtime in continuous mining operations.

Metallurgy and Steel Production: Rolling mills, continuous casters, and large induction furnace drives generate intense electromagnetic fields and mechanical vibration. The shielded coaxial design of the 330104-00-04-50-02-00 maintains signal integrity in these high-EMI environments, providing accurate shaft position data to the control system without interference-induced measurement errors.

Water and Wastewater Treatment: Large centrifugal pumps and blower units in water treatment facilities require continuous vibration monitoring to prevent bearing failures that could interrupt critical public infrastructure services. The wide operating temperature range and moisture resistance of this probe make it suitable for both indoor pump stations and outdoor installations.

Port and Marine Infrastructure: Crane drives, ship-loader mechanisms, and large diesel generator sets in port facilities benefit from proximity probe monitoring to detect mechanical degradation before it causes operational disruptions or safety incidents in high-traffic, safety-sensitive environments.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330104-00-04-50-02-00?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are supported with replacement or repair, and our technical team provides application guidance throughout the warranty period to ensure correct installation and operation.

Q2: How is each unit tested before shipment?
Every 330104-00-04-50-02-00 probe undergoes a full pre-shipment functional verification, including output sensitivity check, insulation resistance test, and connector integrity inspection. Units that do not meet Bently Nevada 3300 XL system specifications are quarantined and not dispatched. A test report is available upon request for quality-critical applications.

Q3: Is this probe compatible with existing 3300 XL system installations?
Yes. The 330104-00-04-50-02-00 is a direct replacement for existing 3300 XL 8mm proximity probe installations. It is fully compatible with 3300 XL Series Proximitor Sensors, 330130 Series Extension Cables, and 3500 Series monitoring racks without requiring recalibration of the system, provided the target material is AISI 4140 steel or an equivalent calibrated alloy.

Q4: Can long-term supply and spare parts availability be guaranteed?
SMARTNEXMSK maintains dedicated stock of the 330104-00-04-50-02-00 and related 3300 XL system components to support ongoing maintenance, turnaround planning, and emergency replacement requirements. We supply to industrial end-users, EPC contractors, and MRO procurement teams globally, with fast dispatch and export documentation support for international shipments.
