Bently Nevada 330104-00-05-05-01-00 3300 XL Spare: Precision Vibration Monitoring Replacement for Industrial Uptime

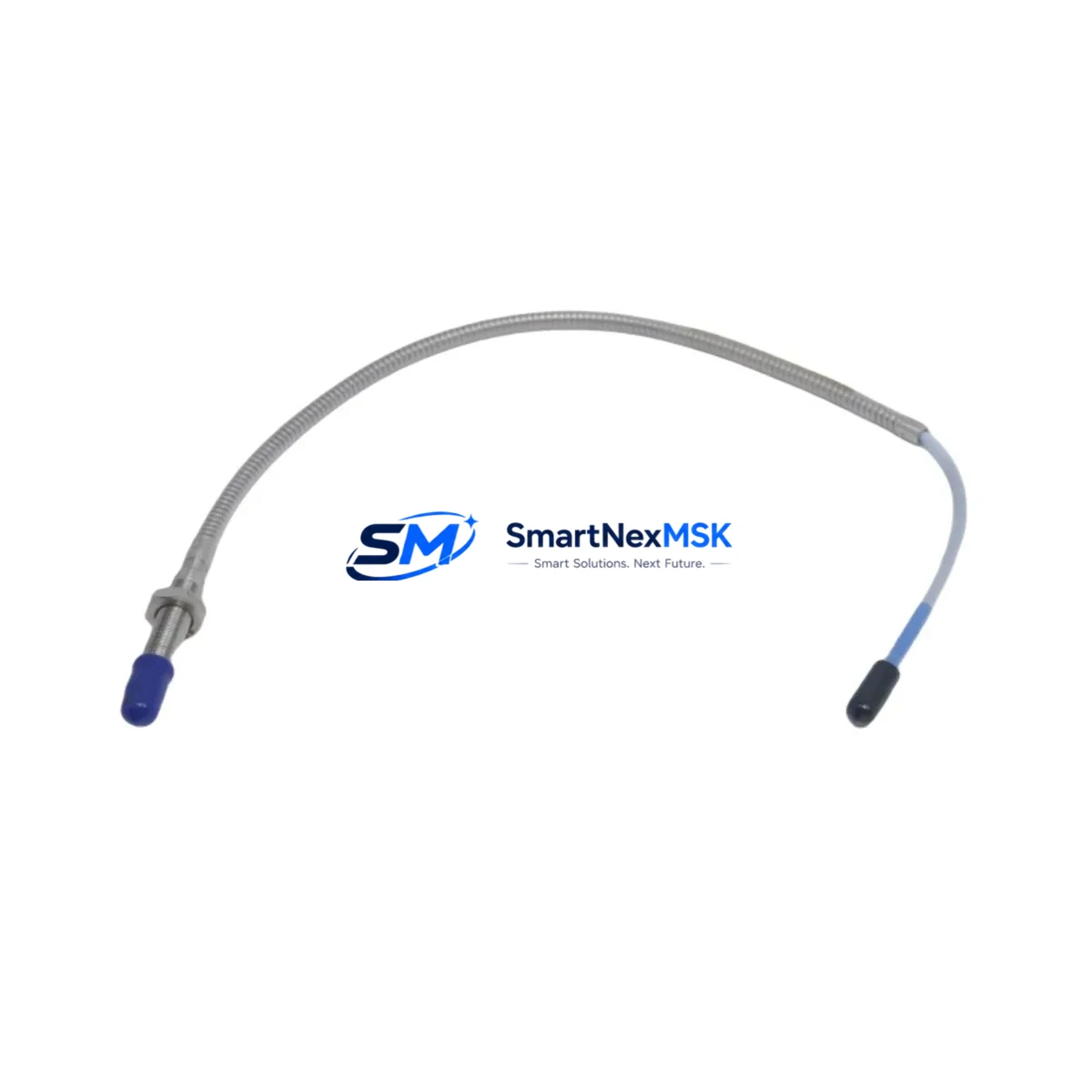

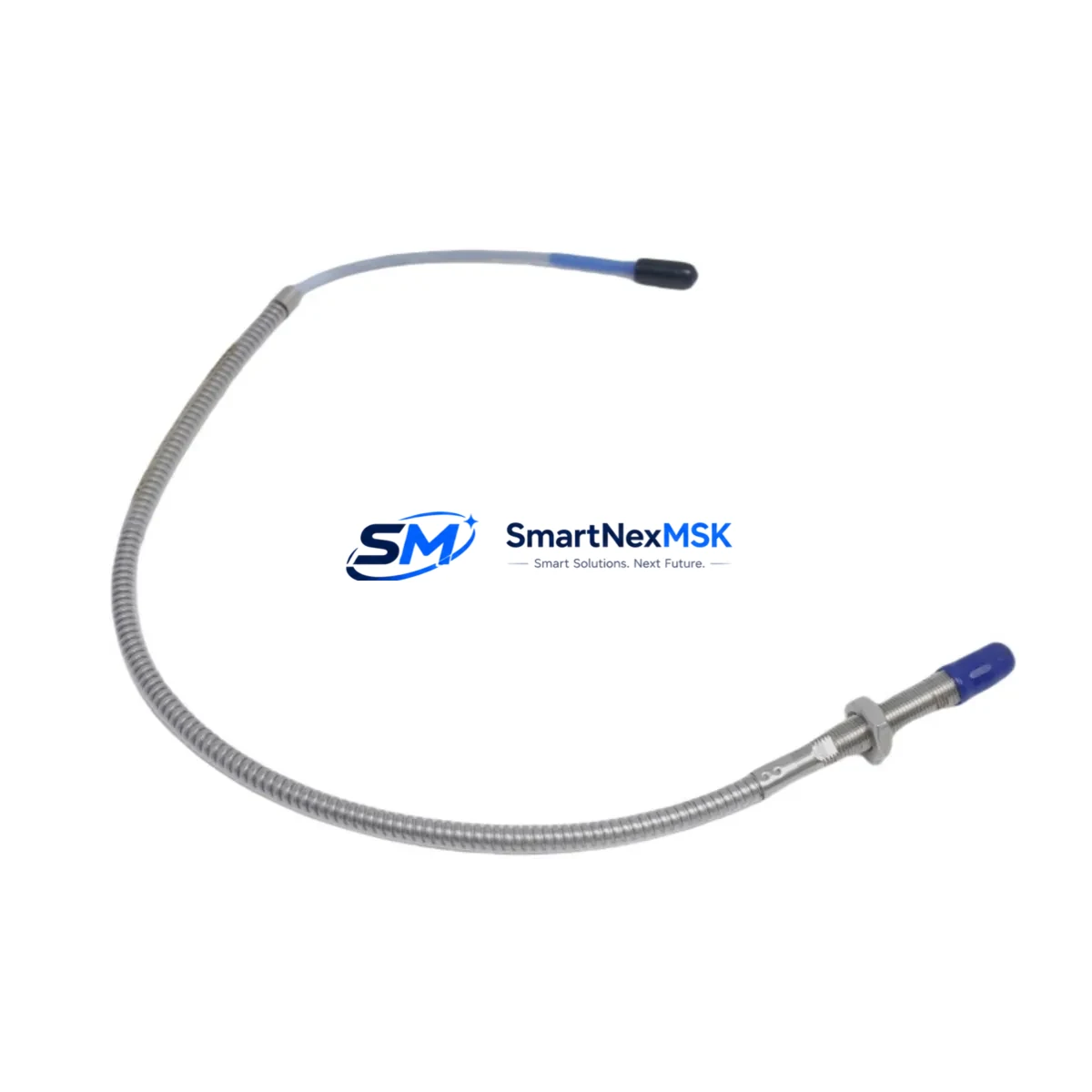

Unplanned downtime in rotating machinery environments is one of the most costly events a maintenance team can face. The Bently Nevada 330104-00-05-05-01-00 is an 8mm proximity probe designed for the 3300 XL Series continuous vibration monitoring system — a platform widely deployed in turbines, compressors, pumps, and critical rotating assets across oil & gas, power generation, petrochemical, and heavy manufacturing facilities. Holding a verified original spare of this probe in your MRO inventory is a direct investment in uptime assurance and rapid fault recovery.

This proximity probe operates as the primary sensing element in eddy-current-based shaft displacement and vibration measurement loops. When a probe fails or drifts out of calibration tolerance, the entire monitoring channel is compromised — triggering nuisance trips, masking real faults, or leaving critical machinery unprotected. Sourcing a tested, original-specification replacement from a reliable supply partner eliminates the risk of extended lead times during an emergency shutdown.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330104-00-05-05-01-00 proximity probe is flagged for replacement during a planned outage or emergency shutdown, experienced maintenance engineers know that the probe itself is rarely the only component requiring attention. A thorough inspection of the complete measurement loop is essential to restore full monitoring integrity and prevent repeat failures.

Begin with the 330130 Series extension cable that connects the probe to the proximitor. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation degradation — particularly in high-vibration or high-temperature zones. A probe replacement paired with a worn extension cable will not restore system accuracy. Inspect the cable jacket, connector pins, and shield continuity before reinstalling.

Next, verify the condition of the 3300 XL Proximitor Sensor (330180 Series). The proximitor converts the probe’s eddy-current signal into a calibrated DC voltage output. If the proximitor has been operating with a degraded probe for an extended period, its internal circuitry may have been stressed. Bench-test the proximitor output against a known-good probe before returning the channel to service.

The 3300 XL Monitor module — whether a radial vibration, axial position, or thrust monitor card — should be inspected for alarm setpoint integrity and I/O channel health. Confirm that the OK relay output, danger relay, and 4–20 mA analog output are all functioning within specification. In rack-based systems, also check the 3300 XL Power Supply module for stable -24 VDC output, as voltage sag directly affects probe gap voltage and measurement accuracy.

For facilities running integrated condition monitoring, the 3500/22M Transient Data Interface or equivalent data acquisition module should be verified for correct channel mapping after any probe swap. Incorrect channel assignments can result in misidentified fault signatures in your historian or DCS. If the system interfaces with a DeltaV or Ovation DCS via Modbus or OPC, confirm that the communication link is re-established and that the new probe’s calibration data is reflected in the process variable display.

In control cabinets housing 3300 XL racks, also inspect terminal blocks and field wiring for loose connections, oxidation, or moisture ingress. Vibration-intensive environments accelerate terminal loosening, which can introduce noise into the measurement signal. A signal isolator or barrier in the loop should be checked for correct input impedance matching with the new probe. Finally, review the barrier fuse or circuit protection on the -24 VDC supply rail — a marginal fuse can cause intermittent supply drops that mimic probe faults.

Stocking the 330104-00-05-05-01-00 alongside its associated extension cable, a spare proximitor, and a tested monitor card creates a complete channel-level spare kit — the most effective strategy for minimizing mean time to repair (MTTR) on critical rotating machinery.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. De-energize the 3300 XL rack and confirm -24 VDC supply is isolated before disconnecting field wiring.

Step 2 — Probe Removal: Unscrew the probe from the mounting bracket. Note the gap distance (typically 1.0–1.5 mm for standard steel targets) using a feeler gauge or gap voltage reading before removal — this is your reinstallation reference.

Step 3 — Extension Cable Inspection: Disconnect the extension cable from both the probe and proximitor. Inspect connectors and cable jacket. Replace the 330130 extension cable if any damage or corrosion is found.

Step 4 — New Probe Installation: Thread the 330104-00-05-05-01-00 into the mounting bracket. Set the gap to the recorded reference distance. Reconnect the extension cable and verify connector seating.

Step 5 — Proximitor Verification: Re-energize the -24 VDC supply. Measure the gap voltage at the proximitor output (typically -10 to -18 VDC for correct gap). Confirm the OK LED is illuminated on the monitor module.

Step 6 — System Validation: Confirm alarm setpoints are active, the OK relay is energized, and the 4–20 mA output is within the expected range. Log the replacement in your CMMS with the new probe serial number and gap setting.

This workflow is compatible with both in-situ replacement on operating machinery (where permitted by site procedures) and full outage replacement. The 330104-00-05-05-01-00 is a direct form-fit-function replacement for earlier 330104 variants, eliminating the need for bracket modification or cable re-routing in most installations.

Spare Parts Support FAQ

Q1: Is the 330104-00-05-05-01-00 compatible with both the 3300 XL and 3500 Series monitoring systems?
The 330104-00-05-05-01-00 is natively designed for the 3300 XL 8mm system. It can be used with 3500 Series monitors when paired with the appropriate 3500/42M or 3500/45 monitor module configured for 3300 XL probe input. Always verify monitor module firmware version and input configuration before cross-series installation.

Q2: What is included in the 12-month warranty, and what does pre-shipment testing cover?
Every unit shipped undergoes functional output verification and sensitivity calibration check against the 7.87 V/mm specification. The 12-month warranty covers manufacturing defects and out-of-specification performance from the date of shipment. It does not cover damage resulting from incorrect installation gap, target material mismatch, or mechanical impact.

Q3: How should I manage 330104-00-05-05-01-00 inventory for a facility with multiple 3300 XL racks?
Industry best practice for critical rotating machinery is to maintain a minimum of one spare probe per four installed channels, plus one spare extension cable per rack. For facilities with more than ten 3300 XL channels, a complete channel-level spare kit — probe, extension cable, and proximitor — is recommended. Spare rotation on a 3–5 year cycle prevents storage-related degradation of the probe’s integral cable and connector.

Q4: Can I use a recertified 330104-00-05-05-01-00 in a safety-instrumented system (SIS) application?
For SIS or SIL-rated applications, only new original-specification units with full traceability documentation should be used. Recertified units are suitable for non-SIS condition monitoring applications. Contact our sales team at sales@smartnexmsk.com to confirm unit origin and documentation availability before ordering for safety-critical loops.
