Bently Nevada 330104-00-05-50-02-00 Safety-Enhanced Proximity Probe

Bently Nevada 330104-00-05-50-02-00 Safety-Enhanced Proximity Probe: Reliable Control in Harsh Industrial Sites

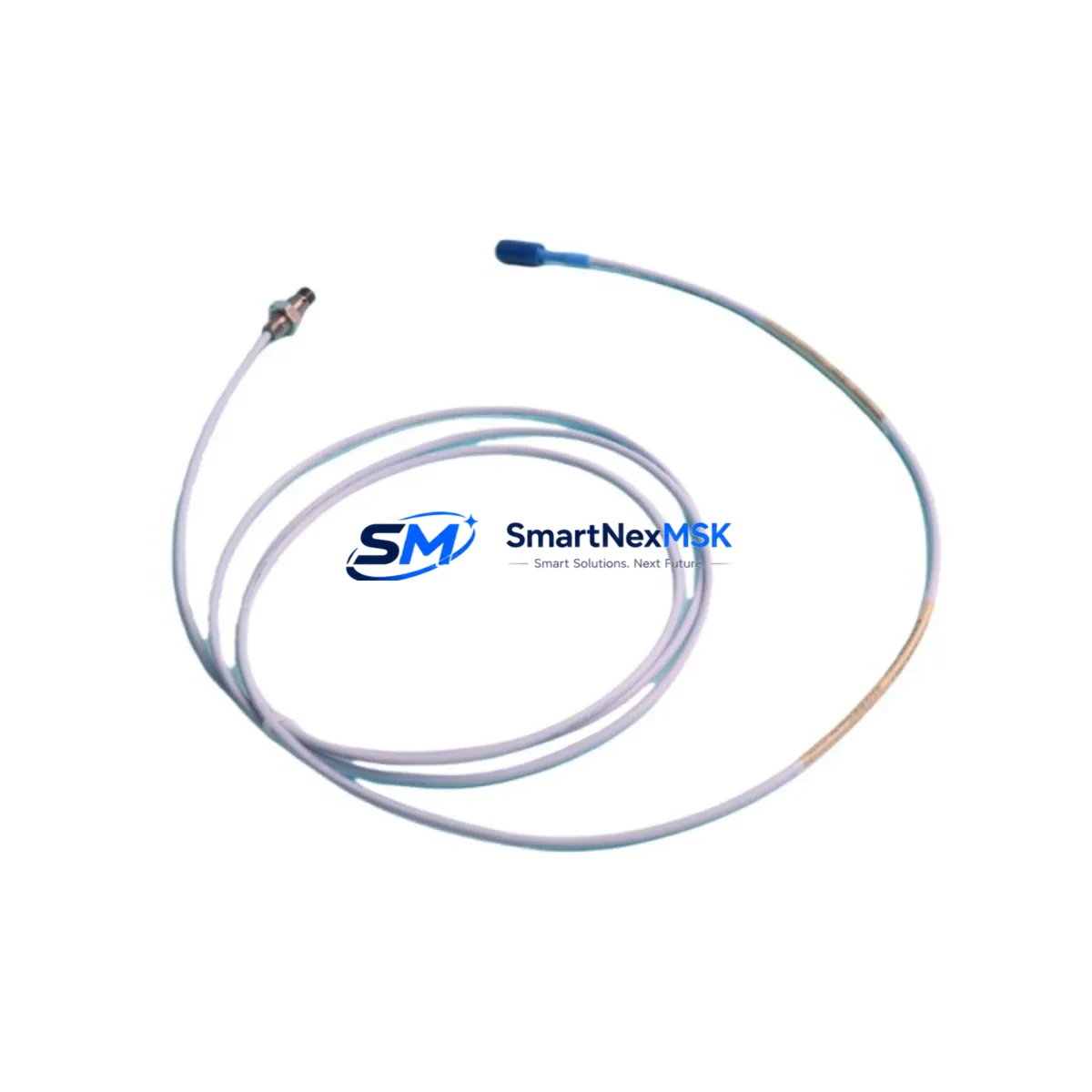

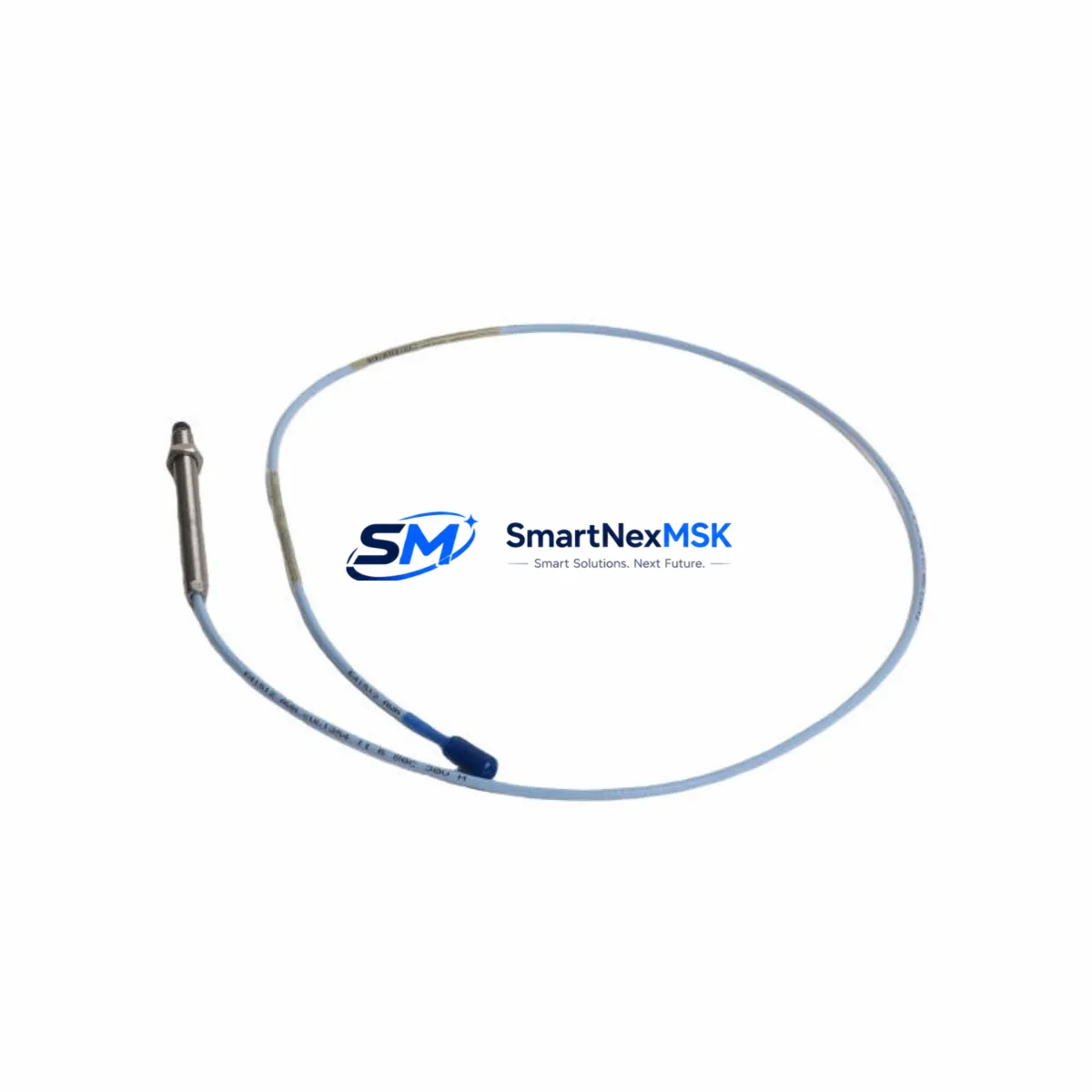

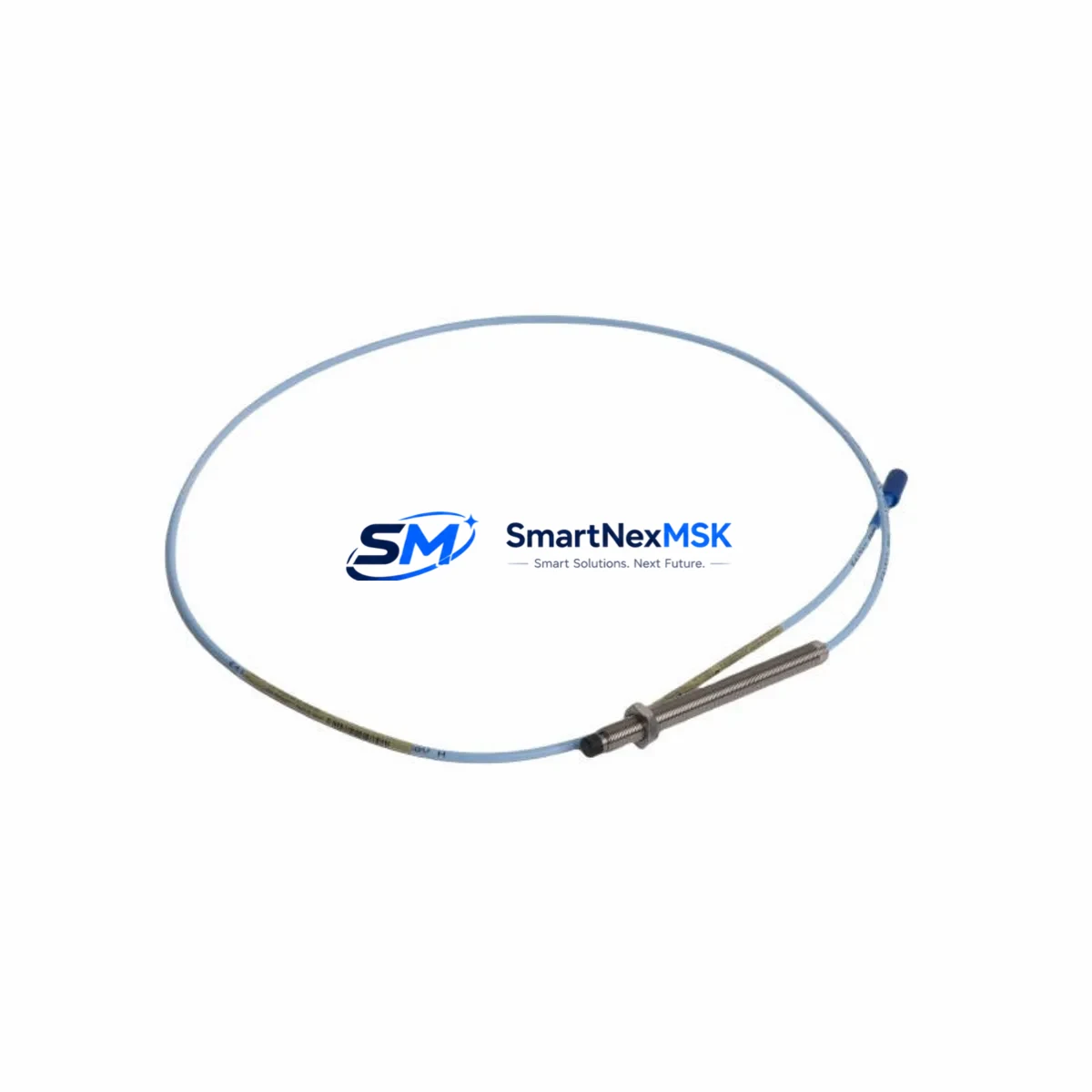

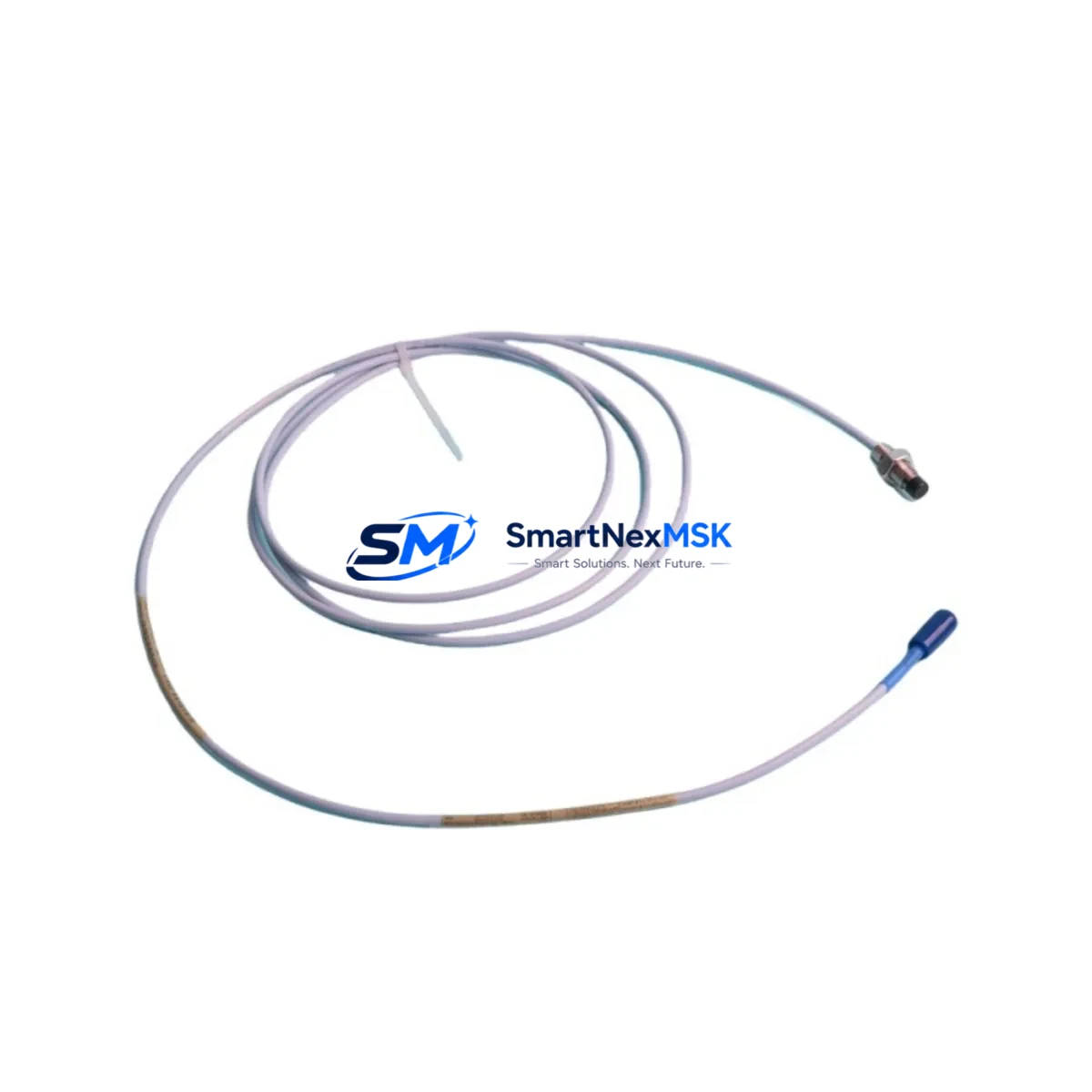

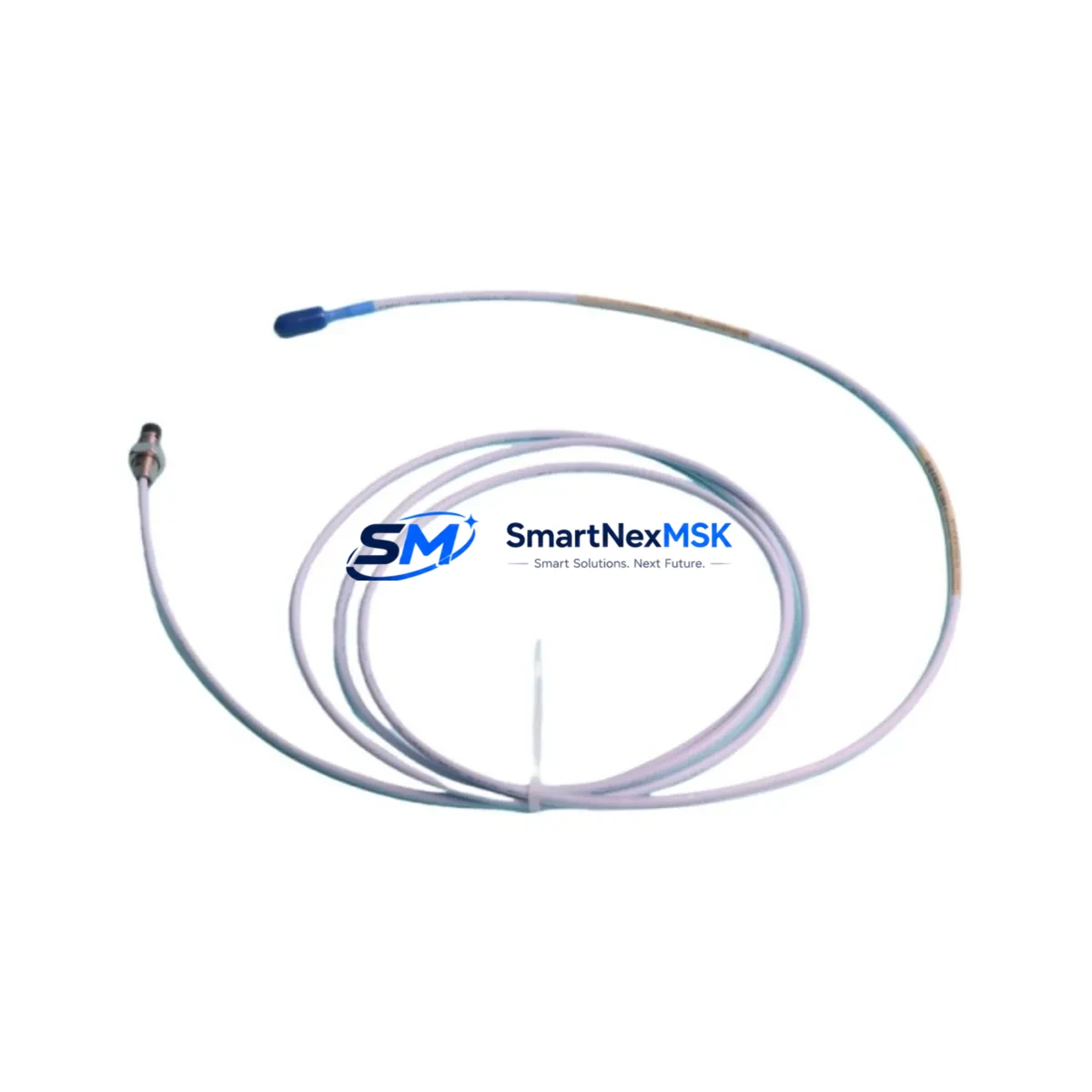

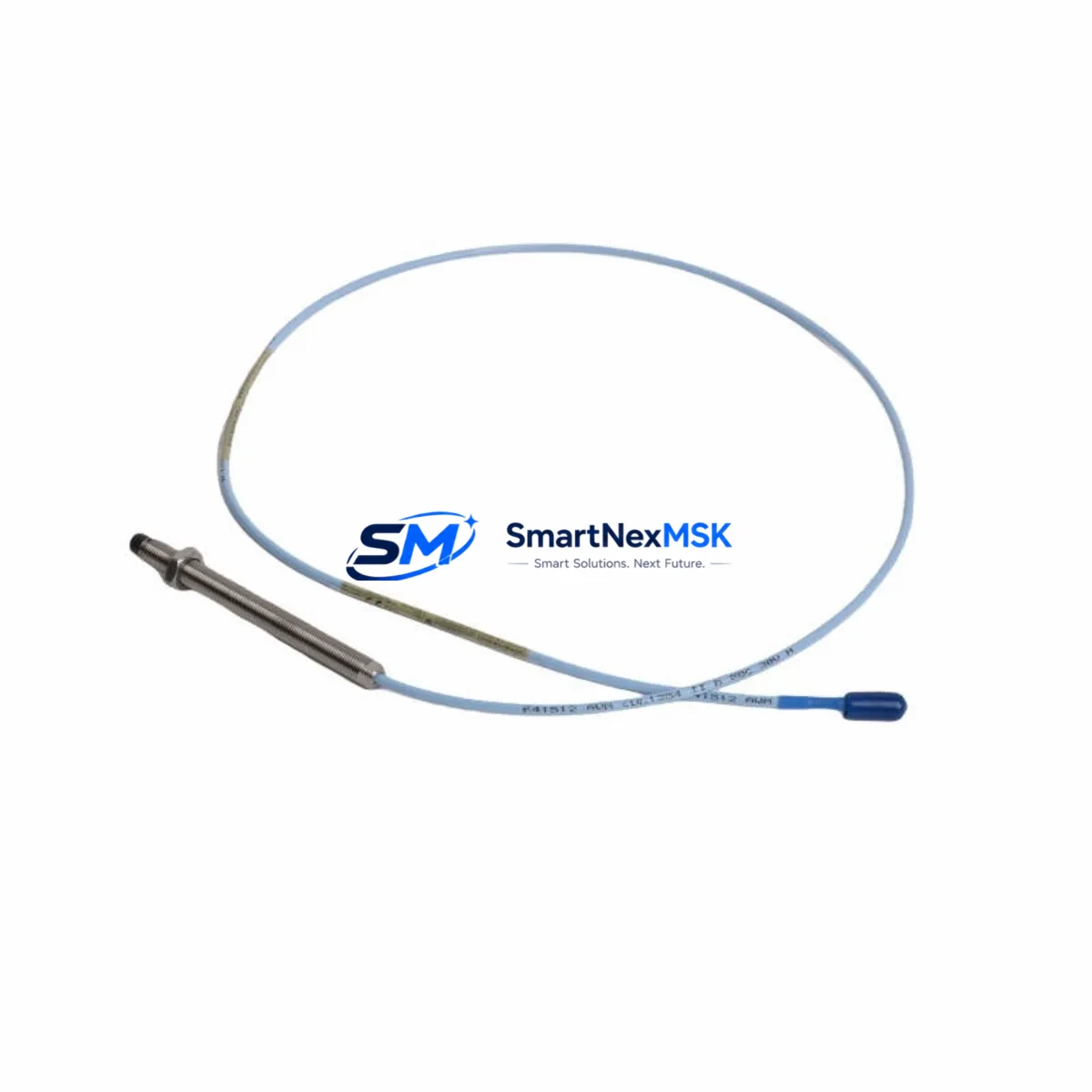

The Bently Nevada 330104-00-05-50-02-00 is an 8mm eddy-current proximity probe from the industry-proven 3300 XL Series, engineered to deliver continuous, safety-critical shaft vibration and position monitoring in the most demanding industrial environments. Whether deployed in rotating machinery protection systems, critical interlock loops, or high-availability control cabinets, this probe is designed to eliminate the risk of undetected mechanical faults that can escalate into catastrophic equipment failures and unplanned shutdowns.

In high-load, high-interference production facilities — including petrochemical plants, power generation stations, mining operations, metallurgical smelters, water treatment infrastructure, and continuous-process manufacturing lines — signal integrity is non-negotiable. The 330104-00-05-50-02-00 delivers stable, drift-free output even under severe electromagnetic interference, mechanical vibration, thermal cycling, and corrosive atmospheric conditions. Its ruggedized construction ensures that the measurement chain from probe tip to control system remains unbroken, protecting both personnel and assets.

Safety Reliability Table

Control Cabinet Protection Strategy

In a properly engineered machinery protection cabinet, the 330104-00-05-50-02-00 probe operates as the primary sensing element within a complete Bently Nevada 3300 XL measurement chain. It pairs directly with the Bently Nevada 330180-91-00 Proximitor® Sensor, which conditions the raw eddy-current signal into a clean, calibrated voltage output suitable for the monitoring system. The extension cable — typically a Bently Nevada 330130-045-00-00 — bridges the probe to the Proximitor with minimal signal attenuation, even across long cable runs in electrically noisy environments.

Within the control cabinet, the Proximitor output feeds directly into the Bently Nevada 3500/40M Proximitor®/Seismic Monitor or the 3500/42M Proximitor®/Seismic Monitor, which processes radial vibration, axial position, and differential expansion data in real time. These rack-mounted monitors interface with the plant DCS or safety instrumented system (SIS) via hardwired relay outputs or 3500 System Rack communication modules supporting Modbus, Profibus, or Ethernet/IP protocols — ensuring that trip and alarm signals reach the control room without communication latency or data loss.

Power supply stability is equally critical. The Bently Nevada 3500/15 Power Supply Module provides regulated, redundant DC power to the monitoring rack, protecting the entire measurement chain from voltage sags, surges, and transient spikes common in heavy industrial switchgear environments. For installations requiring additional surge immunity at the field junction box, pairing the probe circuit with a dedicated transient voltage suppressor rated for the -24 VDC Proximitor supply rail is strongly recommended.

In safety interlock architectures, the vibration signal from the 330104-00-05-50-02-00 may serve as a direct input to a Triconex or Rockwell GuardLogix Safety PLC, where it participates in a voted 2oo3 or 1oo2 shutdown logic for turbine, compressor, or pump protection. Proper cable segregation, grounded conduit routing, and periodic loop calibration checks — using a Bently Nevada ADRE 408 DSPi Data Acquisition System — ensure that the probe’s output remains within the calibrated linear range throughout its service life, preventing nuisance trips and missed fault detections alike.

Critical Industrial Safety Applications

The Bently Nevada 330104-00-05-50-02-00 is deployed across the full spectrum of heavy industrial and process-critical machinery protection applications:

Petrochemical & Refinery: Installed on centrifugal compressors, steam turbines, and boiler feed pumps in API 670-compliant protection systems. Continuous radial vibration monitoring enables early detection of rotor imbalance, bearing wear, and seal degradation — allowing planned maintenance interventions before a forced shutdown or safety event occurs.

Power Generation: Used on gas turbine generator sets and large synchronous motors where shaft displacement monitoring is mandatory for grid-connected reliability. The probe’s wide operating temperature range and resistance to oil mist make it suitable for both open-cycle and combined-cycle plant environments.

Mining & Mineral Processing: Applied to SAG mill drive motors, slurry pump sets, and conveyor drive gearboxes operating in high-dust, high-vibration, and chemically aggressive atmospheres. The ruggedized probe body and shielded cable resist abrasion and moisture ingress that would compromise standard instrumentation.

Water & Wastewater Treatment: Monitors large vertical turbine pumps and blower units in continuous-duty service. Early vibration trend detection prevents catastrophic impeller failures that would interrupt water supply or effluent treatment compliance.

Metallurgy & Steel: Deployed on rolling mill main drives, converter vessel tilt drives, and continuous caster withdrawal units where mechanical shock, electromagnetic interference from arc furnaces, and thermal extremes challenge conventional sensors. The 3300 XL probe’s robust signal conditioning maintains measurement accuracy under these conditions.

Port & Heavy Lifting: Used on crane hoist motor bearings and ship-loader drive systems where undetected mechanical faults carry both safety and operational consequences. Integration with the plant SCADA via the 3500 monitoring rack enables remote condition monitoring without requiring personnel to access elevated or confined machinery spaces.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 330104-00-05-50-02-00?
All units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, output linearity failures, and functional non-conformance under normal operating conditions. Warranty claims are processed with priority turnaround to minimize your site downtime.

Q2: How is each unit tested before shipment?
Every 330104-00-05-50-02-00 probe undergoes a full pre-shipment functional verification, including output voltage linearity check across the specified gap range, cable continuity and insulation resistance test, and physical inspection for connector integrity and cable jacket condition. A test report is available upon request for critical safety loop installations.

Q3: Is this probe compatible with existing 3300 XL Proximitor Sensors and 3500 Series monitors?
Yes. The 330104-00-05-50-02-00 is fully compatible with the complete Bently Nevada 3300 XL measurement chain, including 330180 Series Proximitor Sensors, 330130 Series extension cables, and all 3500 Series rack monitors. It is a direct replacement for worn or damaged probes in existing installations without requiring recalibration of the Proximitor or monitor.

Q4: Can long-term supply be guaranteed for ongoing maintenance and spare parts programs?
Yes. We maintain dedicated inventory of the 330104-00-05-50-02-00 and related 3300 XL Series components to support planned maintenance schedules, emergency replacements, and multi-unit spare parts programs. Orders can be fulfilled for single units or bulk quantities, with fast international shipping to support global plant operations.
