Bently Nevada 330104-00-05-50-11-00 Maintenance-Ready Spare for 3300 XL Automation

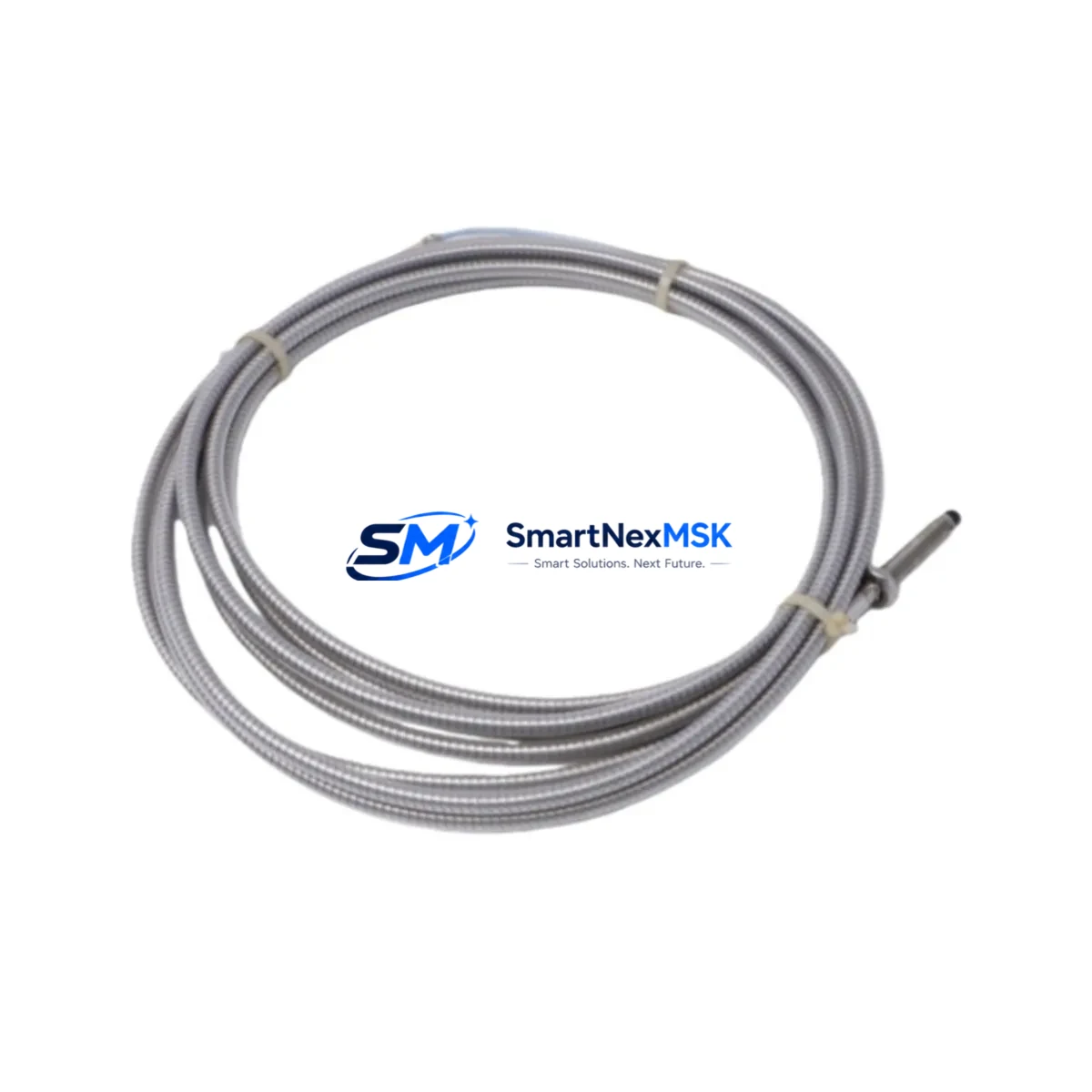

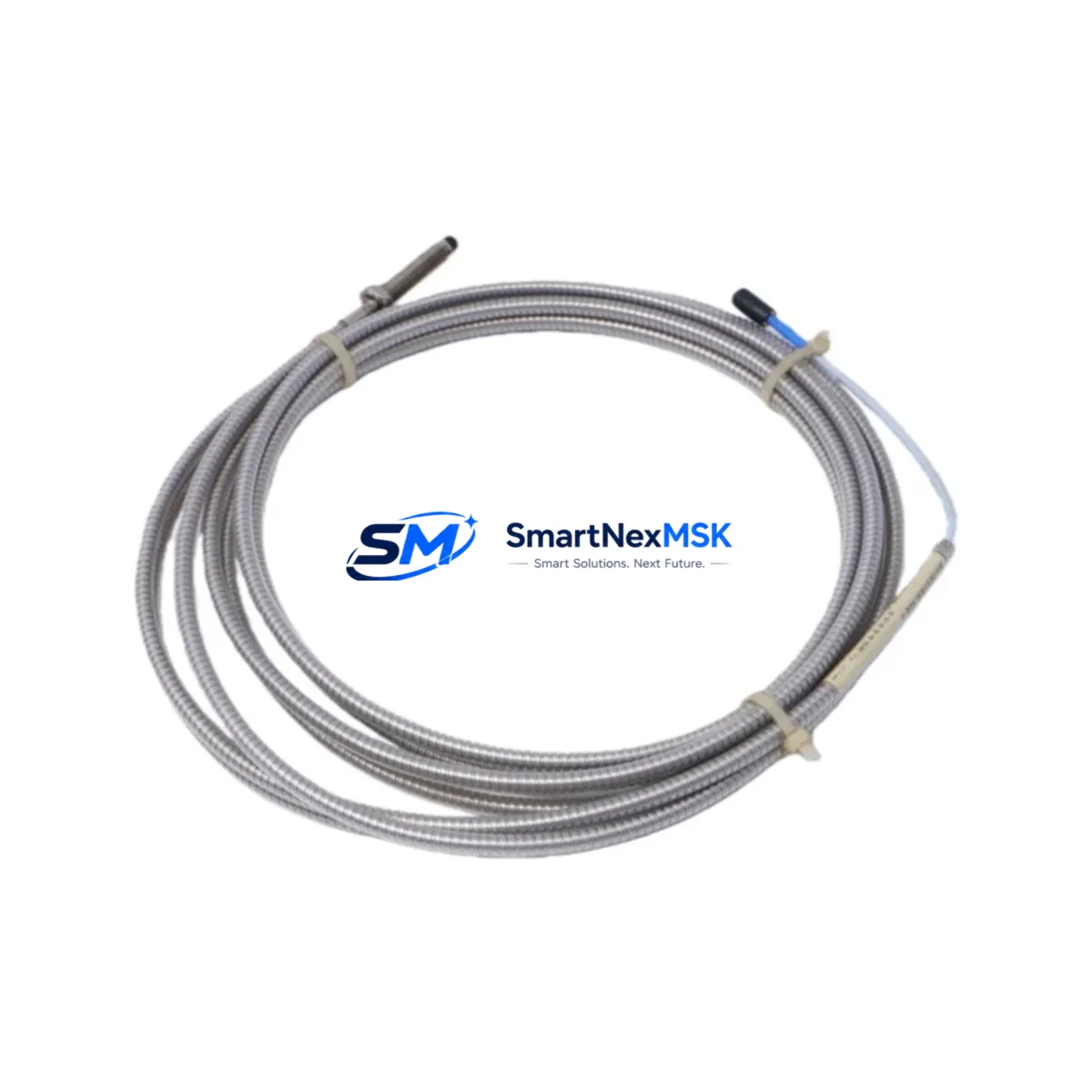

The Bently Nevada 330104-00-05-50-11-00 is an original eddy current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed for rotating machinery protection in turbines, compressors, pumps, and motors, this probe delivers precise radial and axial shaft displacement measurements critical to predictive maintenance programs and API 670-compliant machinery protection systems. For maintenance engineers managing aging DCS or PLC-integrated monitoring loops, having a verified spare of the 330104-00-05-50-11-00 on the shelf is a direct line of defense against unplanned downtime.
This probe is part of the 3300 XL metric series, featuring a 5 mm tip diameter, 50 mm cable extension, and a sensitivity of 7.87 V/mm (200 mV/mil). It is fully compatible with the 3300 XL 8mm Proximitor Sensor (e.g., 330180-X1-05) and integrates directly into Bently Nevada 3500 Series rack-based machinery protection systems. When sourcing this part for emergency replacement or planned overhaul, buyers should confirm probe-to-Proximitor matching and cable length compatibility with the existing installation.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | 330104-00-05-50-11-00 |
| Brand | Bently Nevada |
| Series | 3300 XL 8mm Proximity System |
| Probe Tip Diameter | 8 mm |
| Cable Length | 5 m (integral) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0.25 mm to 2.54 mm (10–100 mil) |
| Supply Voltage | -24 VDC (nominal) |
| Operating Temperature | -35°C to +120°C |
| Compatibility | 3300 XL Proximitor Sensor, 3500 Rack System |
| Approvals | CE, CSA, ATEX (series-dependent) |
| Application | Radial/axial shaft vibration, turbines, compressors, pumps |
| Condition | Original, new or recertified |
| Warranty | 12 Months |
| Pre-shipment Testing | Yes — functional and dimensional verification |
| Origin | USA |
Maintenance Planning for Continuous Operation
When a 330104-00-05-50-11-00 proximity probe is flagged for replacement during a scheduled outage or emergency shutdown, the maintenance window should be used to inspect the entire vibration monitoring loop. The 3300 XL Proximitor Sensor (330180 series) paired with this probe should be checked for output voltage drift, connector corrosion, and housing integrity — a degraded Proximitor will produce erroneous gap voltage readings even with a new probe installed.
The interconnecting extension cable (3300 XL Extension Cable, e.g., 330130-080-00-00) is a frequent wear item in high-vibration environments and should be replaced as a set with the probe whenever possible. Inspect the armored cable jacket for abrasion, kinking, or heat damage near bearing housings. At the rack level, verify the 3500/42M Proximitor I/O Module for channel alarm setpoints and confirm that the OK relay output is functioning correctly before returning the machine to service.
For plants running Bently Nevada 3500 Series racks, this is also an appropriate time to inspect the 3500/20 Power Supply Module for output ripple and the 3500/15 Power Supply I/O Module for terminal block integrity. Loose or corroded terminals on the power distribution rail are a common root cause of intermittent probe faults that are misdiagnosed as probe failures. Additionally, the 3500/22M Transient Data Interface should be checked for firmware currency if the plant uses System 1 software for trend analysis.
In control cabinets where the 3300 XL system feeds a DCS or safety PLC, inspect the signal conditioning path: Zener barriers or galvanic isolators (such as MTL or P+F signal isolators) used to interface the Proximitor output to the DCS analog input card should be tested for loop accuracy. A faulty isolator can mask a genuine probe alarm or generate nuisance trips. Terminal blocks (Phoenix Contact or Weidmüller DIN-rail types) at the marshalling cabinet should be torque-checked and inspected for oxidation.
For older installations where the 3300 XL system is approaching end-of-life, this replacement event is an opportunity to document the probe mounting configuration, gap voltage at operating speed, and alarm/danger setpoints for the asset maintenance record — critical data for future spare sourcing and system migration planning.
Site Replacement Workflow
Step 1 — Isolation and Lockout: Follow site LOTO procedures. Confirm the machine is at rest and the 3500 rack channel is placed in bypass mode to prevent spurious trips during probe removal.
Step 2 — Gap Voltage Baseline: Record the existing probe gap voltage (target: -10.0 VDC ±0.5 V at nominal gap) before disconnecting. This confirms whether the original probe was within specification or had already drifted.
Step 3 — Probe Removal: Unthread the probe from the bracket using the correct spanner. Do not apply torque to the cable. Inspect the probe tip for wear, pitting, or contamination from shaft contact.
Step 4 — New Probe Installation: Install the 330104-00-05-50-11-00 replacement. Set the gap to the manufacturer-specified distance (typically 1.0–1.5 mm for 8mm probes) using a non-ferrous feeler gauge or gap-setting tool. Torque the locknut to specification.
Step 5 — System Verification: Reconnect the Proximitor and verify gap voltage output. Confirm the 3500 rack channel returns to OK status. Check alarm and danger setpoints against the machinery protection philosophy document.
Step 6 — Return to Service: Remove bypass, document the replacement in the CMMS, and update the spare parts inventory. Log the as-found and as-left gap voltage values for trend records.
This workflow minimizes machine downtime to under two hours for a single-probe replacement on accessible bearing housings, and ensures the replacement is fully verified before the machine is restarted.
Spare Parts Support FAQ
Q1: Is the 330104-00-05-50-11-00 compatible with both the 3300 XL and older 3300 series Proximitor Sensors?
The 330104-00-05-50-11-00 is designed for the 3300 XL 8mm system. It is not directly interchangeable with the earlier 3300 5mm series (e.g., 330101 probes). Always verify the Proximitor model number before ordering to ensure probe-Proximitor system compatibility. If you are unsure, provide your Proximitor part number and we will confirm compatibility before shipment.
Q2: What pre-shipment testing is performed on this spare?
Each unit undergoes functional output verification, dimensional inspection of the probe tip and thread, and cable continuity testing prior to dispatch. A test report is available upon request. Units are shipped in anti-static, padded packaging to prevent transit damage.
Q3: What is the recommended inventory strategy for this probe?
For critical rotating machinery (turbines, compressors, boiler feed pumps), industry best practice recommends holding a minimum of one spare probe per monitored bearing position, plus one Proximitor Sensor per rack channel group. For plants with 10+ monitored machines, a consignment or vendor-managed inventory arrangement can reduce carrying costs while maintaining availability.
Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, output calibration drift beyond published tolerances, and cable/connector failures under normal operating conditions. It does not cover damage from incorrect installation, shaft contact, or operation outside the specified temperature and voltage range. Warranty claims are processed with return shipment and replacement dispatch within 5 business days.
