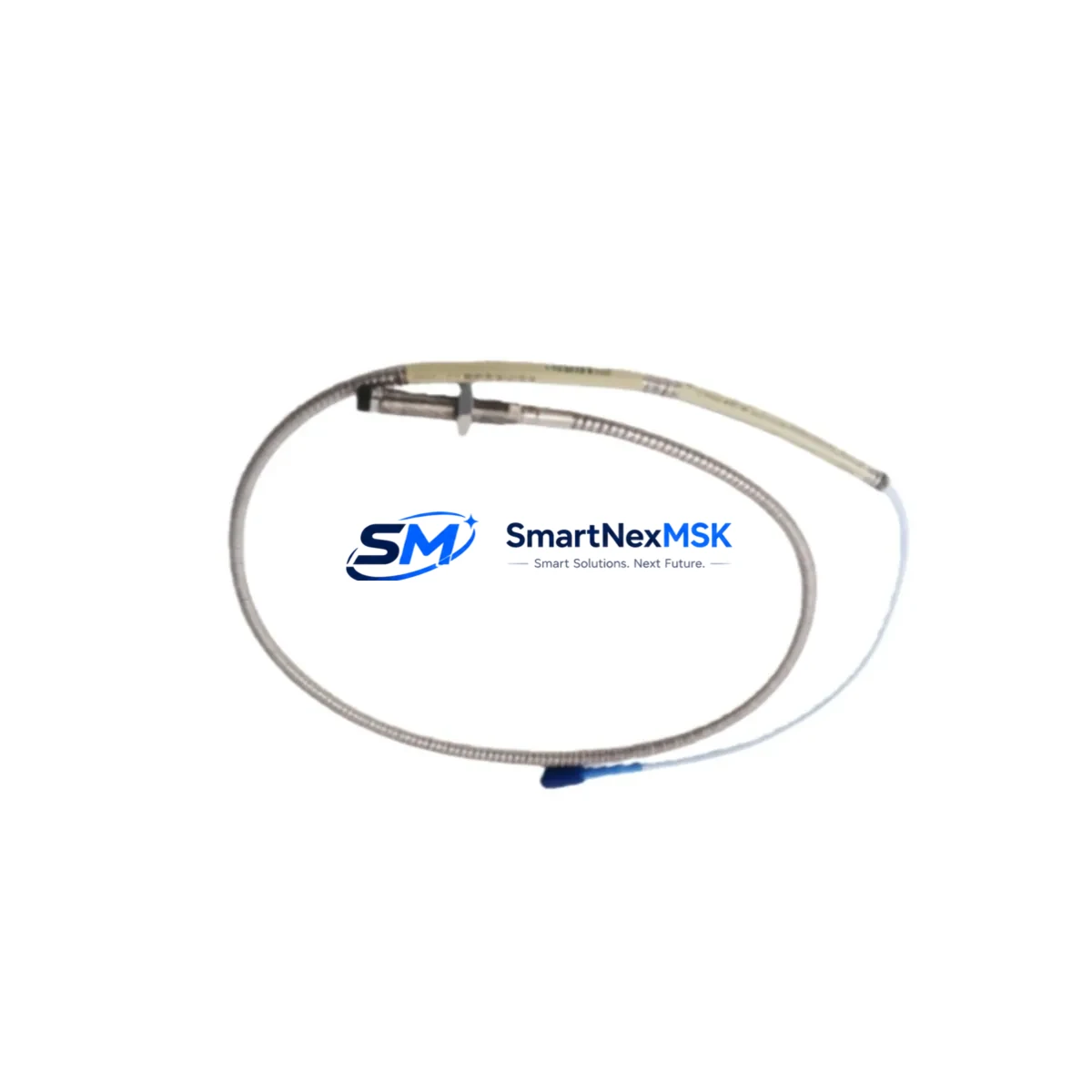

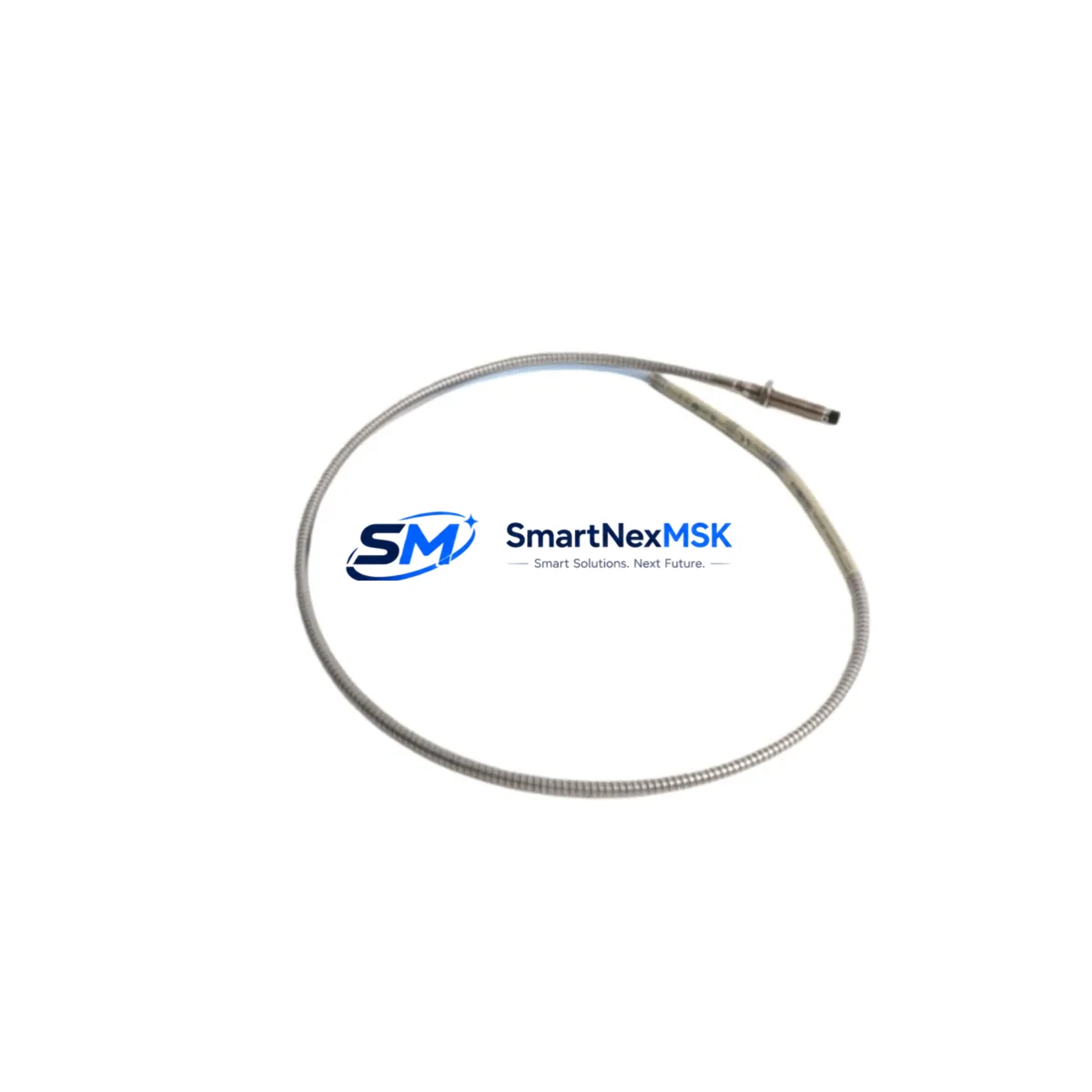

The Bently Nevada 330104-00-05-90-02-05 is an 8mm eddy-current proximity probe designed for continuous shaft vibration and position monitoring within the 3300 XL Series machinery protection platform. As legacy installations age and OEM support for older Bently Nevada 3300 Series components becomes increasingly limited, this probe serves as a direct retrofit solution — enabling engineers to restore full monitoring capability without redesigning the measurement chain or replacing the entire monitoring rack.

This probe is mechanically and electrically compatible with the 3300 XL system architecture. It operates in conjunction with the 3300 XL 8mm Extension Cable and the 3300 XL Proximitor Sensor to form a complete eddy-current measurement loop. The output signal is a standard -24 VDC bias voltage with a sensitivity of 7.87 V/mm (200 mV/mil), which is directly accepted by 3300 XL monitor modules such as the 3300/16 Dual Vibration Monitor and the 3300/20 Radial Vibration Monitor without any signal conditioning changes.

When planning a retrofit or spare-parts replacement using the 330104-00-05-90-02-05, engineers must verify several critical parameters before commissioning. Power supply capacity at the Proximitor junction box must support the probe’s operating current draw, and the existing field wiring — typically routed through armored extension cable assemblies — must be inspected for continuity and insulation integrity. Terminal block assignments at the I/O barrier or junction box should be confirmed against the original loop drawing, as pin-out conventions may differ between early 3300 Series and current 3300 XL installations. Module address settings on the monitoring rack, particularly for systems using the 3500 Series Machinery Protection System as an upgrade path, must be reconfigured to reflect the new probe’s calibration data.

Program compatibility is another key consideration. If the host system uses a GE/Bently Nevada System 1 Evolution software platform for data acquisition and alarm management, the probe’s gap voltage, scale factor, and OK limit thresholds must be re-entered or imported from the original configuration file. HMI screens displaying vibration trend data should be reviewed to confirm that engineering unit scaling matches the new probe’s output range. Communication links between the 3300 XL rack and upstream DCS or PLC platforms — whether via Modbus RTU, Profibus DP, or hardwired 4–20 mA signals — should be verified for continuity before returning the machine to service.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330104-00-05-90-02-05 into an aging machinery protection system requires a structured approach to hardware, wiring, and software alignment. In most brownfield installations, the probe is mounted in an existing probe holder or bracket assembly, and the armored extension cable is routed back to a junction box where it connects to the 3300 XL Proximitor Sensor. The Proximitor is typically mounted inside the control cabinet on a DIN rail or panel-mount bracket, and its output is wired to the corresponding channel input on the 3300 XL monitor module.

Before removing the old probe, technicians should document the existing gap voltage reading — typically between -10.0 VDC and -18.0 VDC for a properly gapped 8mm probe — as a baseline for commissioning the replacement. The new 330104-00-05-90-02-05 must be gapped to the same target voltage using a calibrated gap tool or feeler gauge, with the final gap confirmed via the Proximitor output before the monitor channel is re-enabled.

In systems where the 3300 XL rack is being upgraded to a 3500 Series Machinery Protection System, additional planning is required. The 3500/42M Four-Channel Proximitor I/O Module and the 3500/45 Position Monitor accept the same probe and Proximitor combination, but rack configuration must be performed using the 3500 Rack Configuration Software. I/O module slot assignments, channel enable/disable states, and alarm setpoints must all be re-entered. If the existing installation uses a 3300/05 Power Supply Module, its output capacity should be verified against the total current draw of all connected Proximitor sensors before adding new channels.

For sites migrating from legacy Modbus RTU communication to Profibus DP or Ethernet-based protocols, the 3500 rack’s communication gateway module must be configured to match the upstream DCS or SCADA system’s polling parameters. HMI screens built on platforms such as Wonderware InTouch or Rockwell FactoryTalk View should be updated to reflect any changes in tag names, scaling, or alarm limits introduced during the migration. Programming cables such as the 3500 Configuration Cable Kit are required for offline rack configuration and should be available on-site during commissioning.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement or system migration is a primary concern for rotating equipment engineers. The 330104-00-05-90-02-05 is stocked for immediate shipment, which eliminates the lead-time risk associated with OEM procurement channels for legacy Bently Nevada components. Pre-shipment functional testing — including bias voltage output verification and sensitivity calibration — is performed on every unit before dispatch, reducing the risk of commissioning failures in the field.

To protect the original control program logic during a rack upgrade, engineers should export a full configuration backup from the existing 3300 XL system using the System 1 software before any hardware changes are made. This backup preserves alarm setpoints, OK limits, transducer scale factors, and communication parameters, and can serve as a reference document during re-commissioning of the new rack. Where possible, the replacement probe and Proximitor should be bench-tested as a matched pair before installation, confirming that the output voltage and sensitivity are within specification before the machine is taken offline.

For critical machinery where continuous monitoring is required, a temporary bypass or hot-standby monitoring arrangement using a portable vibration analyzer can maintain protection coverage during the changeover window. Once the new probe is installed and gapped, the monitor channel should be re-enabled and the system verified against the baseline vibration signature before the machine is returned to full-load operation. All commissioning steps, including gap voltage readings, alarm acknowledgments, and communication link tests, should be documented in the site maintenance record.

Retrofit Support FAQ

Q: Is the 330104-00-05-90-02-05 a direct replacement for earlier 330104 series probes?
A: Yes. The 330104-00-05-90-02-05 is dimensionally and electrically compatible with other variants in the 330104 family. The suffix digits specify cable length, connector type, and temperature rating. Before substituting a different suffix variant, confirm that the cable length and connector configuration match the existing installation. The probe tip diameter, thread pitch, and output sensitivity are identical across the 330104 series.

Q: What wiring checks are required before installing the replacement probe?
A: Inspect the extension cable for continuity and insulation resistance between the center conductor, shield, and outer armor. Verify that the junction box terminal assignments match the Proximitor wiring diagram. Check that the power supply voltage at the Proximitor input terminals is within the specified range (-18 VDC to -26 VDC). Any deviation from these parameters should be corrected before the new probe is connected.

Q: How is compatibility with the 3500 Series verified during a rack upgrade?
A: The 3500/42M and 3500/45 modules are designed to accept the same 3300 XL probe and Proximitor combination. Compatibility is confirmed by entering the probe’s scale factor (7.87 V/mm) and OK voltage limits into the 3500 Rack Configuration Software. A channel self-test function within the software verifies that the probe output is within the expected range before the channel is placed in service.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Each unit undergoes pre-shipment functional testing including output voltage verification and sensitivity calibration. Warranty claims are processed promptly, and replacement units are dispatched to minimize equipment downtime. The warranty does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact.
