Bently Nevada 330104-00-06-05-02-00 Safety-Enhanced Proximity Probe

Bently Nevada 330104-00-06-05-02-00 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

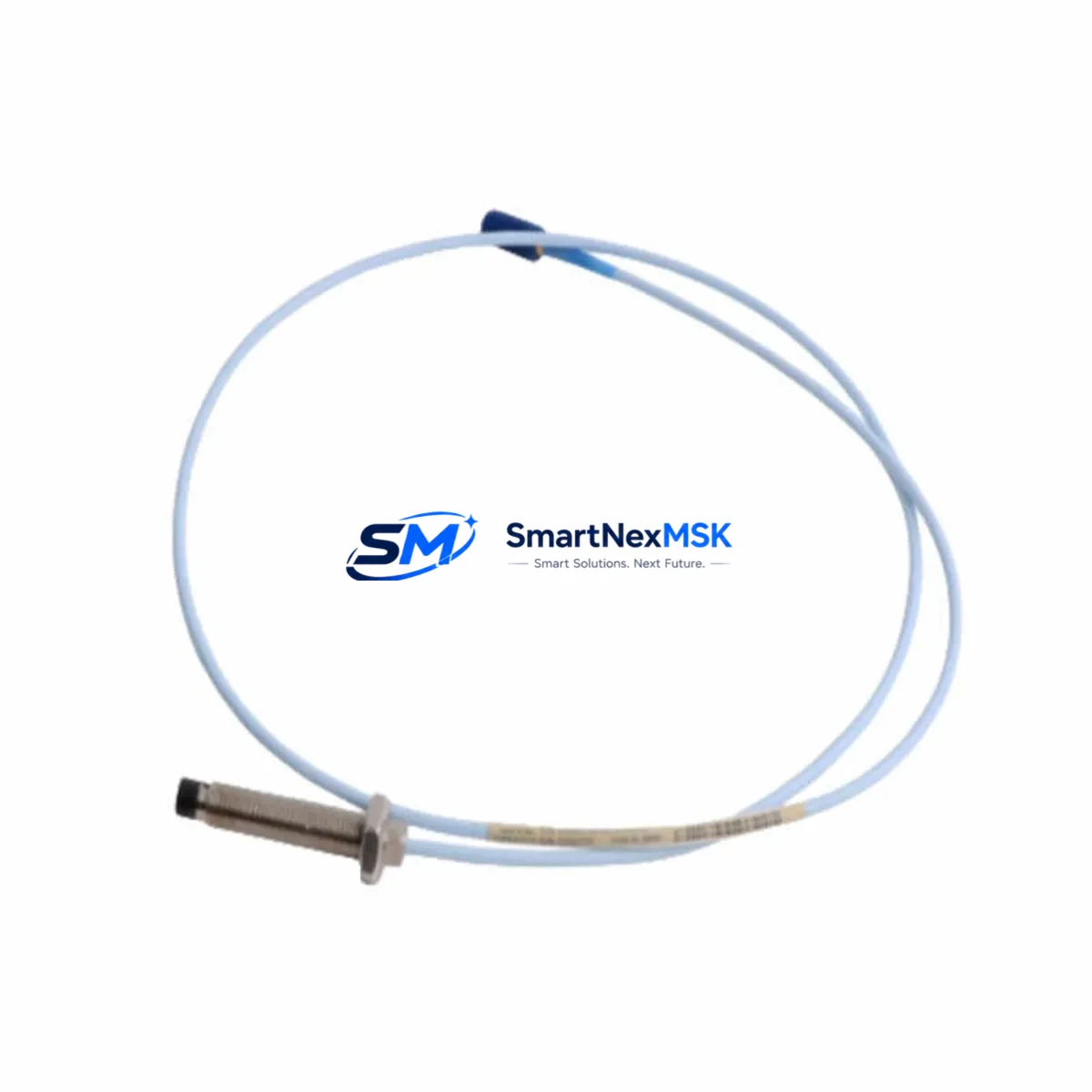

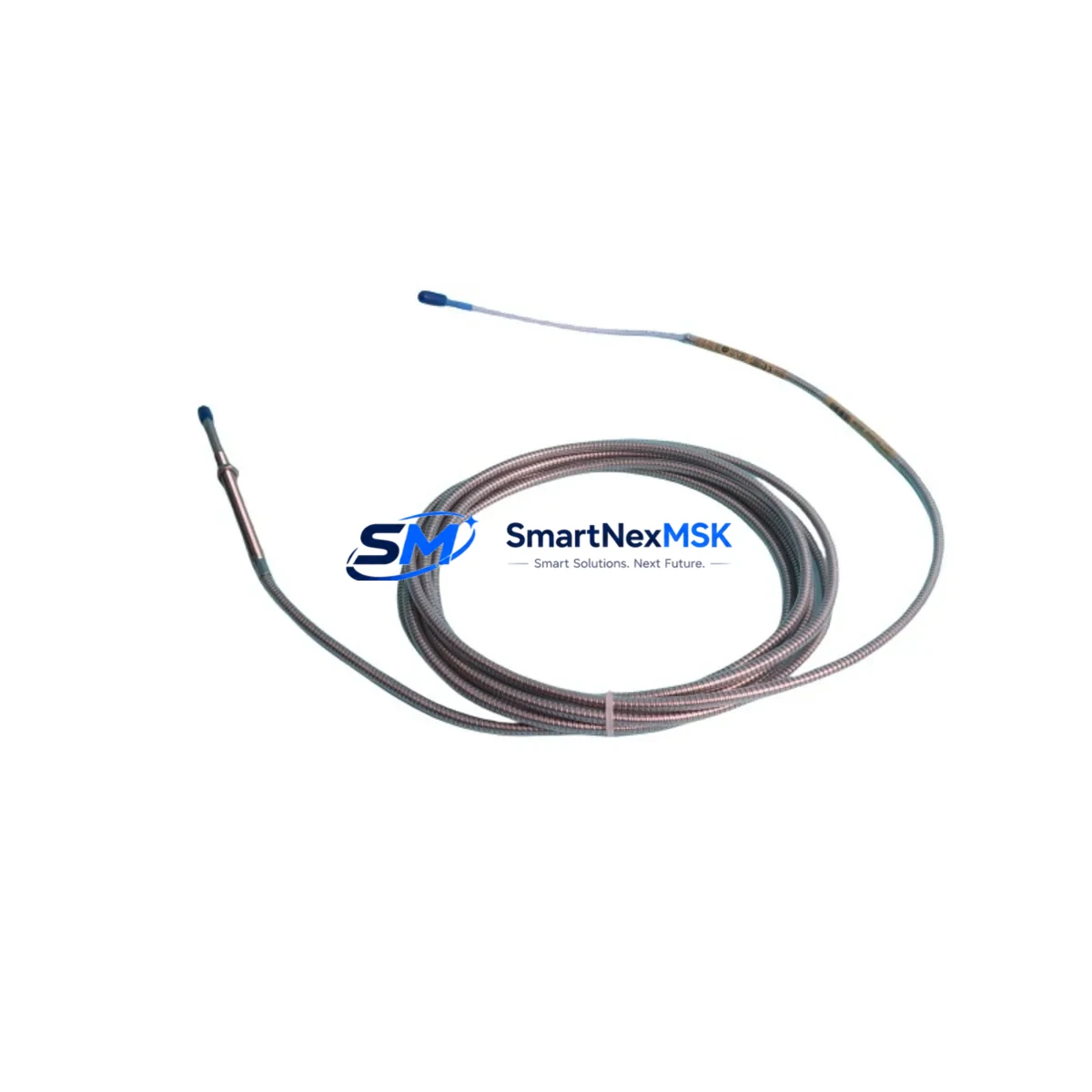

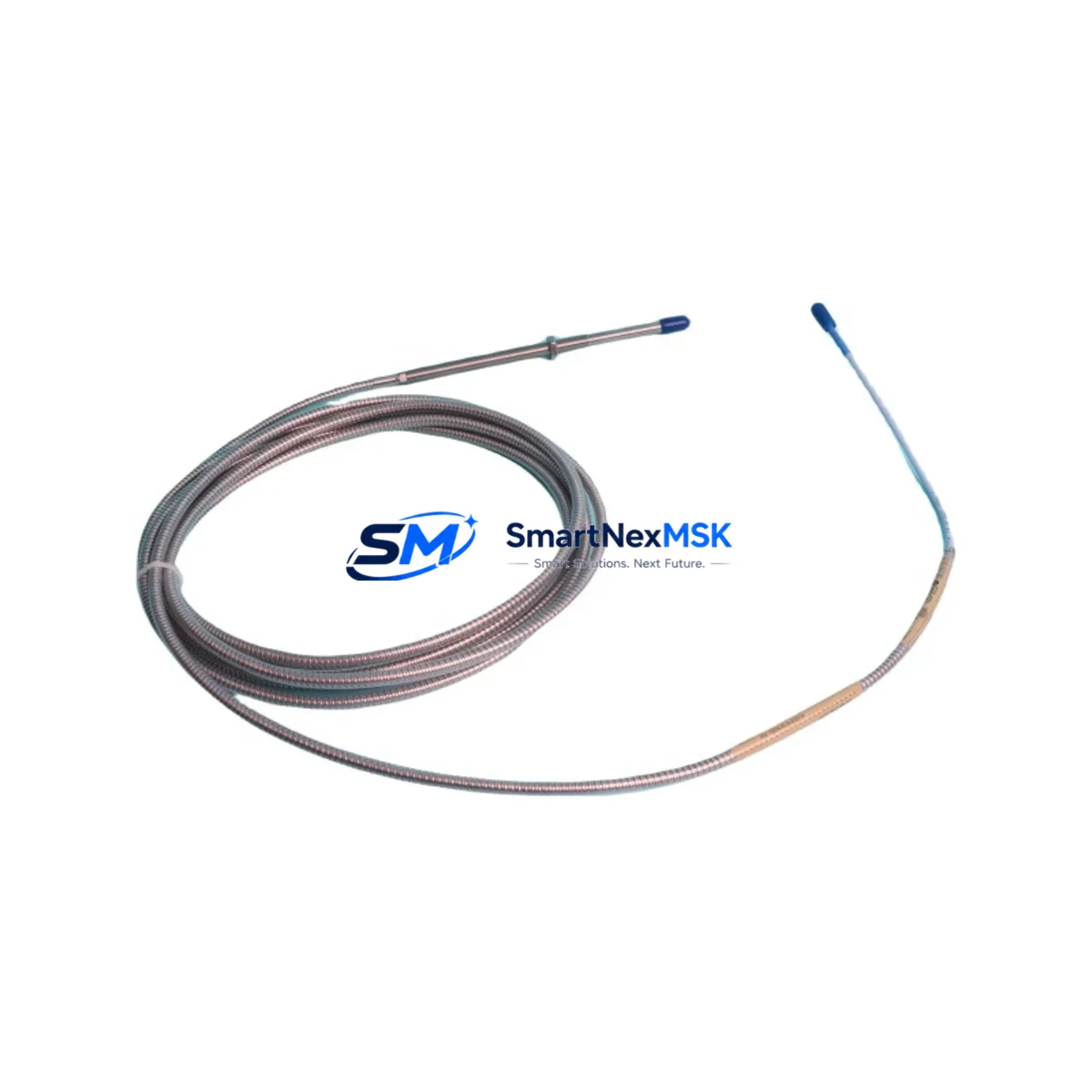

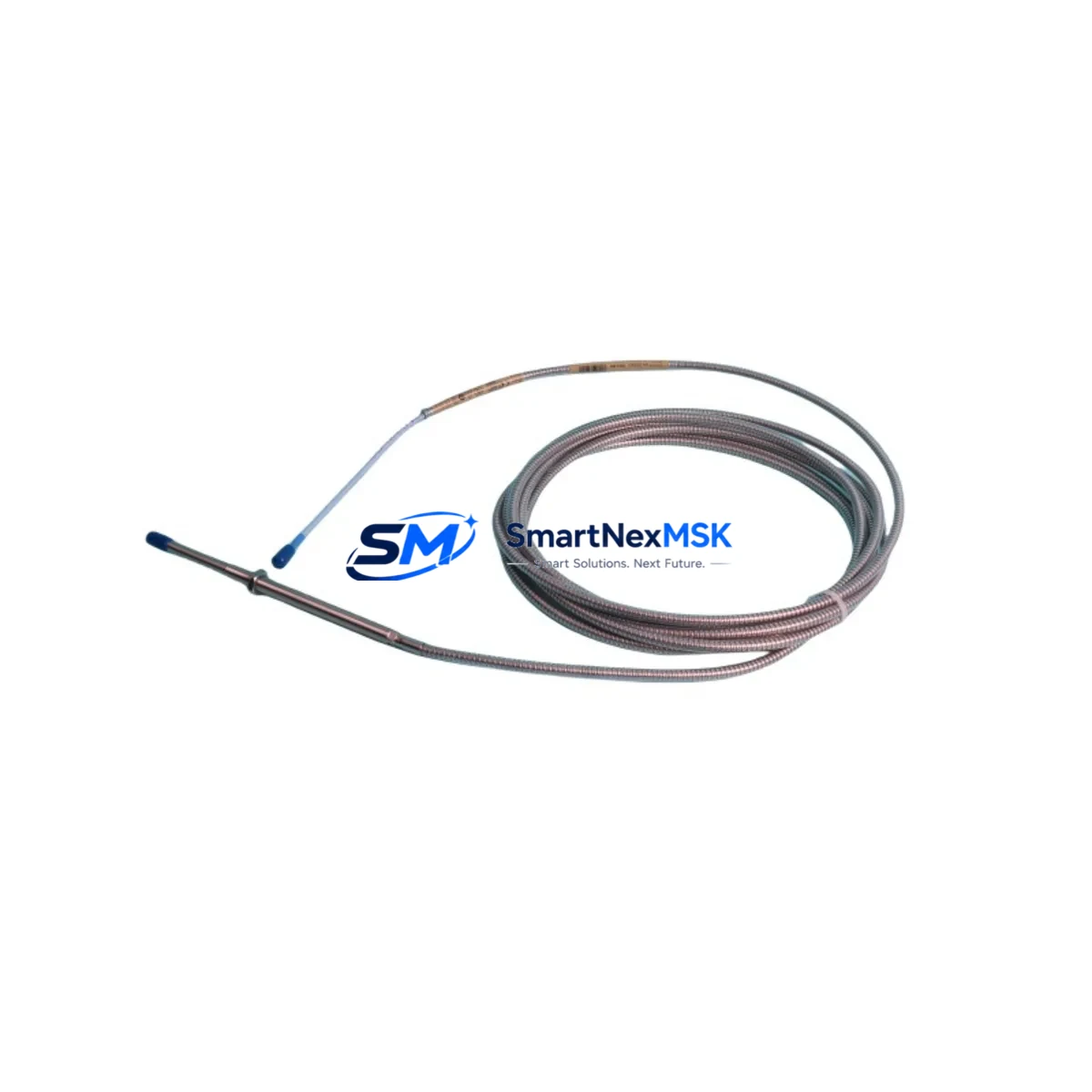

The Bently Nevada 330104-00-06-05-02-00 is an 8mm eddy-current proximity probe engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. As a core component of the Bently Nevada 3300 XL Series machinery protection system, this probe delivers exceptional signal stability, electromagnetic interference immunity, and long-term mechanical durability — making it the preferred choice for rotating machinery protection in petrochemical plants, power generation facilities, mining operations, metallurgical complexes, and continuous process manufacturing sites.

In high-load, high-interference control environments, signal integrity is not optional — it is a safety requirement. The 330104-00-06-05-02-00 is designed to eliminate signal drift, suppress electrical noise from variable-frequency drives and high-current bus bars, and maintain consistent gap voltage output even under severe thermal cycling and mechanical vibration. When integrated into a critical interlock loop alongside the Bently Nevada 3300/16-24-01-01-00-00-00 proximitor/seismic monitor and the 3300/55 rack power supply, this probe forms a complete, redundant machinery protection chain that can trigger emergency shutdown sequences before catastrophic bearing failure or rotor rub events occur.

Every 330104-00-06-05-02-00 unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification including gap sensitivity calibration, insulation resistance testing, and output linearity confirmation — ensuring that the probe performs to Bently Nevada factory specifications from the moment it is installed in the field.

Safety Reliability Table

Control Cabinet Protection Strategy

Reliable machinery protection begins at the sensor level and extends through every layer of the control architecture. The 330104-00-06-05-02-00 proximity probe is typically deployed in pairs or triplets for redundant radial vibration measurement on critical rotating equipment such as steam turbines, compressors, and large induction motors. Within the same control cabinet, it operates in conjunction with the Bently Nevada 3300/16-24-01-01-00-00-00 monitor module, which processes the raw gap voltage signal and generates 4–20 mA analog outputs and relay trip contacts for the plant DCS or safety instrumented system (SIS).

To protect the signal chain from power-line transients and surge events — a common failure mode in heavy industrial sites with large motor starts — the probe system should be powered through a dedicated Bently Nevada 3300/55 rack power supply with appropriate surge suppression. In facilities where the control room is located far from the machinery train, 3300 XL Series armored extension cables (330130-080-00-00) provide the necessary signal path integrity over long cable runs without introducing impedance mismatches or ground loops that could cause false trips or missed alarms.

For plants operating under IEC 61511 functional safety requirements, the proximity probe measurement chain — including the 330104-00-06-05-02-00 probe, the proximitor sensor, and the monitor module — can be validated as part of a Safety Instrumented Function (SIF) with a defined SIL level. Complementary components such as the Bently Nevada 3500/42M proximitor I/O module and the 3500/22M transient data interface extend the system’s diagnostic coverage and enable online self-testing without interrupting production. In applications requiring both vibration and axial position monitoring, the 330104-00-06-05-02-00 is often paired with a Bently Nevada 330500-02-12 thrust position probe to provide complete rotor dynamic surveillance. Where process safety logic requires hardwired interlock outputs, the Bently Nevada 3500/32 relay output module provides the necessary trip relay contacts rated for safety-critical switching duty.

Critical Industrial Safety Applications

The 330104-00-06-05-02-00 proximity probe is deployed across a wide range of safety-critical industrial sectors where unplanned machinery downtime carries severe operational, financial, and safety consequences.

In petrochemical and refinery environments, this probe monitors radial shaft vibration on process gas compressors and reactor feed pumps operating continuously at elevated temperatures and pressures. Early detection of bearing wear or rotor imbalance through the 3300 XL monitoring system allows maintenance teams to schedule corrective action during planned turnarounds rather than responding to emergency shutdowns.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the probe provides the primary vibration signal for turbine-generator protection systems. API 670-compliant monitoring ensures that trip setpoints are maintained with the precision required to protect multi-million-dollar rotating assets.

In mining and mineral processing operations, where dust, moisture, and mechanical shock are constant environmental stressors, the IP67-rated probe body and armored cable construction of the 330104-00-06-05-02-00 provide the physical robustness needed for reliable long-term service on ball mills, SAG mills, and large slurry pumps.

In metallurgical and steel production plants, the probe’s wide operating temperature range and EMI immunity make it suitable for monitoring rolling mill drive motors and continuous casting equipment in close proximity to high-current induction heating systems and arc furnaces.

In water treatment and municipal infrastructure facilities, the probe supports condition monitoring programs on large centrifugal pumps and blowers, enabling predictive maintenance strategies that reduce unplanned outages and extend equipment service life.

Safety and Quality FAQ

Q1: What warranty coverage does SMARTNEXMSK provide for the 330104-00-06-05-02-00?
All Bently Nevada 330104-00-06-05-02-00 proximity probes supplied by SMARTNEXMSK are covered by a 12-month warranty from the date of shipment. This warranty covers functional defects, calibration failures, and premature component degradation under normal operating conditions. Warranty claims are supported by our technical team with replacement dispatch or full refund options.

Q2: What pre-shipment testing is performed on each unit?
Every unit undergoes a structured pre-shipment inspection protocol that includes gap sensitivity verification against the 7.87 V/mm specification, coaxial cable continuity and insulation resistance testing, connector integrity inspection, and visual examination for mechanical damage. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 330104-00-06-05-02-00 compatible with existing 3300 XL Series system installations?
Yes. The 330104-00-06-05-02-00 is a direct-fit replacement for all 3300 XL Series 8mm proximity probe installations. It is fully compatible with Bently Nevada 3300 XL proximitor sensors, 3300 Series extension cables, and 3500 Series monitor racks without requiring recalibration of the proximitor or adjustment of monitor setpoints, provided the existing system is configured for 8mm probe geometry.

Q4: Can SMARTNEXMSK support long-term and emergency spare parts supply for this model?
SMARTNEXMSK maintains dedicated inventory of the 330104-00-06-05-02-00 and related 3300 XL Series components to support both planned spare parts programs and emergency breakdown requirements. We offer expedited shipping for critical plant situations and can provide multi-unit procurement packages for customers establishing strategic spare parts holdings. Contact our technical sales team to discuss your site’s specific inventory and supply continuity requirements.
