Bently Nevada 330104-00-06-05-02-05 Safety Proximity Probe

Bently Nevada 330104-00-06-05-02-05 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

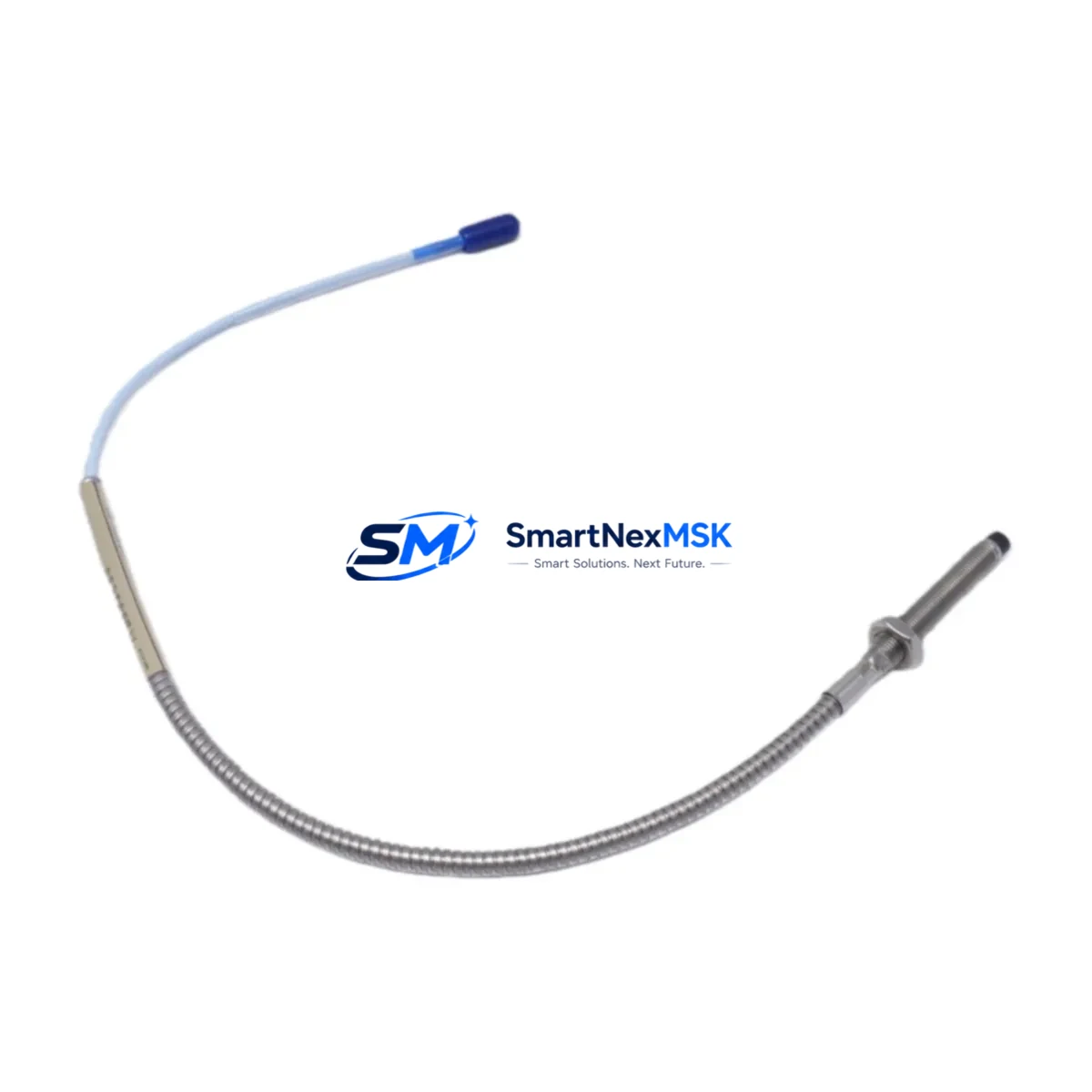

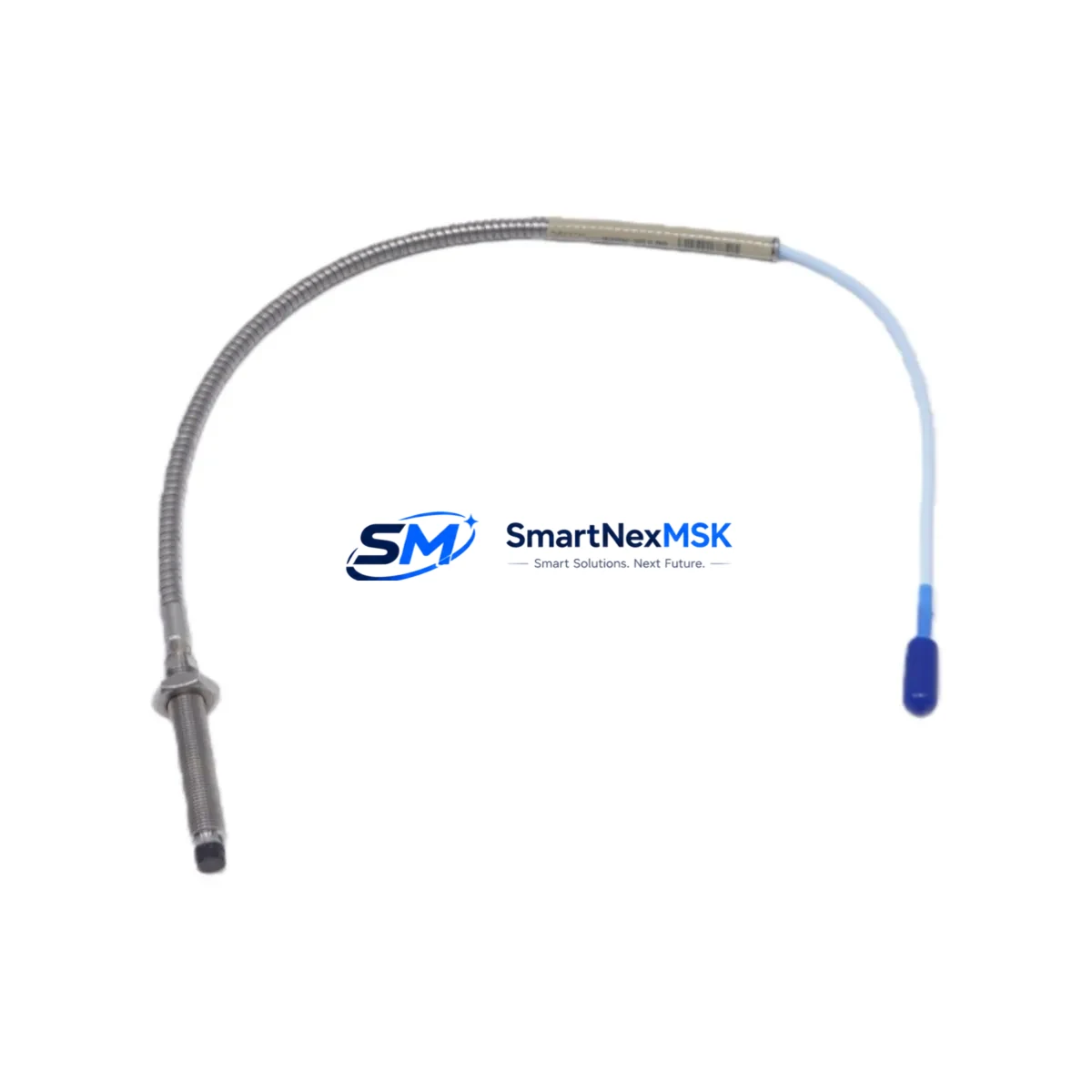

The Bently Nevada 330104-00-06-05-02-05 is an 8mm eddy current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in high-load rotating machinery, heavy interference zones, and hazardous area control cabinets, this probe delivers the signal integrity and mechanical durability that process-critical applications demand.

In continuous production facilities — petrochemical plants, power generation stations, mining operations, metallurgical mills, and water treatment infrastructure — control interruptions caused by sensor failure can trigger cascading shutdowns, equipment damage, and serious safety incidents. The 330104-00-06-05-02-05 is purpose-built to eliminate these risks. Its eddy current sensing technology provides non-contact, wear-free measurement of shaft vibration, axial position, and differential expansion, ensuring that your machinery protection system receives clean, stable signals even under severe electromagnetic interference, mechanical shock, and thermal cycling.

This probe integrates directly with the Bently Nevada 3300 XL Proximitor® System, including the 3300/16 Proximitor Sensor and 3300/55 Proximitor Sensor, forming a complete, calibrated measurement chain. When paired with the 3300 XL Extension Cable and 3300 XL Armored Cable, the system maintains signal fidelity across long cable runs in electrically noisy environments — a critical requirement in large turbine halls, compressor trains, and motor control centers where cable routing passes near high-voltage bus bars and variable frequency drives.

Safety Reliability Table

Control Cabinet Protection Strategy

Reliable machinery protection begins at the sensor level, but it depends on a complete, coordinated system architecture within the control cabinet. The 330104-00-06-05-02-05 probe is the primary sensing element in a protection chain that typically includes the Bently Nevada 3500/42M Proximitor I/O Module for signal conditioning and alarm processing, and the 3500/22M Transient Data Interface for capturing high-resolution vibration transients during startup and shutdown sequences — the periods of highest mechanical stress and greatest risk of bearing failure.

Power supply stability is equally critical. Fluctuations in the -24 VDC supply rail directly affect Proximitor output linearity and can cause false alarms or missed trips in safety interlock systems. Pairing this probe system with a Bently Nevada 3500/15 Power Supply Module — featuring redundant input capability — ensures that power interruptions do not compromise the integrity of the protection loop. For installations in cabinets shared with high-current motor starters or soft starters, additional surge protection devices on the DC rail are strongly recommended to guard against transient overvoltage events.

In critical interlock circuits, the probe signal feeds directly into the Bently Nevada 3500/32 4-Channel Relay Module, which executes trip commands to the machine’s emergency shutdown system. This relay module, combined with the 3500/20 Rack Interface Module for Modbus or Ethernet/IP communication to the plant DCS, creates a fully integrated, auditable protection architecture. For facilities running Emerson Ovation DCS or Honeywell Experion PKS, the 3500 rack communicates alarm and trip status in real time, enabling operators to respond before a developing fault escalates to a catastrophic failure.

Where the probe is installed in classified hazardous areas — such as gas compressor stations or offshore platforms — a Zener barrier or galvanic isolator (e.g., MTL or Pepperl+Fuchs IS barriers) must be installed in the safe-area cabinet to limit energy in the hazardous zone. This configuration maintains ATEX compliance and ensures that the probe circuit cannot become an ignition source under fault conditions.

Critical Industrial Safety Applications

The Bently Nevada 330104-00-06-05-02-05 is deployed across the full spectrum of heavy industrial machinery protection applications:

Petrochemical & Refining: Installed on high-speed centrifugal compressors, reactor feed pumps, and crude distillation column overhead compressors, this probe monitors radial shaft vibration and provides the early warning necessary to prevent bearing seizure and unplanned unit shutdowns. In API 670-compliant machinery protection systems, the 3300 XL probe is the accepted standard for continuous, online vibration monitoring.

Power Generation: Steam turbine and gas turbine installations rely on proximity probes for shaft eccentricity, differential expansion, and thrust position monitoring. The 330104-00-06-05-02-05 withstands the high-temperature, high-vibration environment of turbine bearing pedestals, providing the real-time position data that prevents rotor-stator contact — one of the most destructive failure modes in rotating machinery.

Mining & Minerals Processing: Ball mills, SAG mills, and large slurry pumps operate in environments with extreme dust loading, moisture ingress, and mechanical shock. The IP67-rated probe body and robust cable construction of the 330104-00-06-05-02-05 maintain measurement integrity in these conditions, supporting predictive maintenance programs that reduce unplanned downtime in continuous ore processing circuits.

Metallurgy & Steel: Rolling mill main drives, continuous caster pinch rolls, and blast furnace blower trains demand vibration monitoring systems that can tolerate intense electromagnetic interference from large DC drives and induction furnaces. The shielded coaxial cable construction of the 3300 XL probe series provides the EMI rejection necessary for reliable signal transmission in these environments.

Water & Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in water treatment plants benefit from continuous proximity monitoring to detect impeller imbalance and bearing wear before they cause service interruptions. The non-contact measurement principle eliminates sensor wear, making the 330104-00-06-05-02-05 ideal for long-interval maintenance programs.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the probe fails to meet its specified sensitivity, linearity, or output characteristics within the warranty period, we will provide a replacement unit at no charge. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: What pre-shipment testing is performed on each unit?
Every 330104-00-06-05-02-05 unit undergoes full functional verification before dispatch, including sensitivity calibration check (7.87 V/mm ± 10%), cable continuity and insulation resistance testing, connector integrity inspection, and visual inspection for physical damage. A test report is available upon request.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL Proximitor systems?
Yes. The 330104-00-06-05-02-05 is a direct, drop-in replacement for all standard 3300 XL 8mm probe configurations. It is fully compatible with the 3300/16, 3300/55, and 3300 XL Proximitor Sensors without requiring recalibration of the Proximitor, provided the extension cable length and target material remain unchanged.

Q4: Can you support long-term supply for ongoing maintenance programs?
Yes. We maintain stock of the 330104-00-06-05-02-05 and related 3300 XL series components to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts programs. For facilities requiring guaranteed availability, we offer reserved stock arrangements. Contact our team to discuss your site’s specific spare parts strategy.
